● 1024*RGB*600 resolution (IPS LCD screen)
● 4CH x cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS

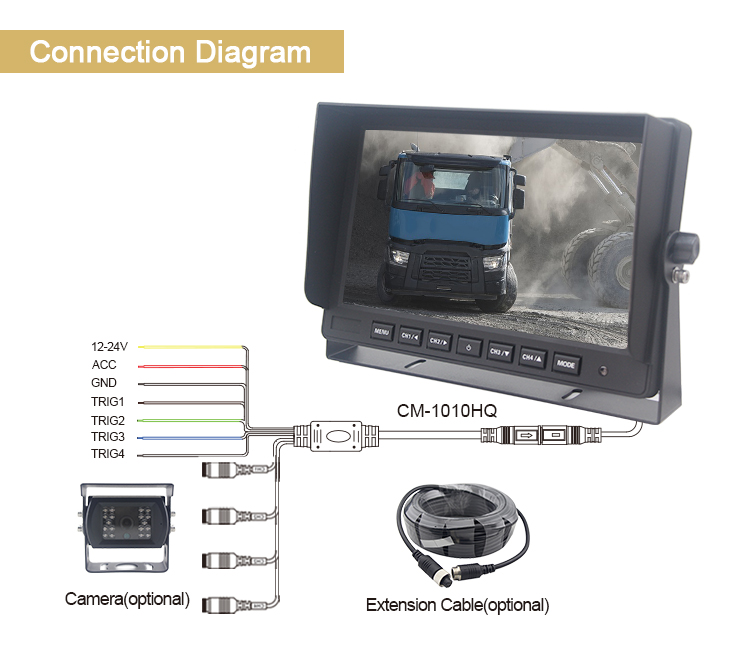

● 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

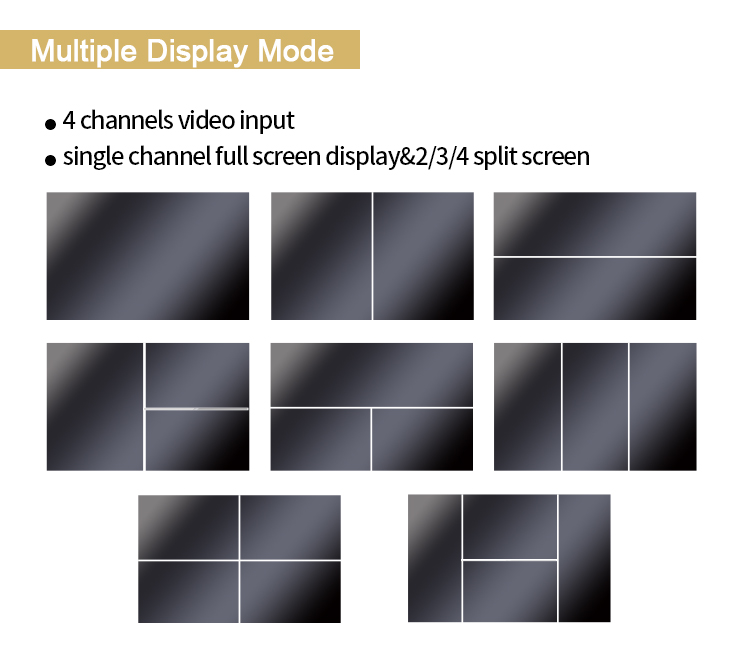

● Full display & dual/triples/quad split view mode
● 1CH audio signal input (high quality speaker)
● Max. 256GB memory card (4CH DVR HD loop recorder)

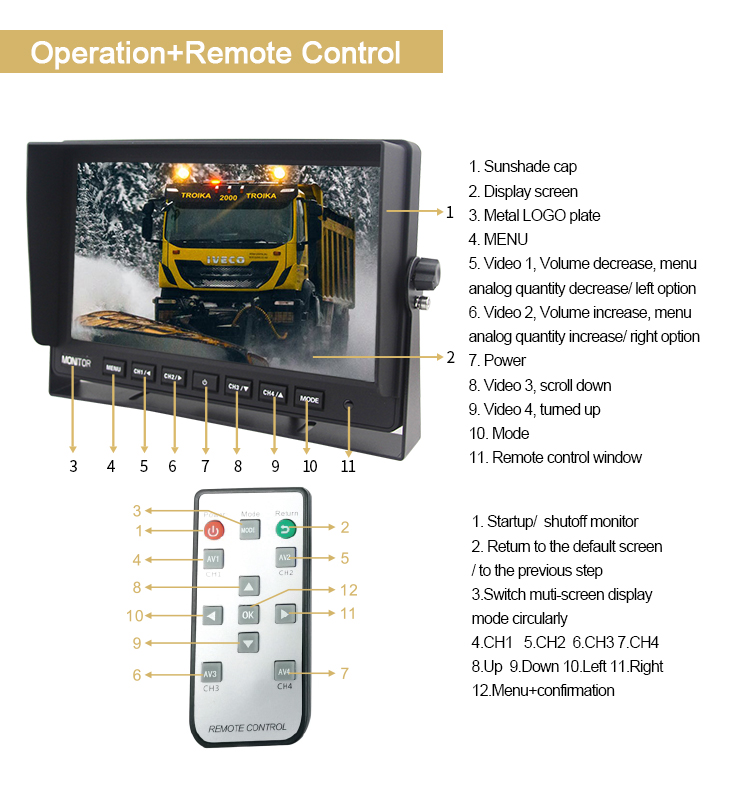

● Full-function remote control
● Multi-language settings
● Horizontal mirror image switching
● DC 12-24V wide voltage
● AUTO adaptation PAL / NTSC system
PRODUCT FEATURES

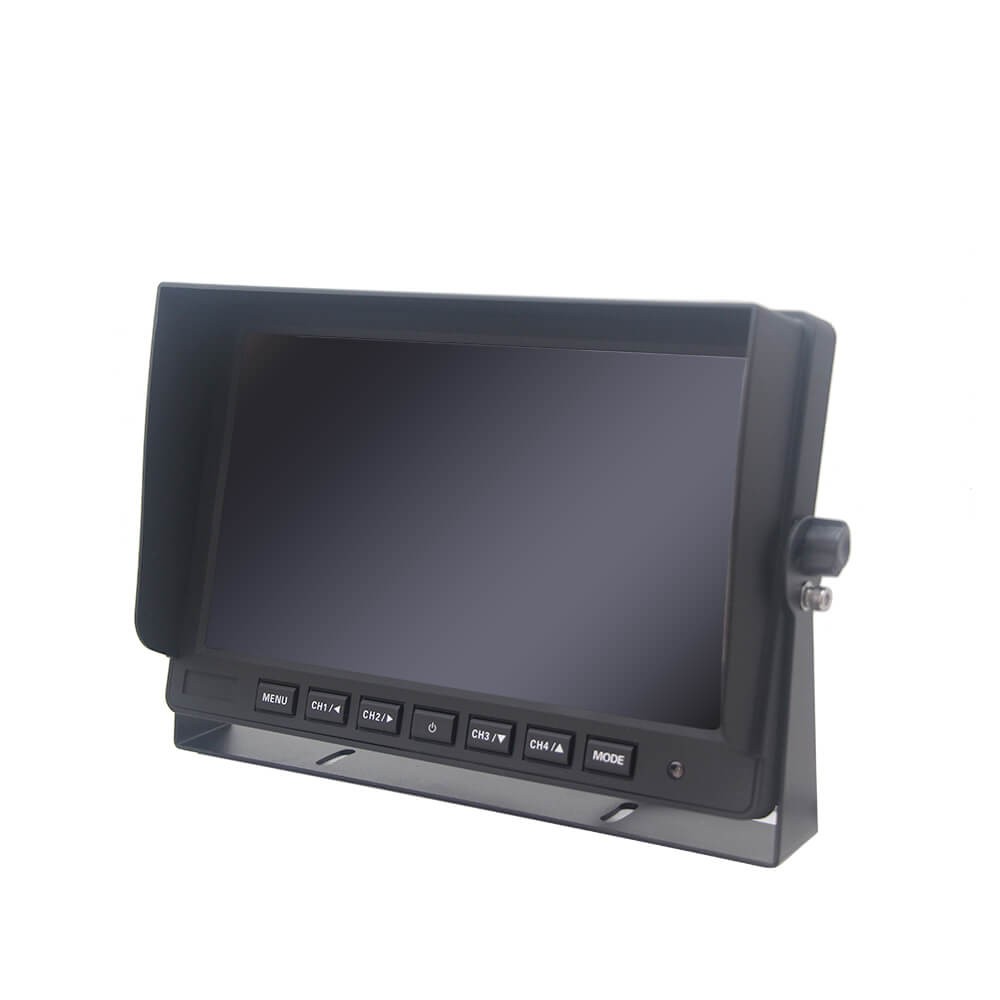

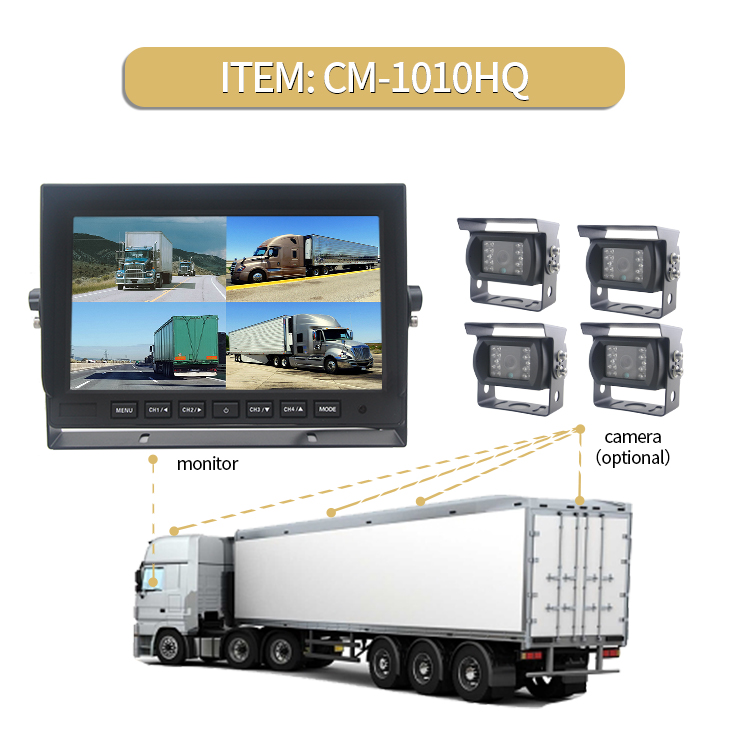

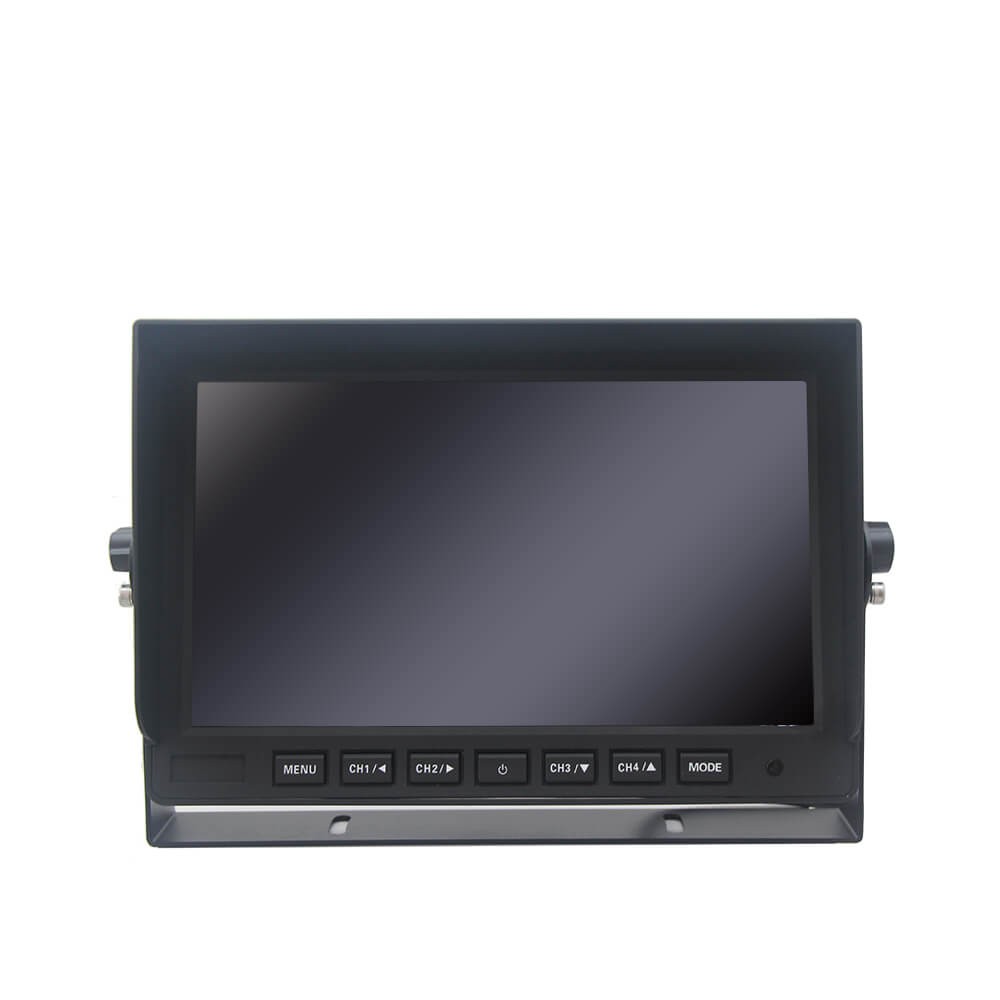

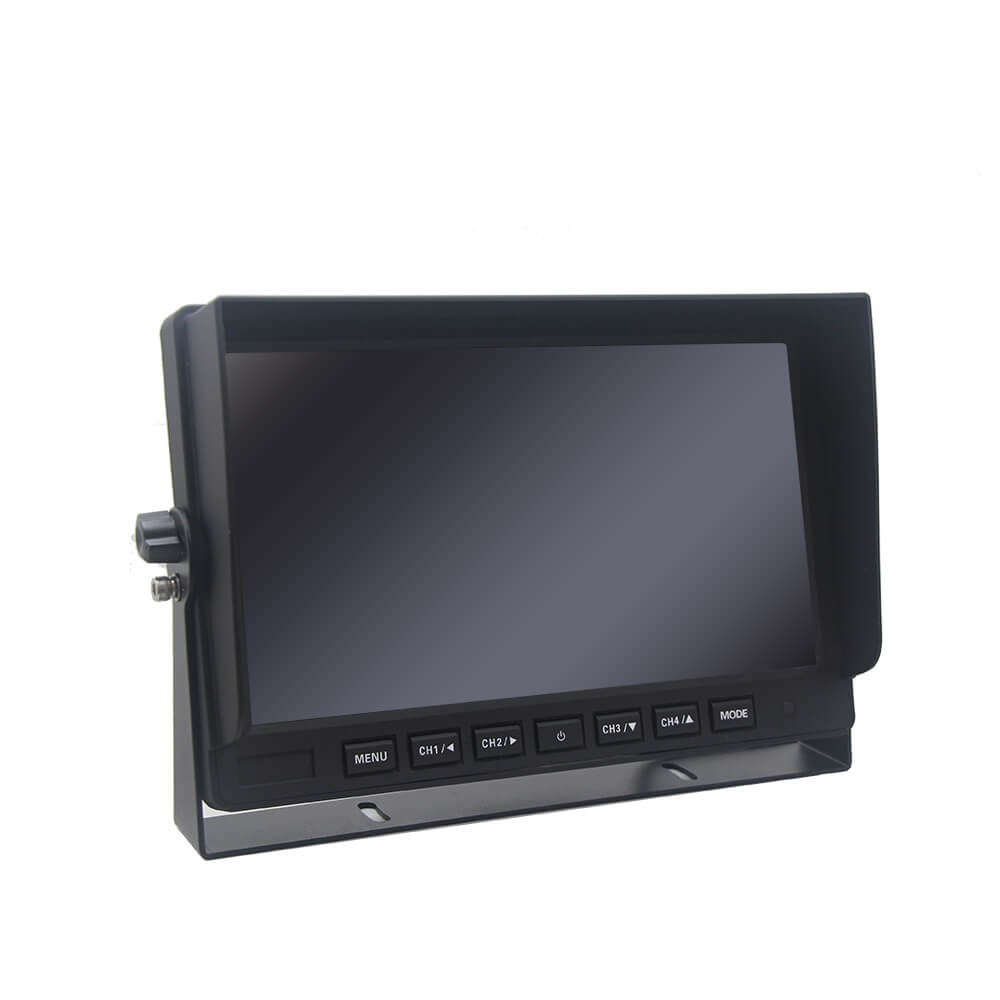

AOTOP [CM-1010HQ] 10.1 inch quad 1080P car IPS monitor can connection 4CH HD camera, to help drivers monitoring
their vehicle's surroundings in real time, can effectively reduce the risk of collision and scratching. Supporting DVR recording
function, it is able to save 4CH video signals, providing all-round recording and monitoring. If you are looking for a high
quality vehicle monitor solution, please feel free to contact us at sales@aotop.com.

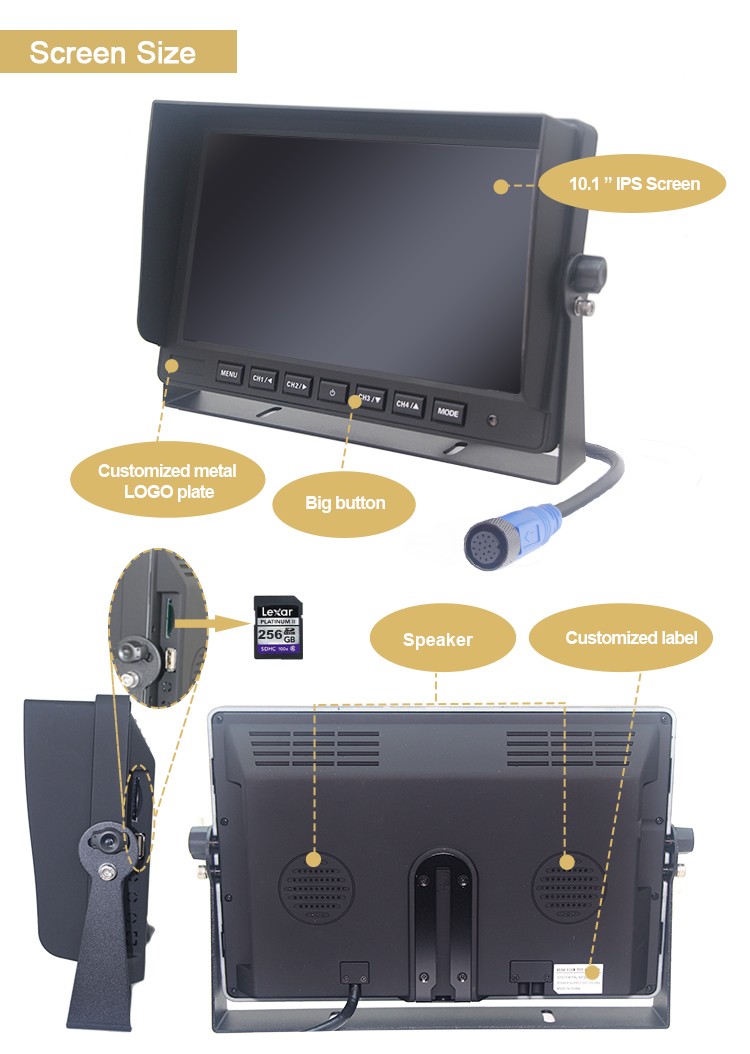

| Screen Size | 10.1 Inch HD Color IPS Screen |
| Screen Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Luminance | 400cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up-85°, Down-85°, Left-85°, Right-85° |
| Video Input | Support 4CH 1080P/720P/960P/CVBS |
| Audio Input | 1CH Audio Input For CH1 (No Audio When Playback) |
| OSD Menu | Image Setting, Image Turnover, Blue/Black Screen (No Signal), Language Setting, Recording Settings, Parking Guide Line On/Off, Reset |
| DVR | Built-In |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Reversing Delay | Each Channel Is Controlled Separately, 3S As Default |
| Storage Memory | Card SD Card（C10）, 256G(Max. C10) |
| Compressed Format | H.264 |
| Recording Resolution | 1080P |
| Recording File Output | AVI |
| Recording Replay | Support Single Image Real Time Replay |
| Language | English / Chinese |

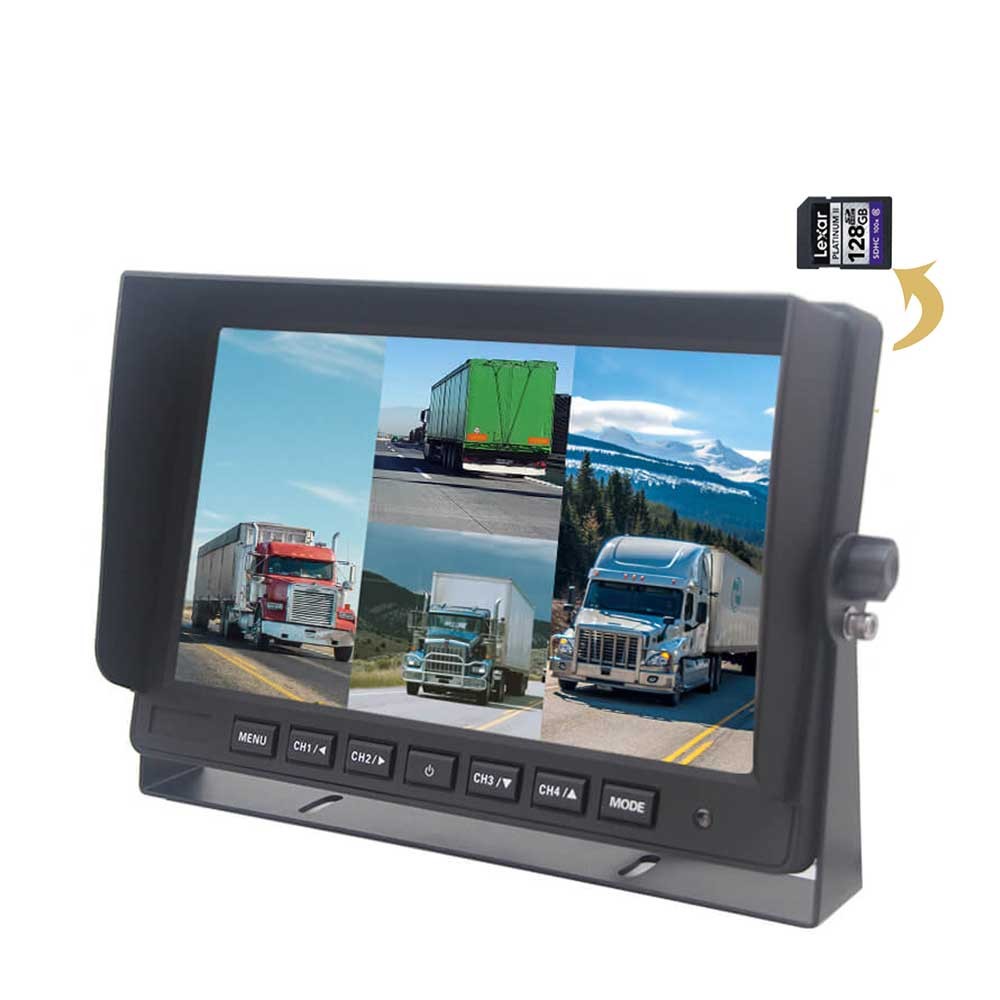

| Image Display | Single/Double/Triple/Quad Image Display |
| Trigger | 4CH |
| Speaker | 1CH |
| System | PAL/NTSC (Automatically) |
| Power Supply | DC 12-24V |
| Currents | 12V/1.1A |
| Operating Power | 13.2W |
| Boot Time | About 3 Sec. |
| Operating Temperature | -20~+70 ºC |
| Operating Humidity | 95%RH |
| Storage Temperature | -30~+80 ºC |
| Vibration Rating | 4G |
