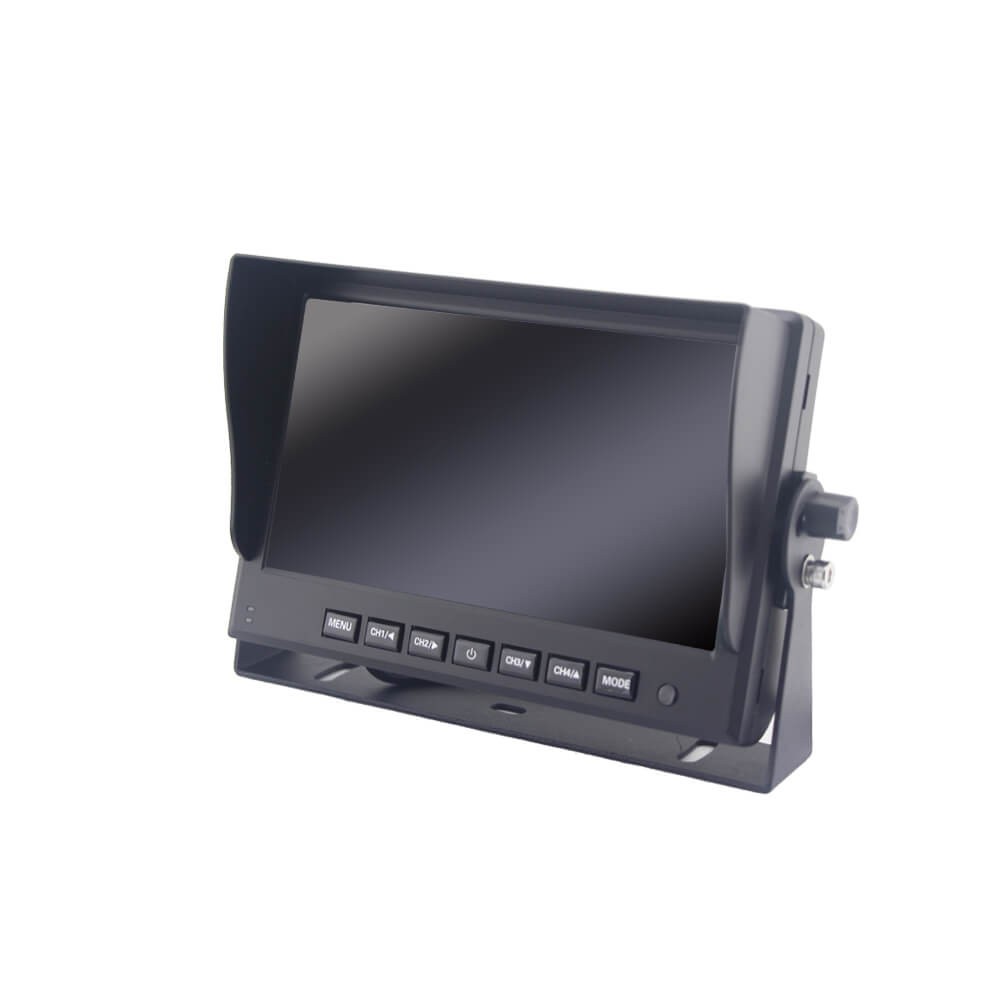

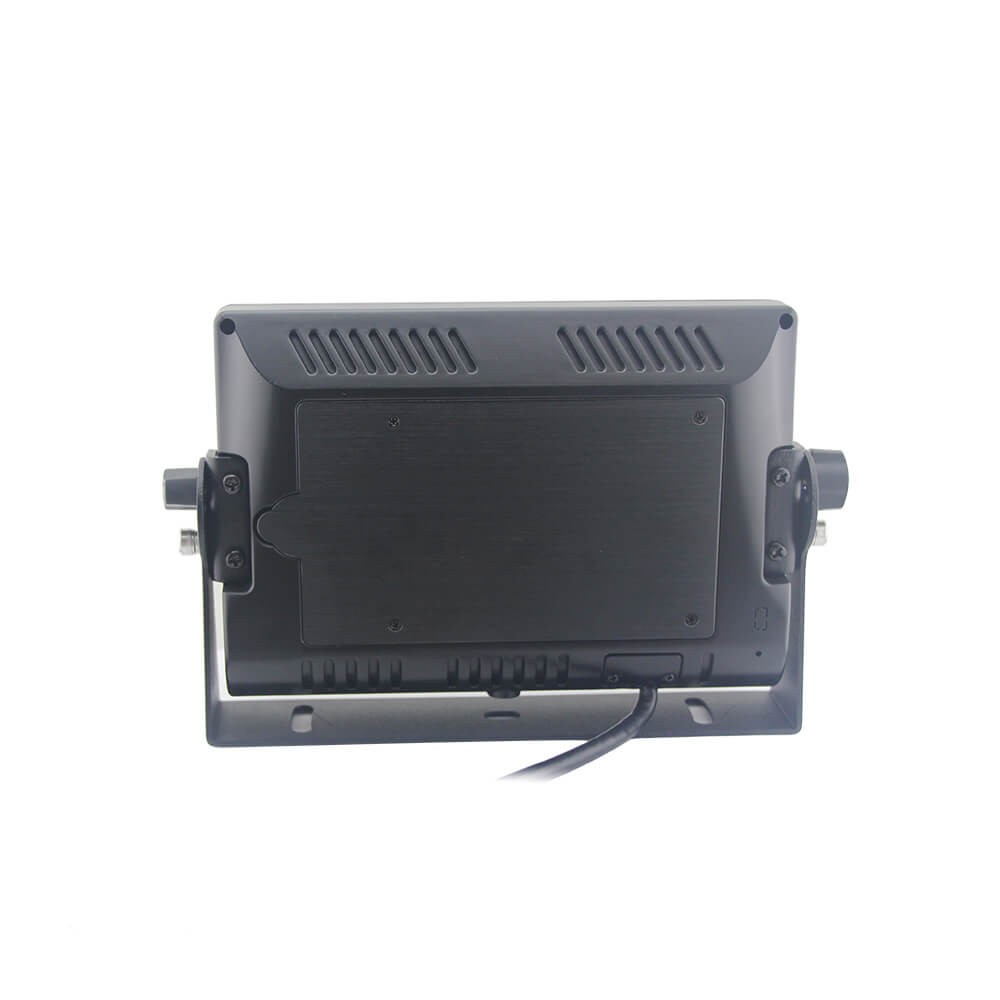

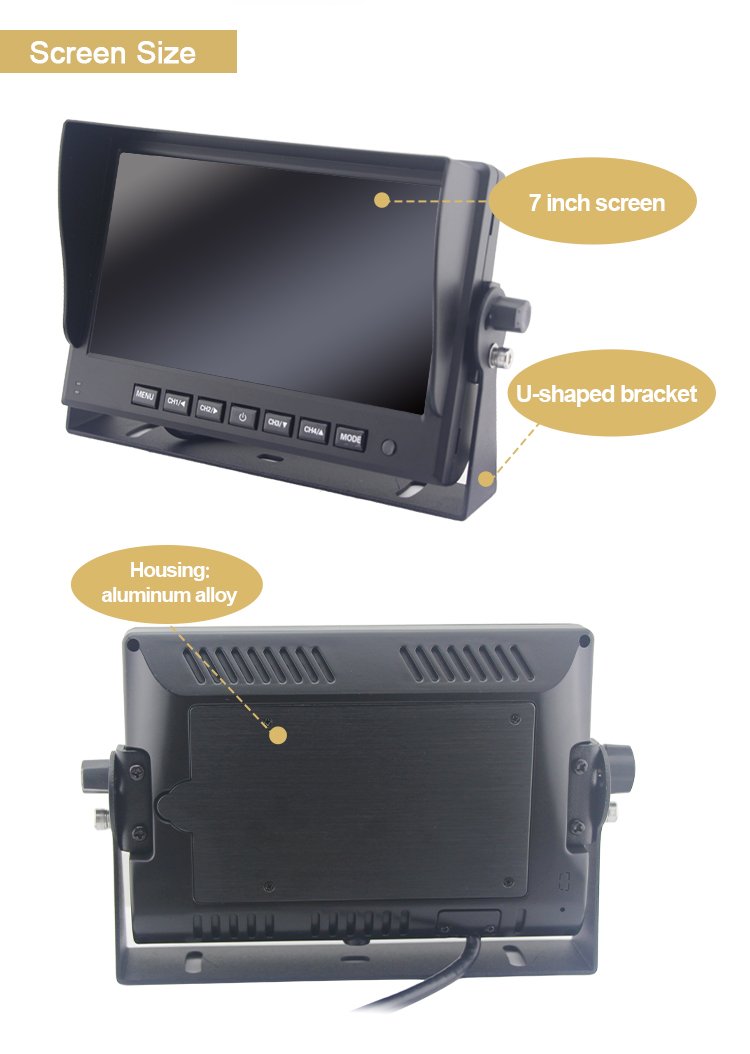

● With sunshade cover & U-bracket & aluminium alloy housing
● 1024*RGB*600 HD resolution (IPS LCD screen)
● 4CH x cameras video signal input
●Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS
● 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

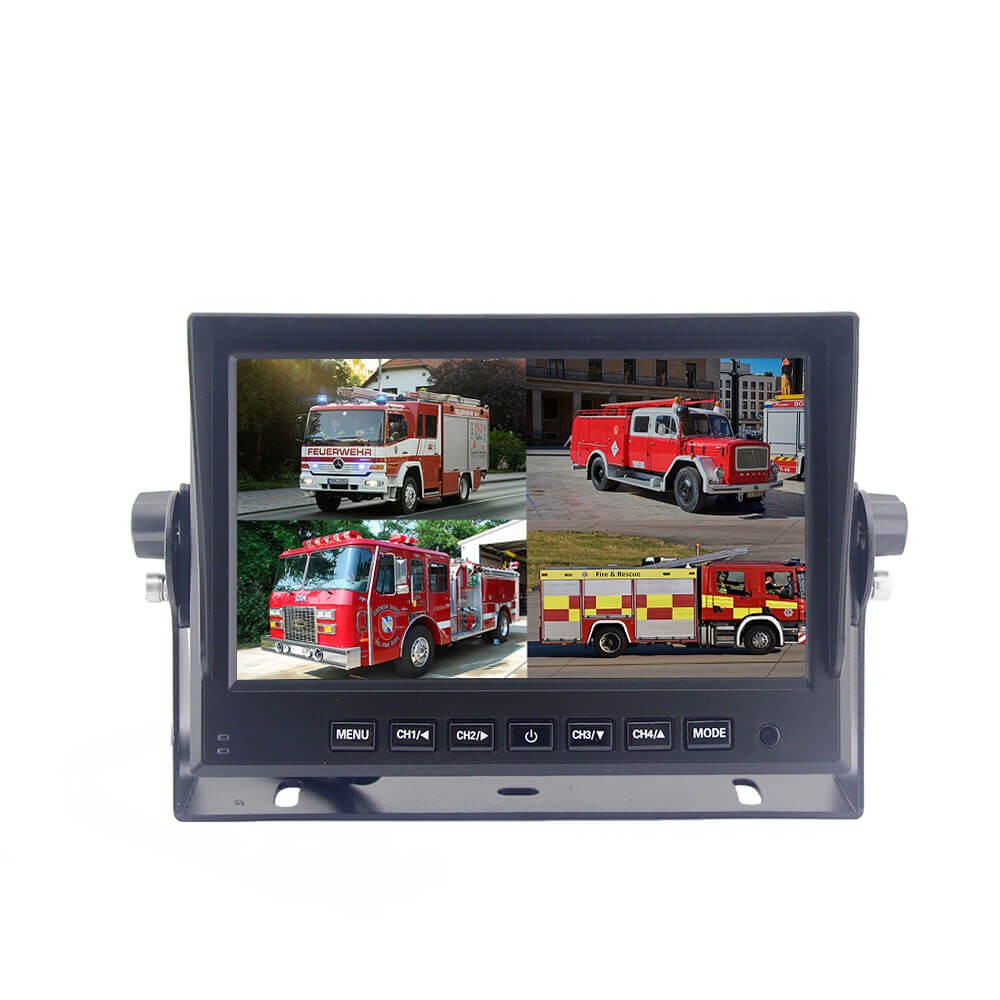

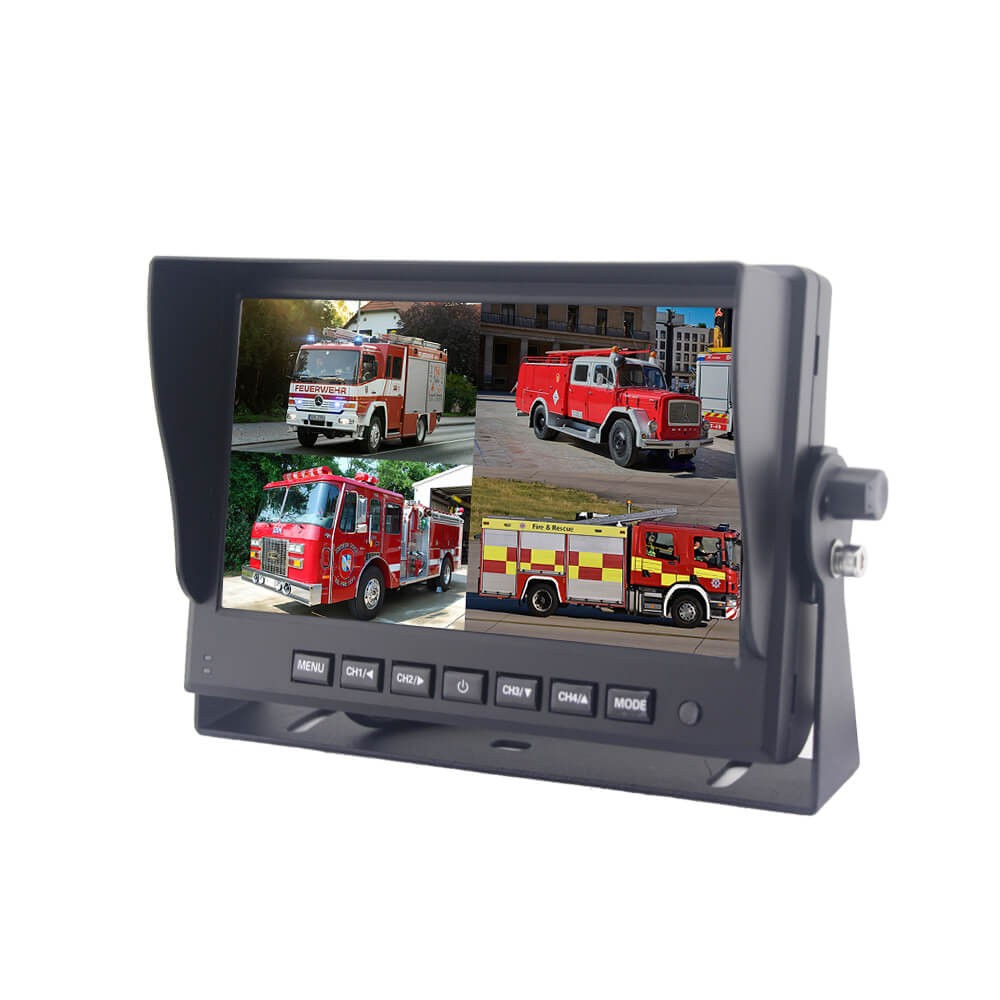

● Full display & dual/triples/quad split view mode

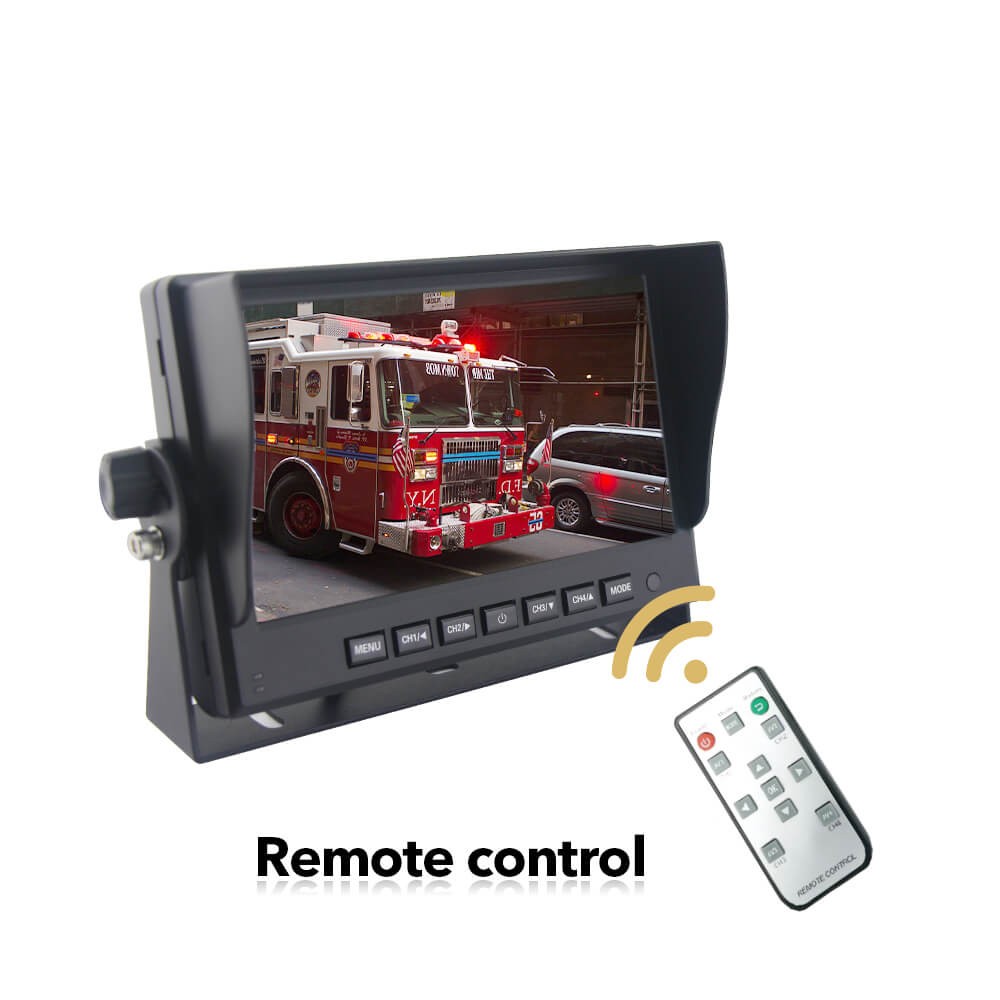

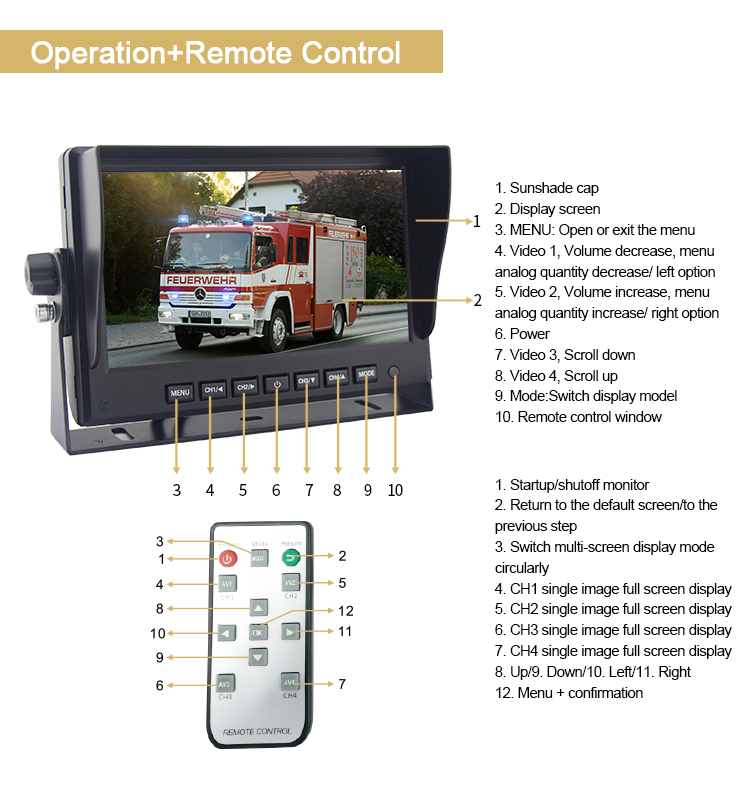

● Full-function remote control
● Multi-language settings
● Horizontal mirror image switching
● DC 12-24V wide voltage
● AUTO adaption PAL / NTSC system
PRODUCT FEATURES

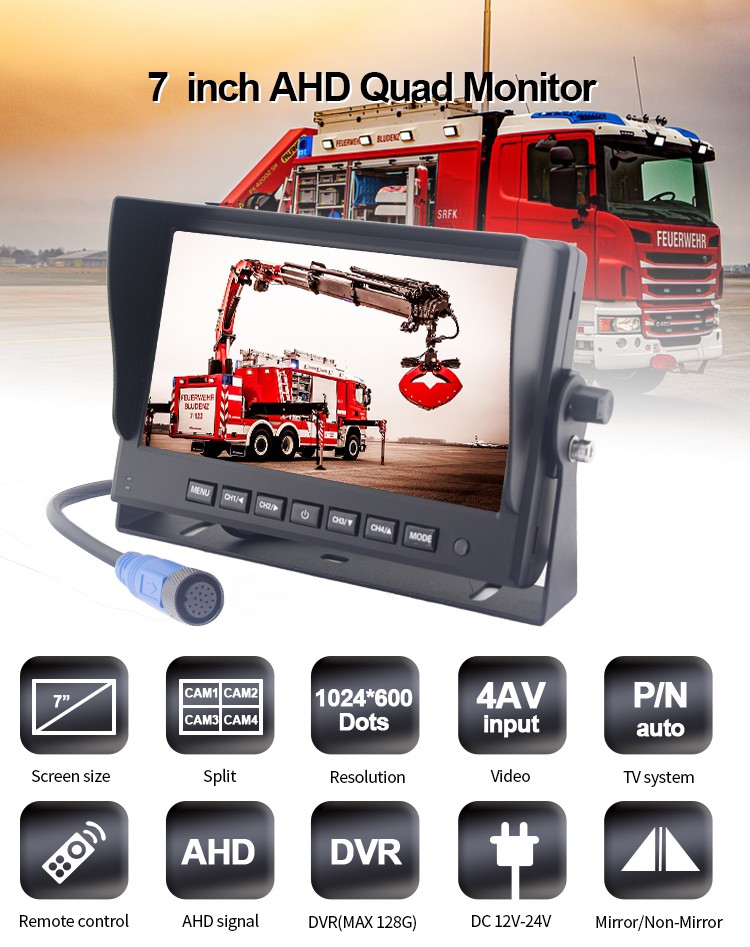

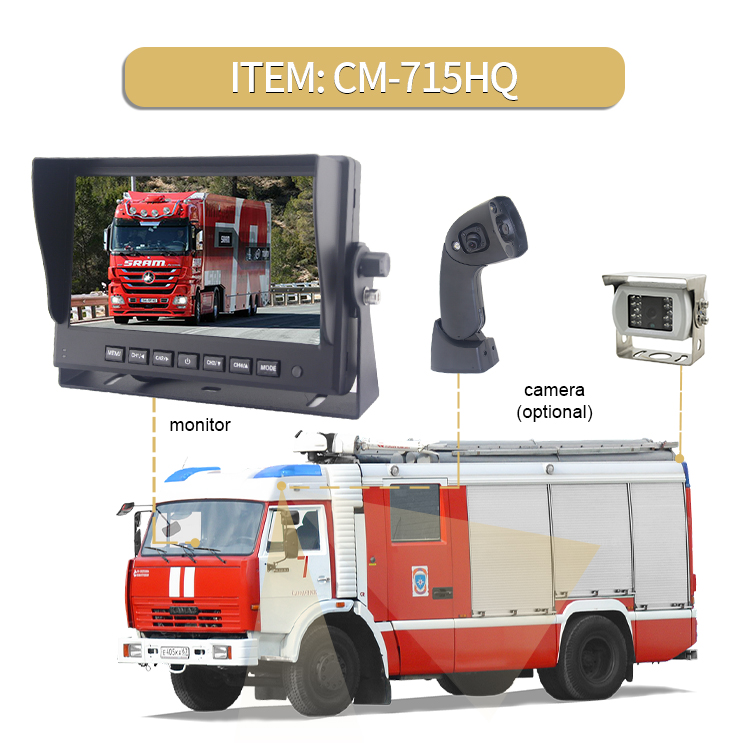

AOTOP 4CH high definition quad view vehicle IPS monitor is good for heavy duty vehicles, supports 4CH AHD camera
video input, allowing drivers to view the vehicle surroundings in real-time. Via HD visual monitoring, can effectively
prevents scratches and collisions caused by blind spots, improving driving safety. If you are looking for reliable car
monitor manufacturers & suppliers in China, please contact us at sales@aotop.com!
| Screen Type/Size | 7 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up-85°, Down-85°, Left/Right-85° |
| Video Input | Support 4CH AHD 1080P/720P/960P/CVBS Mixed Video Signal Inpu |
| OSD Menu | Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
| Response Time | 20~40Ms |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |

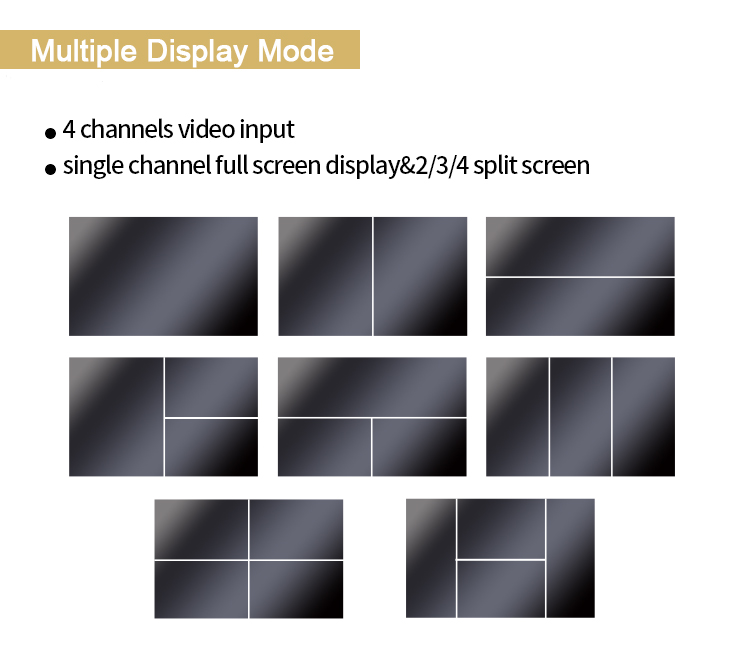

| Split View Mode | Single/Double/Triple/Quad View Image Display |

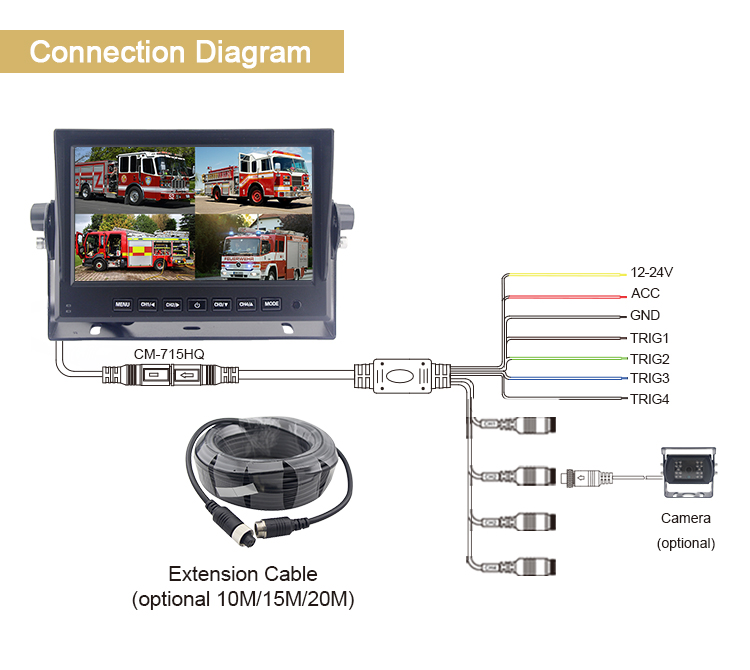

| Trigger | 4CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |
| OEM&ODM Customization | Bracket/LOGO Plate & Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
