● CVBS & 720P 1080P AHD resolution optional
● Microphone audio function optional
● SONY CCD image sensor

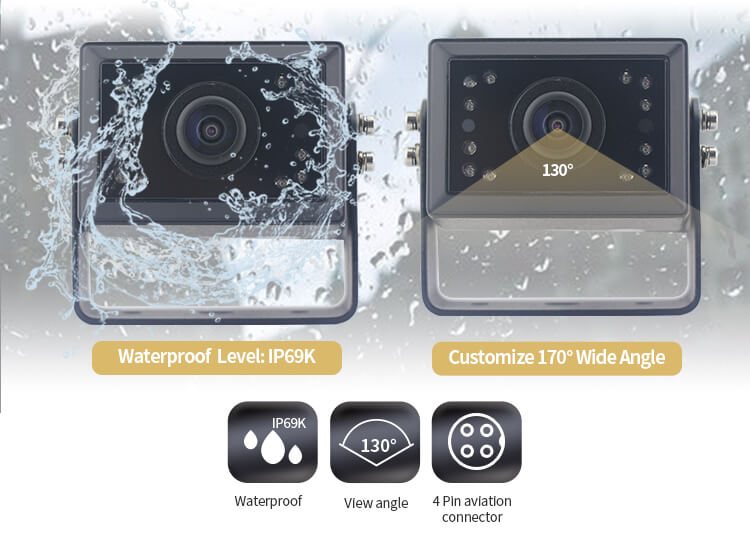

● IP69K waterproof rated
● 130° wide angle (customisable)

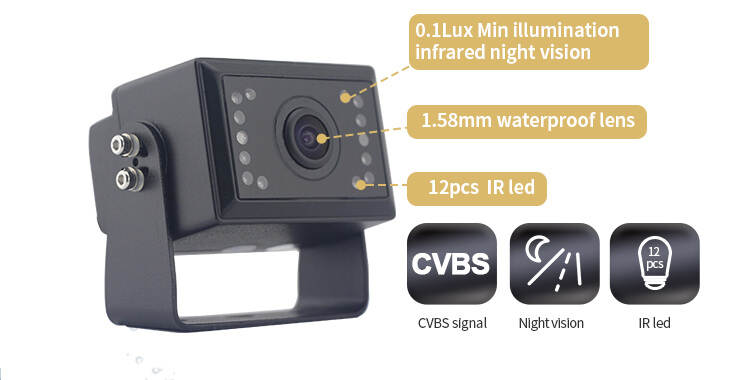

● 12pcs IR LED night lights (light sensor AUTO ON/OFF)
● PAL & NTSC TV system
● Aviation 4PIN female connector
● Microphone audio function optional
PRODUCT FEATURES

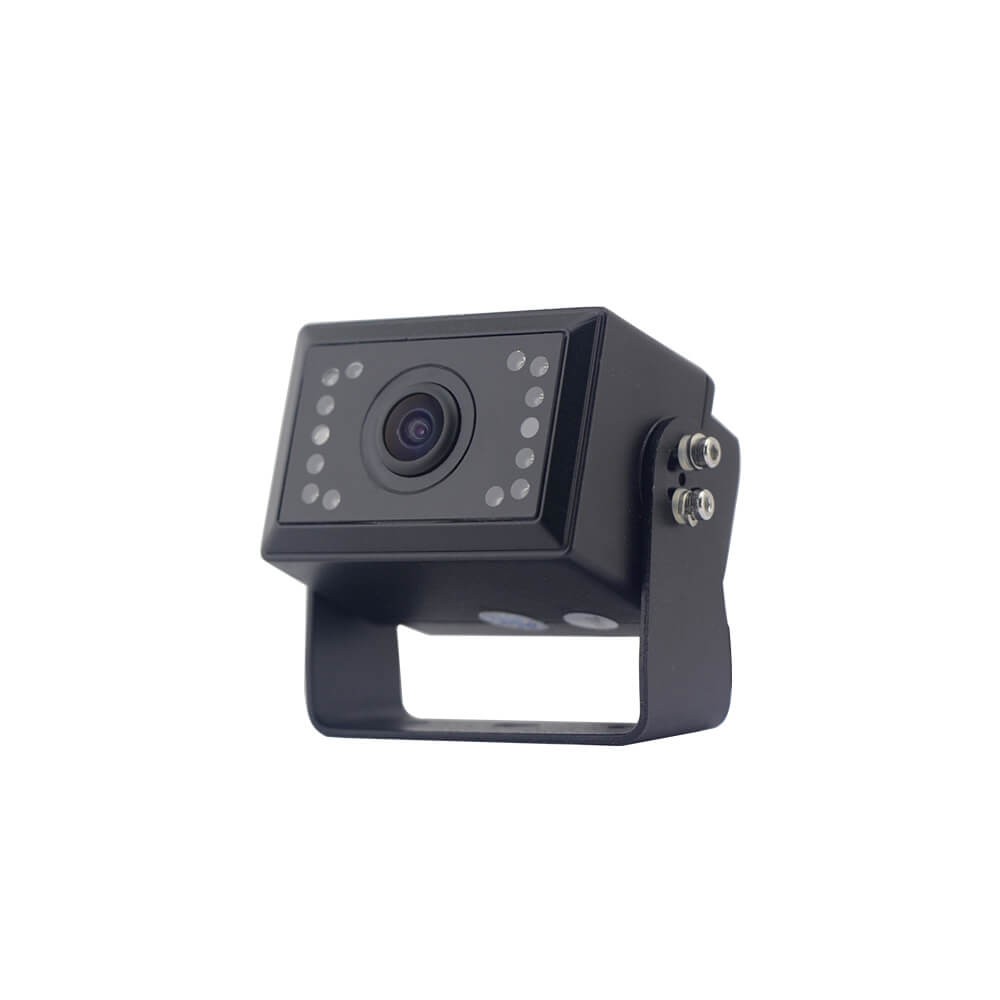

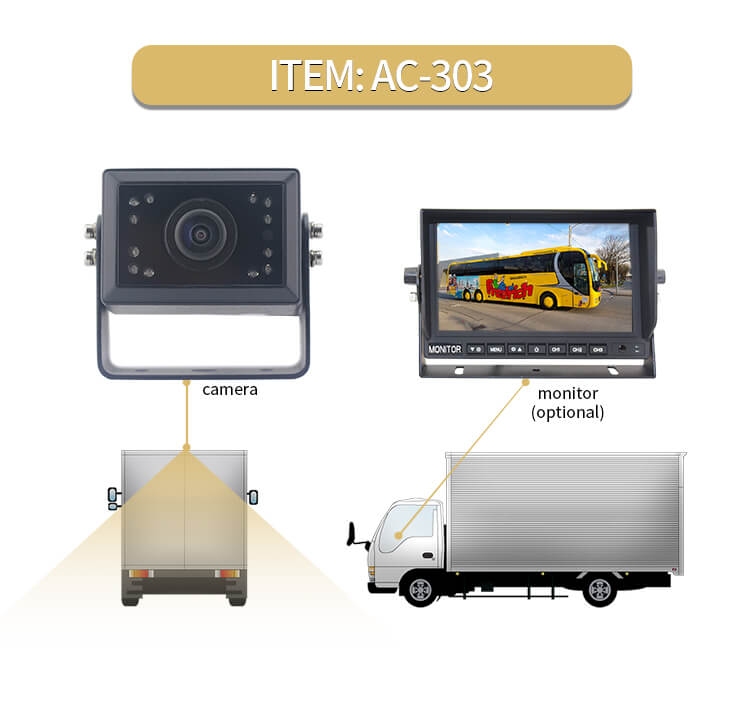

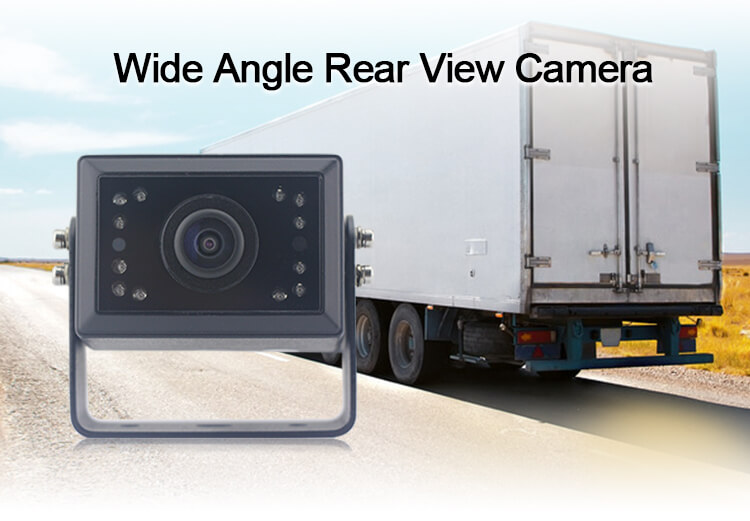

AOTOP is a leading commercial vehicle backup camera supplier & manufacturer in China. We offer a wide range
of high-quality backup camera. Our AC-303 backup camera uses a SONY CCD image sensor provide HD 1080P
image output, can meet customers' requirements for high quality in-vehicle monitoring. Feature IP69K waterproof,
wide angle, AUTO night vision etc. It is an ideal solution to improve the reversing safety of large commercial
vehicles. If you have any other questions, please contact sales@aotop.com!
| Image Sensor | SONY CCD |
| Effective Pixels | 1920(H) * 720(V) 1920(H) * 1080(V) |
| Resolution | 720P / 1080P |
| Night Vision | Top Starlight Night Vision 12pcs 0.1Lux IR LED Night Ligh |
| Night Vision Distance | 8-10M |
| Angle View | 130° |
| Waterproof Level | IP69K |
| Shockproof level | 4G |

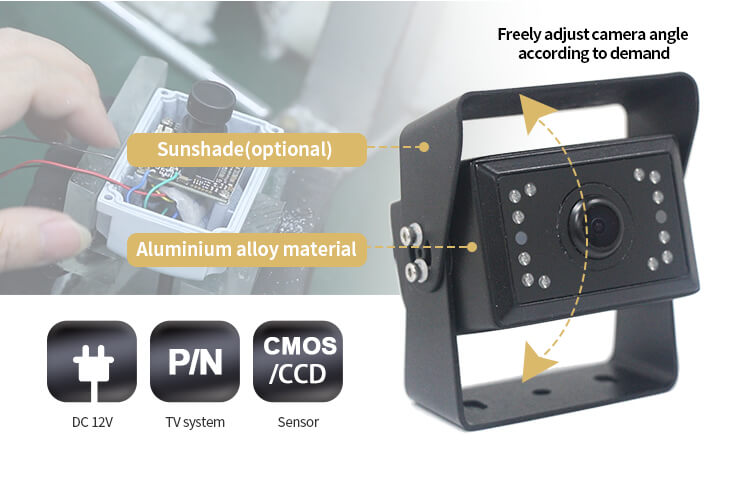

| Housing Material | Aluminium Alloy |

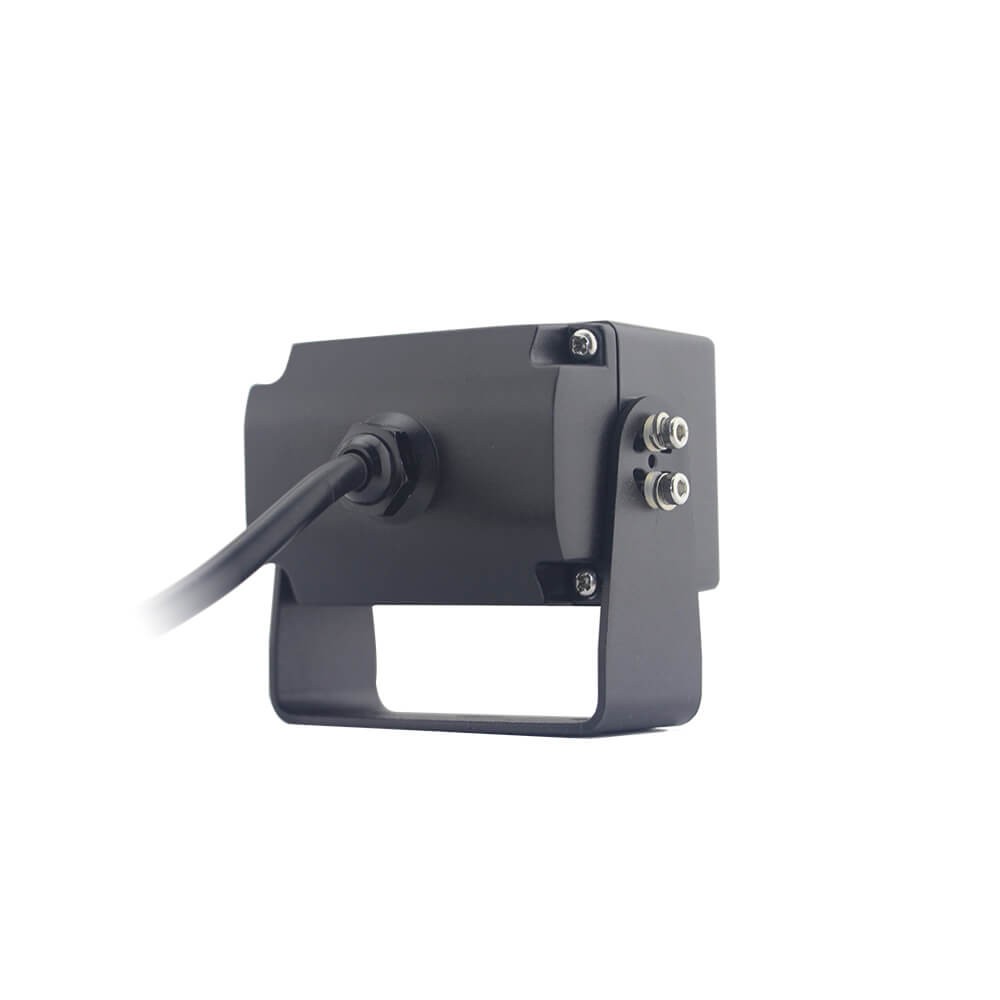

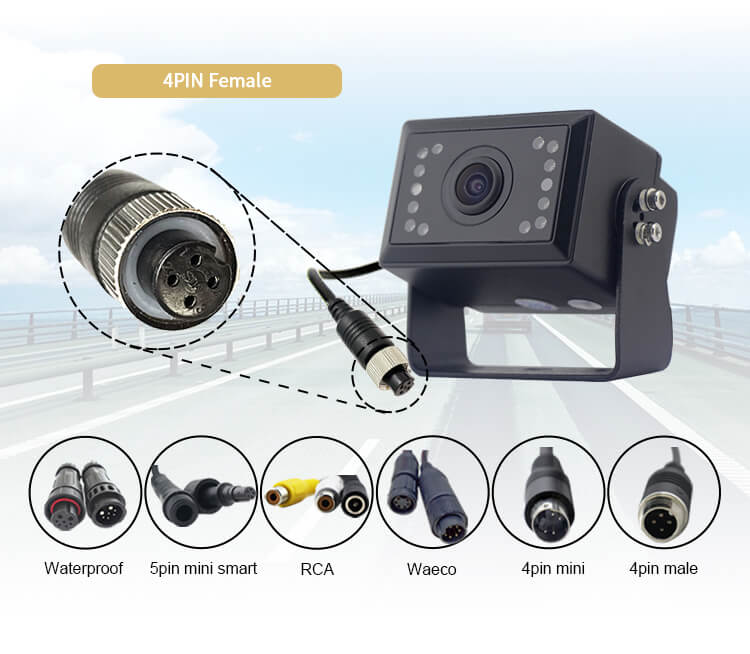

| Connection Plug(Connector) | Locking Aviation 4PIN Female |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |

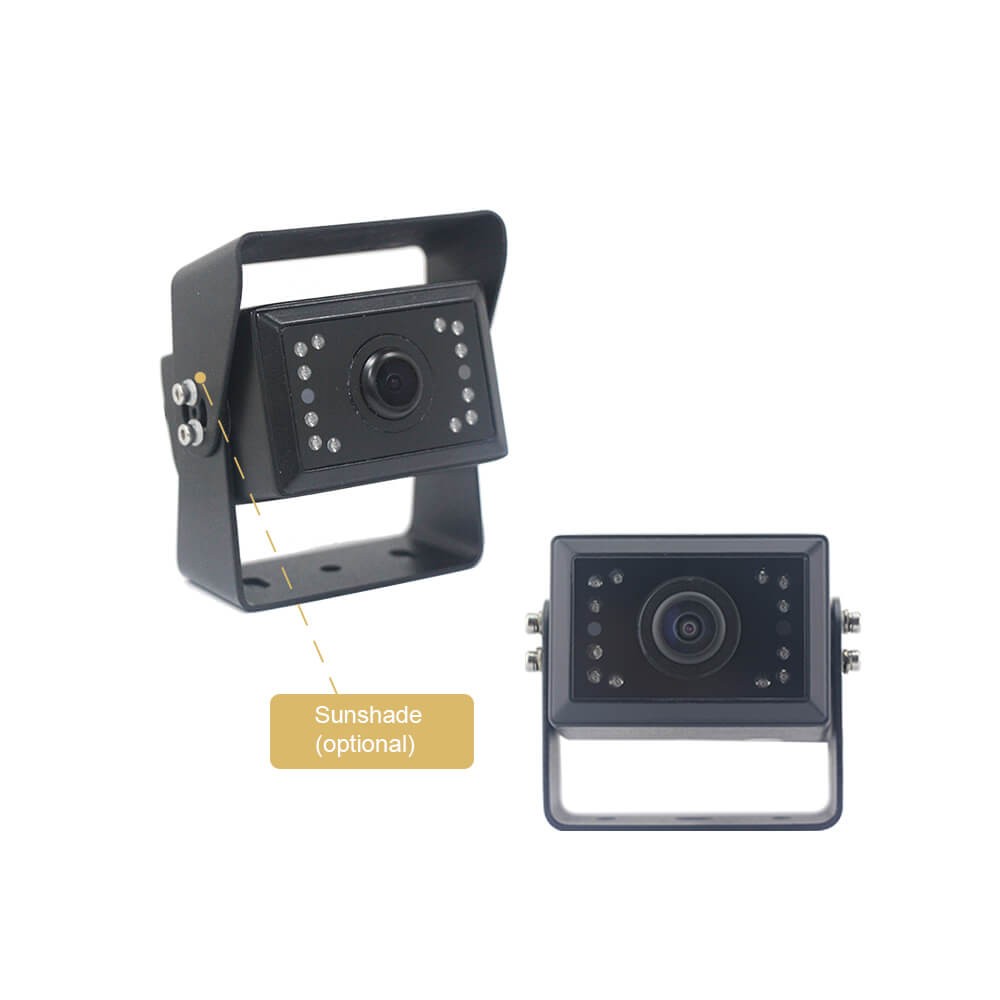

| Sunshade Cover Bracket | Optional |
| Microphone | Optional |
| Heating Function | Optional |
| Customisable | Color/Bracket/Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <250mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, E-Mark, RoHS, IP69K |
