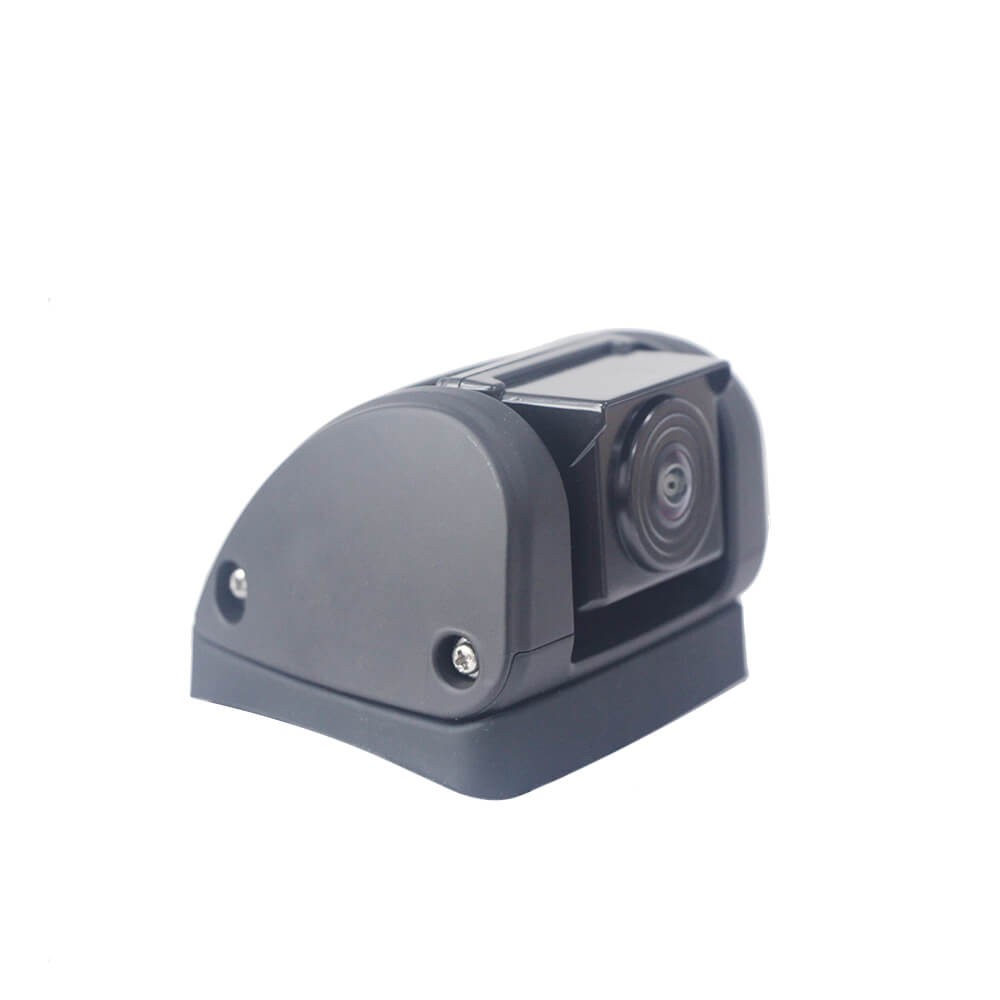

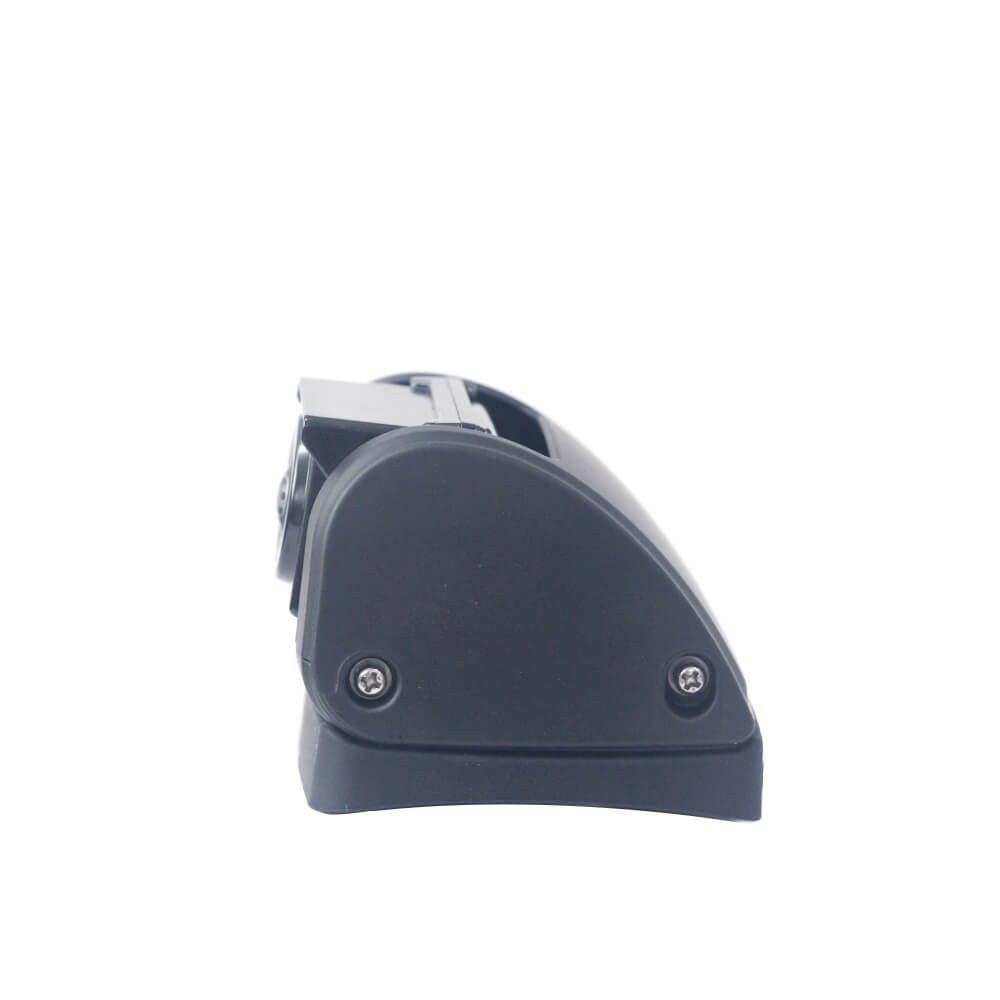

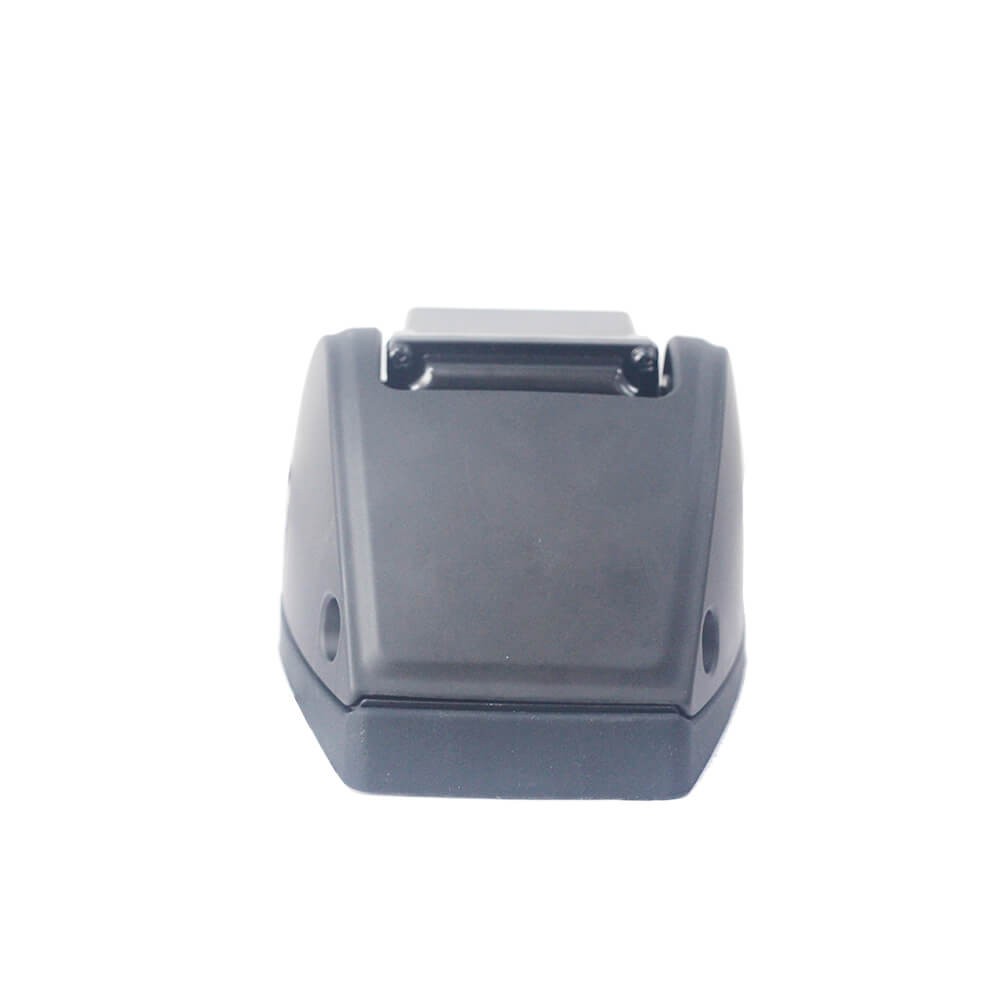

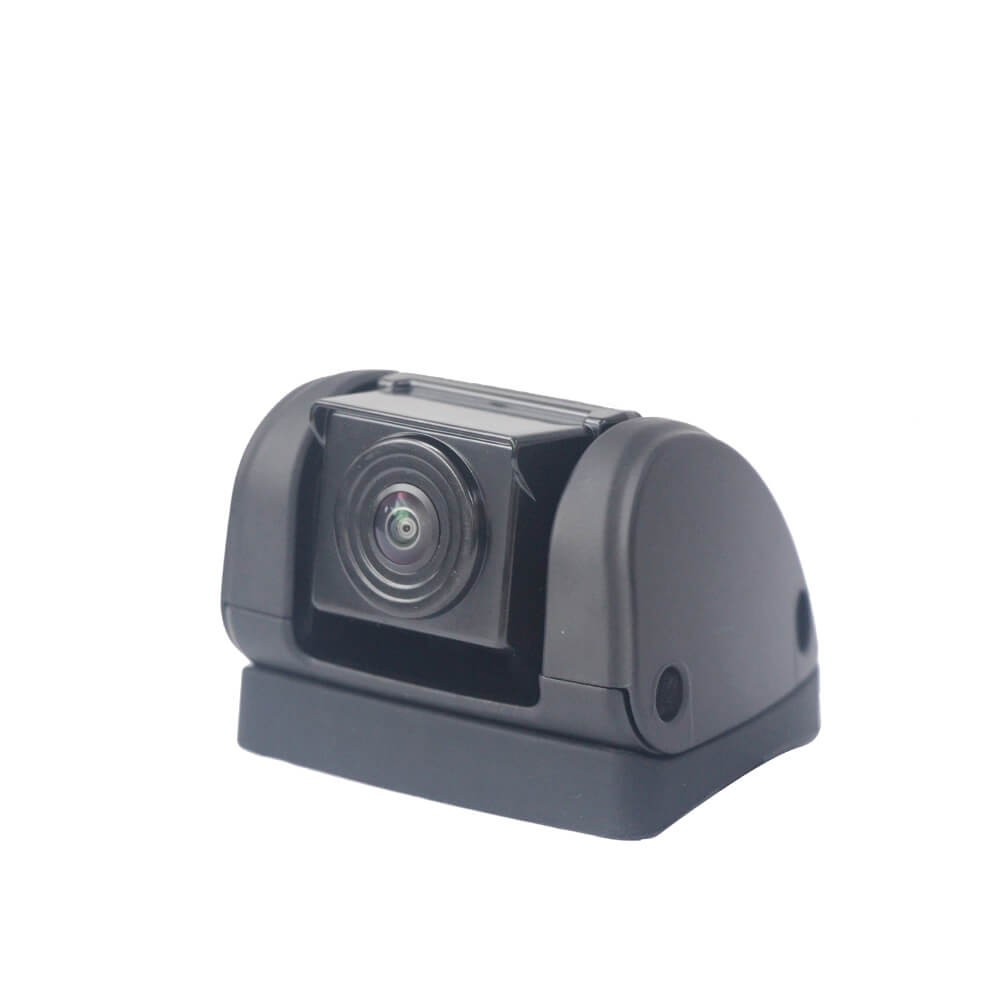

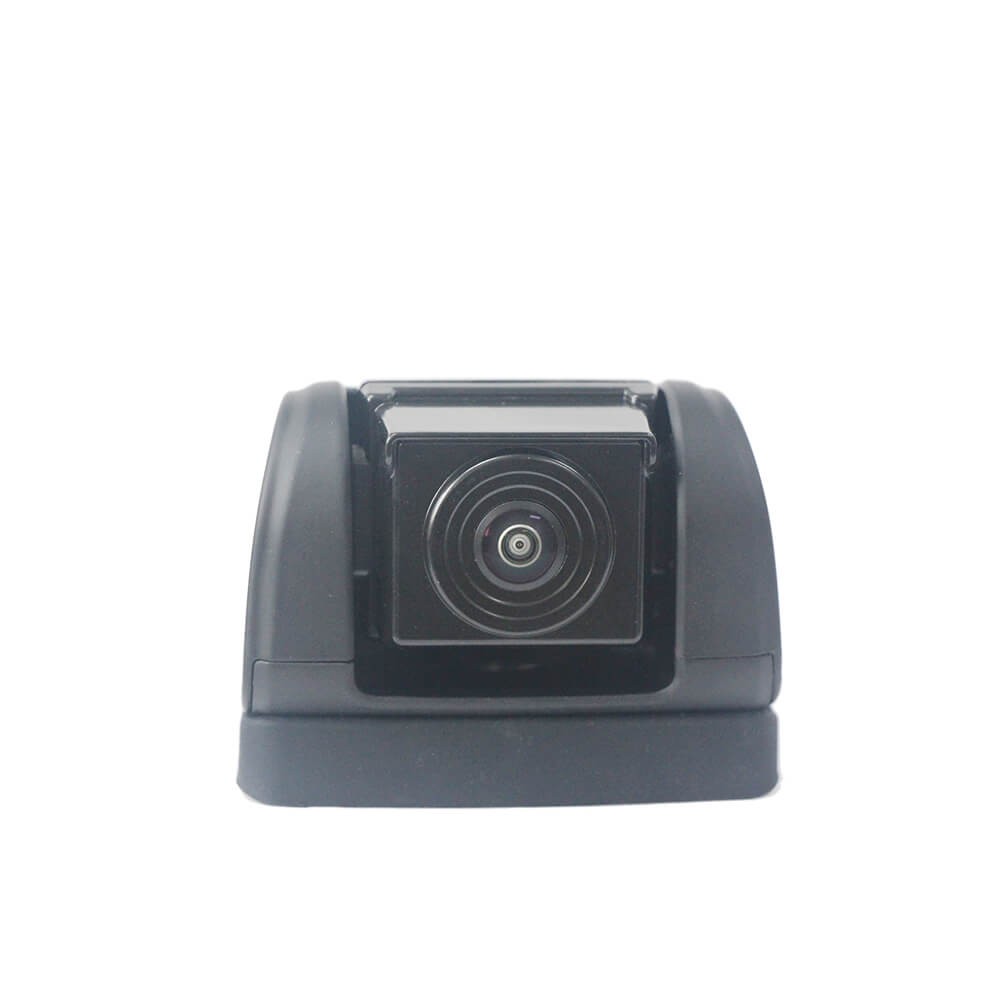

AC-980 AHD Wide Angle Rear View Camera Built-in SONY CCD Sensor

AC-980 AHD Wide Angle Rear View Camera Built-in SONY CCD Sensor

● 720P / 1080P AHD resolution
● SONY CCD image sensor
● IP69K waterproof level
● Diagonal 117° view (customisable)
● Built-in night vision
● Wide dynamic range technology
● Optional PAL / NTSC TV system
● Aviation 4PIN female connector

PRODUCT FEATURES

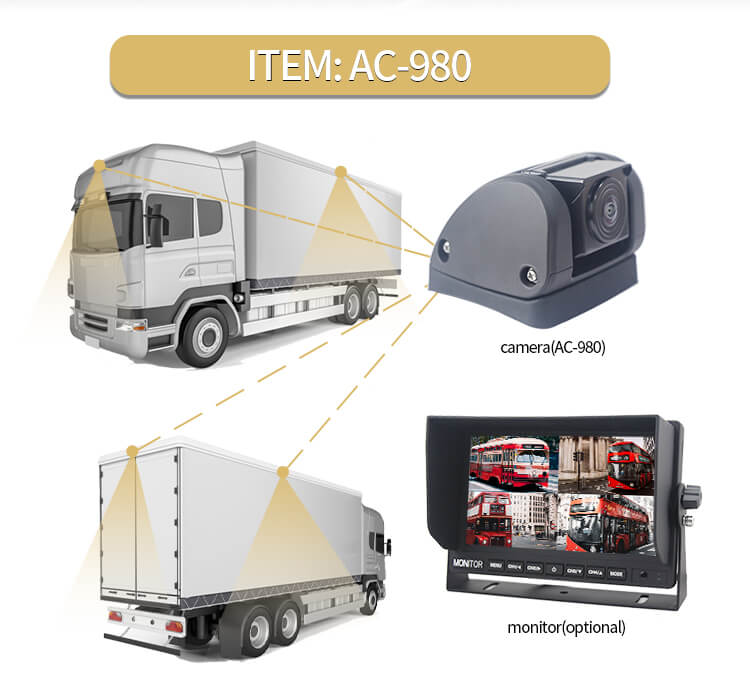

Aotop is a leading supplier & manufacturer of commercial vehicle rear view camera in China, we offer a
variety of high quality backup camera solutions. Our HD 1080P AC-980 camera uses SONY CCD image
processing chip, which can meet customers' requirements for high-quality vehicle monitoring. Wide
angle lens with wide monitoring range. Built-in light sensor AUTO night vision image. If you are looking
for a high-quality rear view backup camera for your fleet, please contact sales@aotop.com!

Image Sensor	1/3' SONY
Effective Pixels	1920(H) * 720(V) 1920(H) * 1080(V)
Resolution	720P/1080P

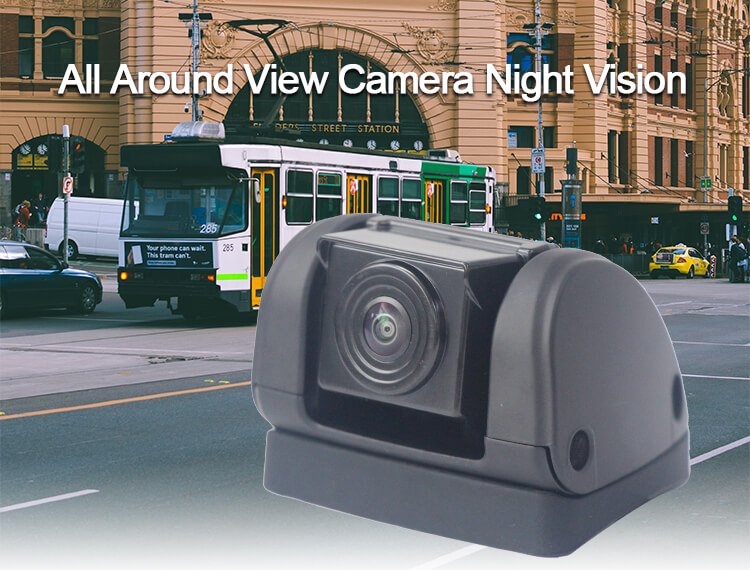

Night Vision	Built-in Light Sensor, AUTO HD Night Vision
Night Vision Distance	8-10M

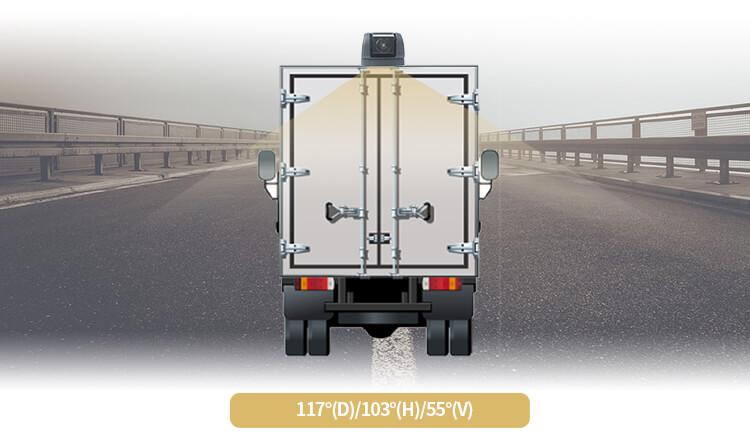

Viewing Angle	117° Diagonal / 103° Horizontal / 55° Vertical

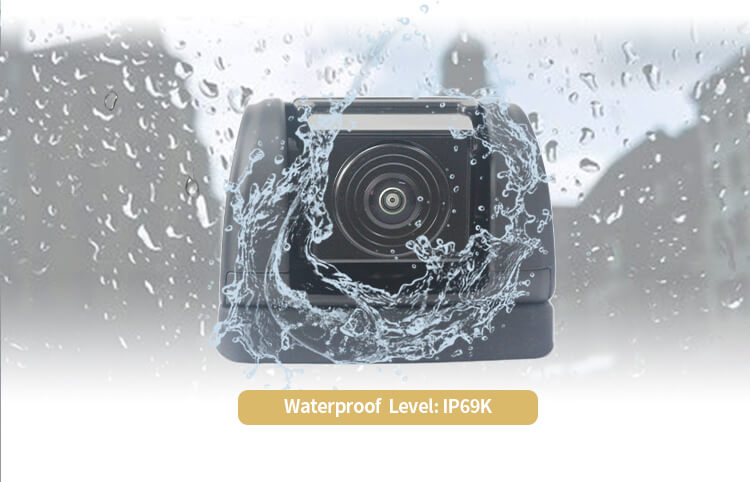

Waterproof Level	IP69K
Shockproof level	4G

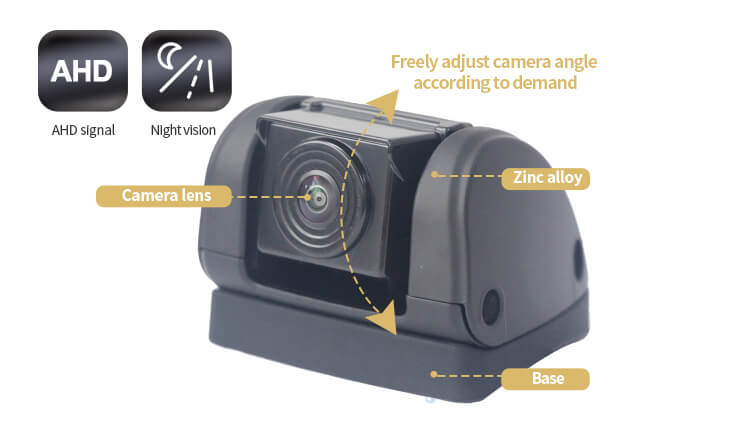

Housing Material	Plastic + Zinc Alloy

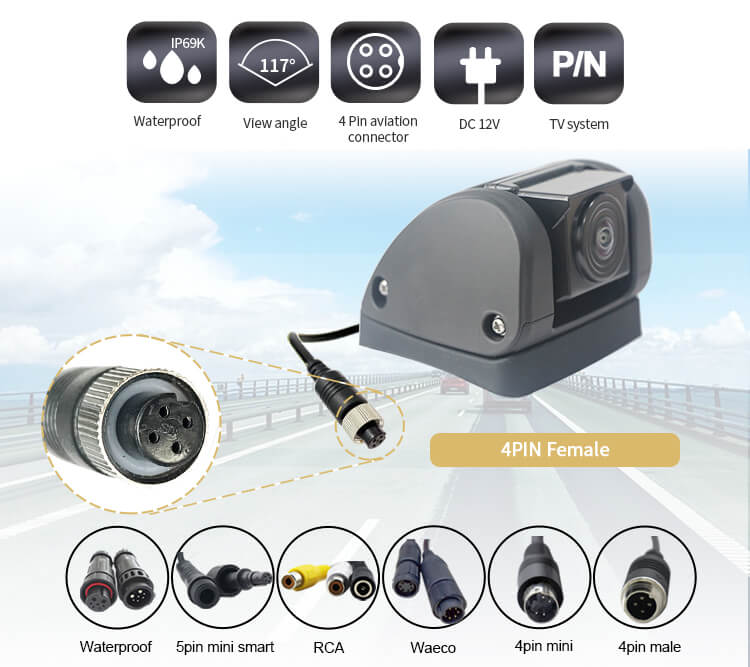

Connection Plug(Connector)	Locking Aviation 4PIN Female
TV System	PAL / NTSC (Default "PAL")
Mirror & Normal Image	Optional
Microphone	Optional
Customisable	Connector/Angle°/Resolution
Power Supply	12V
Maximum Current	≤100mA
Power Consumption	≤1W
Operating temperature	-20°c~+70°c (RH0%-RH90%)
Storage temperature	-30°c~+80°c (RH0%-RH90%)
Warranty	2 Years
