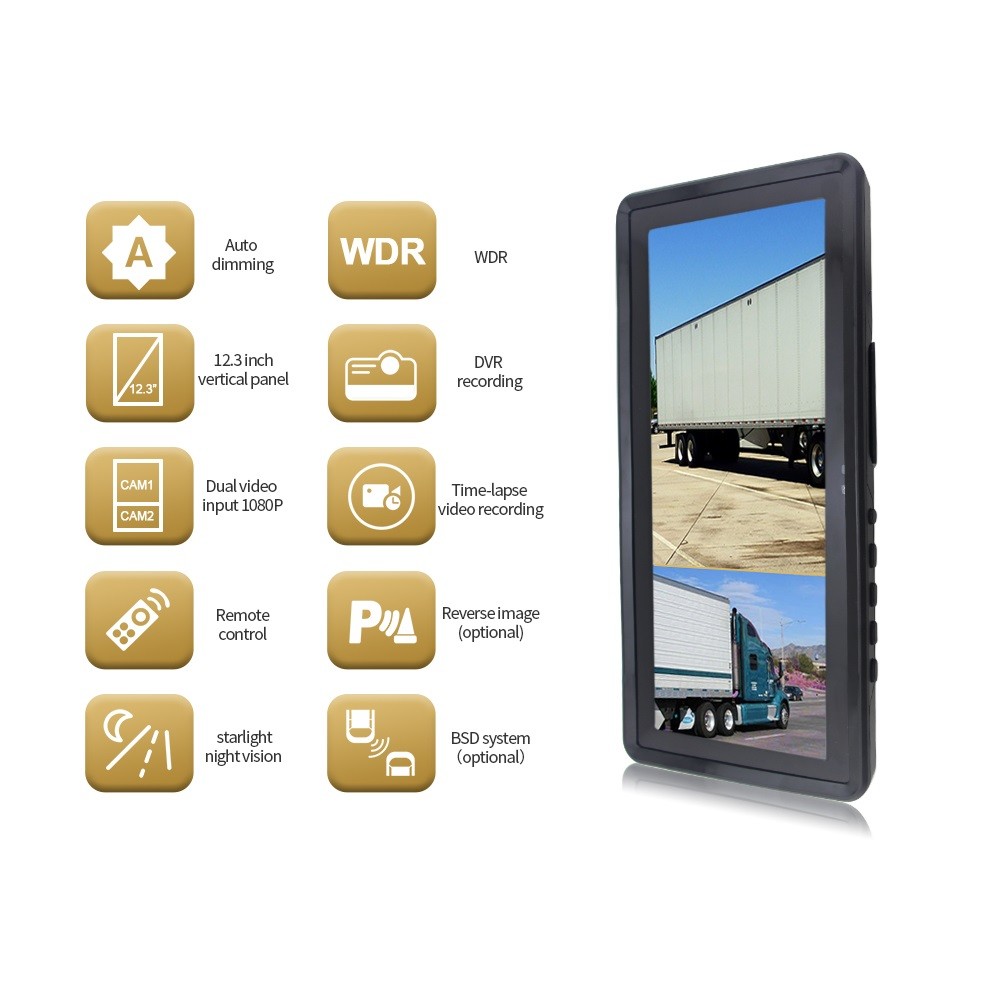

▶▶ 12.3 Inch Monitor Features
● 1920*720 HD IPS LCD Vertical Screen; AUTO Dimming;
● Dual Split View Mode (Camera Dual Lens Image Display)
● 2CH HD 1080P Video Signal Input
● Built-In 128GB Memory Card (DVR Recorder); Time-Lapse Video Recording;
● Built-in G-Sensor, Support G-Sensor Alarm Recording Triggered By Collision Detection;
● Full-Function Remote Control
● Multi-Language Settings
● Horizontal Mirror Image Switching
● Optional Reversing Image Can Be Added To The System With An Additional Reversing Camera
● Optional Blind Spot Detection Function
▶▶ Long / Short Arm Camera Features
● 1920*1080 High Definition Resolution; 30fps;
● IP69K Waterproof; HD Night Vision Function;
● WDR/HDR, Support Image Distortion Correction

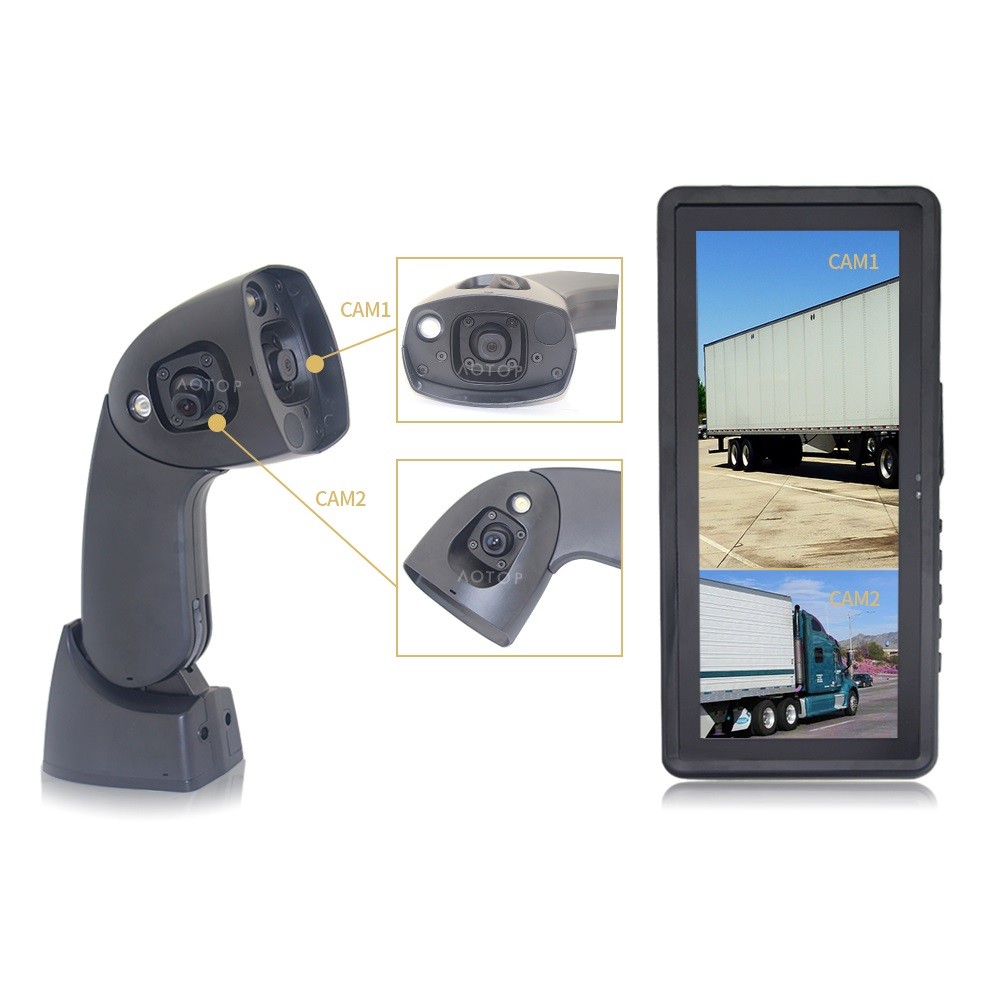

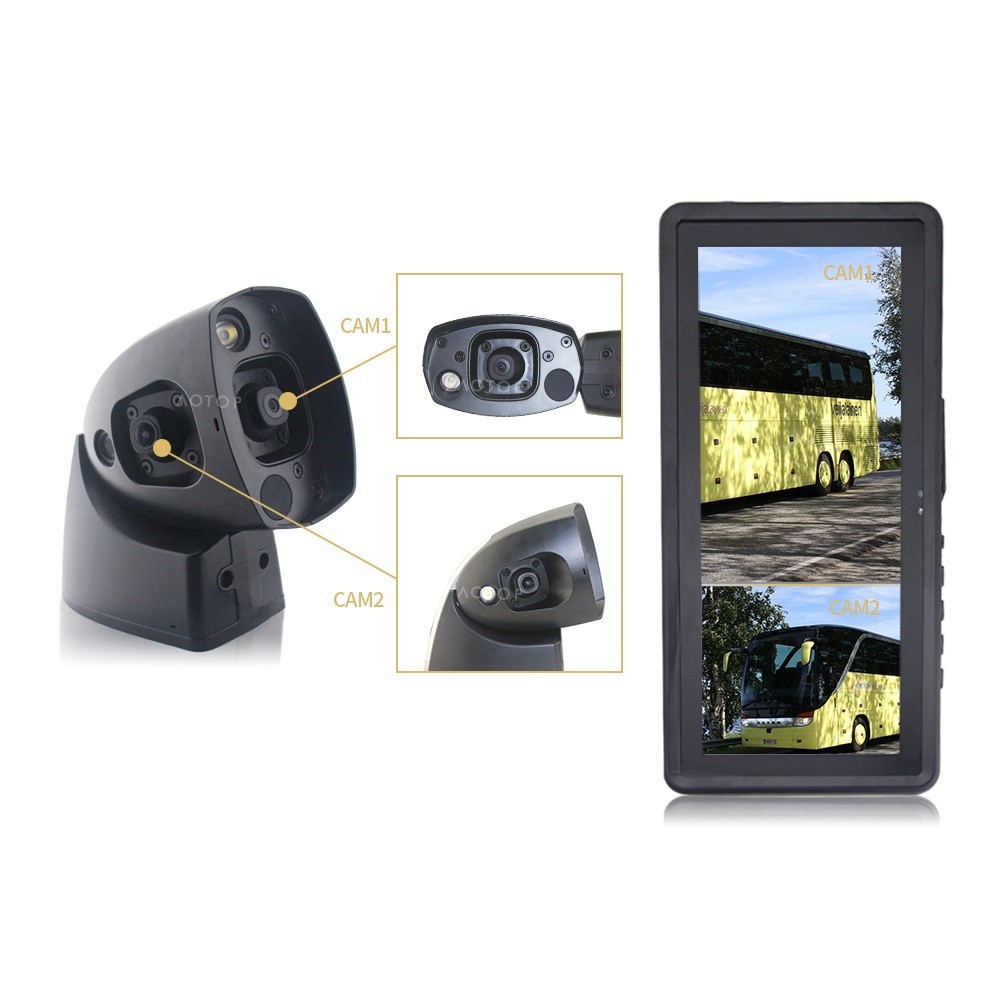

● Dual Lens Design 2CH Video Output; Distant View Lens: 83° (H)*50° (V); Nearby View Lens: 120° (H)*65° (V);
● PC+ABS / Plastic Injection Molding / Anti-Flaming UL94
PRODUCT FEATURES

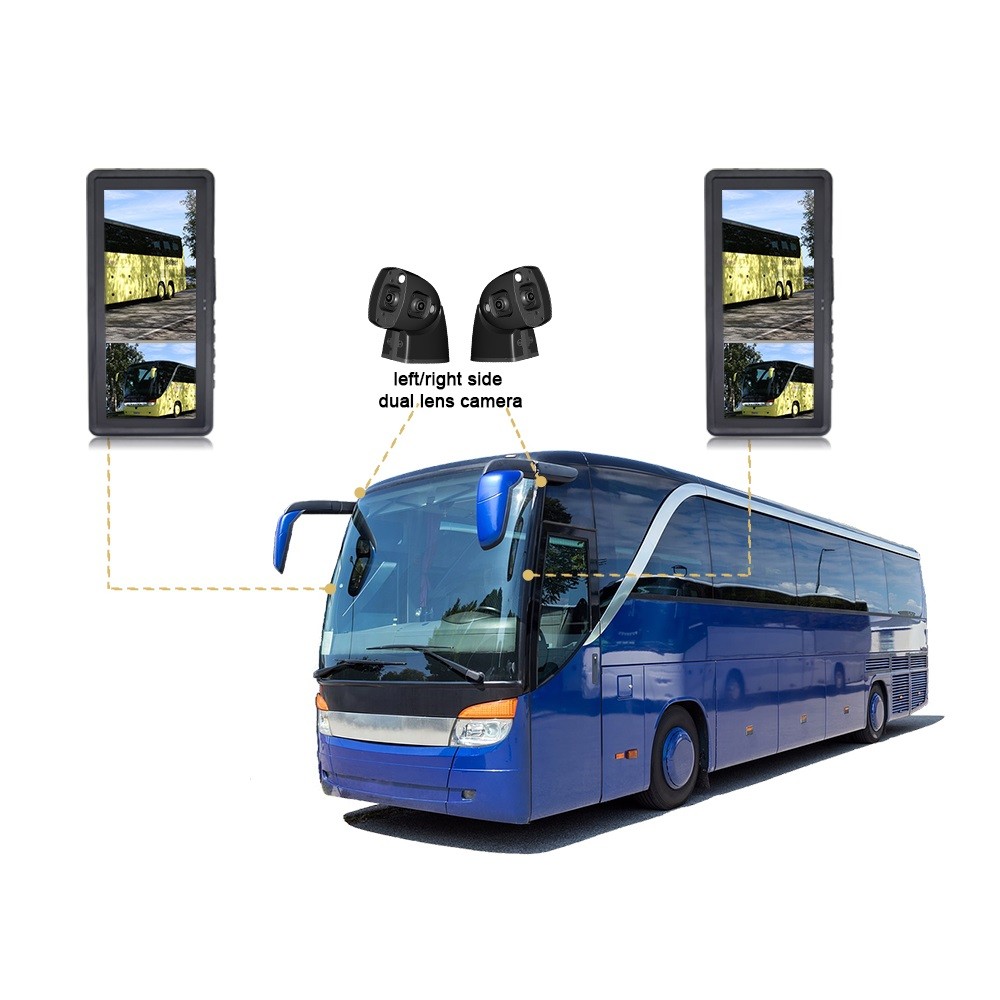

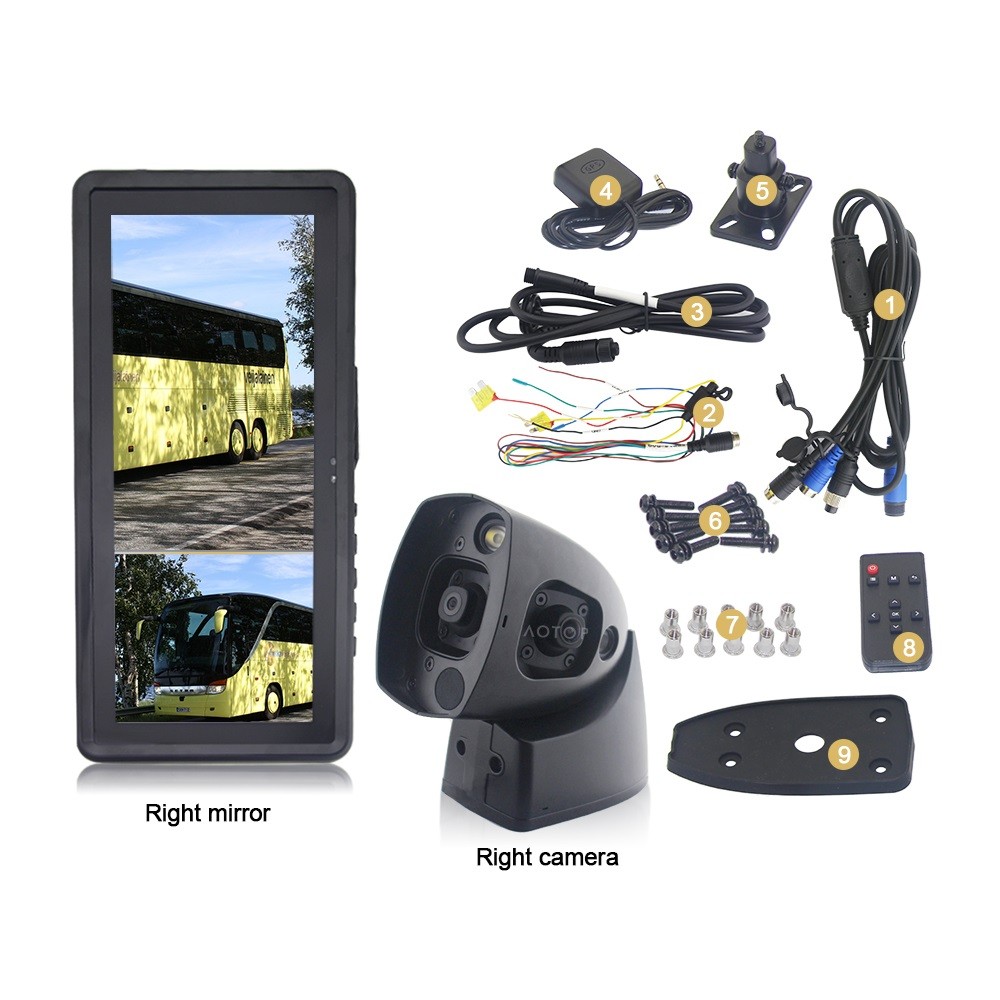

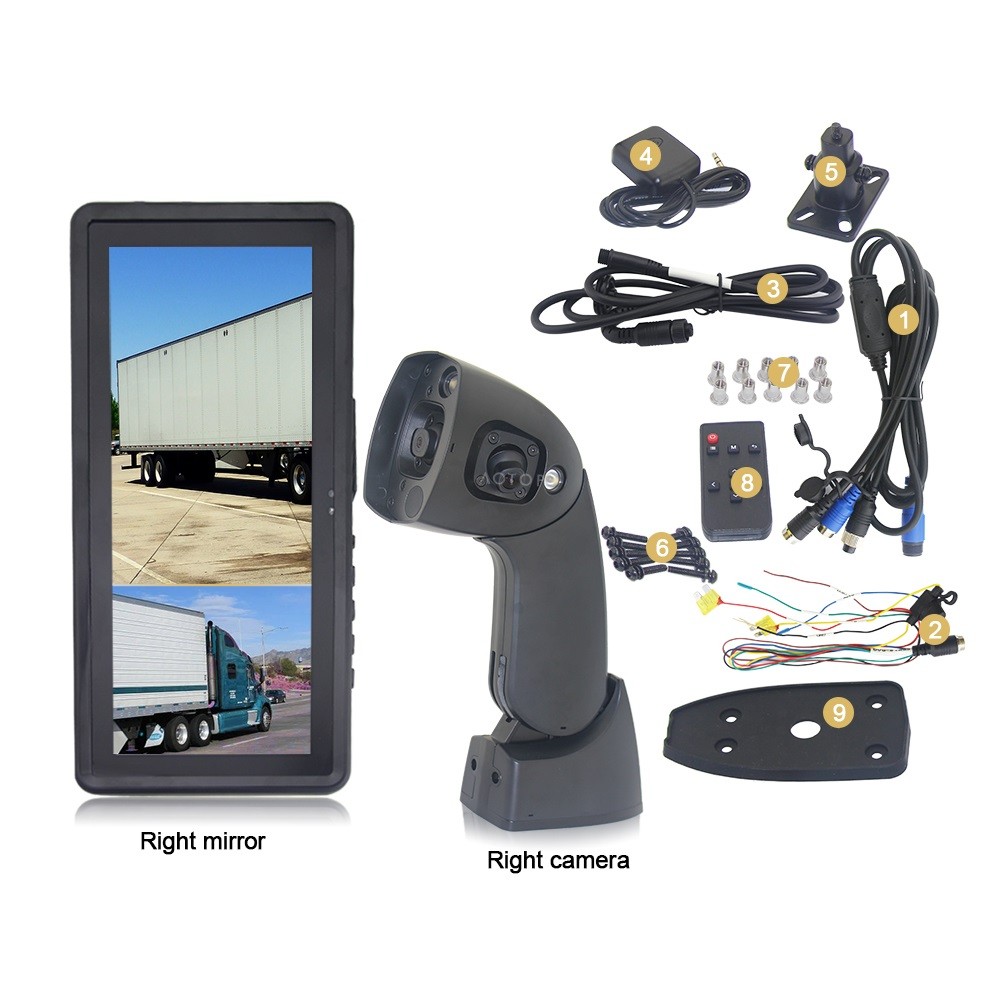

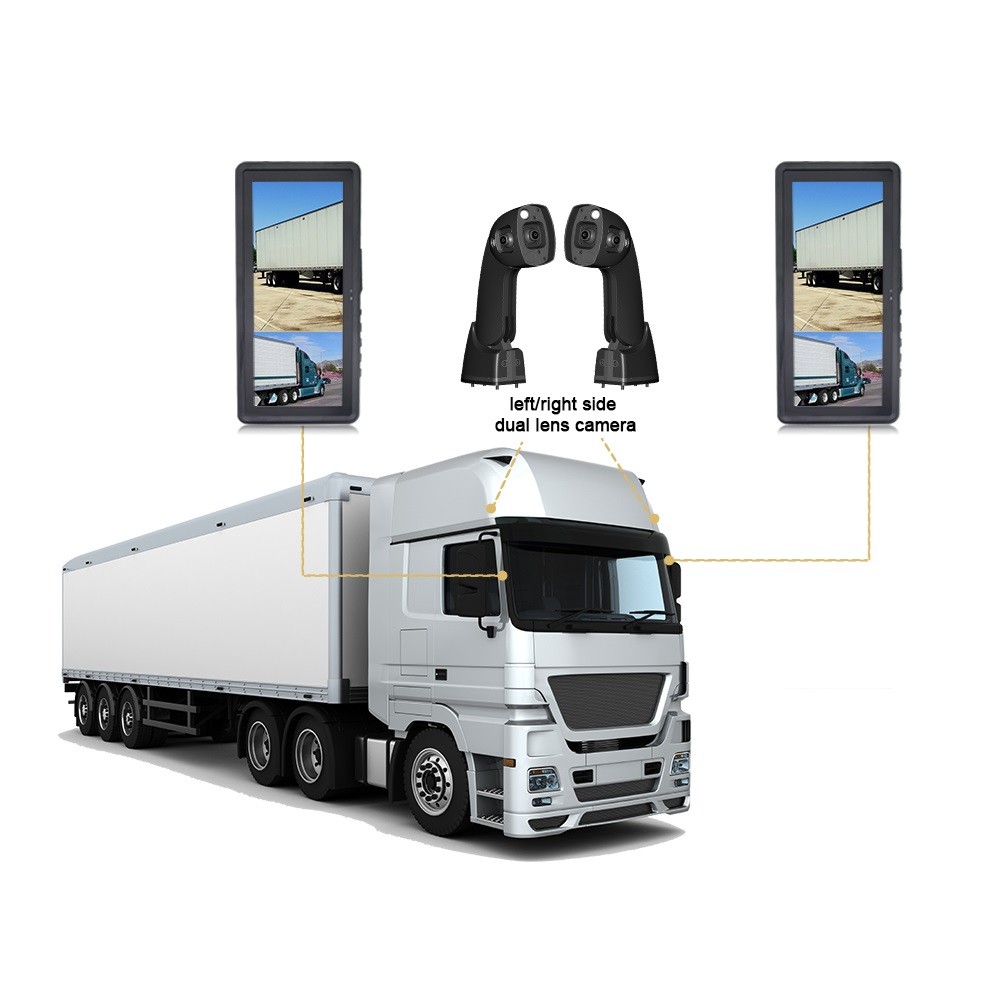

Aotop 12.3 Inch E-mirror camera system with 12.3 inch AHD split view monitor and dual 1080P lens long/short arm side view
camera. Long arm camera is good for trucks, short arm camera is good for buses. It supports a larger viewing angle, higher
night vision sensitivity, and is easier to adapt to complex weather conditions. Compared with traditional mirrors, the side view
is wider and clearer, ensuring driving safety more professionally.
| System | RTK OS |
| Locating | External GPS Locating Module |
| Microphone | 1CH Digital Denoising Silicon Microphone |
| Speaker | 2W |
| Triggers | 3CH |
| Screen Size | 12.3 Inch LVDS LCD Screen |
| Resolution | Vertical 1920*720 |
| Screen View Angle | Up, Down, Right, Left are All More Than 170° |
| Material Of Housing | PC+ABS, Plastic Injection Molding (Anti-flaming UL94) |
| Material Of Bracket | Aluminum Alloy-Decast, 304 Stainless Steel-Stamping |
| Mirror Adjustment Torque | Adjust Manually 1.2~1.7 (N•m) |
| Mirror Material | Sio2 glass |
| Mirror Type | Flat |
| Radius Of Curvature | ∞ |
| Keys | 5 Mechanical Keys |
| SD Card Slot | Built-in 128GB Memory Card |
| Power Supply | Vehicle Battery (Fuse Box) |
| Working Voltage | (B+：+12/24V, ACC：+12/24V, GND：Ground) |
| Max. Current | <2A (12V) / <1A (24V) |
| Stand By Current | <5mA |
| Overvoltage & Overcurrent Protection | Yes, Wire Fuse |
| Reverse Polarity Protection | Yes |
| WIFI | IEEE 802.11 |
| Nearby View Camera | 1920*1080, Horizontal 120°, Vertical 65° |
| Distant View | 1920*1080, Horizontal 83°, Vertical 50° |
| FPS | 30fps |
| Image Sensor | 1/3" CMOS |
| Resolution | 1920(H)*1080(V) |
| ISP | WDR/HDR, Supprort Image Distortion Correction |
| DVR Video Format | Nearby View 1080P, Distant View 1080P |
| Screen AUTO Dimming | Yes, Automatically According To The Ambient Light |
| LED AUTO Control | Yes, Automatic Adapting According To The Vehicle Lighting |
| Camera AUTO heating | Yes, Controlled By Temperature Sensor Of Camera |
| Reversing Response Time | <3s |
| Operating Temperature | -30°c~+70°c |
| Storage Temperature | -40°c~+85°c |
| Storage Humidity | 0%~90% |
