● 1024*RGB*600 Resolution (IPS LCD Screen)
● 2CH x Cameras Video Signal Input; 1CH HDMI Port;
● Multiple Video Formats Available To Cameras: 720P / 1080P / AHD / Compatibility CVBS

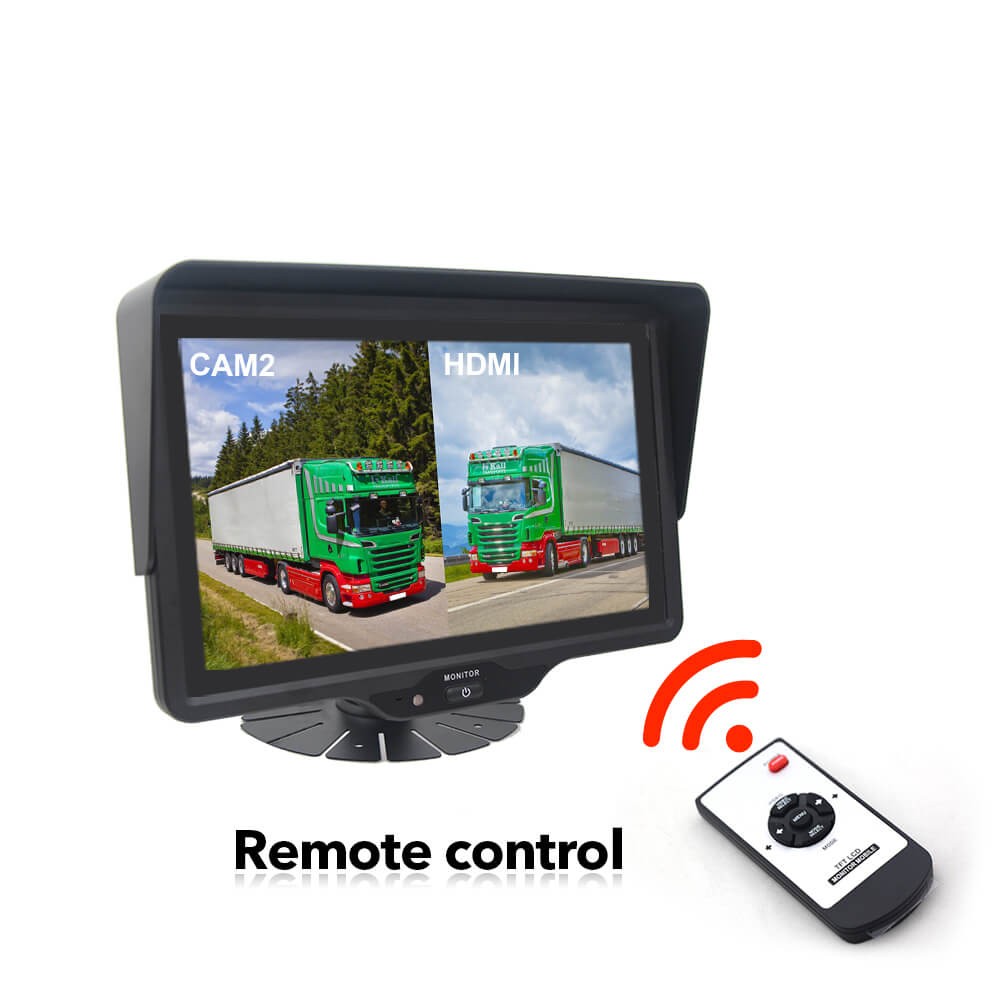

● Full Display & Dual Split View Mode
● 2CH Audio Signal Input (High Quality Speaker)

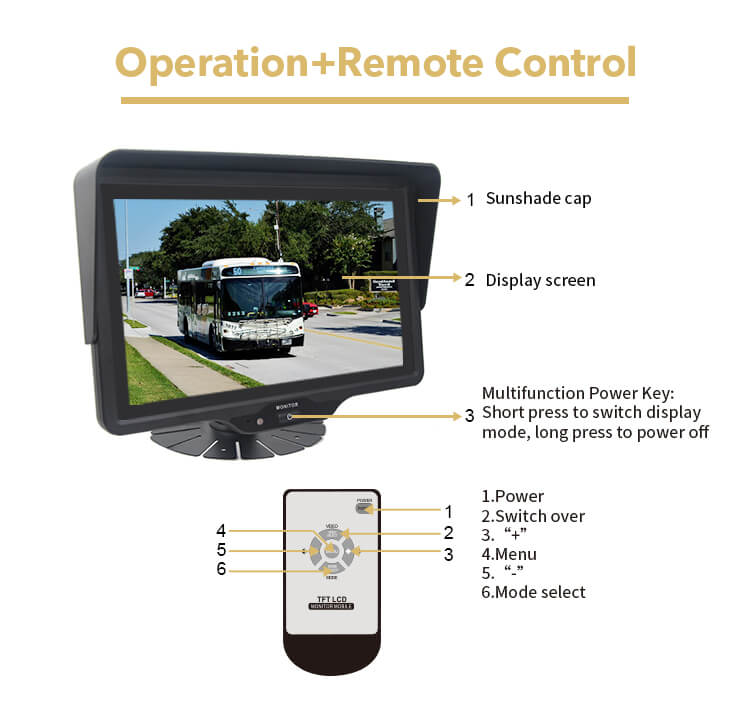

● Full-Function Remote Control
● Multi-Language Settings
● Horizontal Mirror Image Switching
● DC 12-24V Wide Voltage
● AUTO Adaptation PAL / NTSC System
PRODUCT FEATURES

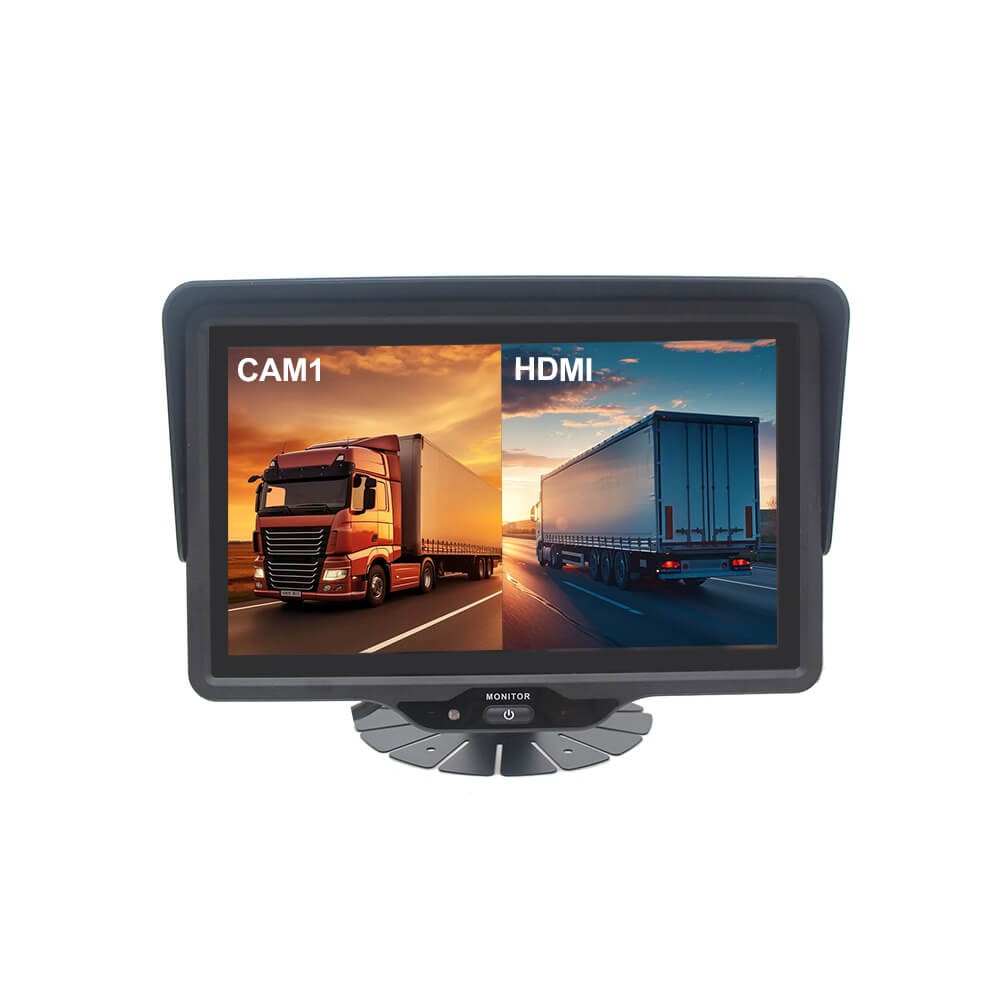

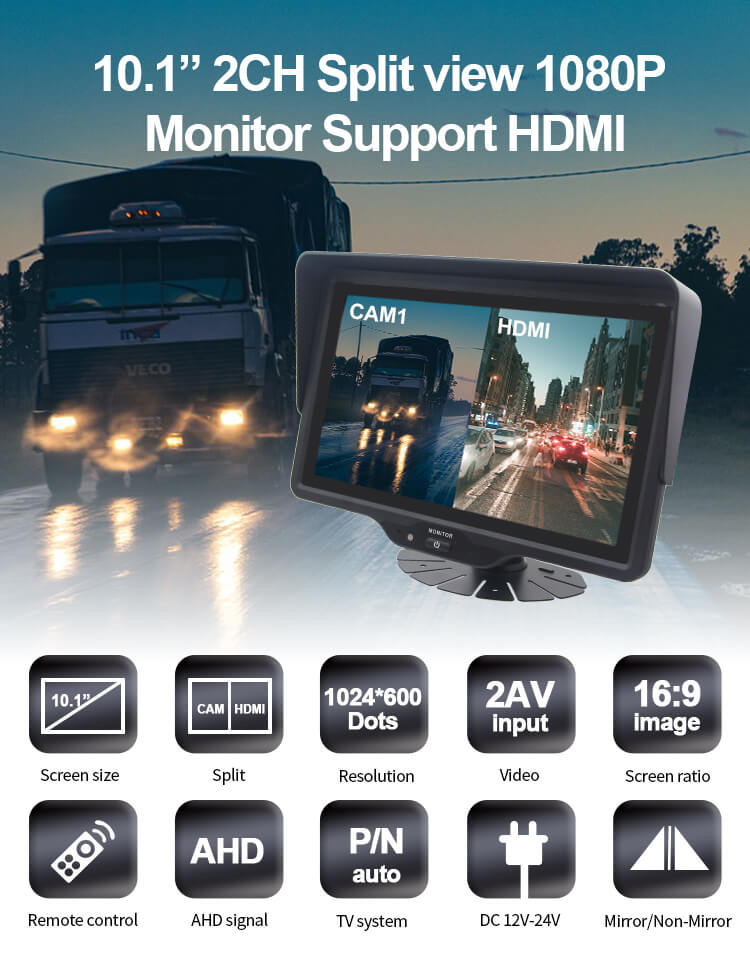

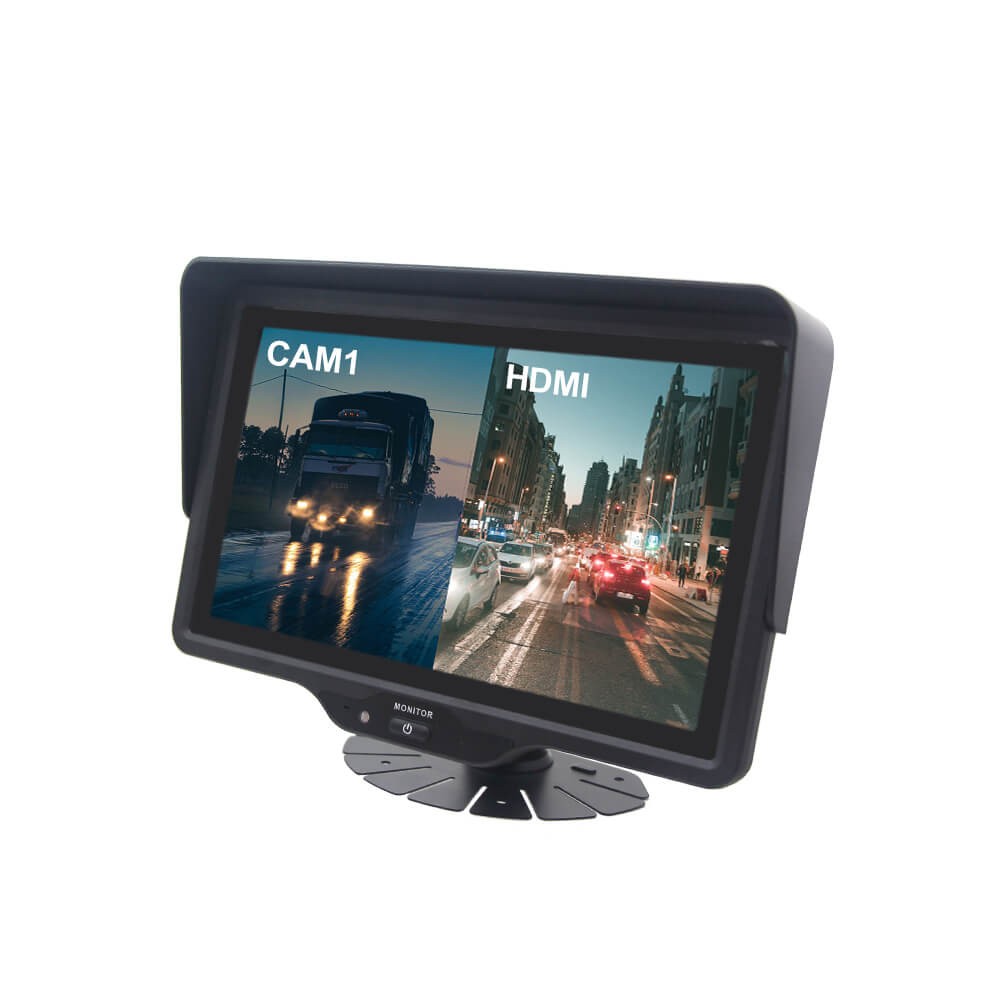

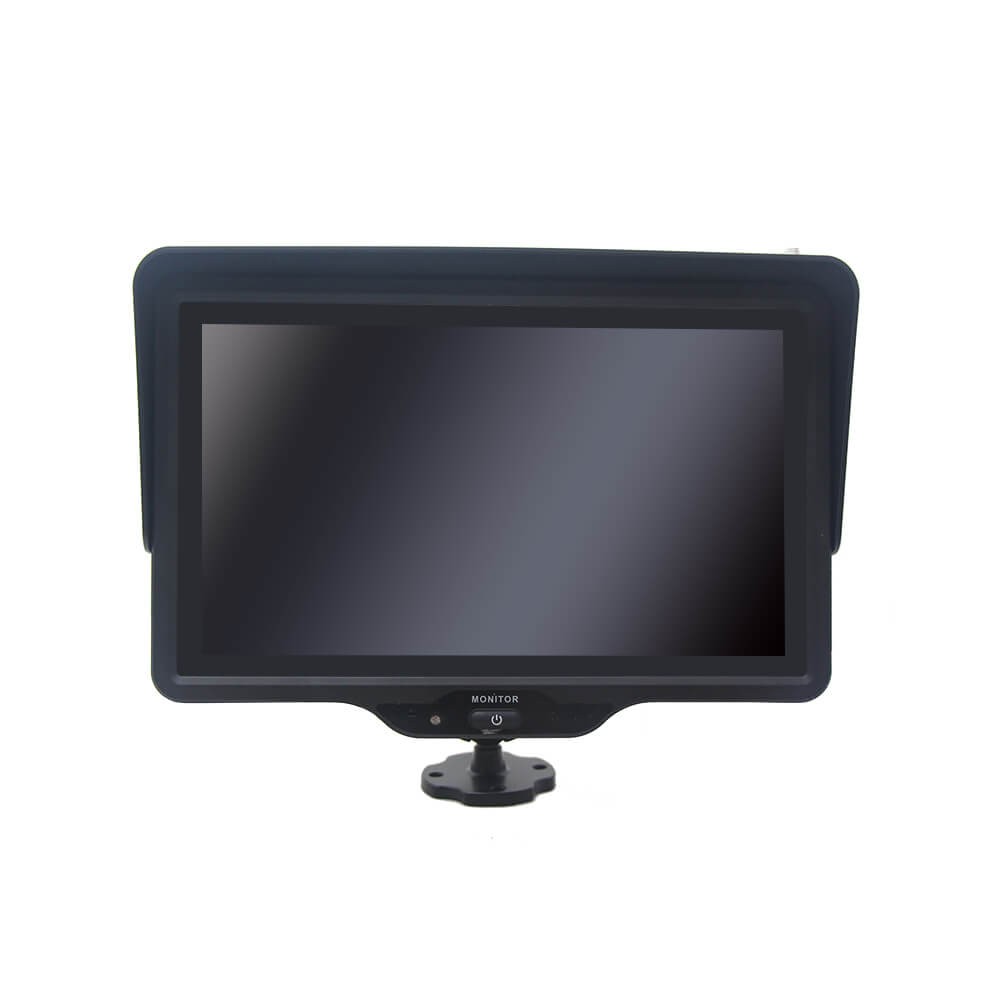

10.1 inch HD digital LCD rear view monitor support 2CH AHD camera inputs and features a dual-split view mode. It includes

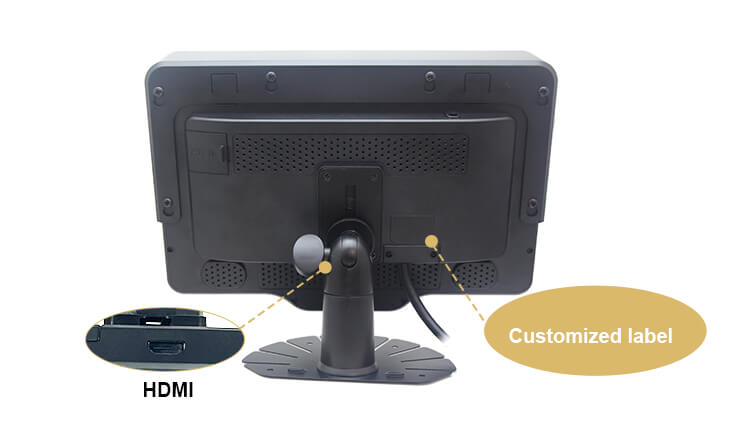

one HDMI video input port and supports multiple languages, making it a great choice for enhancing driving safety worldwide.
If you're searching for a high-quality HDMI monitor for your fleet, feel free to reach out to us at sales@aotop.com.
If you have any specific custom requirements regarding the product's performance or appearance, you can contact us without
hesitation. Aotop takes pride professional OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer)
services, which are customized precisely to meet your individual needs.

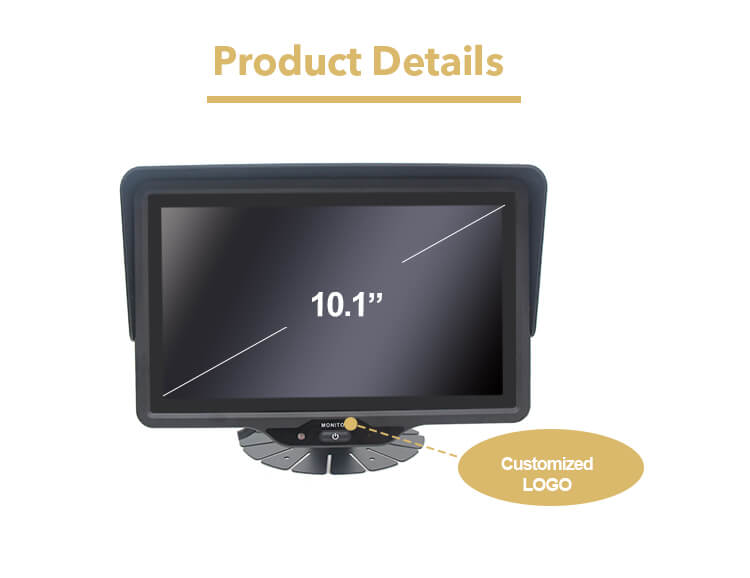

| Screen | 10.1″ HD Color IPS LCD |
| Screen Ratio | 16:9 |
| Back Light Luminance | LED, Luminance 500 Cd/M2 |
| Resolution | 1024xRGBx600 |
| Contrast | 800 : 1 |
| Compatible System | PAL & NTSC(Automatically) |
| View Angle | UP—85°, DOWN—85°, LEFT—85°, RIGHT—85° |

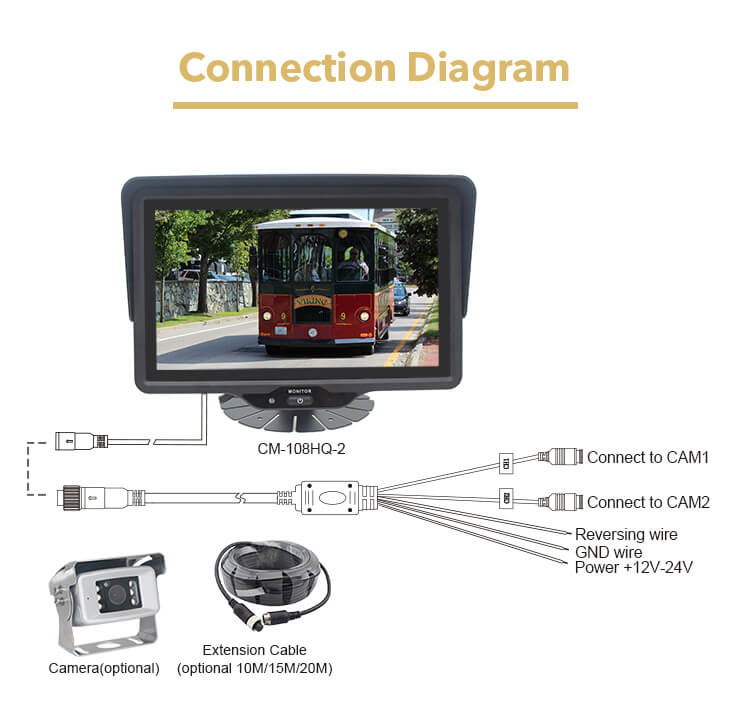

| Video Input | Support 2CH 1080P/720P/960P/CVBS Mixed Video Signal Input; Support 1CH HDMI Input; |
| Audio Input | 2CH Audio Input |
| OSD Menu | Image Setting, Image Turnover, Blue/Black Screen (No Signal), Language Setting, Parking Guide Line On/Off, Reset |

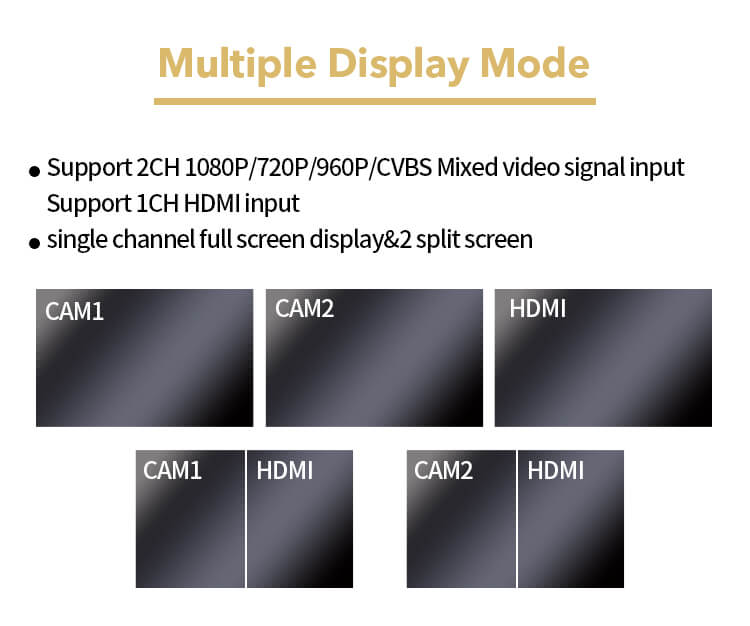

| Image Display | Single Image Display (AHD1/ AHD2/ HDMI) Double Image Display (AHD1+HDMI/ AHD2+HDMI) |
| Trigger | 1CH Trigger Control |
| Power Supply | DC12-24V |
| Current Consumption | DC12V≈400MA , Without Cameras |
| Boot Time | About 3 Sec. |
| Storage Temperature | -30℃〜+80℃ |
| Working Temperature | -20℃〜+70℃ |
| Working Humidity | 85%RH |
| Speaker | Built-In |
| Shockproof Level | 4G |
