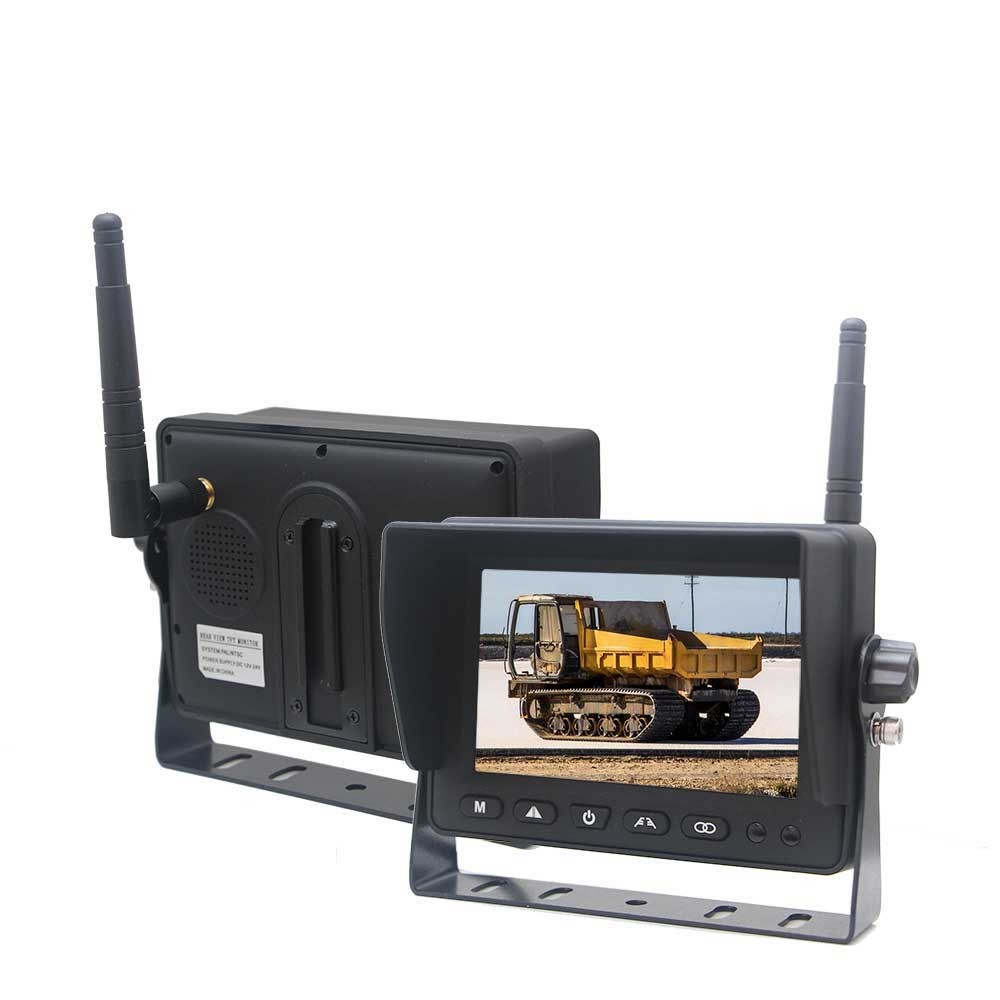

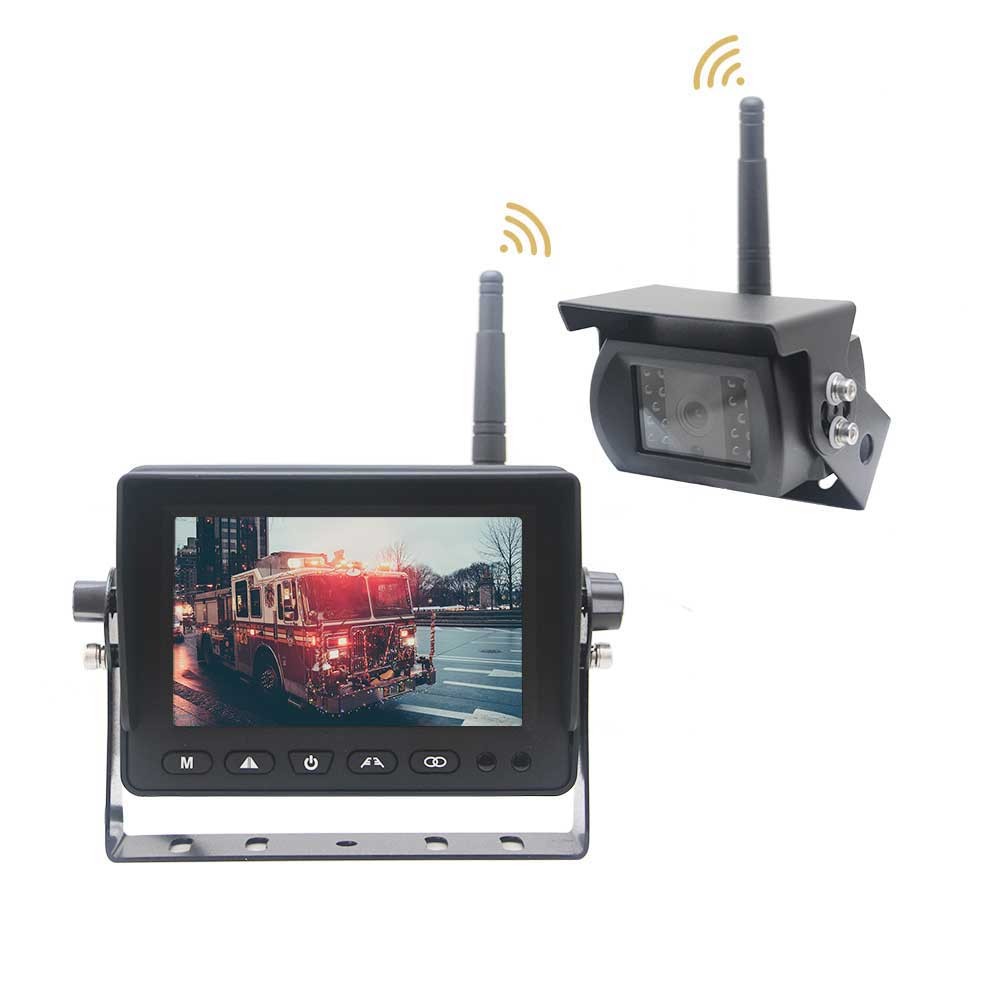

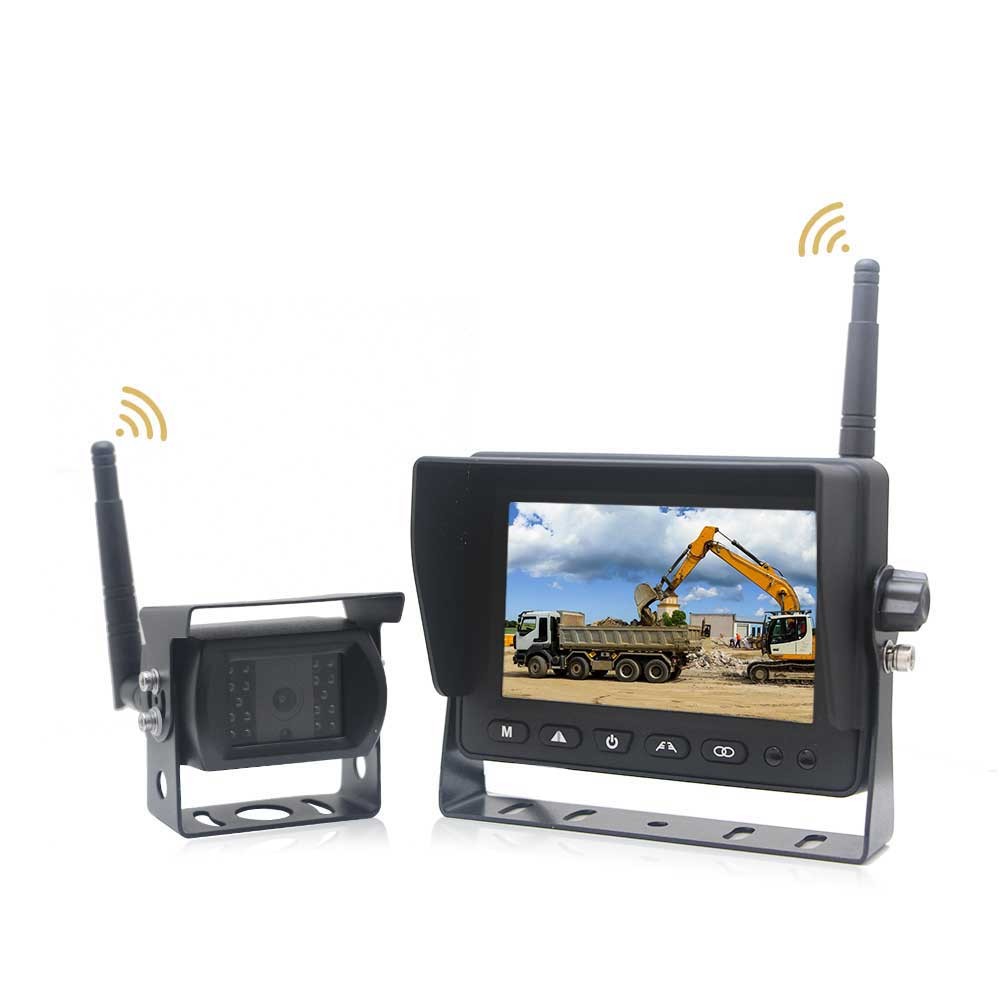

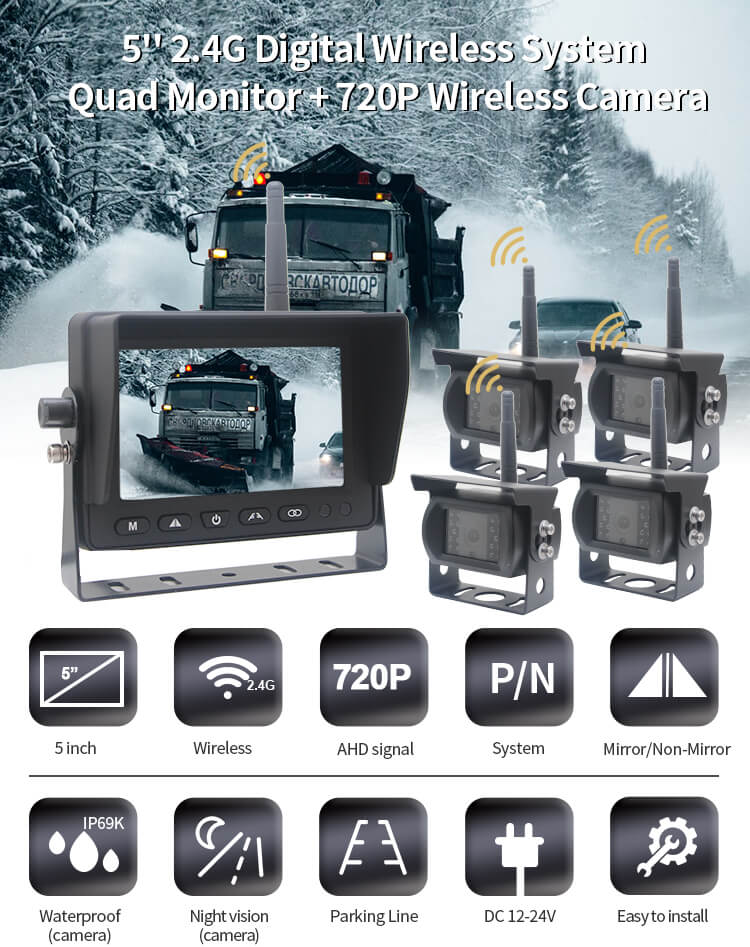

AOTOP 5 inch HD wireless reverse camera system includes 5 inch AHD monitor and IP69K night vision camera. With it, you can easily view what's behind your vehicle without having to lay long cables, especially for heavy & commercial vehicles such as trucks, harvesters and trailers. If you are in need of a high quality wireless reverse camera system, please contact sales@aotop.com!
PRODUCT FEATURES
AOTOP 5 inch HD wireless reverse camera system includes 5 inch AHD monitor and IP69K night vision camera. With it,
you can easily view what's behind your vehicle without having to lay long cables, especially for heavy & commercial
vehicles such as trucks, harvesters and trailers. If you are in need of a high quality wireless reverse camera system,
please contact sales@aotop.com!
| Wireless Monitor Specifications | |

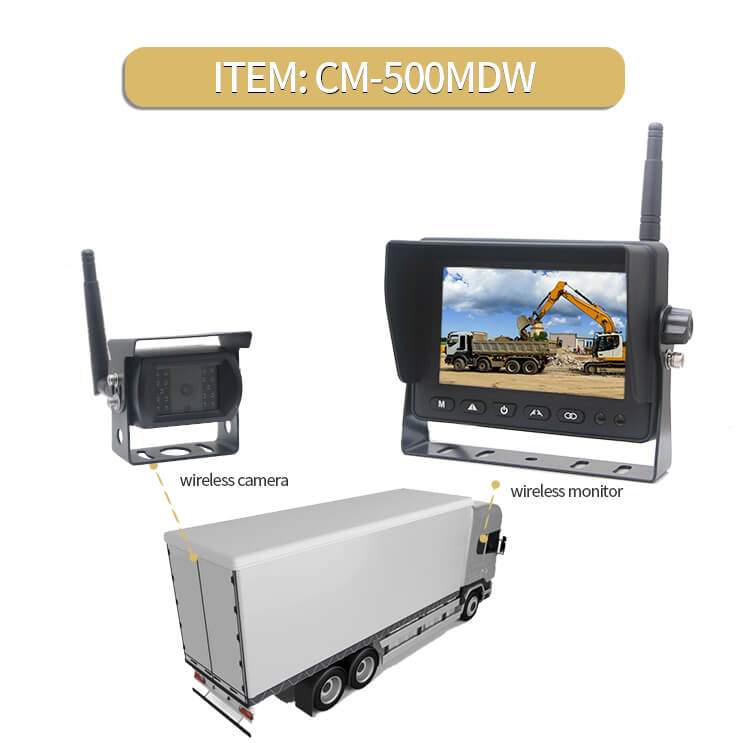

| Model | CM-500MDW-HD |
| Screen ratio | 16:9 IPS panel |
| Resolution | 800*R.G.B*480 |
| Backlight | LED, 500 cd/m2 |
| Viewing angle | Hor. L(85) R(85) Ver. UP(85) DOWN(85) |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| Power supply | DC 12-24V |
| loudspeaker | without(customized) |
| Delay time | 120mS |
| Electric current | Standby: ≤10mA, Working: ≤110mA |
| Power consumption | ＜3W |
| AV input | 1-4 channel HD wireless video signal input |
| Operating frequency range | 2400 ~ 2483.5MHz |
| System | PAL/NTSC automatically |
| Decompression mode | H.264 |
| Receive sensitivity | -89dBm@4MHZ |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission distance | 200m in open area |
| Shockproof level | 4G |
| Power cable | DC Cable |

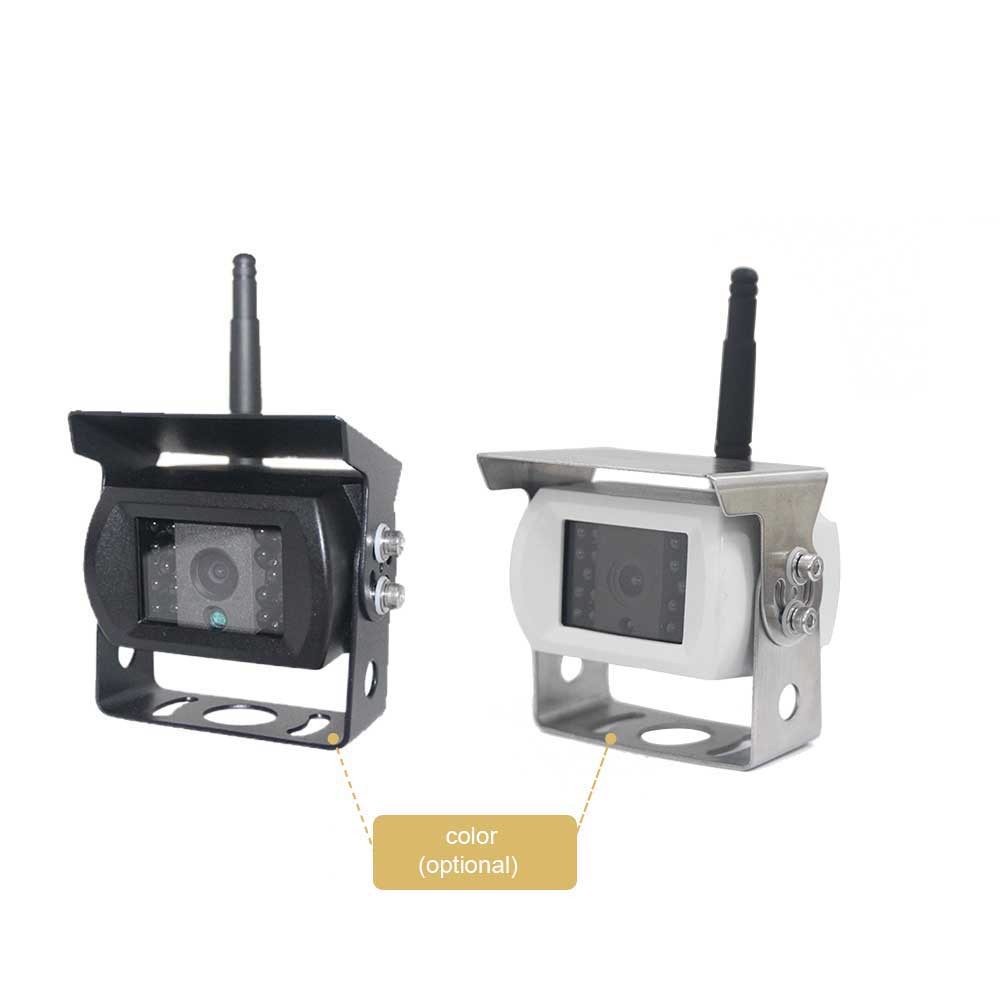

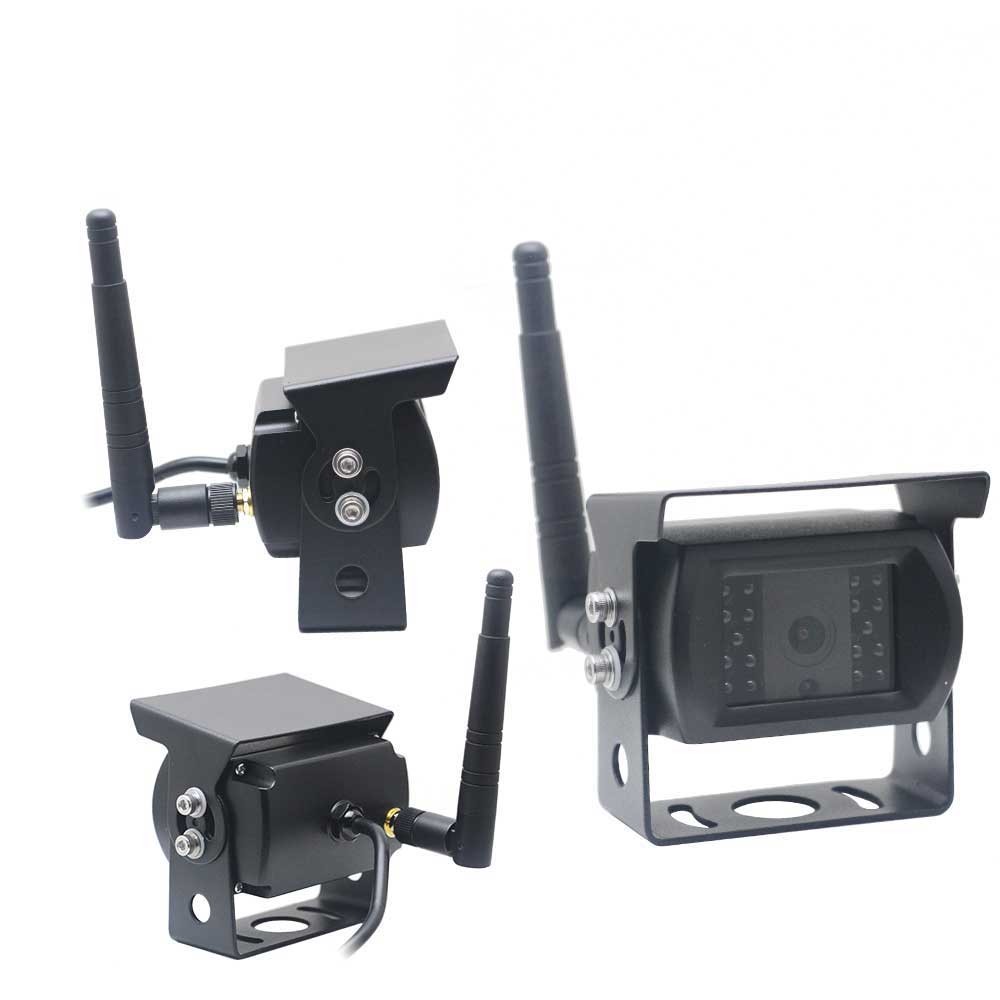

| Wireless Camera Specifications | |
| Model | AC-301MDW-HD |
| Image sensor | CMOS 1/2.7” |
| Pixel | 720P 1280*720 pixels 1080P 1960*1080 pixels(Optional) |
| Operating frequency range | 2400-2483.5MHZ |
| Transmission distance | 200M (656ft) in open area |
| System | PAL / NTSC (Optional) |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission bandwidth | 8MHz BER<1E-3 |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| audio | without(customized) |
| SNR | 46.5dB |
| Waterproof | IP69K |
| Viewing angle | Diagonal viewing angle 120° |
| Transmitting sensitivity | -89 dBm |
| Shell material | Black aluminium alloy |
