● CVBS / 1080P AHD resolution optional
● SONY CCD / CMOS image sensor

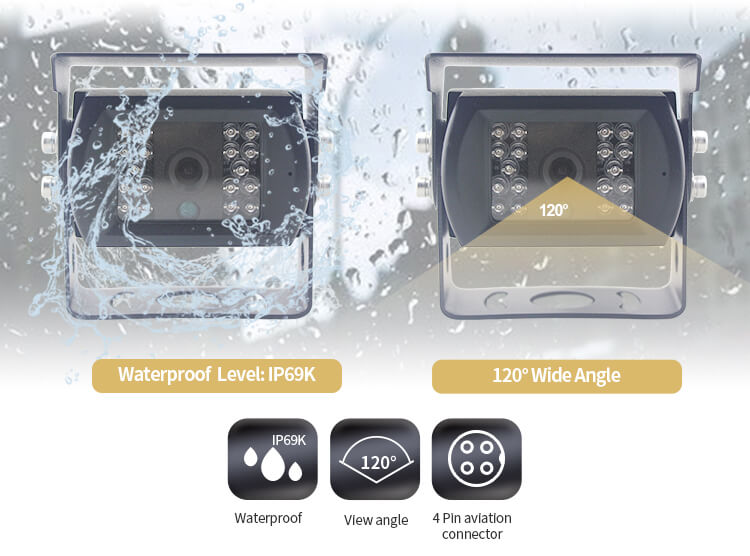

● IP69K waterproof level
● 120° wide angle

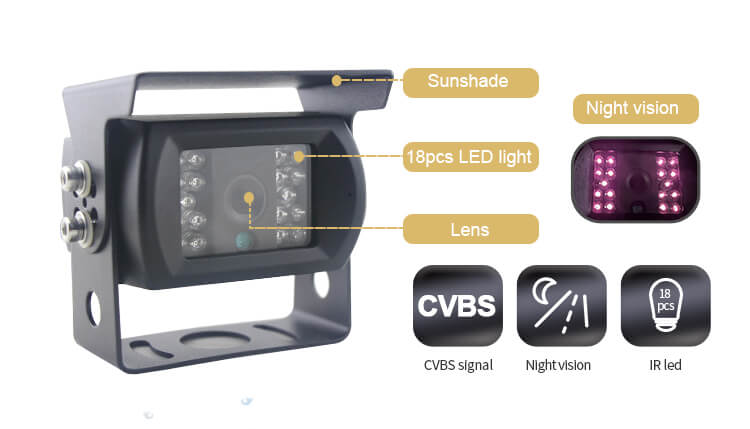

● 18pcs IR LED lights (AUTO night vision)
● Infrared distance 8-10M
●Optional PAL & NTSC TV system
● Aviation 4PIN female connector
● Microphone audio function optional
PRODUCT FEATURES

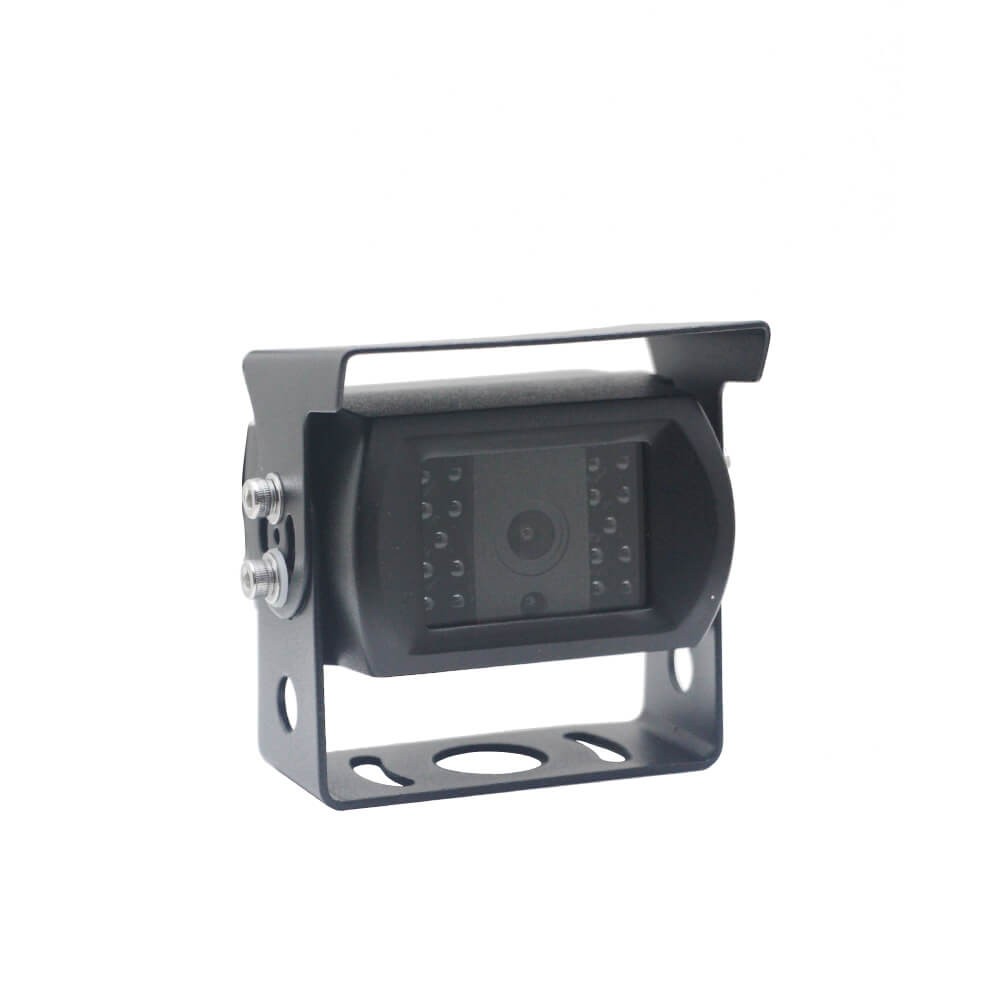

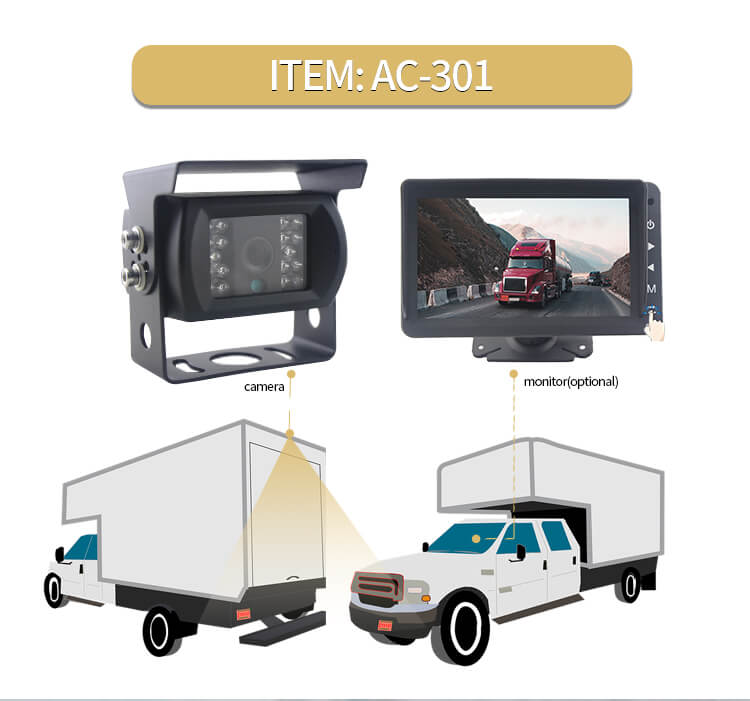

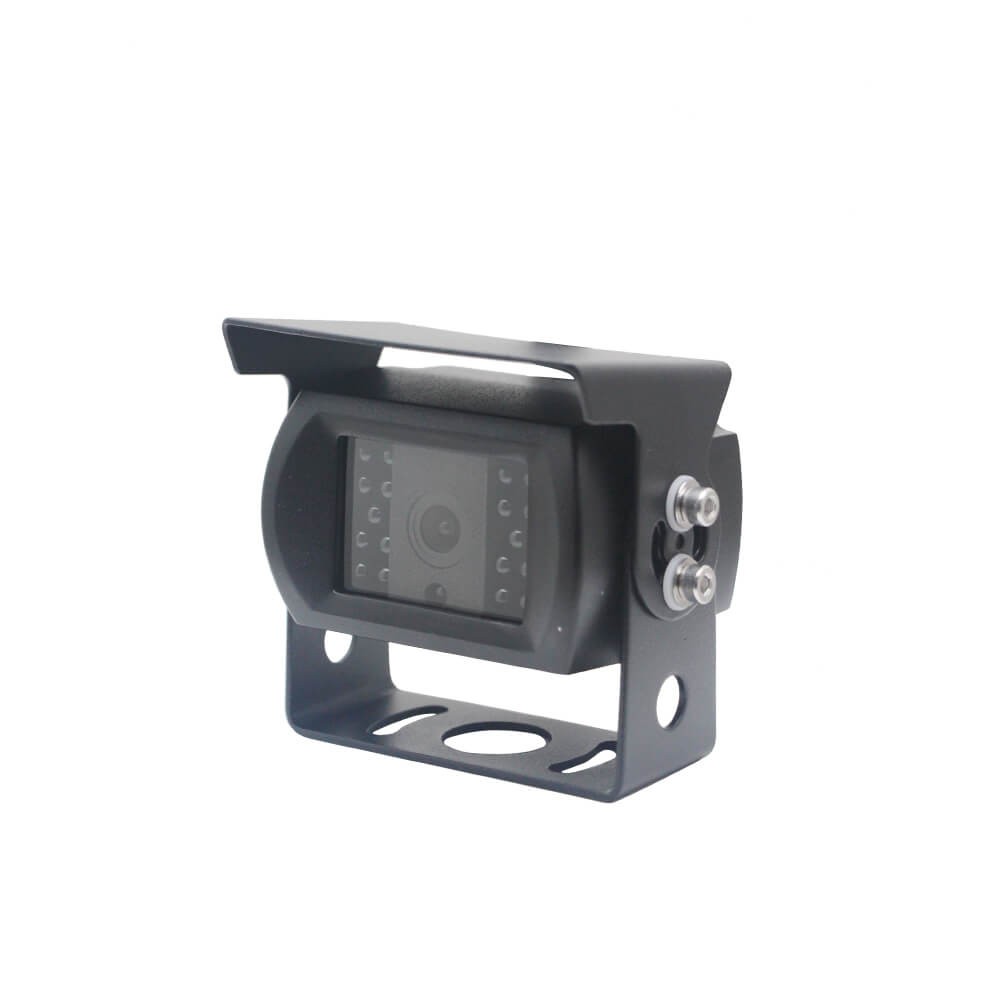

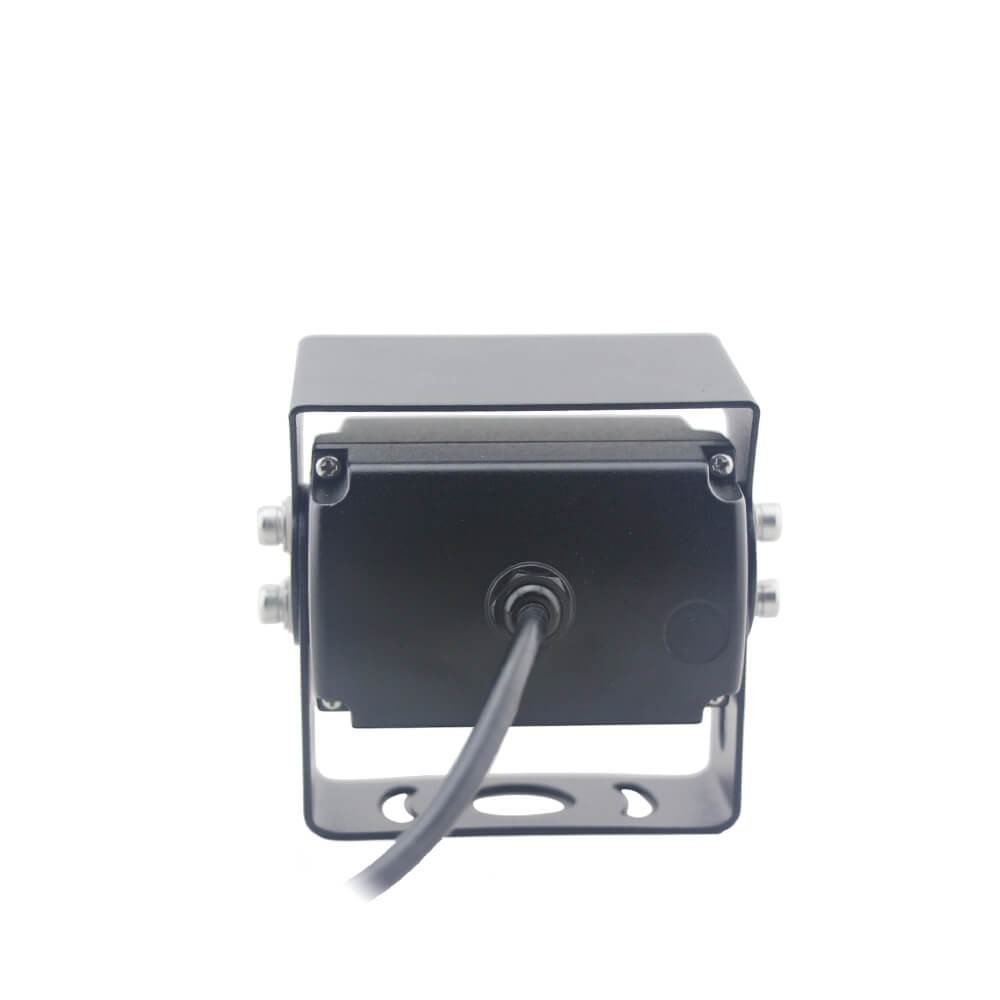

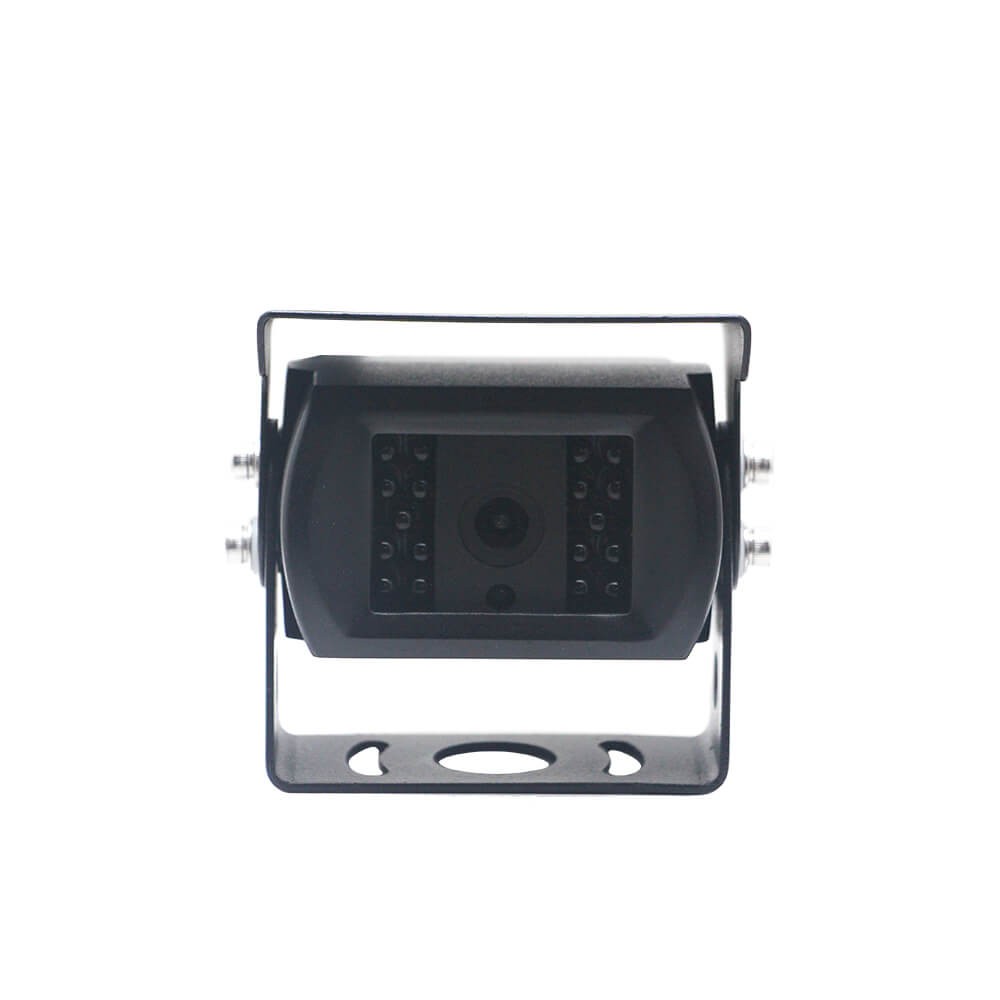

Aotop is a leading vehicle rear view camera manufacturer supplier in China. We provide a range of high
quality commercial vehicle rear view camera solutions. Our 1080P HD AC-301 camera built-in SONY CCD
image sensor, can meet customers' requirements for high quality in-vehice rear view monitoring. Feature
wide-angle / IP69K waterproof / HD night vision functions. If you are looking for high-quality rear view
camera solutions for your fleet, please contact sales@aotop.com!
| Image Sensor | SONY CCD |
| Effective Pixels | 1920(H) * 1080(V) |
| Resolution | 1080P |
| Night Vision | Top Starlight Night Visio |
| Night Vision Distance | 8-10M |
| Angle View | 120° |
| Waterproof Level | IP69K |
| Shockproof level | 4G |
| Housing Material | Aluminium Alloy |

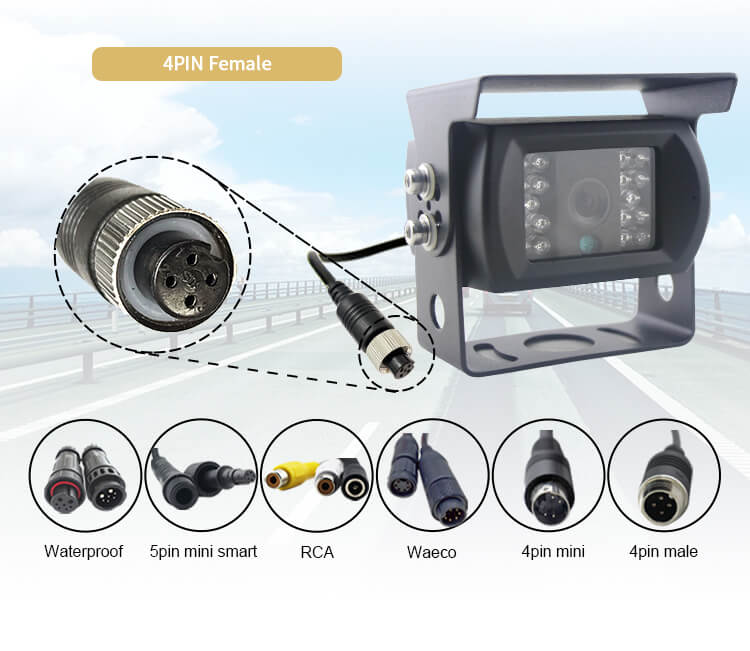

| Connection Plug(Connector) | Locking Aviation 4PIN Female |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |
| Microphone | Available |
| Heating Function | Optional |

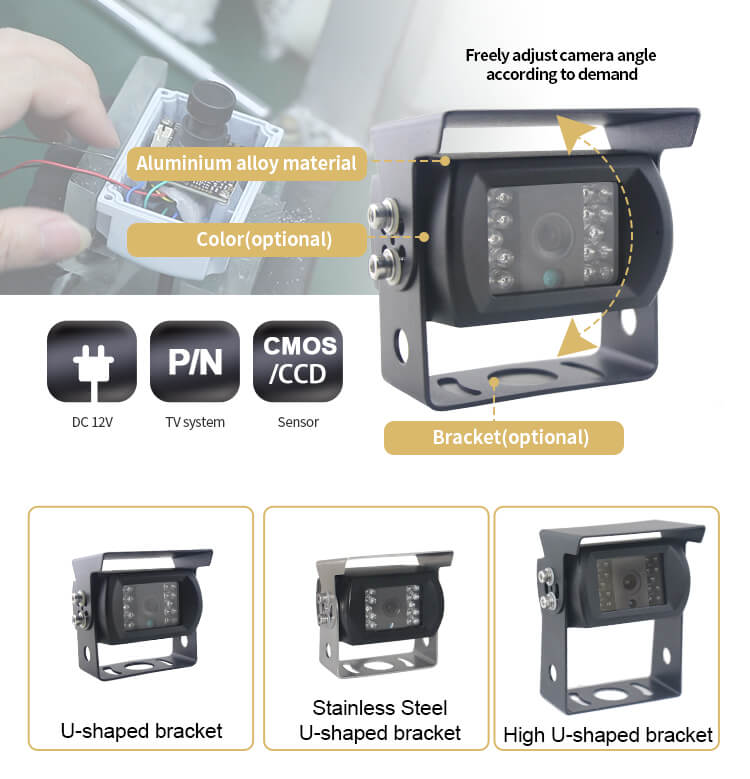

| Customisable | Color/Bracket/Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <250mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, E-Mark, RoHS, IP69K |
