● 720P / 1080P AHD resolution
● CMOS image sensor
● IP68 waterproof level
● Horizontal 120° angle (customisable)
● 5pcs IR LED night lights (AUTO)
● PAL & NTSC TV system
● Aviation 4PIN female connector
● Microphone audio function optional
PRODUCT FEATURES

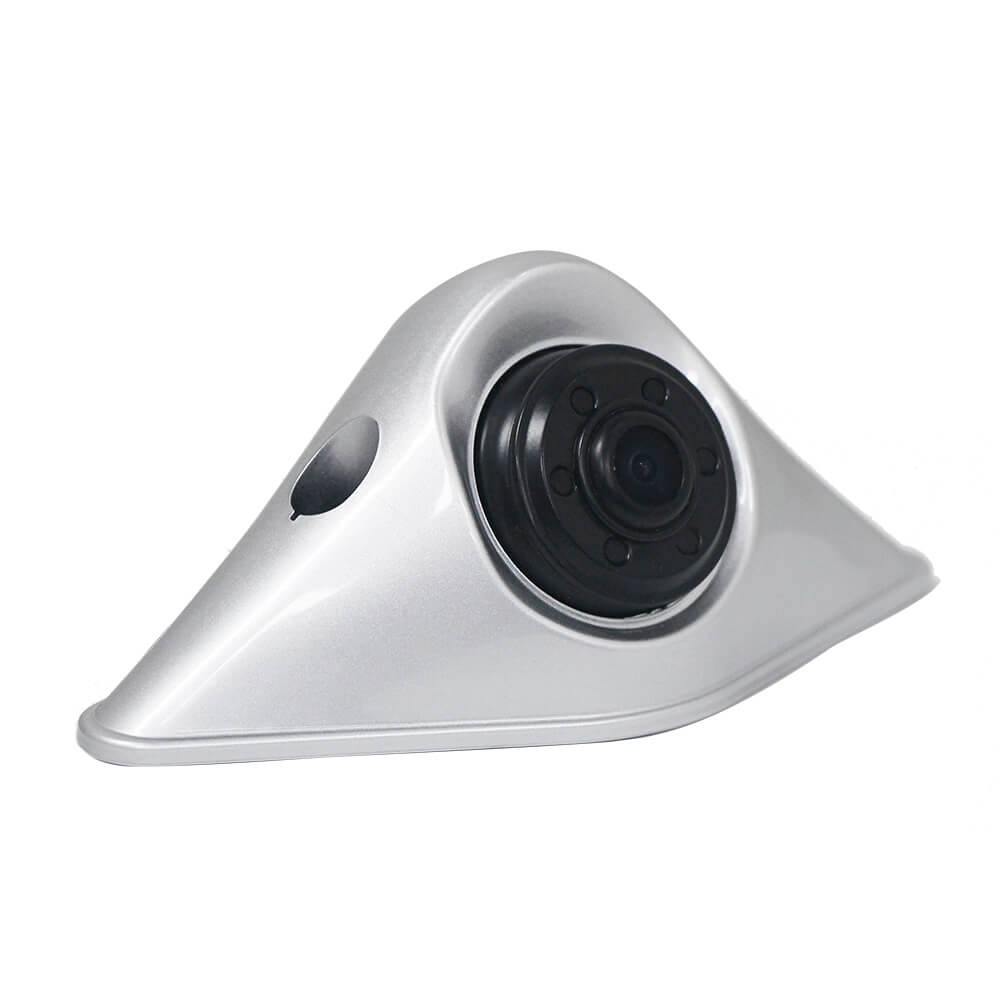

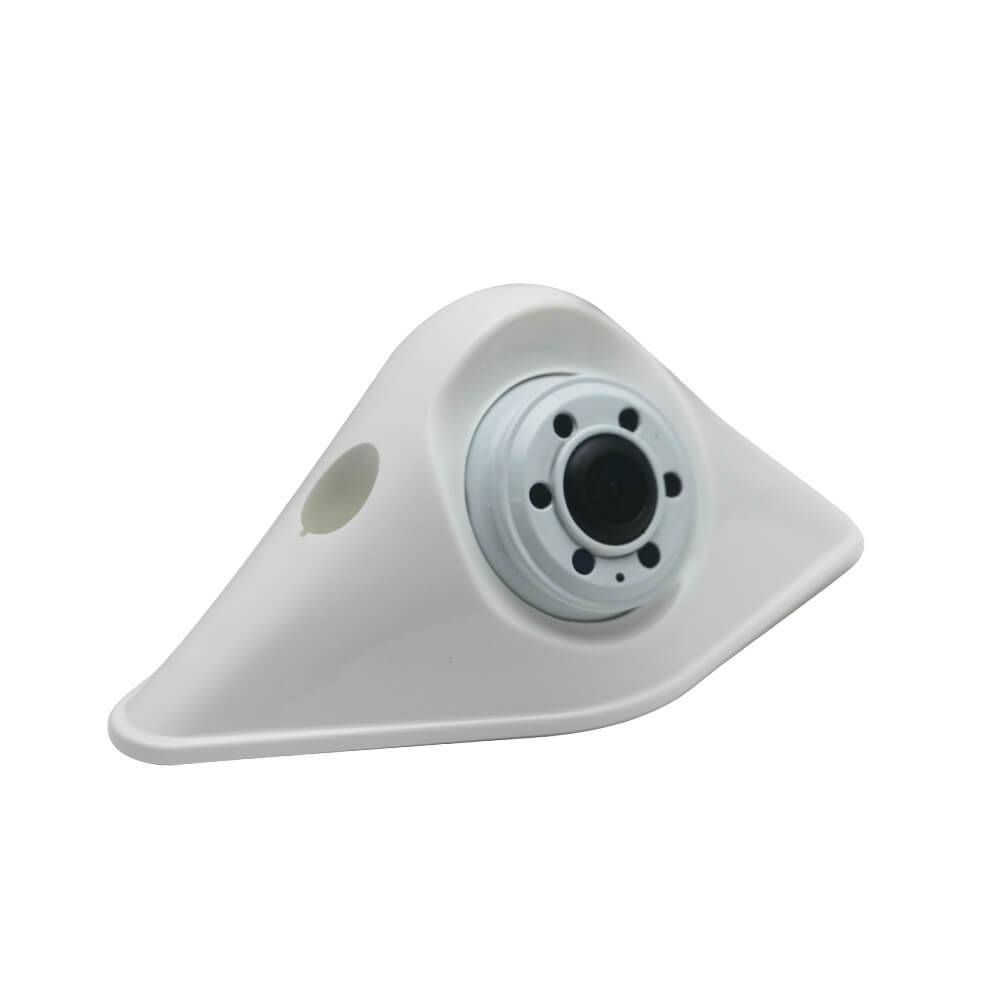

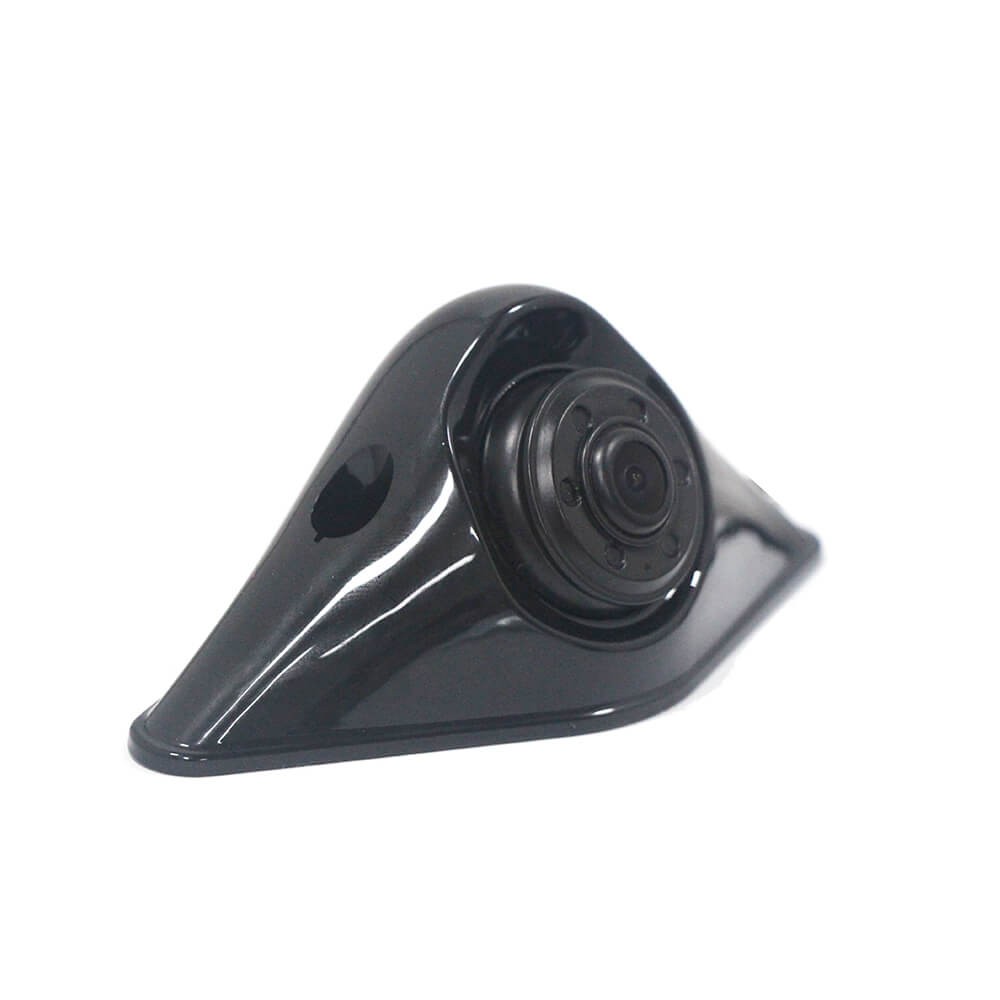

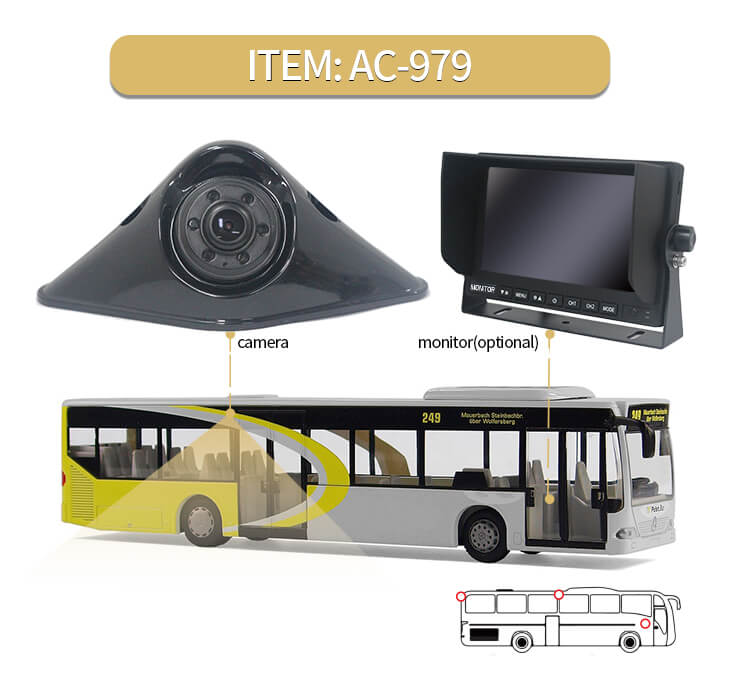

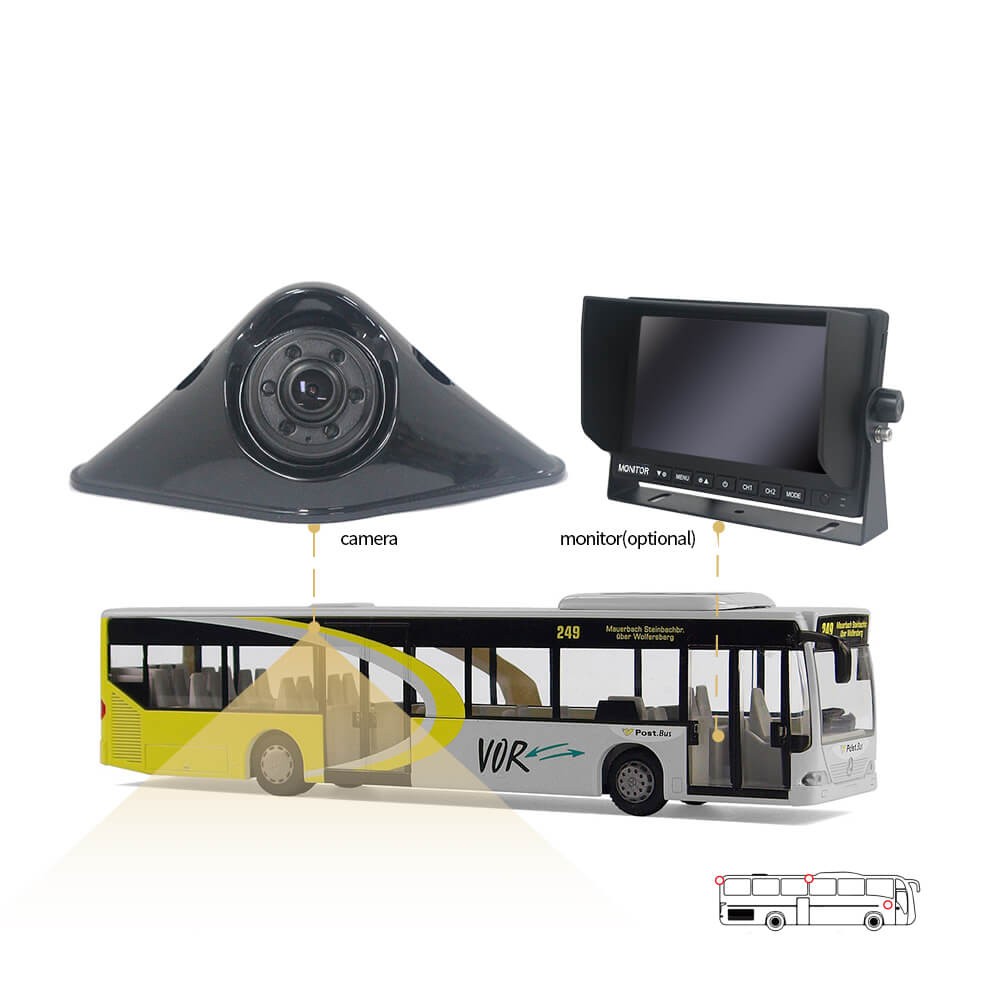

AC-979 1080P 12V rhombus shaped side view camera is good for various large commercial vehicles such
as buses and school buses. 120° wide angle view monitoring provides broad coverage. Featur IP68
waterproof and HD night vision. Built-in CMOS image processing chip, can to meet customer requirements
for high quality in-vehicle image monitoring, making it an ideal choice for improving commercial bus
operation safety. For more camera information, please contact sales@aotop.com!
| Image Sensor | CMOS |
| Effective Pixels | 1920(H) * 720(V) 1920(H) * 1080(V) |
| Resolution | 720P/1080P |

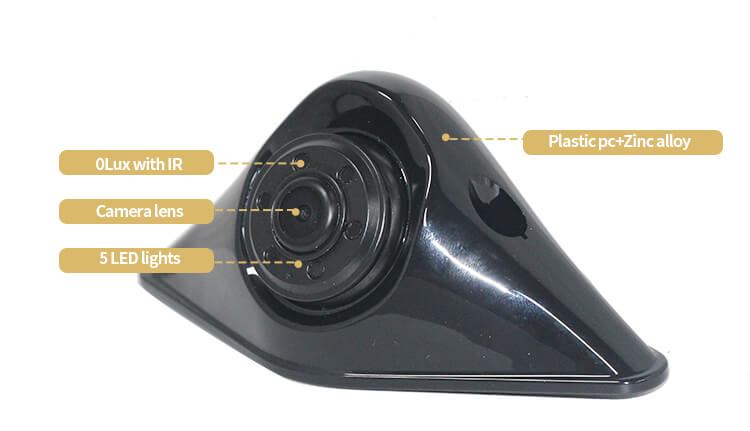

| Night Vision | HD Night Vision Built-in 5pcs 0.1Lux IR LED Night Light |
| Night Vision Distance | 8-10M |

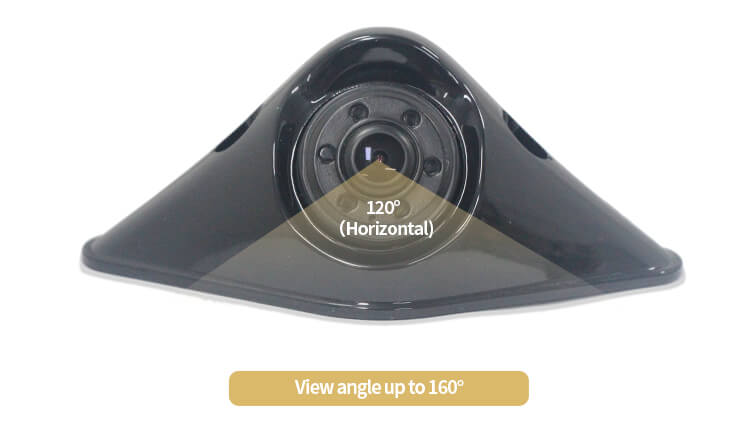

| Angle View | 120° |

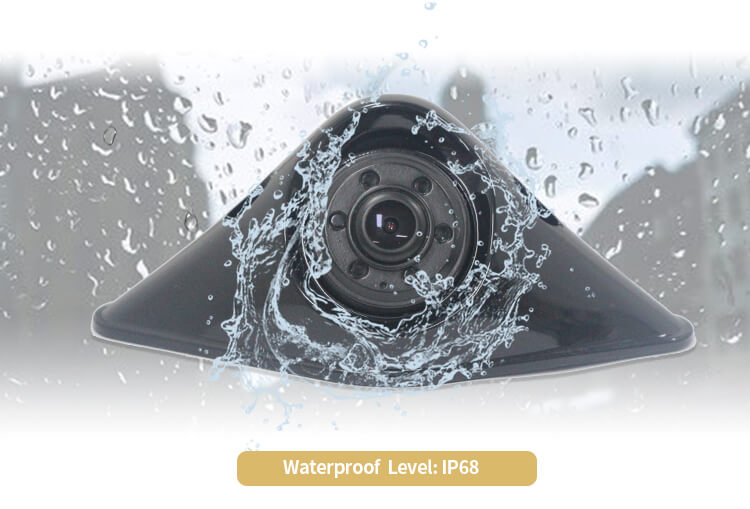

| Waterproof Level | IP68 |
| Shockproof level | 4G |
| Housing Material | Plastic + Zinc Alloy |
| Connection Plug(Connector) | Locking Aviation 4PIN Female |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional |
| Microphone | Optional |
| Customisable | Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <300mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
