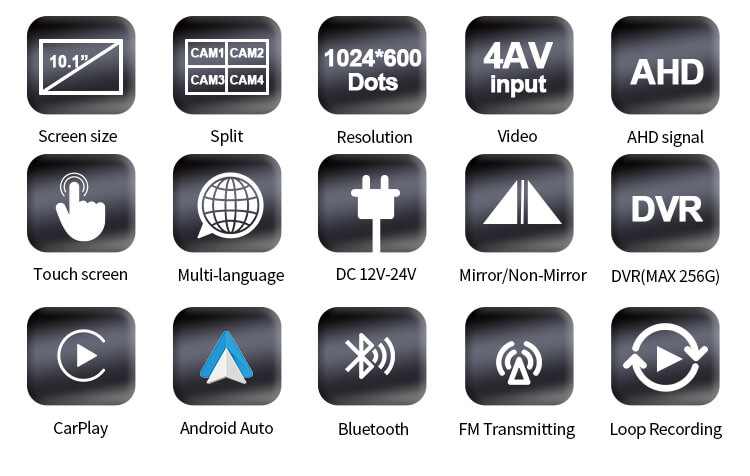

● Wireless CarPlay & Android Automotive connection; FM radio;
● 1024*RGB*600 IPS LCD screen (full touch screen)
● 4CH x cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / PAL / NTSC

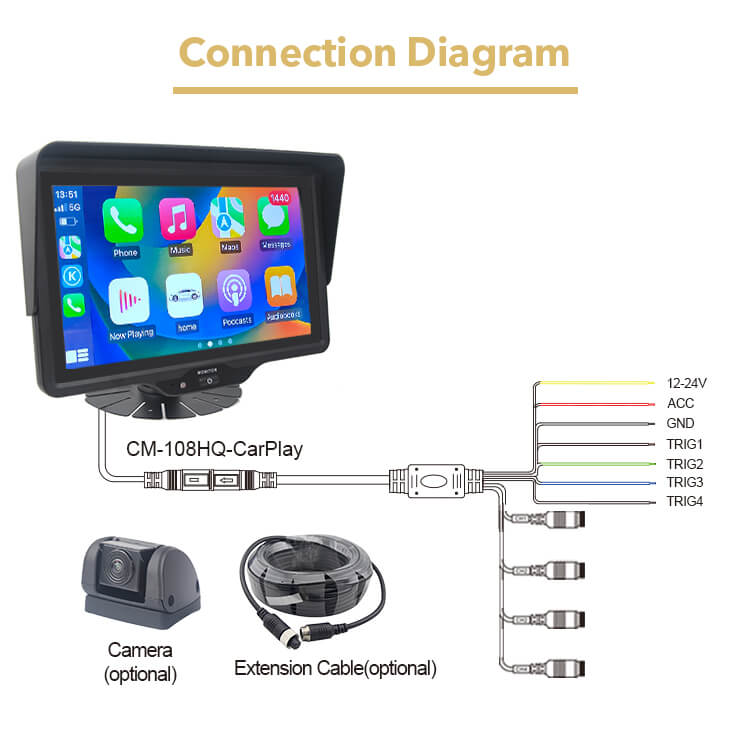

● 4 trigger lines input, trigger line definition, image siganl trigger delay & priority can be adjusted freely;

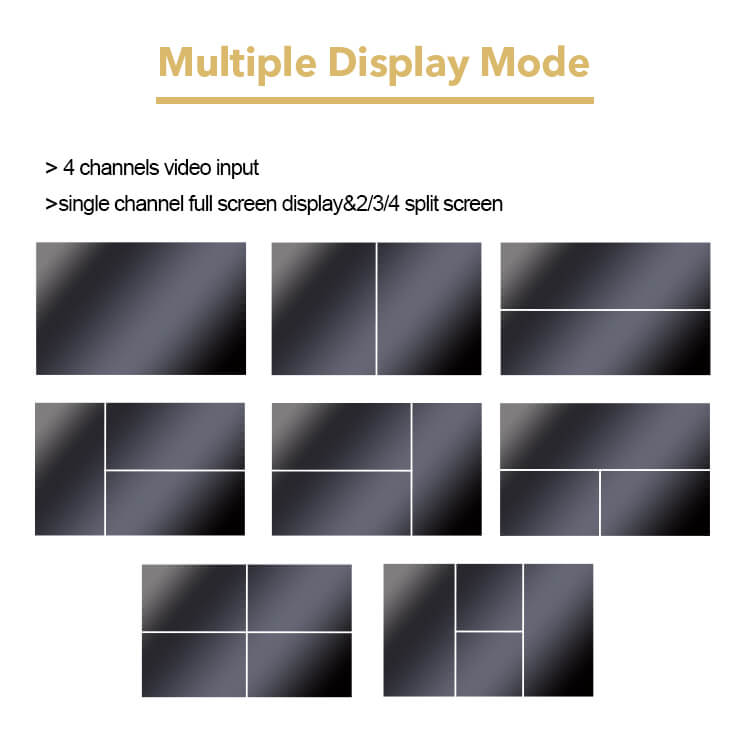

● Full display & dual/triples/quad split view mode
● Max. 256GB memory card (4CH DVR HD loop recorder)
● Multi-language settings
● Horizontal mirror image switching
● DC 12-24V wide voltage
PRODUCT FEATURES

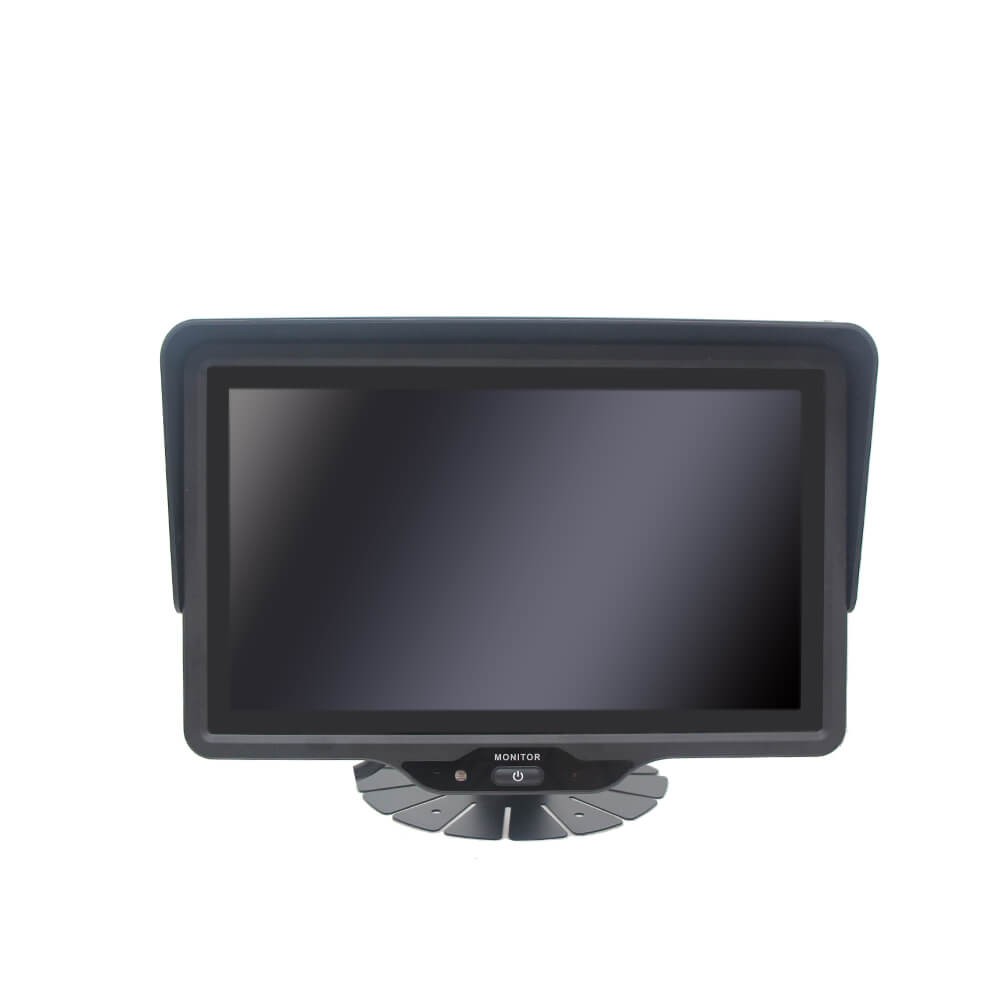

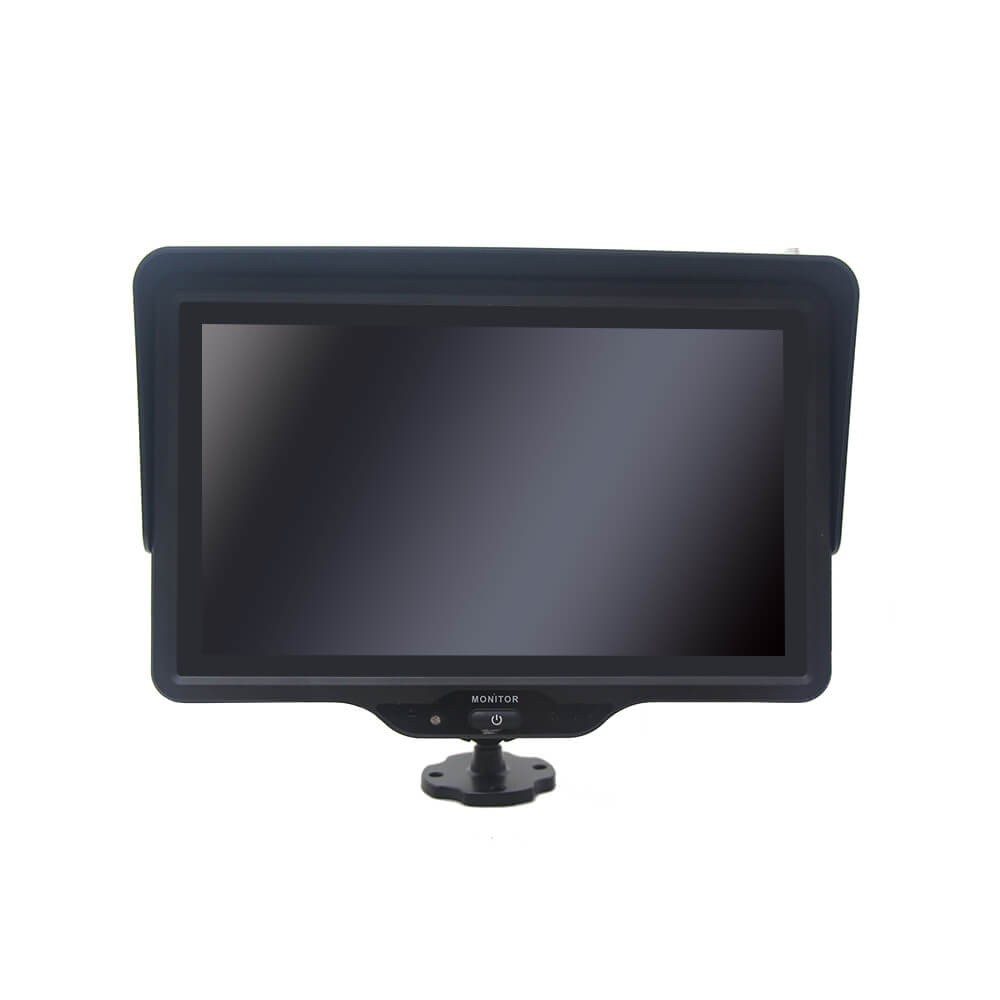

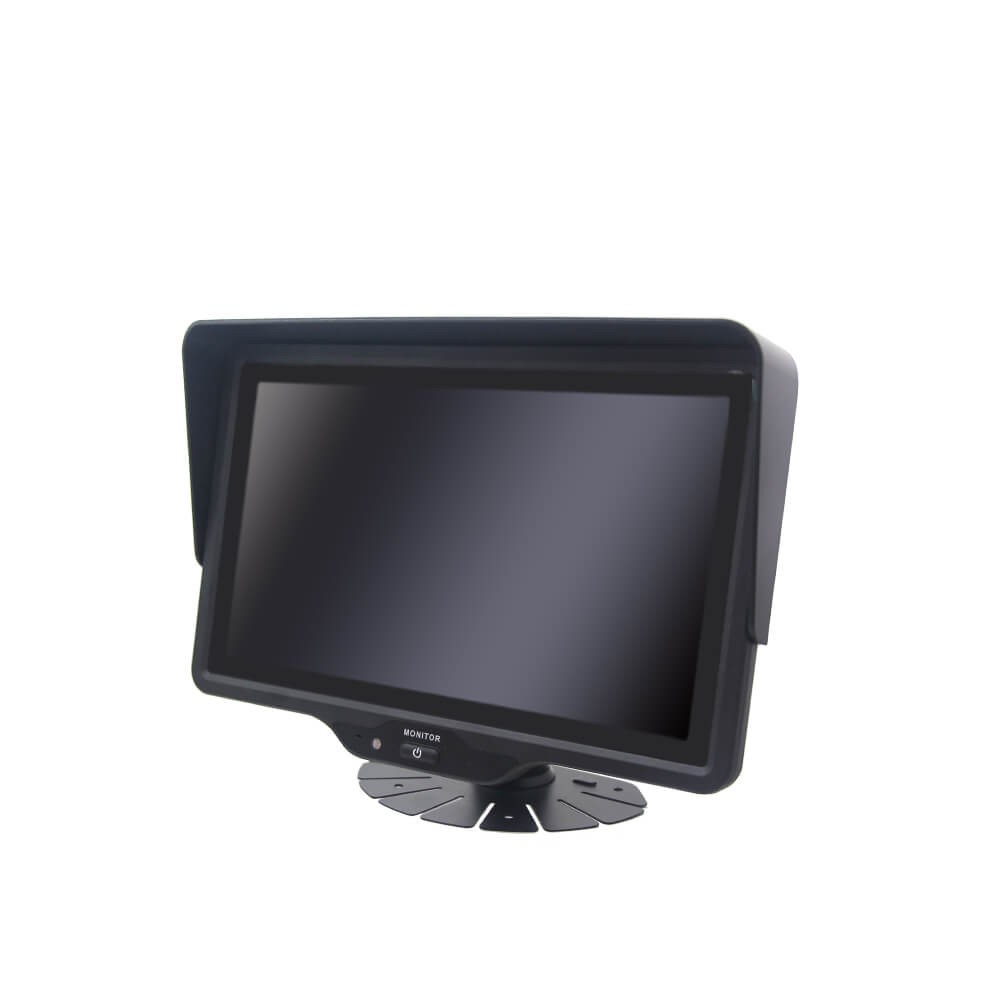

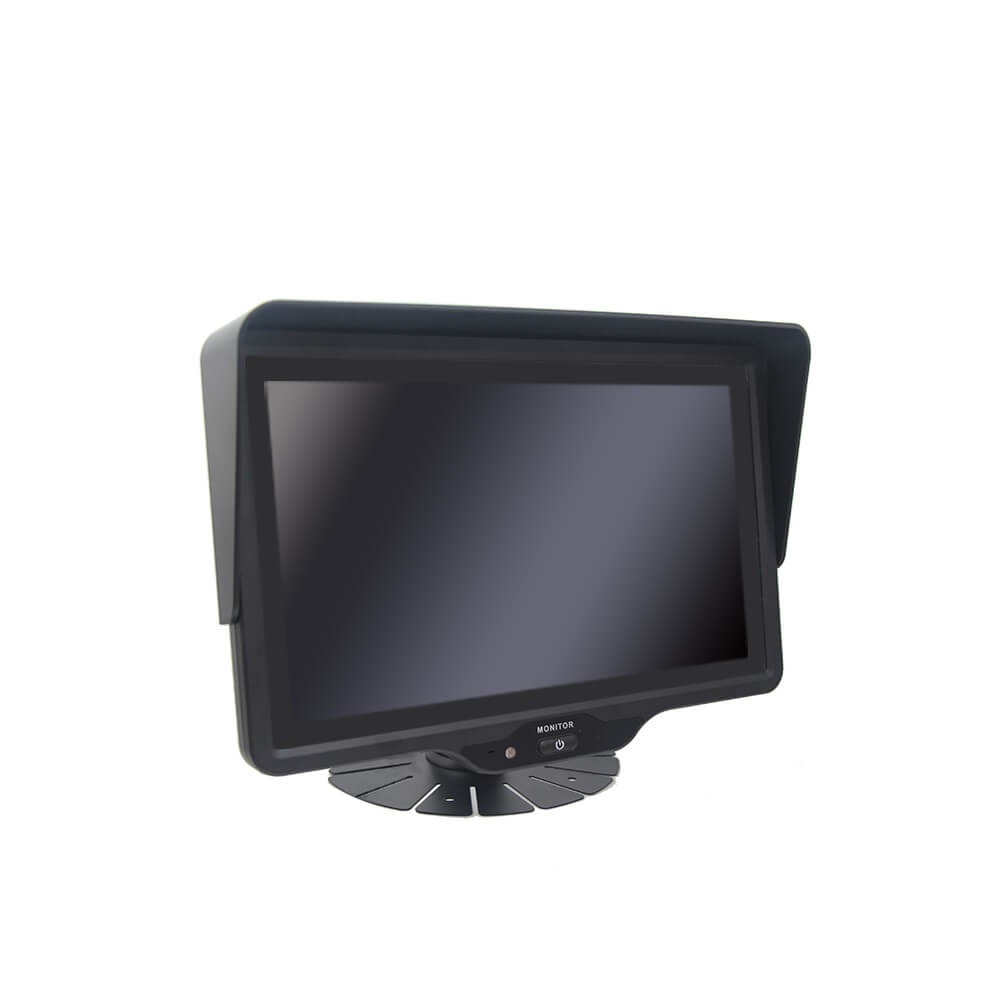

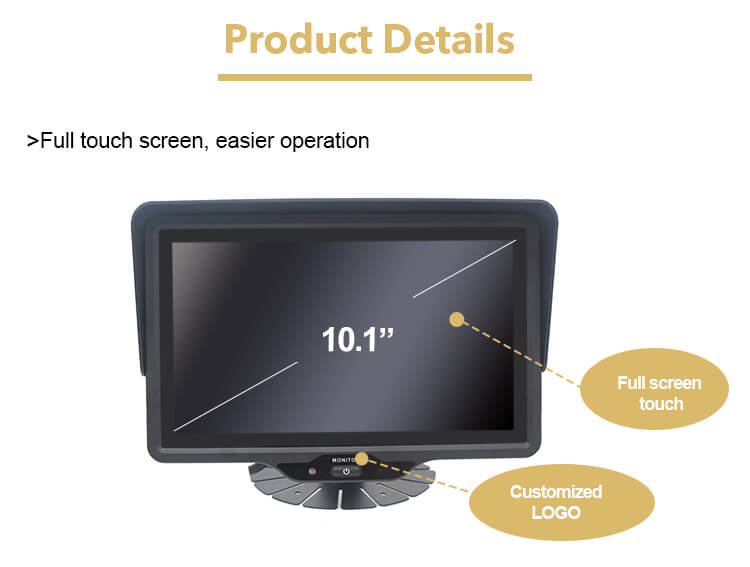

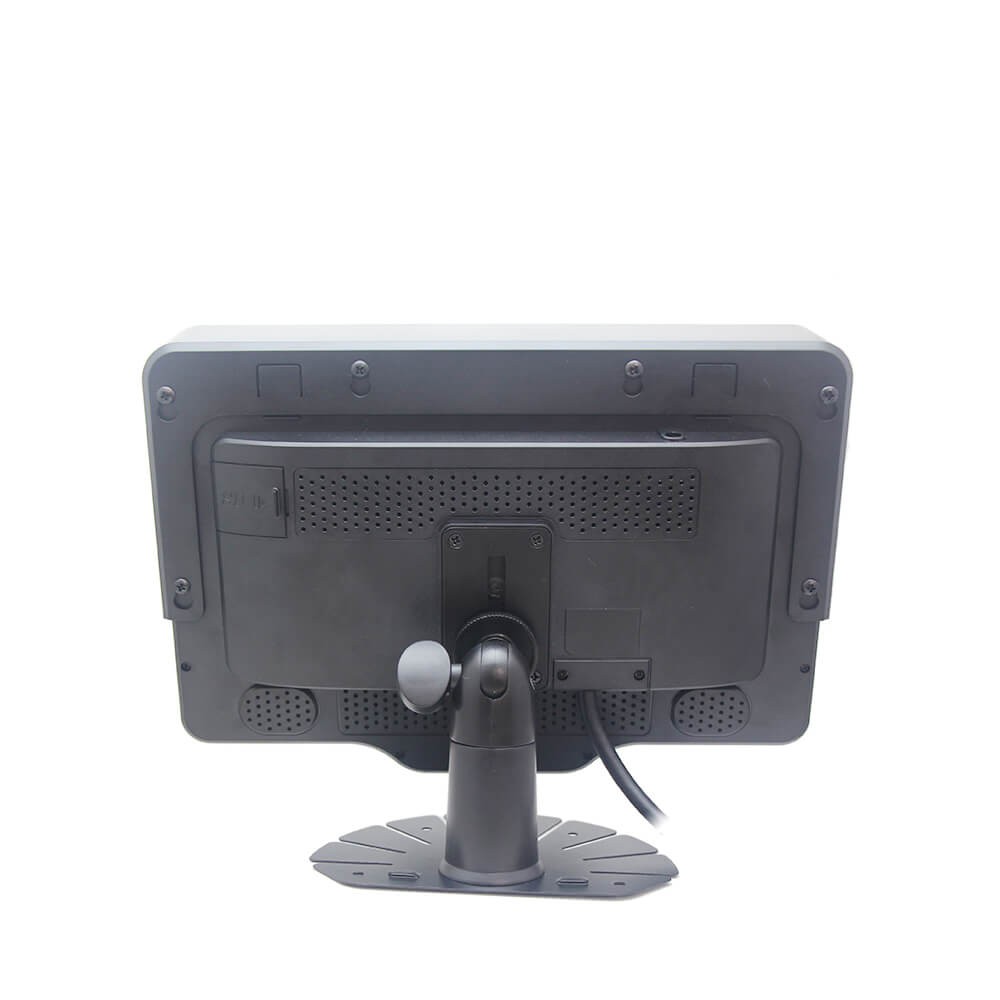

Aotop [CM-108HQ-CarPlay] monitor features 10.1 inch IPS LCD digital screen (full touch). It supports 4Way AHD video input,

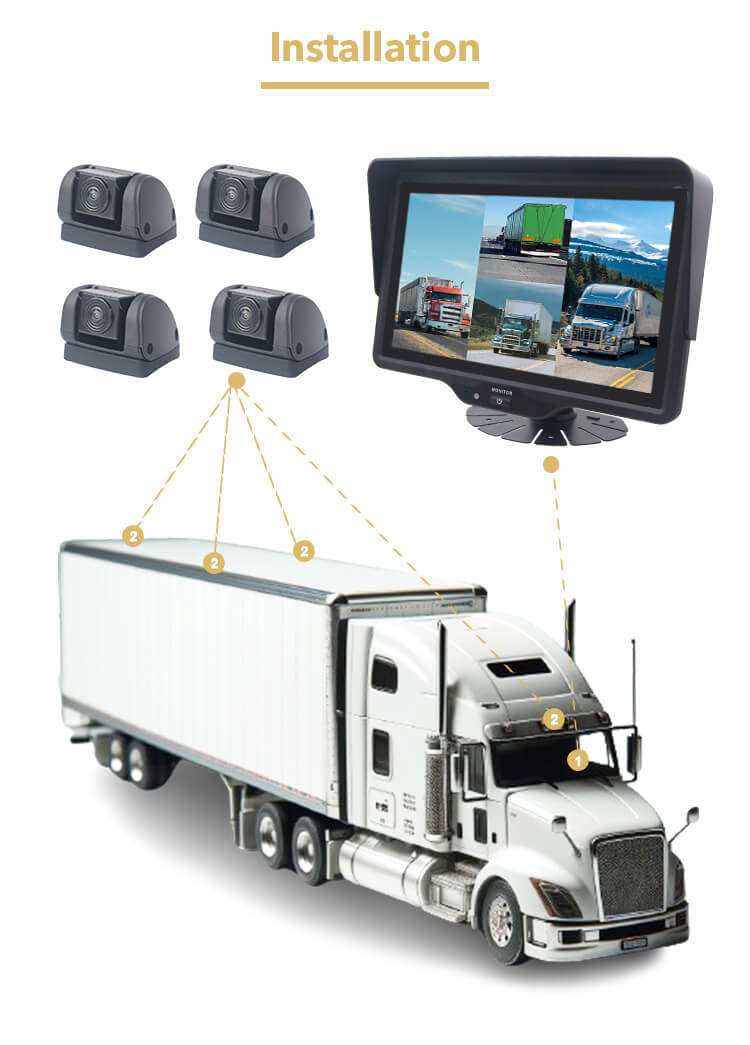

allowing connection to 4way vehicle cameras for 360° around view monitoring through a quad-split display. This system
effectively covers blind spots around the vehicle, providing an efficient monitoring solution for large vehicles. It also supports

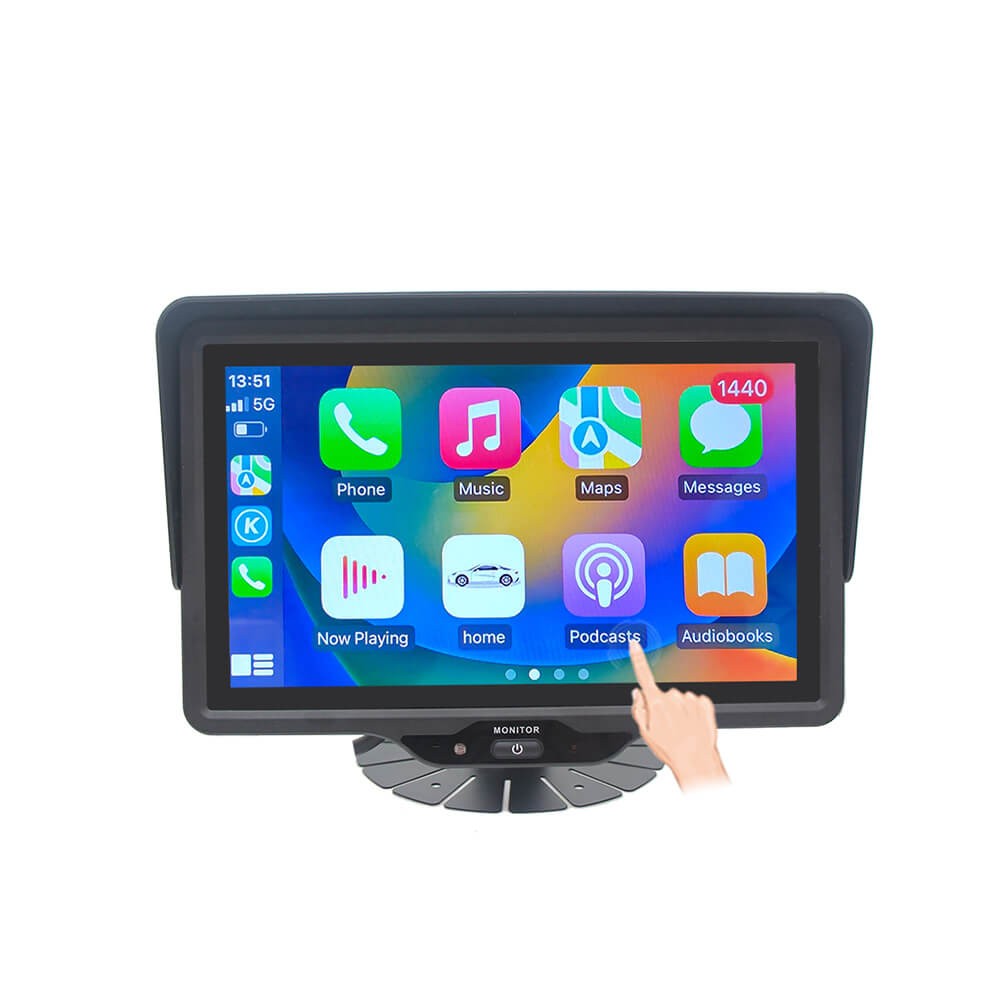

wireless CarPlay & Android Auto connectivity, offering added convenience for driver. If you are looking for a reliable CarPlay
monitor manufacturer in China, please contact us at sales@aotop.com.
| Screen Ratio | 16:9 |
| Screen Resolution | 1024*R.G.B*600 BOE |
| Backlight | LED, Brightness 500 Cd/M2 |
| Contrast | 800:1 |
| Viewing Angle | UP—85°, DOWN—85°, LEFT—85°, RIGHT—85° |
| Operating Method | Full Touch Screen |
| OSD Control | DVR, Carplay, FM Emission, Settings, Bluetooth, Brightness, Volume |
| Signal Input | 720P/1080P Input |
| Recording | Support SD Card Recording |
| SD Card | Support 32G-256G, Class 10 And Above |
| Video Compression Format | H.264 |
| Recording Resolution | 720P |

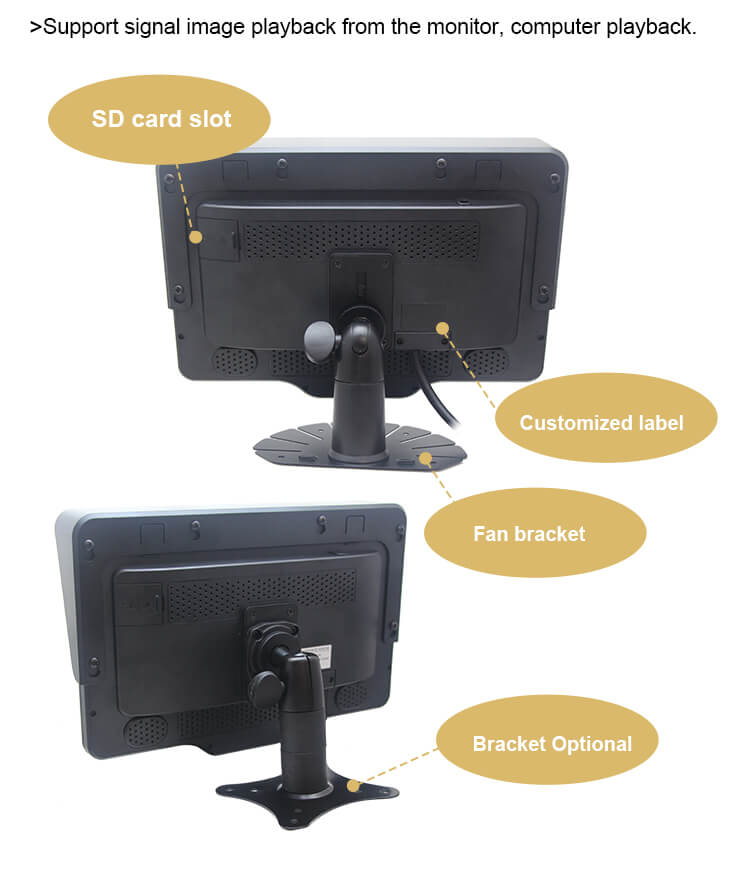

| Reccording Playback | Signal Image Playback From The Monitor, Computer Playback |
| File Format | TS |
| File Size | Size720P (1 Minute) ≈ 31MB |
| System Language | English, Japanese, Korean, Russian, German, French, Spanish |
| Image Display | Support Quad Image Display,1/2/3/4 Images Display Adjustable |
| Parking Line | Support Customzied Size And Position For Parking Line |
| Mobile Interconnection | Supports IOS 12 And Above Systems, But Not IPhone 6 And Below. |
| Channel Image Setting | Support Flip And Mirror Setting For Each Channel |
| Shockproof | 4G |
| Audio | Built In High Sensitivity MIC, Supporting High Fidelity Speakers For Calls And Carplay Sound Playing |
| Working Temperature | -20℃~+70 ºC |
| Storage Temperature | -30℃~+80 ºC |
| Working Humidity | 85%RH |
| Power Supply | 12-24V |
| Current Consumption | DC12V≈300MA , Without Cameras |
| Booting Time | 4s |
