● 1024*RGB*600 IPS LCD screen (full touch screen)
● 6CH x cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS
● 6 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

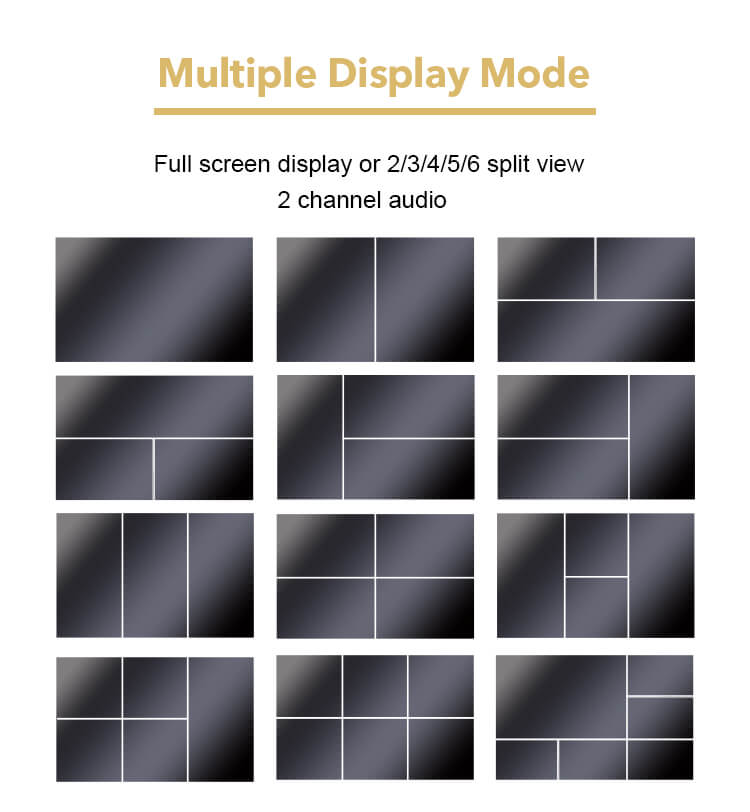

● Full display & 2/3/4/5/6 split view mode
● 1CH audio signal input (high quality speaker)
● Max. 256GB memory card (6CH DVR HD loop recorder)
● Multi-language settings
● Horizontal mirror image switching
● DC 12-24V wide voltage
● AUTO adaptation PAL / NTSC system
PRODUCT FEATURES

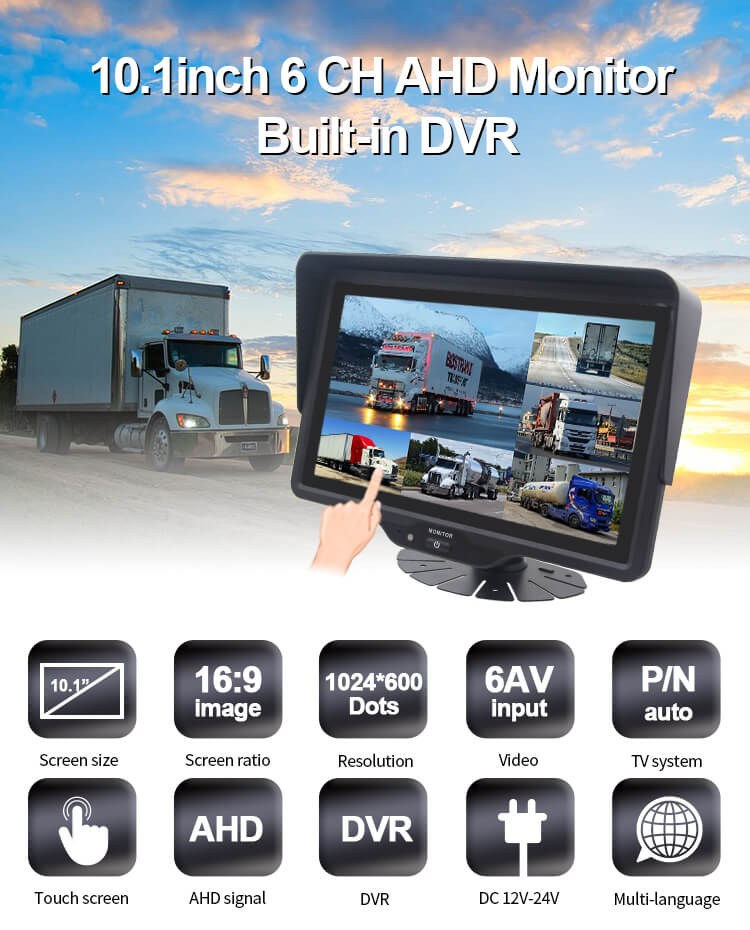

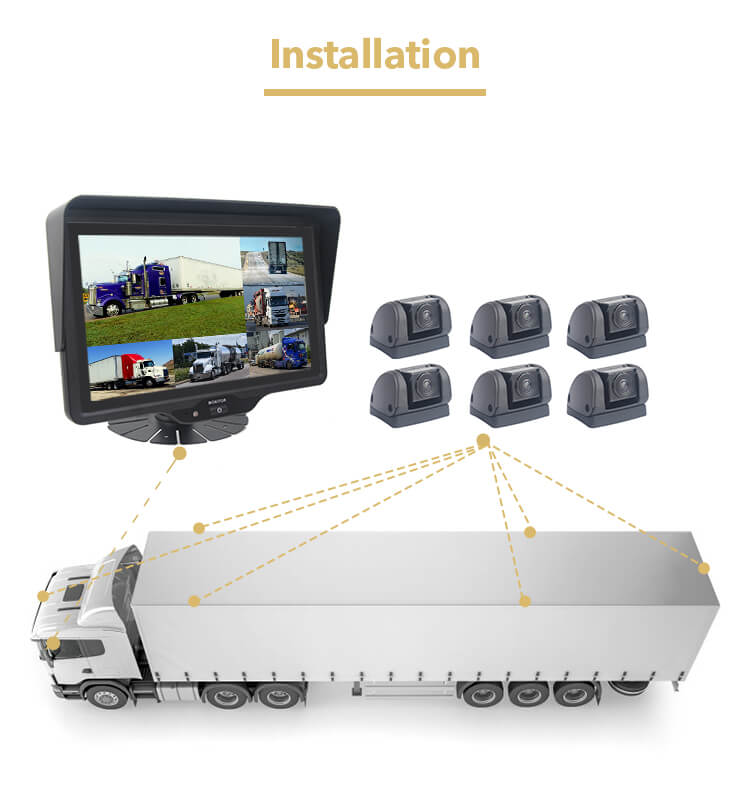

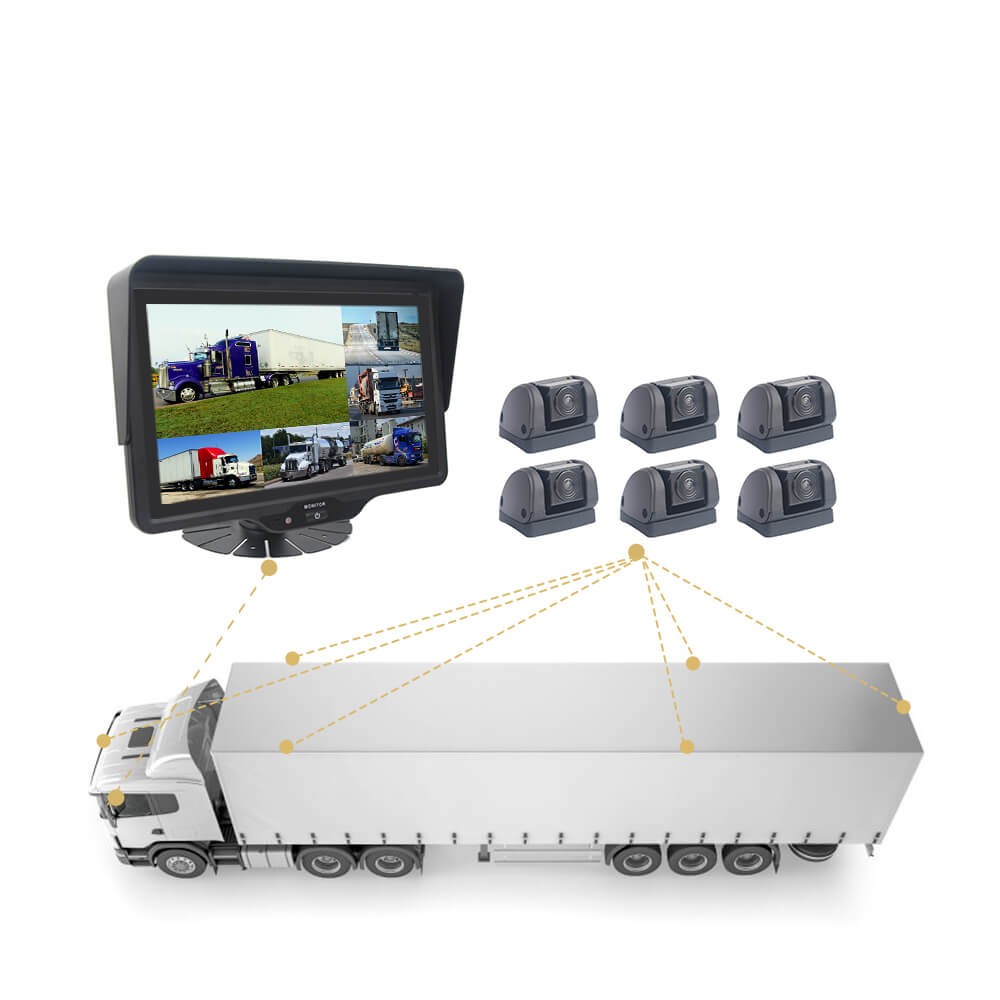

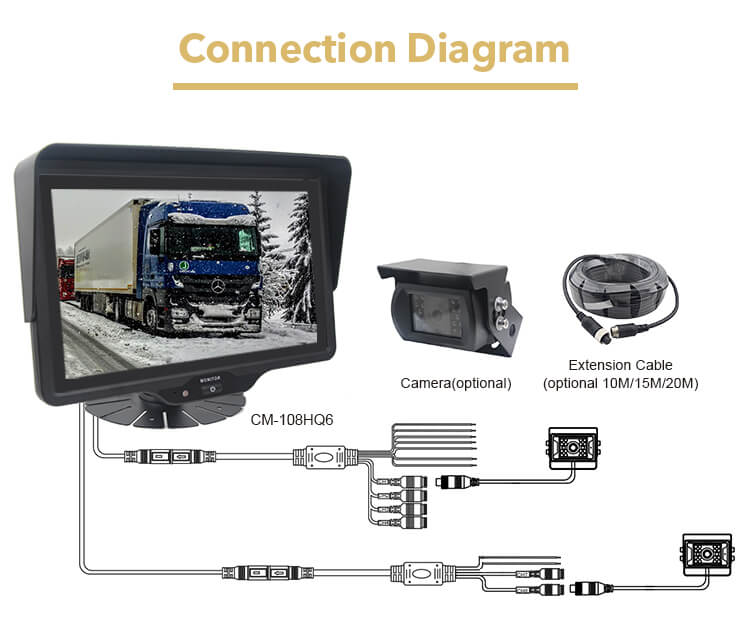

AOTOP [CM-108HQ6] rear view monitor supports 6CH 1080P/720P AHD video input and can connect up to 6 vehicle cameras,
providing effective monitoring of the vehicle's surroundings and reducing the risk of accidents like scrapes. It also features
horizontal mirror switching, multi-language settings, and vehicle recording functionality, making it an excellent choice for
enhancing fleet safety. If you are looking for a reliable supplier of high-quality vehicle monitors in China, please contact us
at sales@aotop.com.

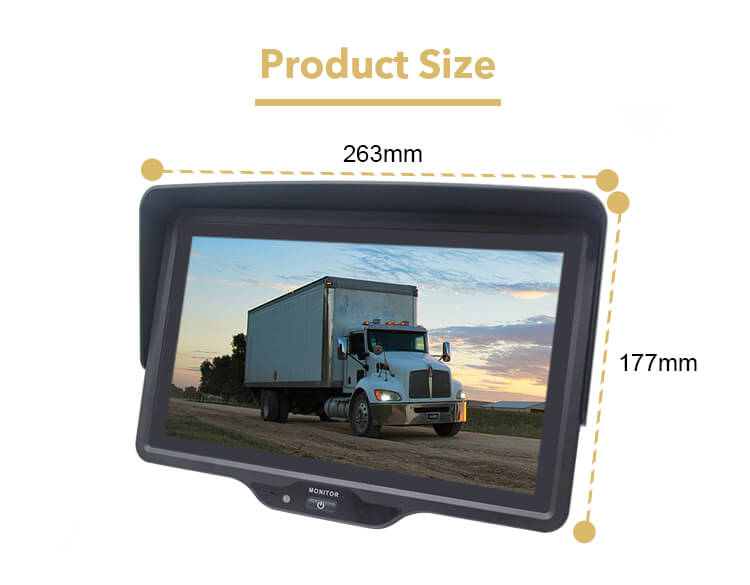

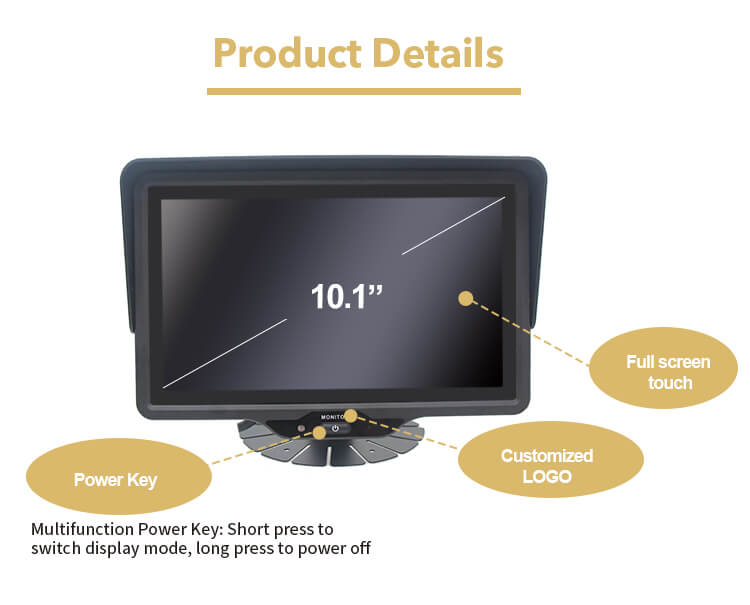

| Screen | 10.1 Inch HD Color IPS SCreen |
| Screen Ratio | 16:9 |
| Back Light Luminance | LED, Luminance 500 Cd/M2 |
| Resolution | 1024xRGBx600 |
| Contrast | 800：1 |
| Compatible System | PAL & NTSC(Automatically) |
| View Angle | UP—85°, DOWN—85°, LEFT—85°, RIGHT—85° |

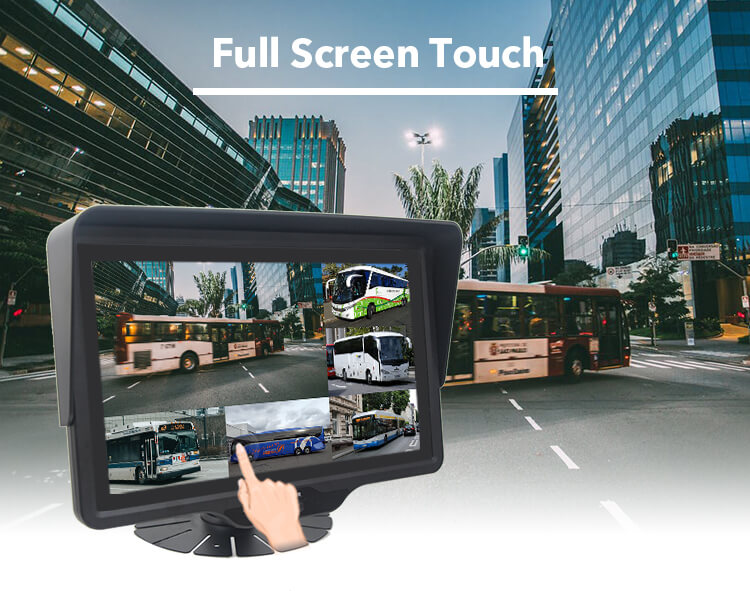

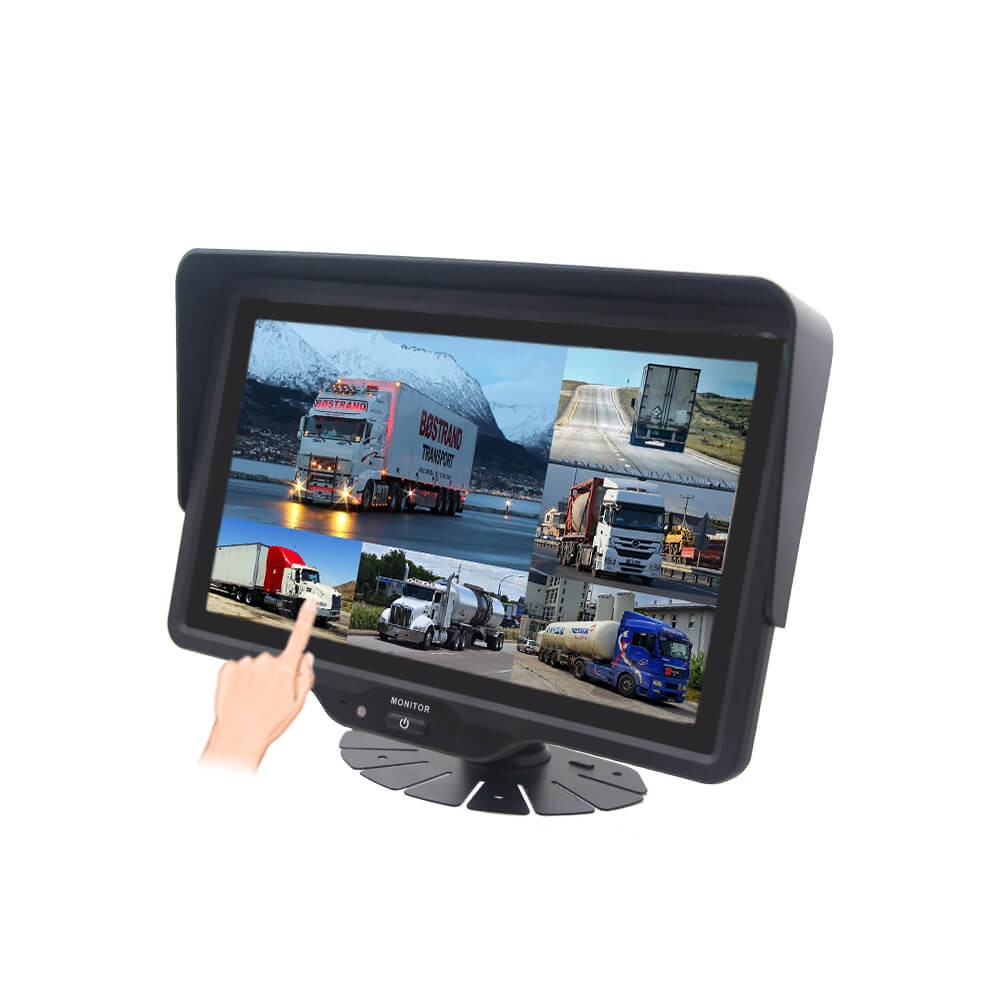

| Operating Method | Full Touch Screen |
| Video Input | Support 6CH 1080P/720P/CVBS Mixed Video Signal Input |
| Audio Input | 2CH Audio Input |
| OSD Menu | Image Setting,Volume Setting, Image Turnover, Blue/Black Screen (No Signal), Language Setting, ACC Delay Setting,Parking Guide Line On/Off, Reset |
| Language | French, German, Portuguese, Spanish, Italian, Turkish, Korean, Arabic, Russian |

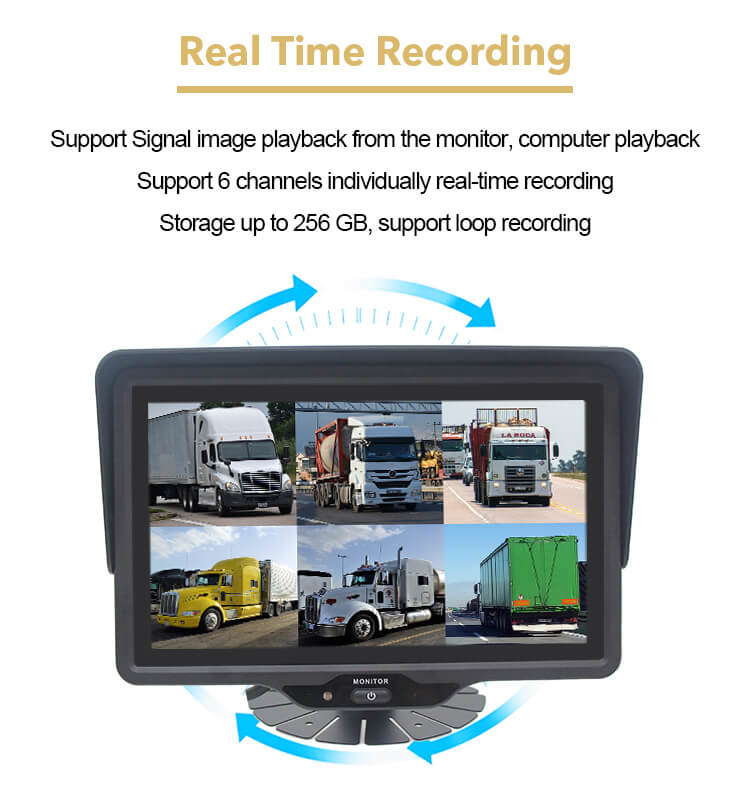

| Recording | Support SD Card Recording |

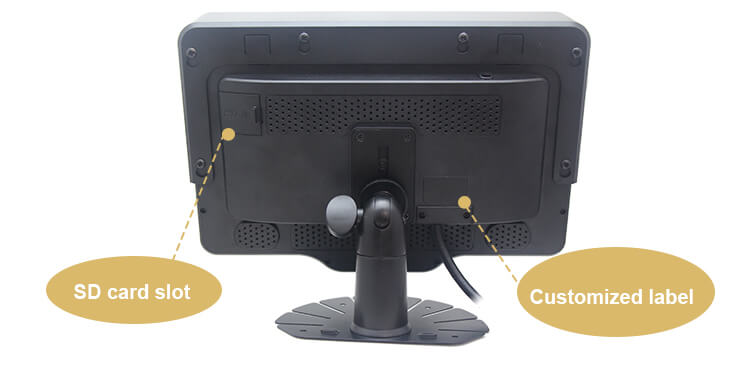

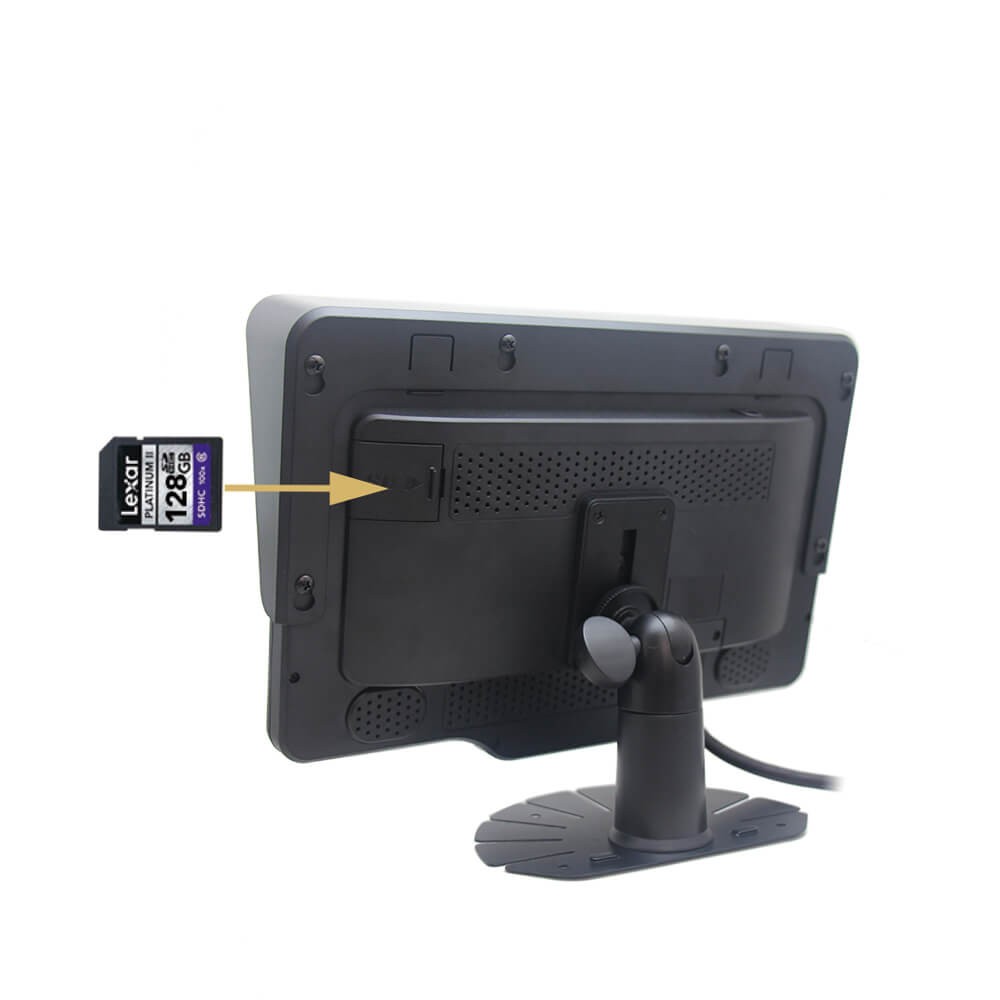

| SD Card | Support 32G-256G, Class 10 And Above Video Compression |
| Format | H.264 |
| Recording Resolution | 720P |
| Reccording Playback | Signal Image Playback From The Monitor, Computer Playback |
| File Format | AVI |

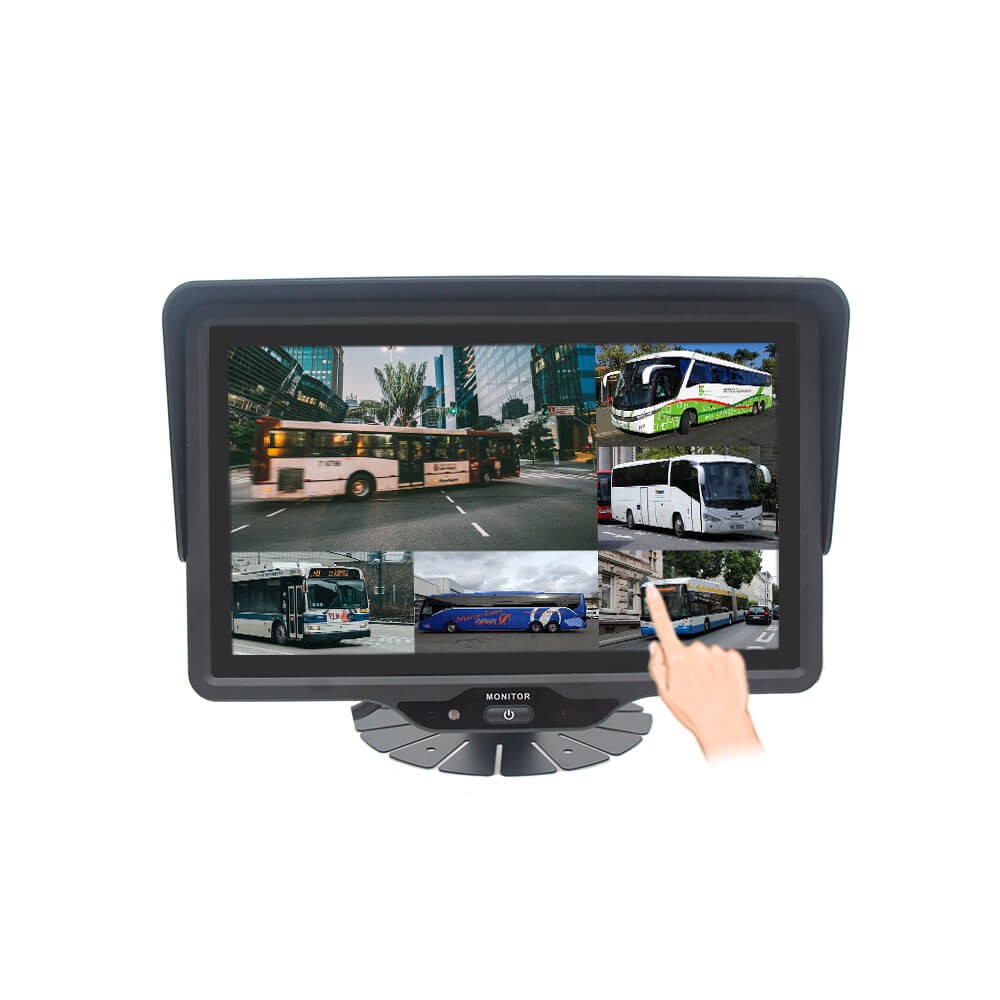

| Image Display | Multiple Images Display Switchable,1/2/3/4/5/6 Images Display Adjustable |
| Trigger | 6CH Trigger Control |
| Power Supply | DC12-24V |
| Current Consumption | DC12V≈500MA , Without Cameras |
| Boot Time | About 2 Sec. |
| Storage Temperature | -30℃〜+80℃ |
| Working Temperature | -20℃〜+70℃ |
| Working Humidity | 85%RH |
| Speaker | Built-In |
| Shockproof Level | 4G |
