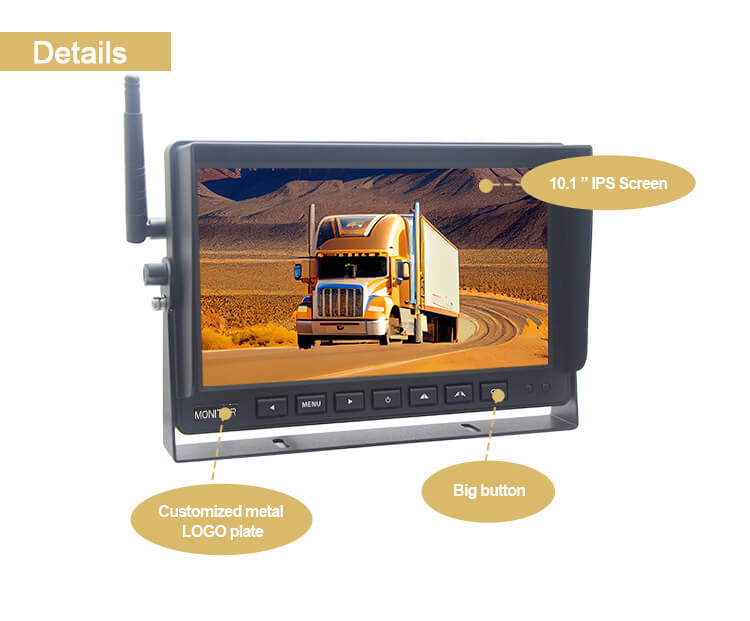

● 10.1 inch super wide IPS LCD screen, 1024*RGB*600 HD resolution.

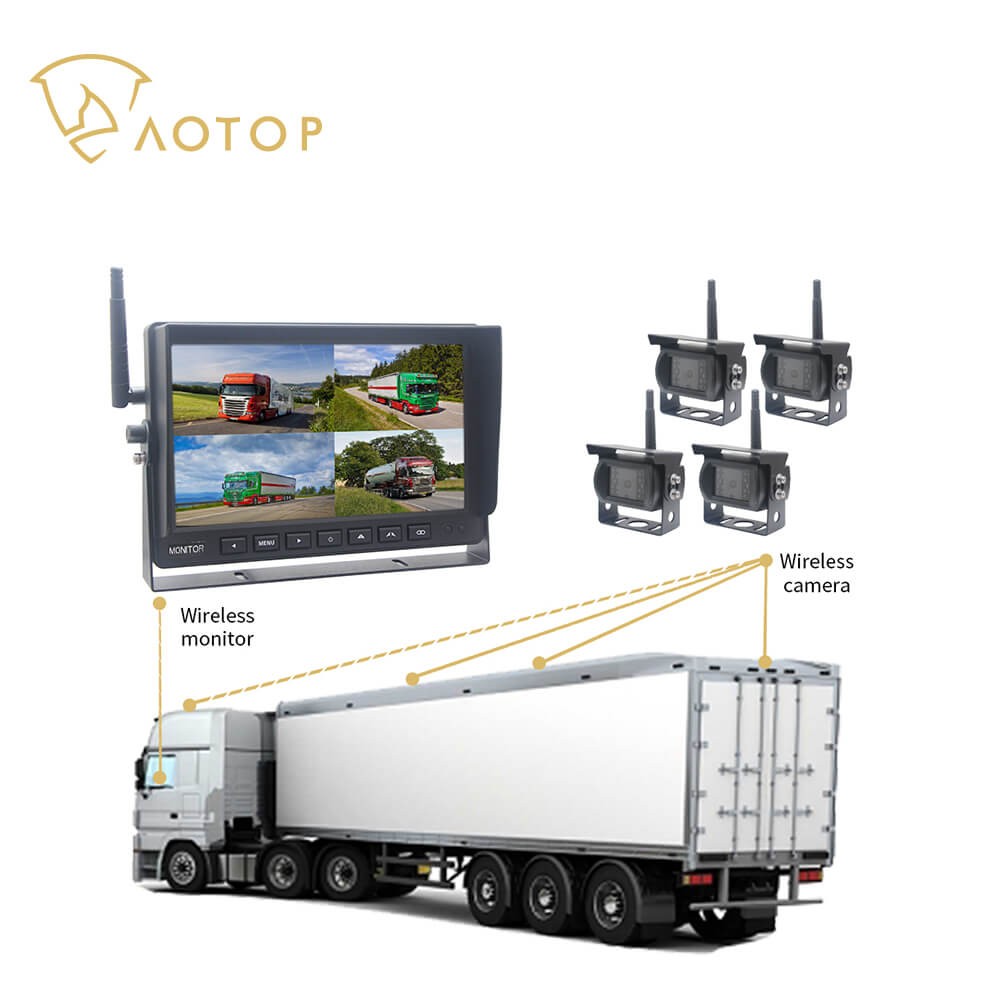

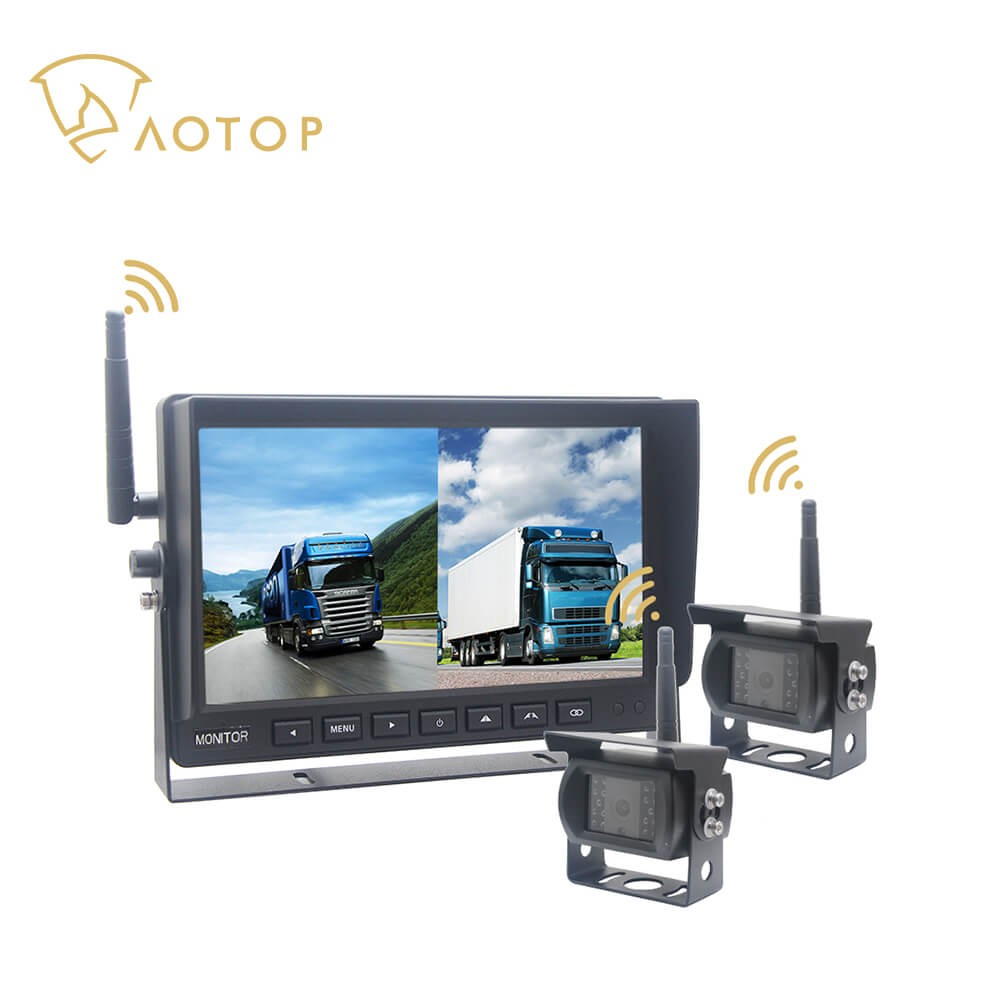

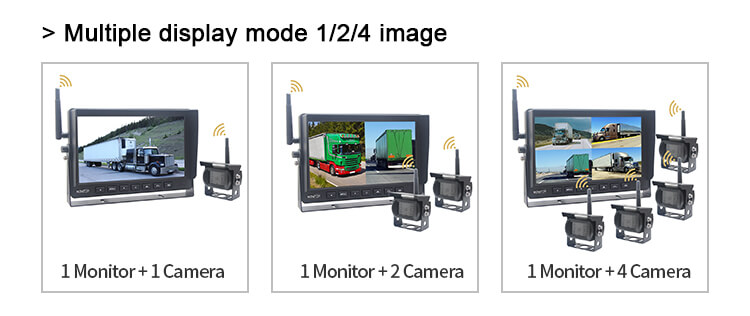

● Support 4CH video signals input, a variety of monitors modes quad view, double view, triple view and single view to meet various monitoring needs and reduce blind spots.
● 2.4G wireless signal transmission 656ft wireless transmission distance, without wiring easy to install. Save money & time！

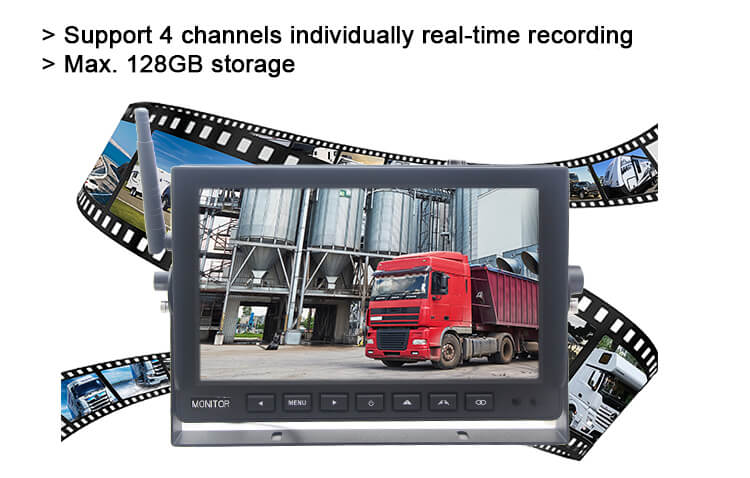

● DVR function built-in 128GB memory card support 4CH real-time recording and video playback.
● Rear view parking lines can be configured.
● Support 1080P/720P camera inputs

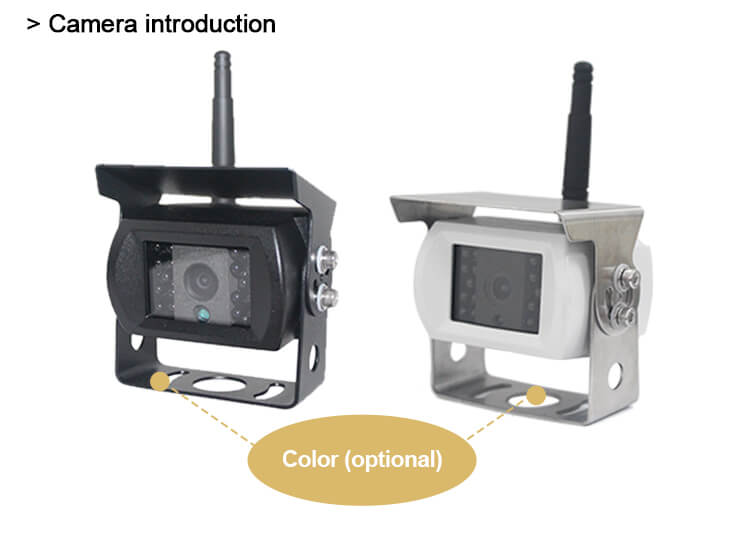

● Camera features IP69K waterproof, HD night vision, 120 wide angle etc.
● Supports manual and AUTO pairing, easy to operate. After the first pairing is completed, just connect the car power supply to work.
● DC12-24V wide voltage, applicable to a variety large & commercial vehicles.
PRODUCT FEATURES

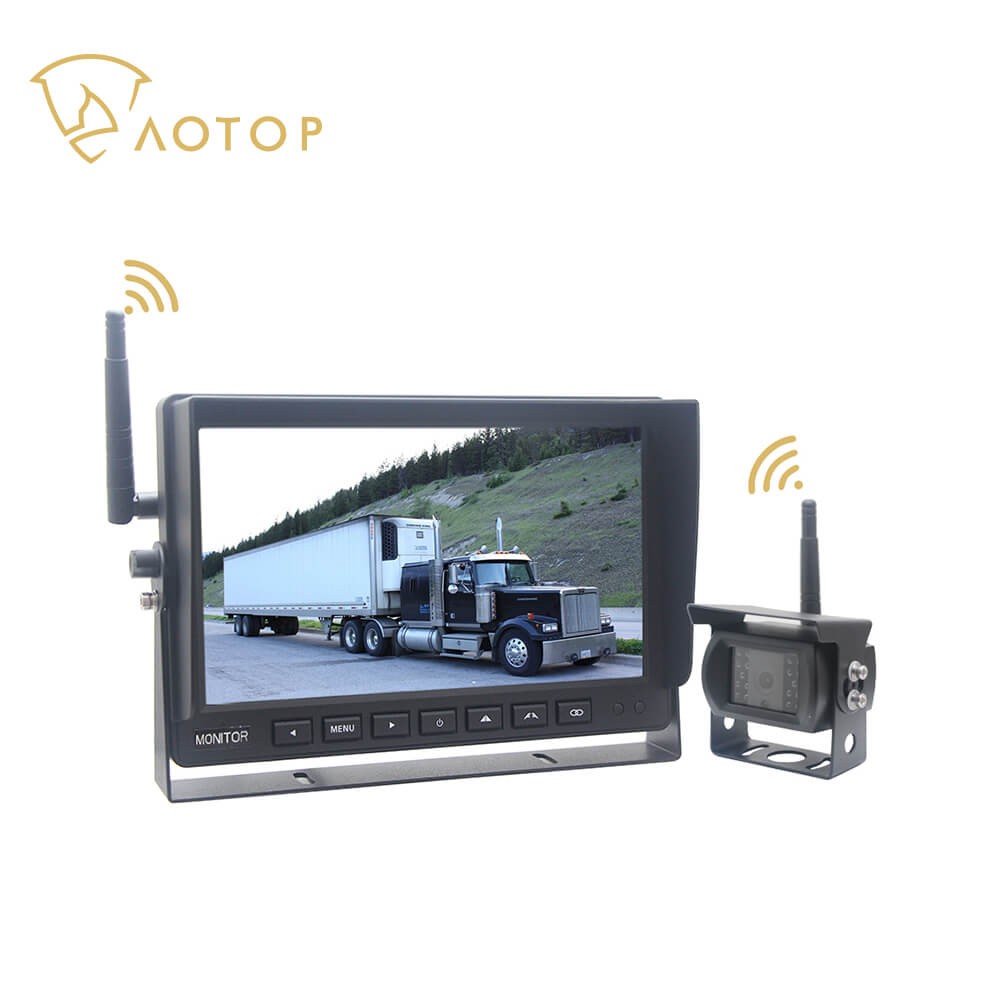

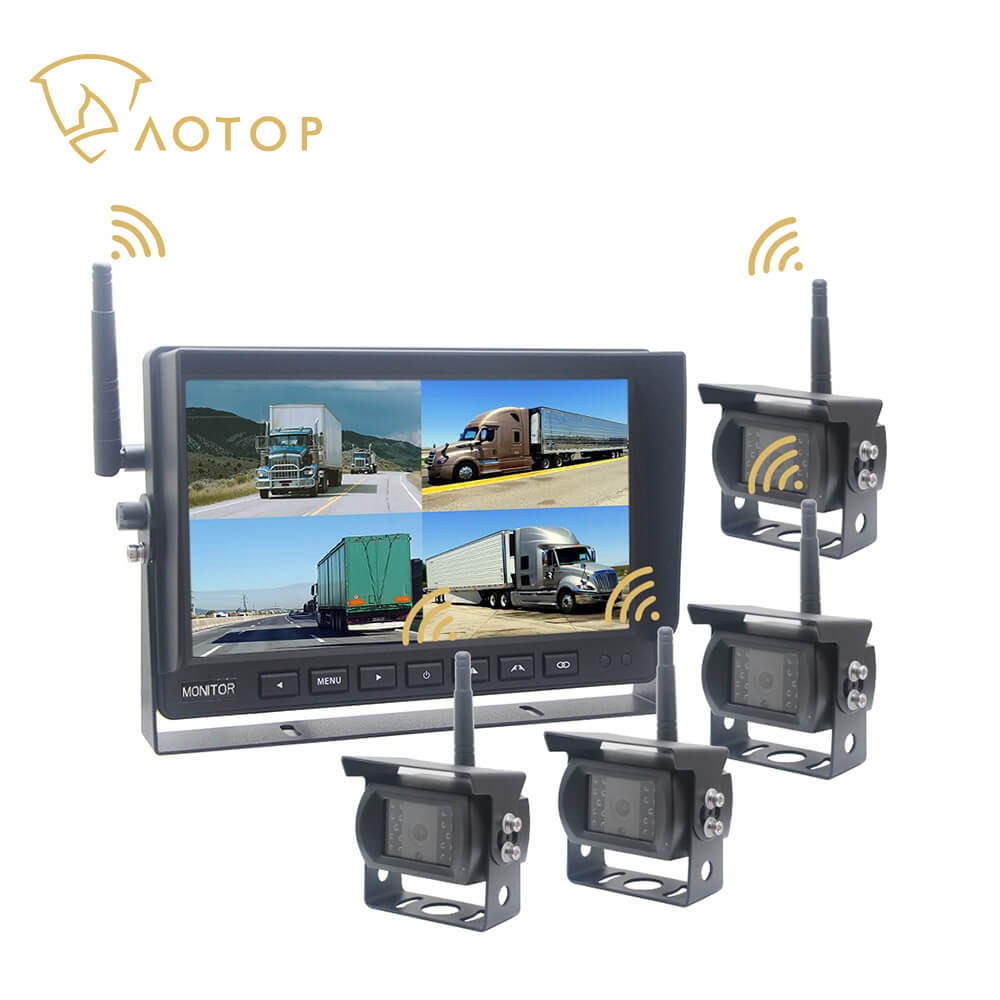

AOTOP 10.1 Inch HD Digital Wireless Monitoring System includes a quad view monitor and IP69K backup cameras.

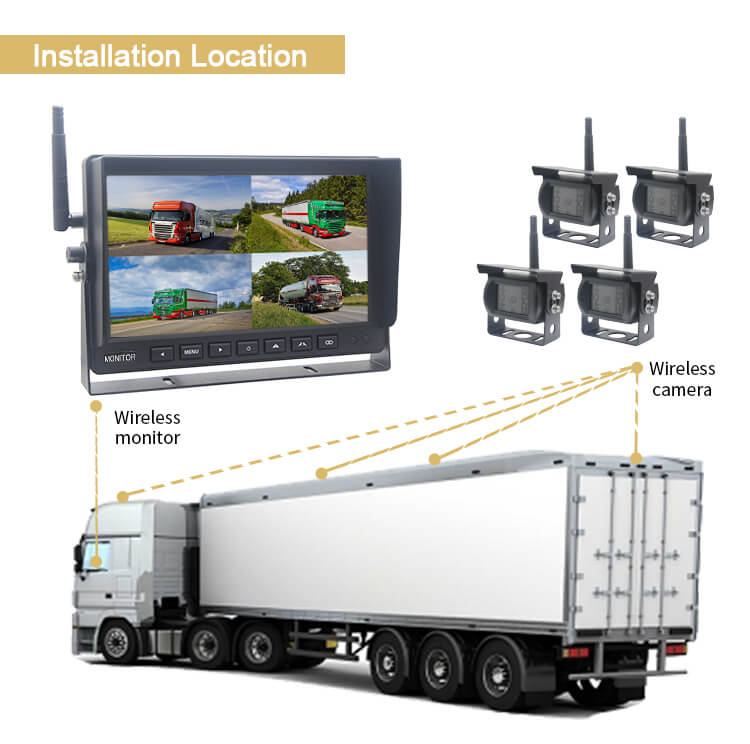

With it you can view around your vehicle easily without need of running long cables, especially good for commercial
vehicles such as truck, harvester, and trailer. If you are looking for reliable wireless car camera system manufacturer
supplier in China, please contact us at sales@aotop.com!
| Wireless Rear View Monitor | |
| Model | CM-1010MDW-HD |

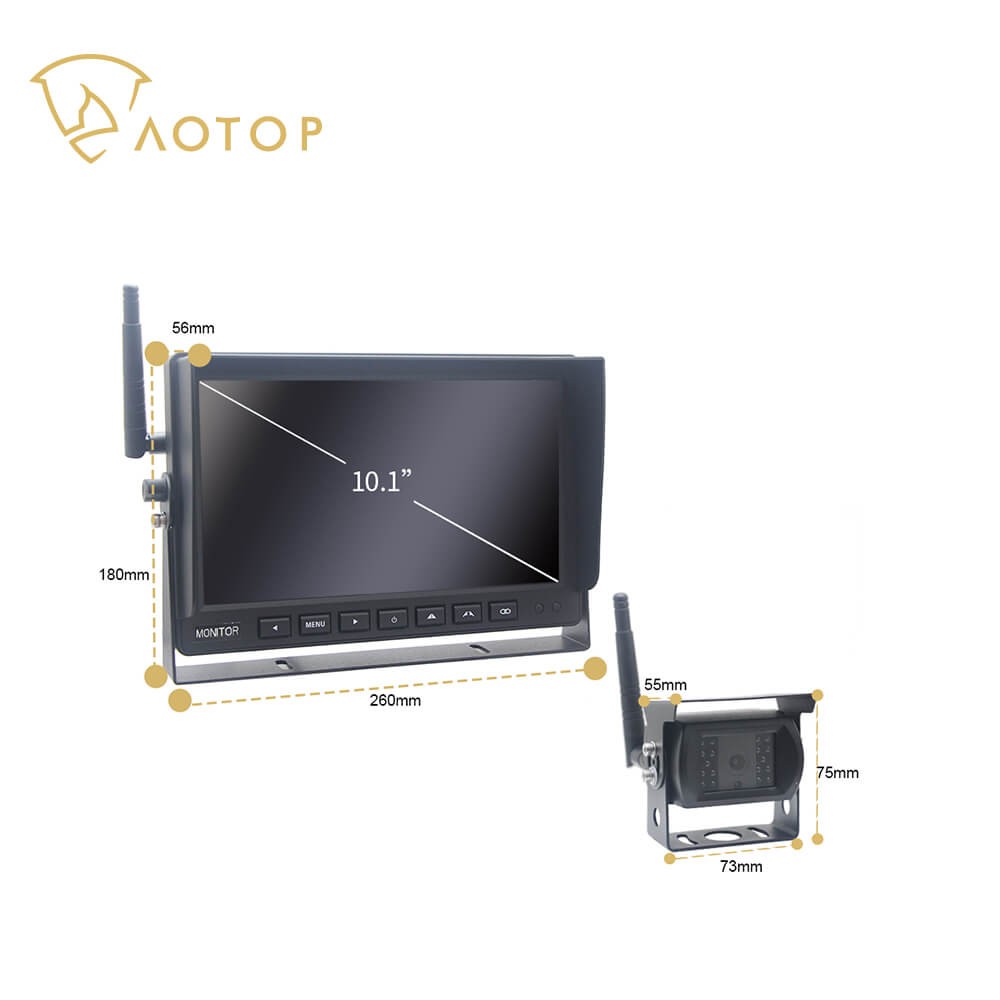

| Screen | 10.1 inch 16:9 digital panel |
| Resolution | 1024*RGB*600 |
| Wireless video input | 1-4CH wireless video input and recording |
| 1-4CH wireless video input and recording | 200M in open area |
| 300M in open area | DC12V～24V |
| Power consumption | 3W |
| Speaker | built-in |
| Memory card | 128GB |
| Recording video resolution | 1024*600 |
| Recording document size | about 3.3m per minute |
| Recording video format | H.264 |

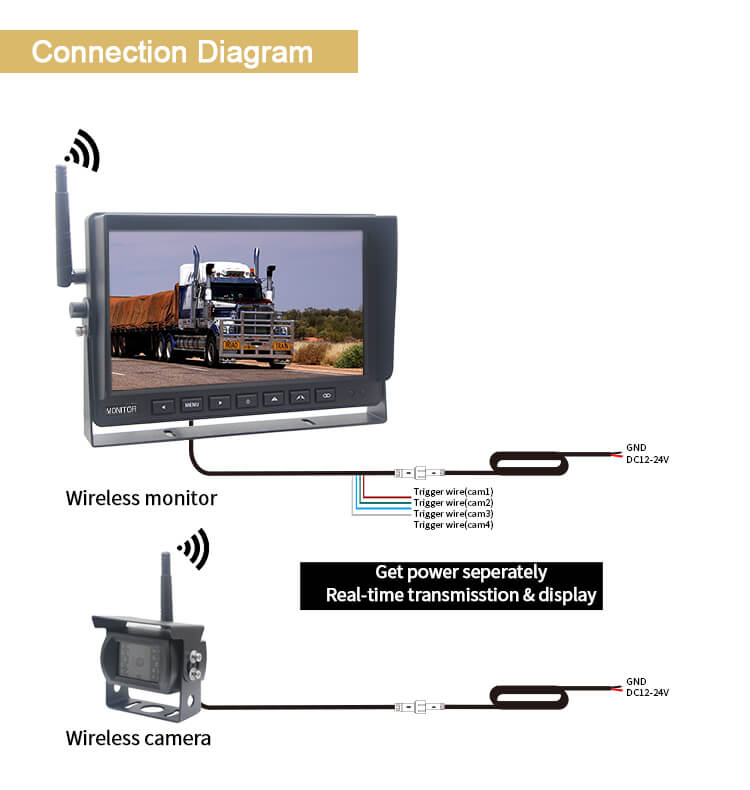

| Trigger | 4CH |
| Working temperature | -20℃~70℃ |
| Storage temperature | -30℃~85℃ |

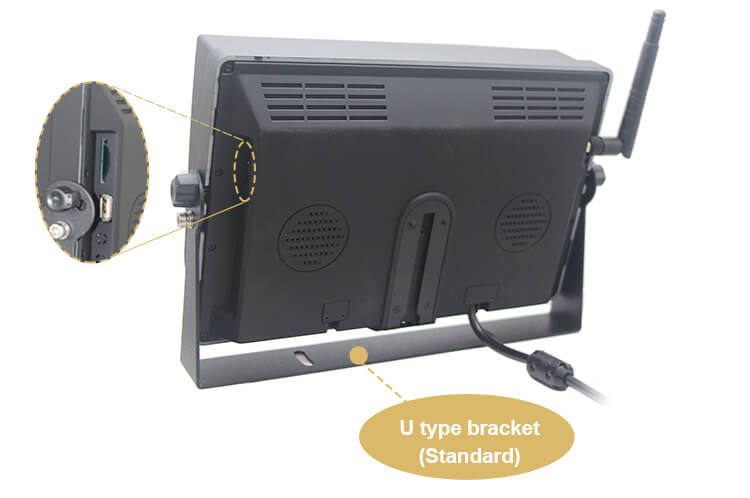

| Accessories | Power cord, U shaped bracket, User manual, 2.4G 5DB antenna, 3m extension antenna; |
| Wireless Backup Camera | |
| Image sensor | CMOS 1/2.7” |
| Pixel | 1080P 1920*1080 pixels |
| Operating frequency range | 2400-2483.5MHZ |
| Transmission distance | 200M in open area |
| System | PAL/NTSC automatically |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission bandwidth | 8MHz BER<1E-3 |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| audio | with |
| SNR | 46.5dB |
| Waterproof | IP69K |
| Viewing angle | Diagonal viewing angle 120° |
| Transmitting sensitivity | -89 dBm |
| Shell material | Black aluminium alloy |
