● Low Power Consumption

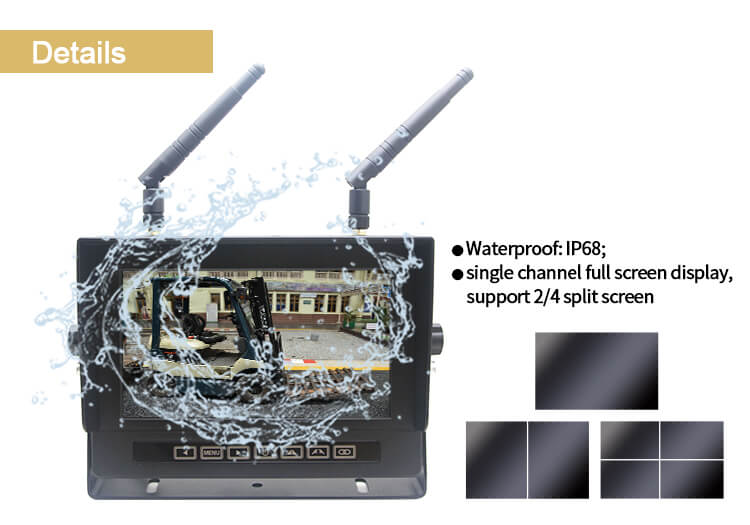

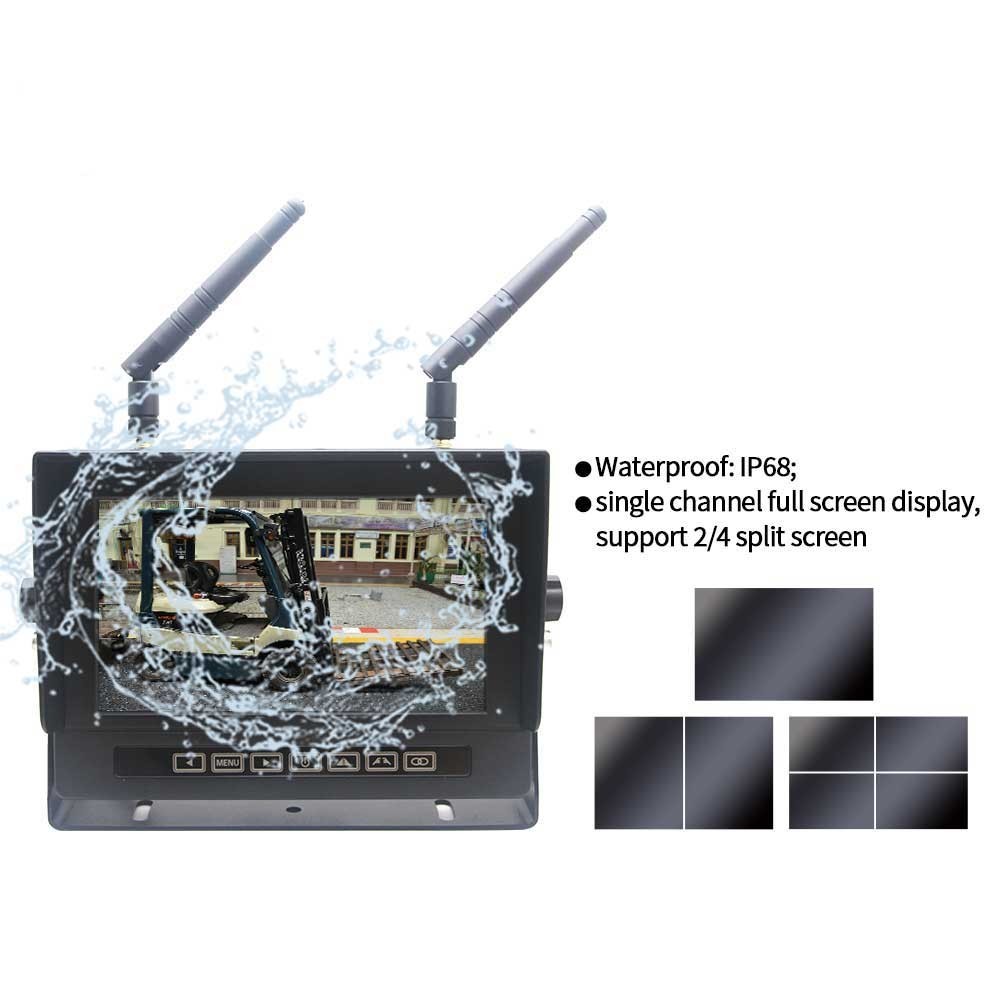

● Monitor IP68 & Camera IP69K Waterproof
● 2.4g Wireless Transmission (50m, 164ft)
● HD IR Night Vision Camera, Magnetic Base, Built-in 3400mAh Battery
● No Drilling, Easy To Install
● Instant Automatic Pairing
PRODUCT FEATURES

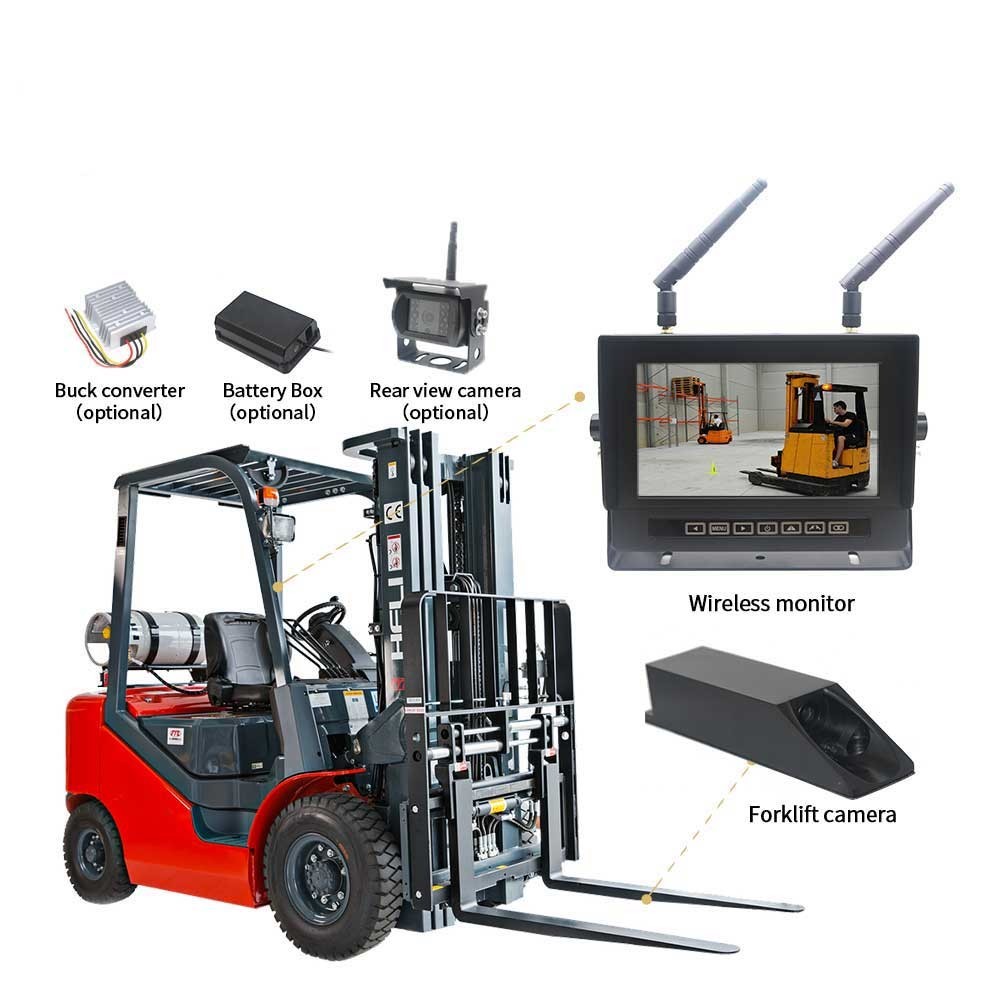

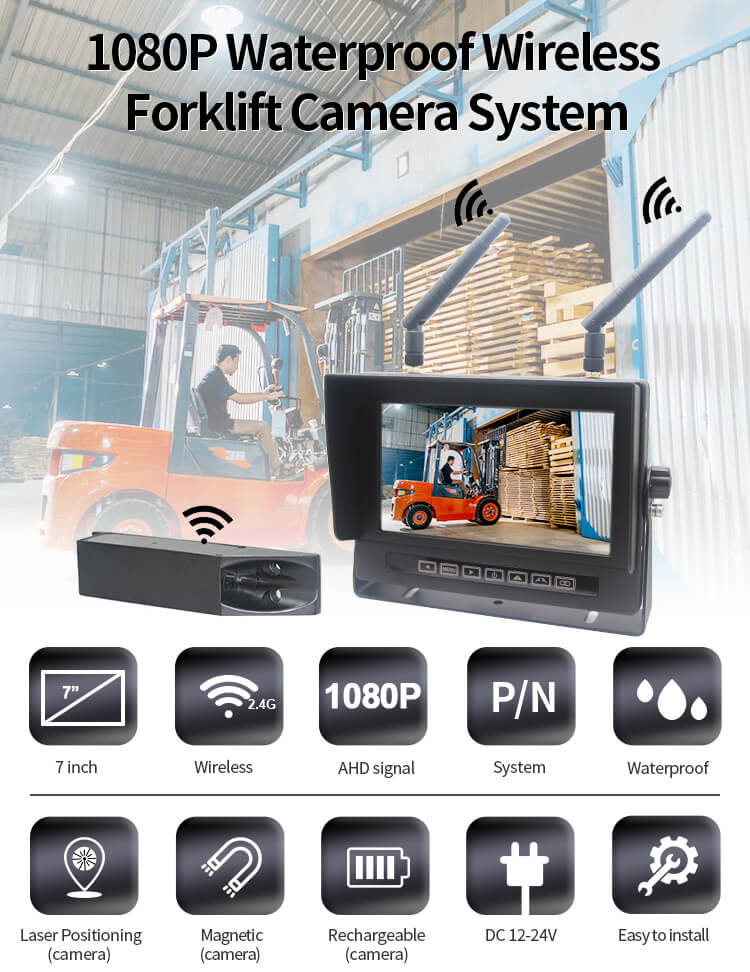

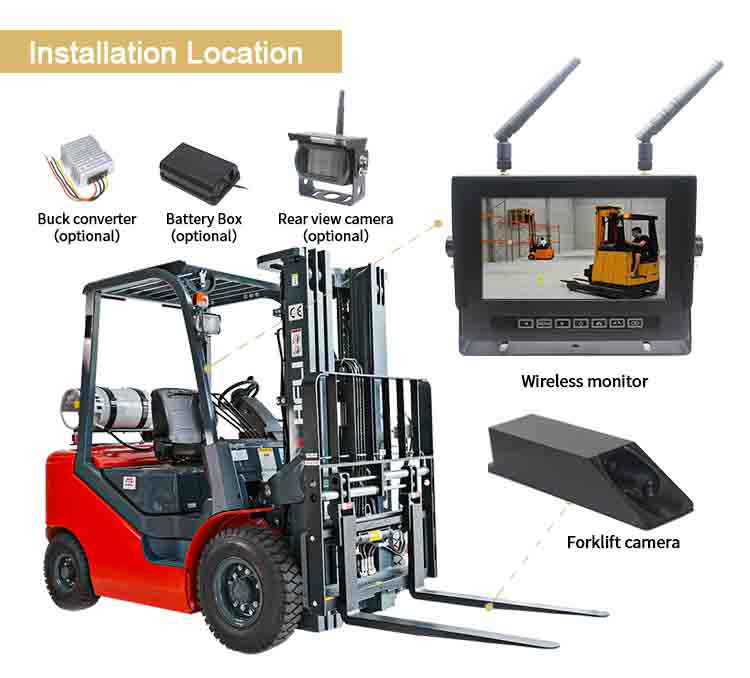

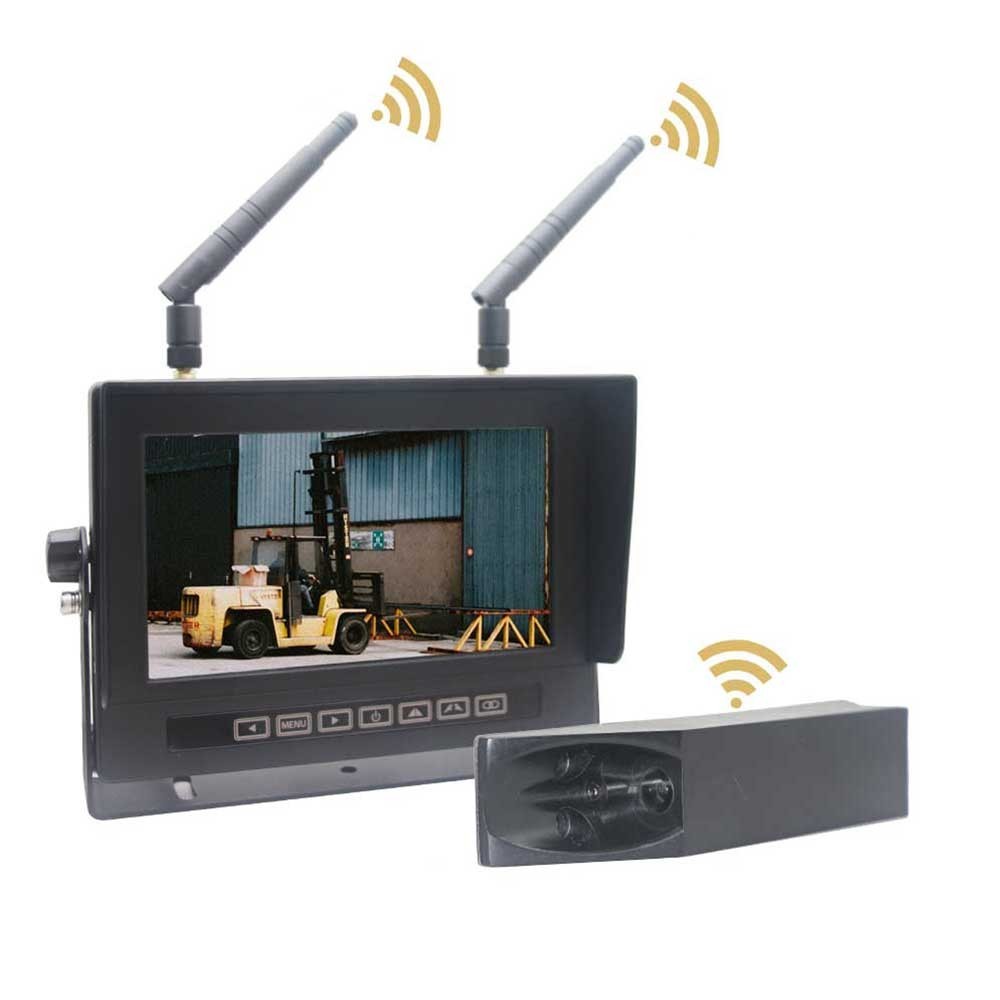

7 inch waterproof high definition digital wireless forklift monitoring system can provide stable visual assistance for
forklift operators, especially in the case of cargo accumulation blocking the front line of sight, it can clearly display
the front line of sight, effectively help to avoid collision with the obstacles in front. The low power consumption
monitor & camera support waterproof can be adapted to various forklift working environments. If you are looking
for high-quality forklift solution systems, please contact us at sales@aotop.com!

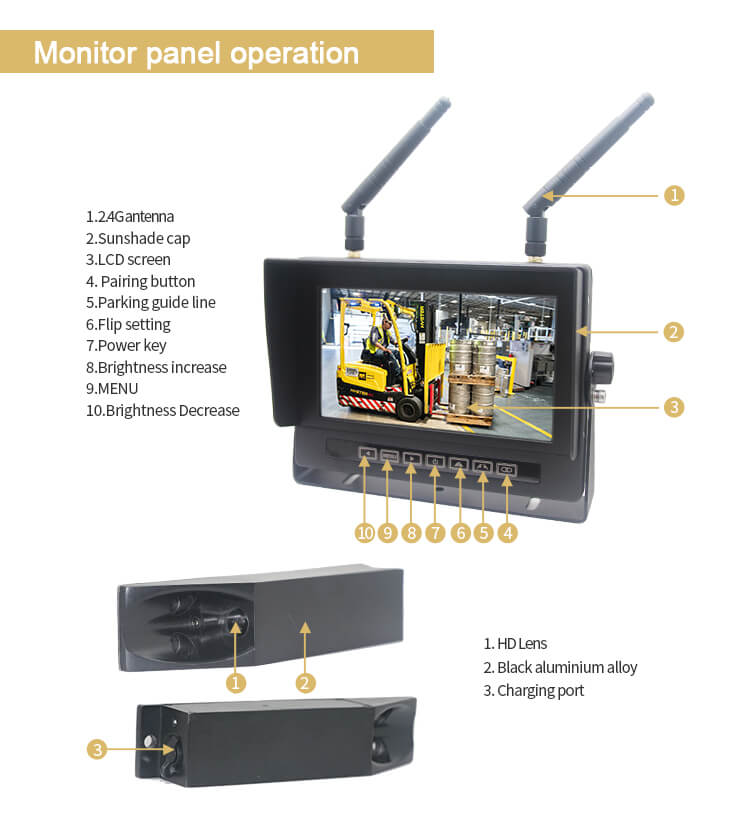

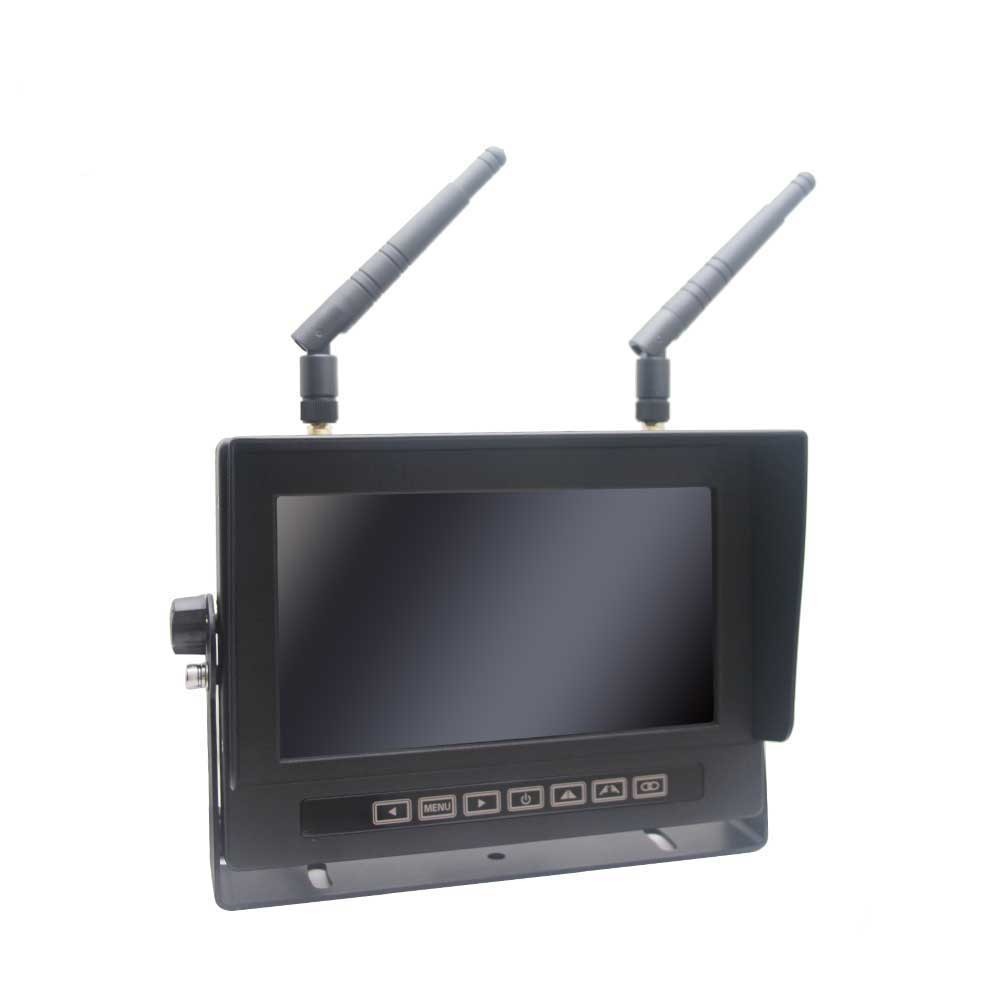

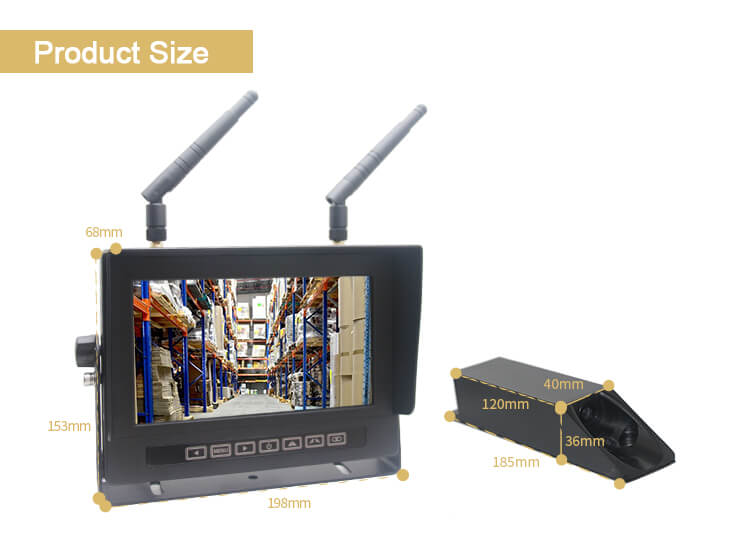

| Wireless Waterproof Monitor | |
| Model | CM-708MDW-HD |
| Screen ratio | 16:9 / IPS |
| Resolution | 1024*R.G.B*600 |
| Back light | LED, brightness 500 cd/m2 |
| Wireless input | 4CH 1080P wireless input |
| Working frequency | 2400 ~ 2483.5MHz * |
| Receiving sensitivity | -89dBm@4MHZ |
| Image delay time | 120mS |
| Receiving distance | 50M in open area |
| Operating temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| Vibration rating | 4G |
| Image delay time | 120mS |
| Waterproof Rating | IP68 |
| Power consumption | ＜3.8W |
| Consumption current | 12V Standby:≤10mA, working.≤320mA |

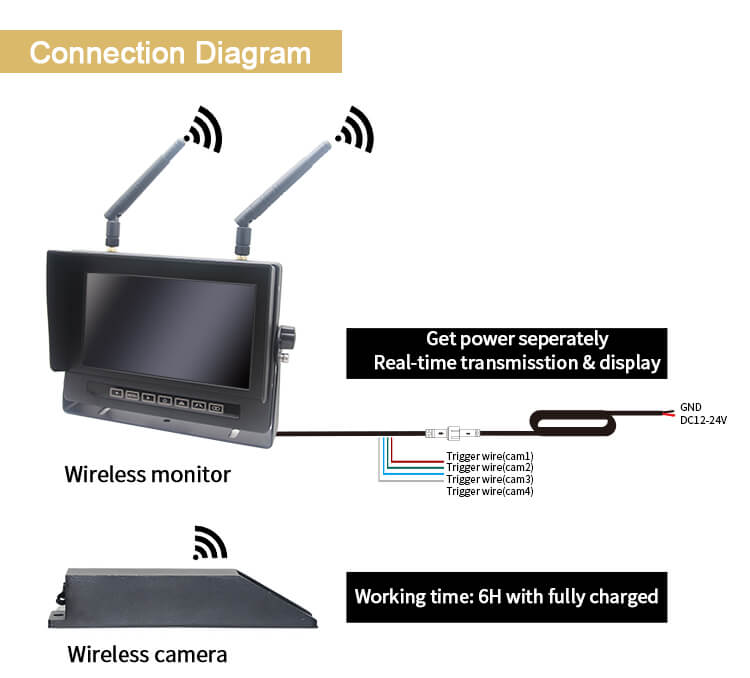

| Power Supply | DC12-24V |

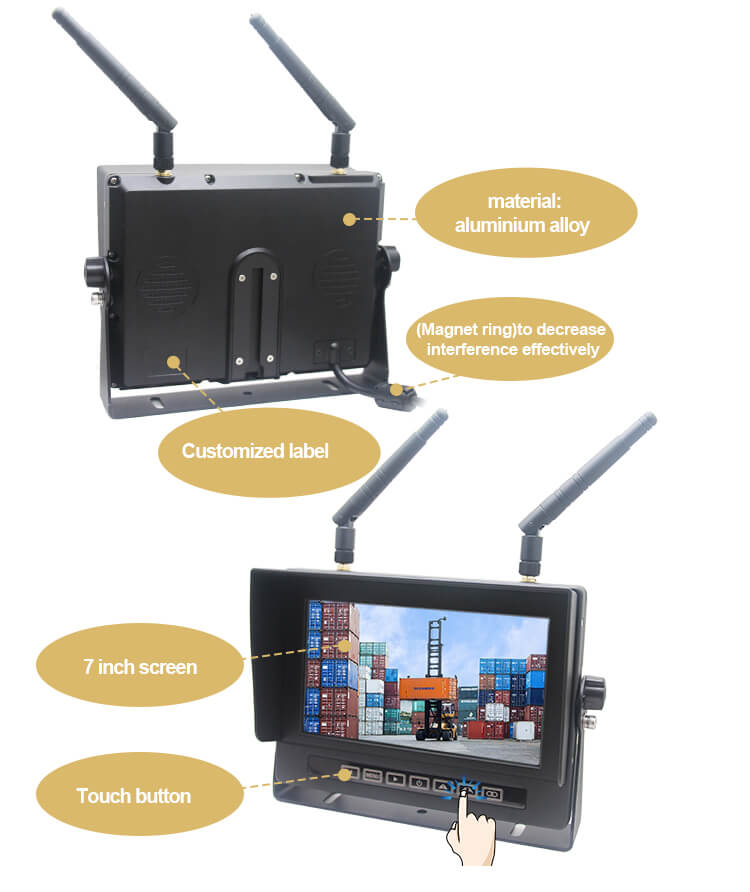

| Shell materials | PC+ABS |

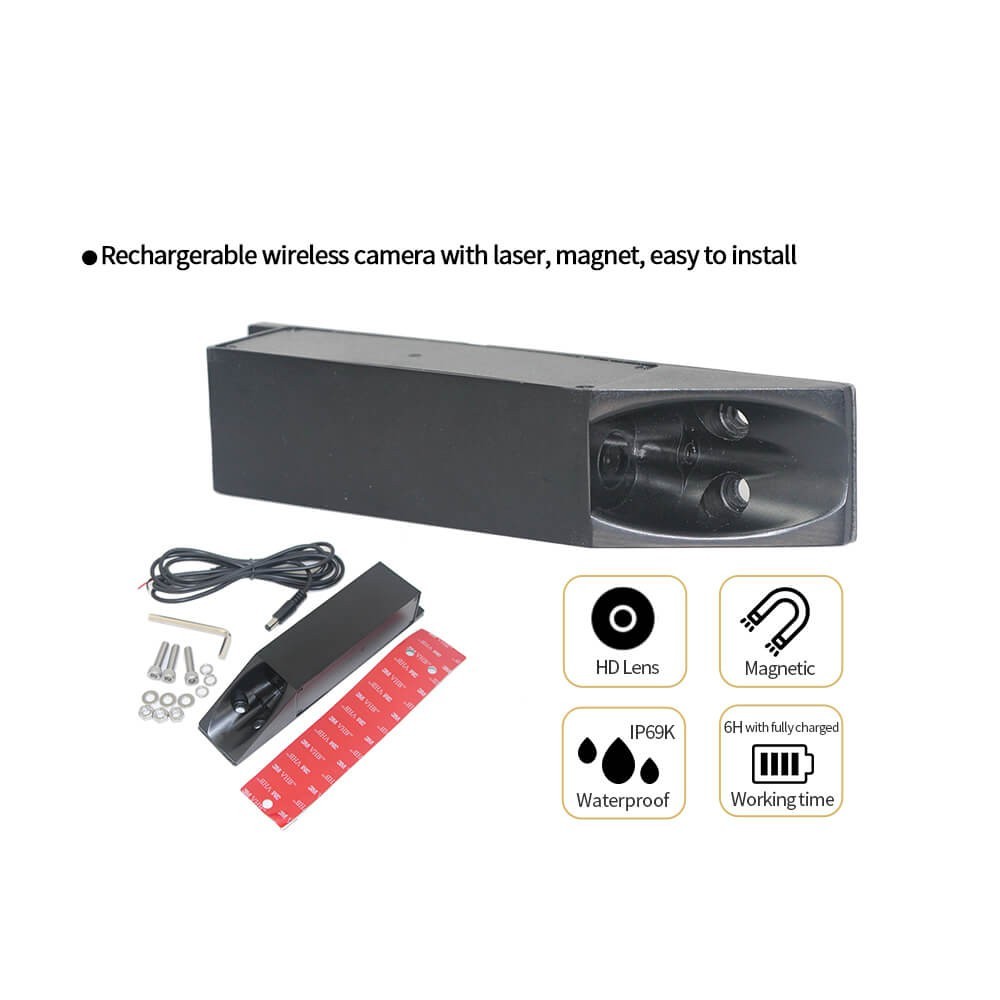

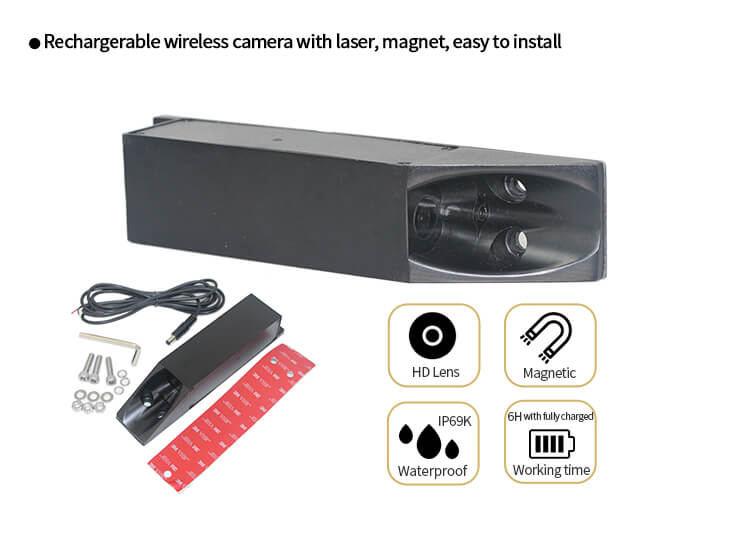

| Forklift Camera | |
| Model | AC-978MDW-HD |
| Image sensor | CMOS 1/2.7” |
| Effective pixels | 1920×1080 pixels |
| Transmission frequency | 2400-2483.5MHZ |
| Transmission distance | 50M in open area |
| System | N/P automatically |
| Night vision | Yes |
| Transmission bandwidth | 8MHz BER<1E-3 |
| Image | Mirror |
| Working time | 6H with fully charged |
| Charging voltage | DC 12-24V |
| Power saving mode | Automatically |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| SNR | 46.5dB |
| Waterproof level | IP69K |
| Viewing angle | Horizontal more than 40° |
| Transmission sensitivity | -89 dBm |
| Shell materials | Black aluminium alloy |
| Accessories | Power cable、5DB antenna |
