● Touch Button, Security Quad View
● 4CH DVR Image Recording
● 200m (656ft) Connection Distance
● 4CH x 1080P HD Dedicated Camera
● No Drilling, Easy To Install
● Instant Automatic Pairing
PRODUCT FEATURES

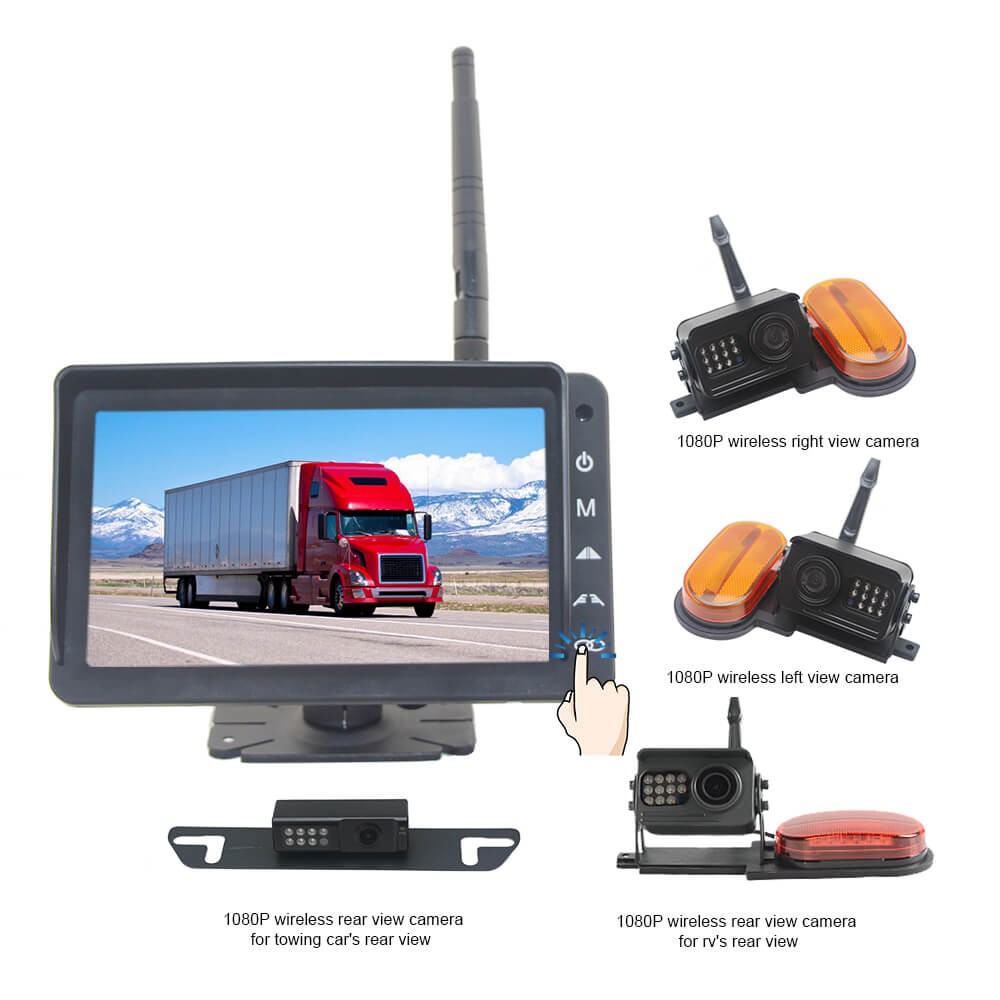

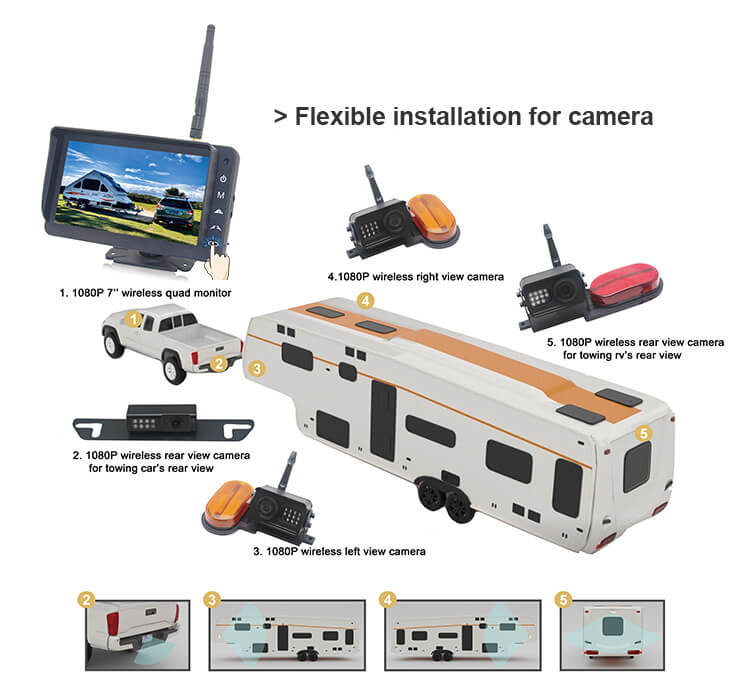

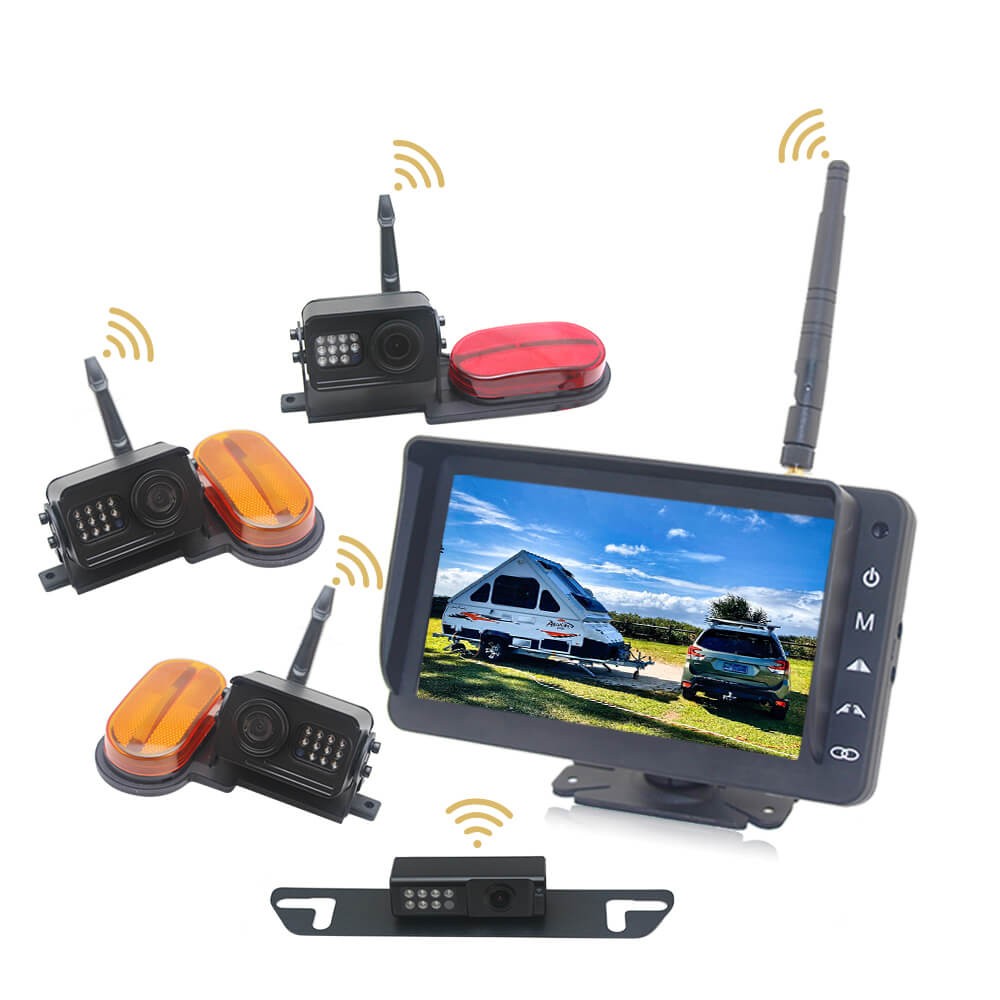

7 Inch wireless HD backup camera for travel trailer. AHD 1080P wireless backup camera mounted at various key points,
it provides full field of view coverage and effectively eliminates blind spots. 7 inch IPS Monitor is easy to operate with
touch buttons, available 128GB SD card for easy recording and playback of important footage. The camera’s night
vision function ensures clear video recording in all lighting conditions, and the IP69K waterproof performance ensures
reliable operation in all types of weather, enhancing driving safety.
| Wireless Monitor | |
| Model | CM-718MDW-HD |
| Screen ratio | 16:9 / IPS |
| Resolution | 1024*R.G.B*600 |
| Back light | LED, brightness 500 cd/m2 |
| Viewing angle | Hor. L(85) R(85) Ver. UP(85) DOWN(85) |
| Trigger | 4 trigger control |
| Wireless input | 1/2/4 channel HD wireless video signal input |
| Power Supply | DC12-24V |
| System | N/P Automatically |
| Working frequency | 2400 ~ 2483.5MHz |
| Latency | Less 200ms |
| Power consumption | ＜3W |
| Transmission distance | 200M in open area |
| Vibration rating | 4G |
| Audio | without(customized) |

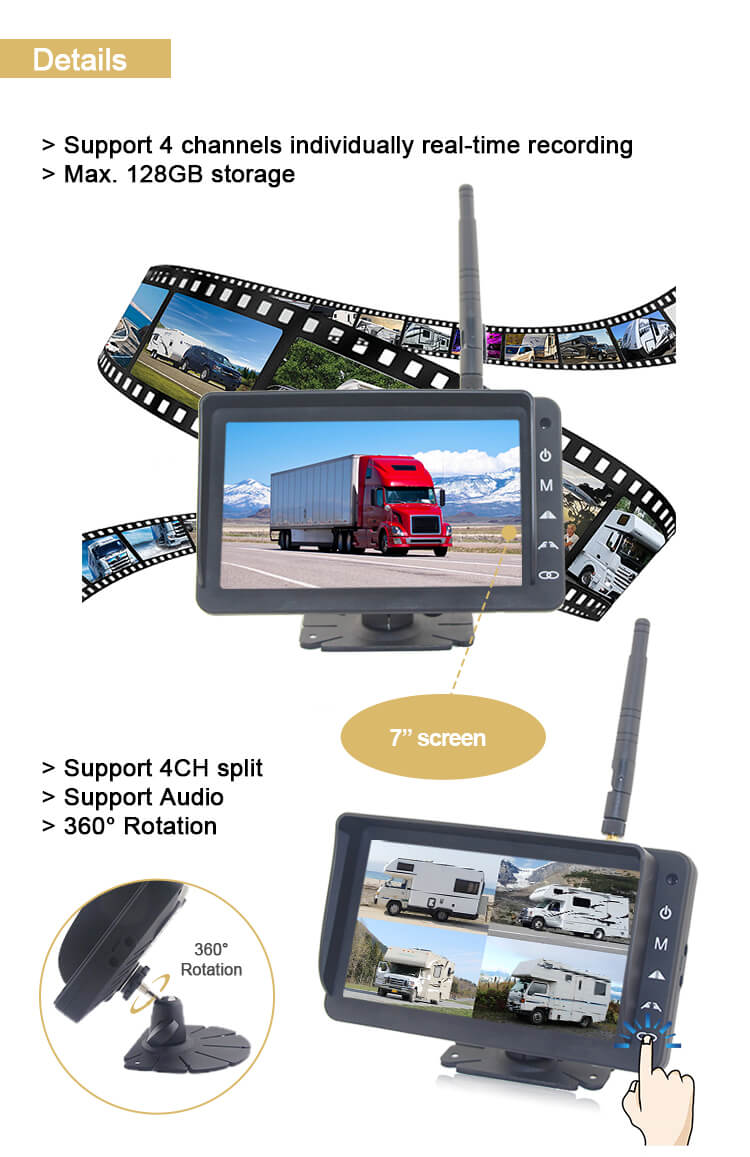

| Built-in DVR recording | Max. 128G storage |
| Operating temperature | -20~+70 ºC |
| Storage temperature | -30~+80 ºC |

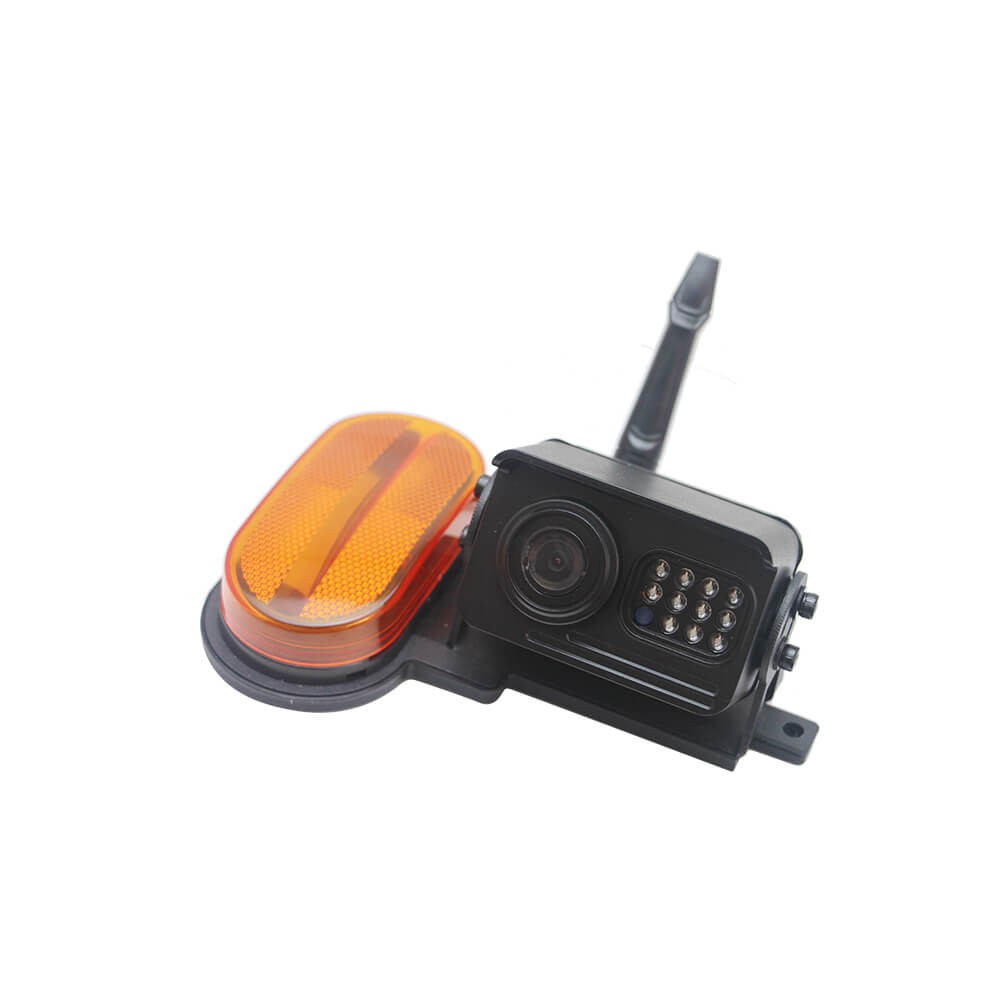

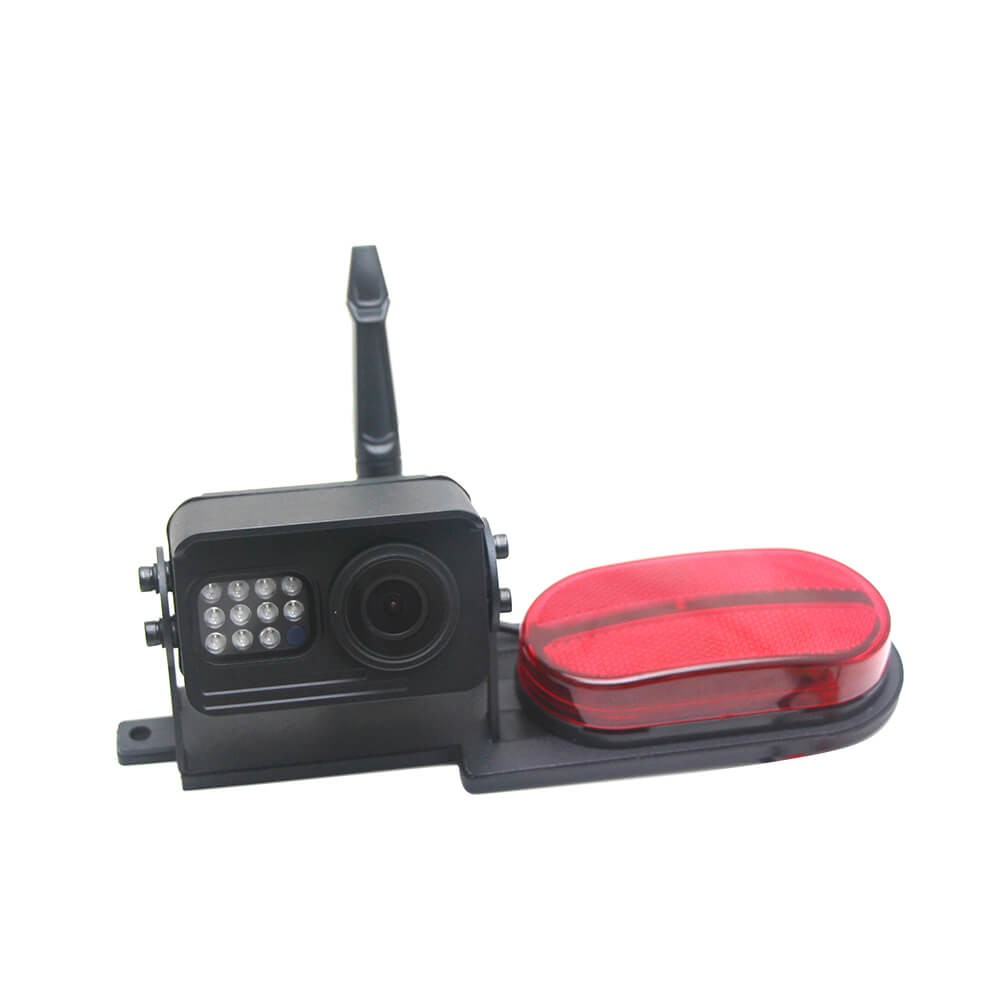

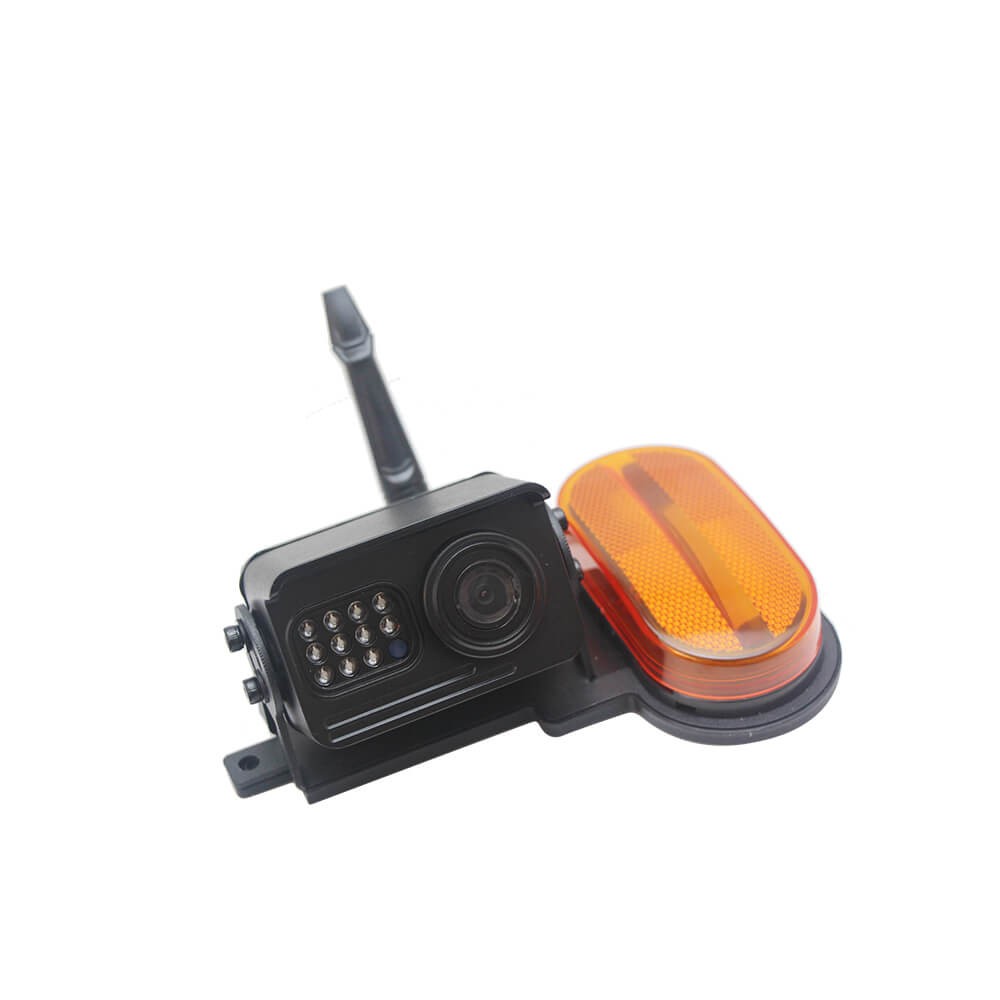

| AC-976MDWL & AC-976MDWR Features: | |
| Operating Frequency | 2.4GHz~2.4835GHz |
| Power Supply | 150mA/12V |
| Latency | Less than 200ms |
| Transmission Power | 26dBm |
| Spread Spectrum | FHSS |
| Transmission Distance | 1650ft (barrier free) |
| Image Sensor | 1/2.7''HD |
| View angle | 120° |
| IR Control | Smart IR-CUT 650nm Day/850nm Night Auto |
| Night Vision distance | 8-10m |
| IP Class (Protection type) | IP69k,waterproof |
| AC-976MDWB1 Features: | AC-976MDWB2 Features: | ||
| Sensor | 1/2.7" COMS HD | Operating Frequency | 2.4GHz~2.4835GHz |
| Viewing Angle | 160° | Power Supply | DC+12V |
| AGC/BLC | Auto | Power consumption | 150mA/12V |
| White Balance | Auto | Latency | Less than 200ms |
| Operation Frequency | 2.4GHz--2.4835GHz | Transmission Power | 26dBm |
| Transmission Distance | 300m(984ft) | Spread Spectrum | FHSS |
| Transmission Power | 23dB | Transmission Distance | 1650ft (barrier free) |
| Latency | Less 200ms | Image Sensor | 1/2.7''HD |
| Spread Spectrum | FHSS | View angle | 120° |
| RF Bit Rate | 12Mbps | IR Control | Smart IR-CUT 650nm Day /850nm Night Auto |
| White light night vision | 4-5m | Night Vision distance | 8-10m |
| Power Supply | DC 10-18V | IP Class(Protection type) | IP69K,waterproof |
