● 800*RGB*480 resolution (IPS LCD digital screen)
● 3CH x cameras video signal input
● Multiple video formats available to cameras: 720P/1080P/ AHD/compatibility CVBS
● 3 trigger lines input, definition, delay & priority can be adjusted freely.
● 1CH audio signal input (high-quality speaker)

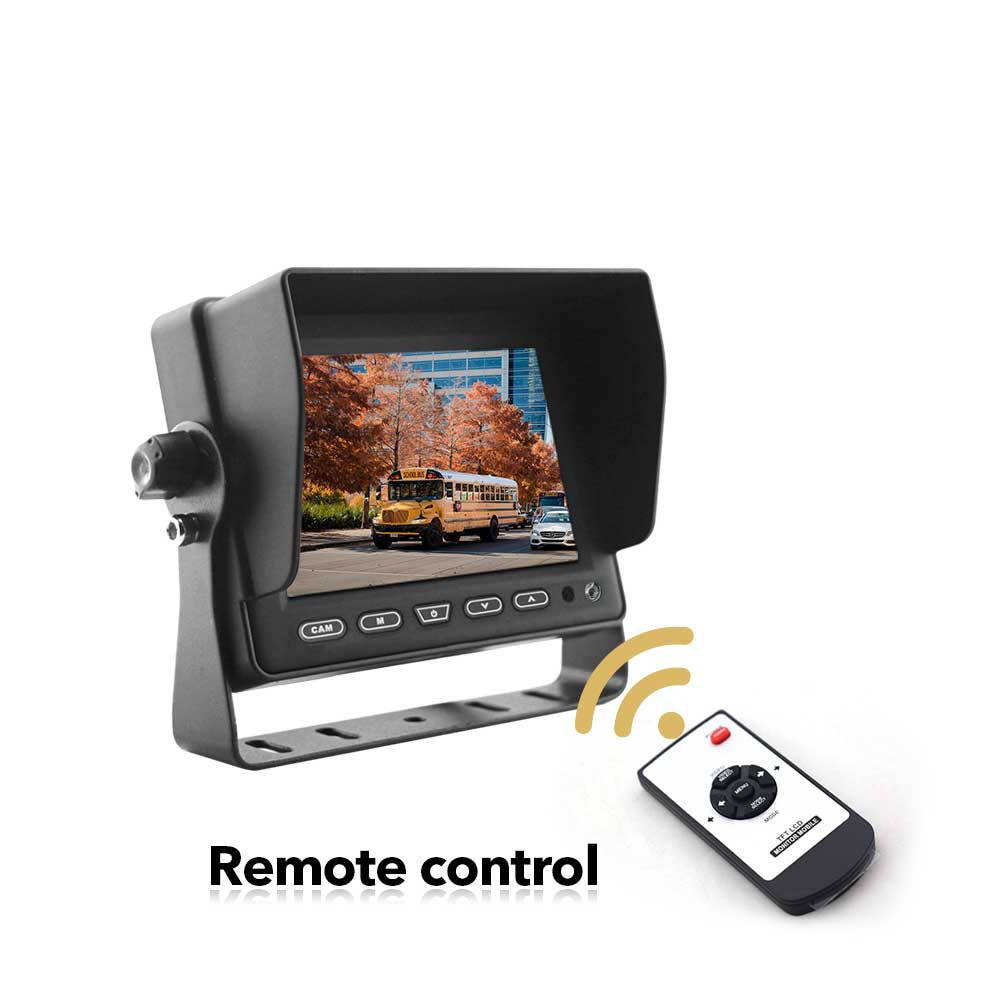

● Full-function remote control
● Multi-language settings
● Horizontal mirror image switching; Image flip.
● DC 12-24V wide voltage
● AUTO adaptation PAL / NTSC system
PRODUCT FEATURES

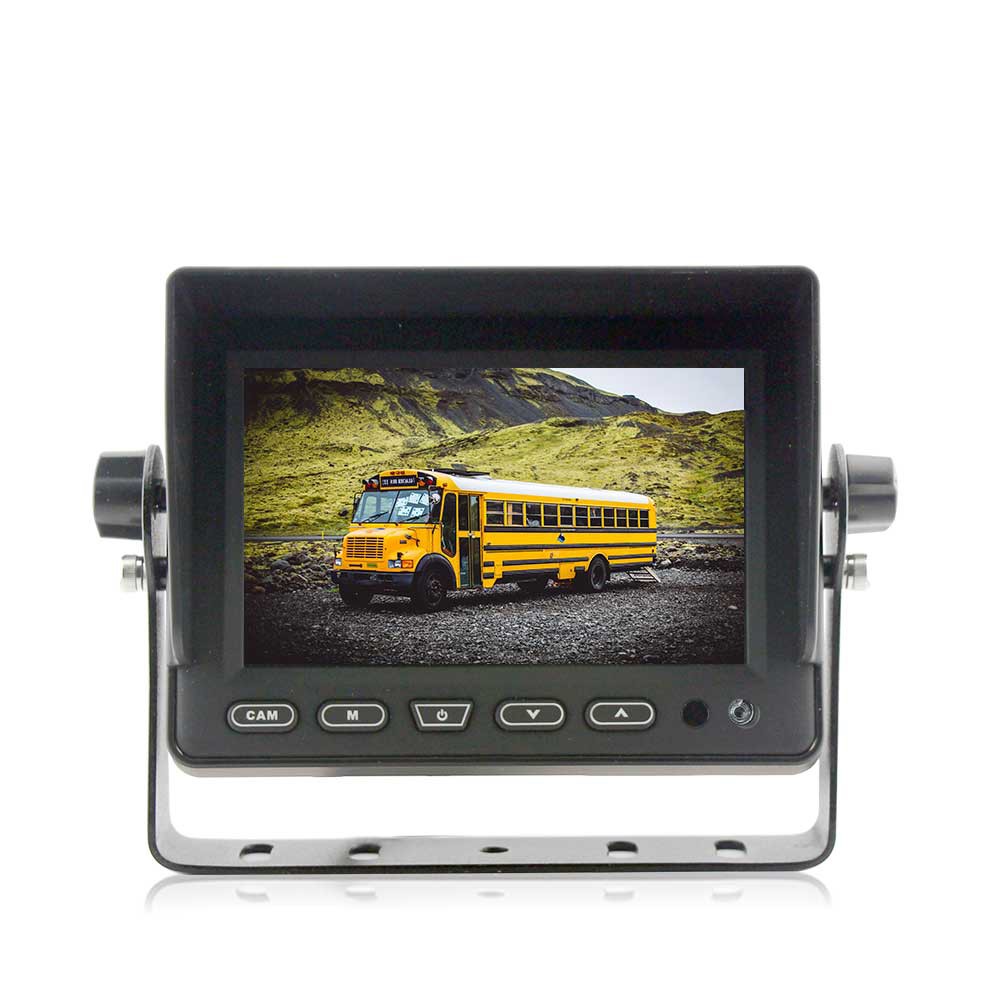

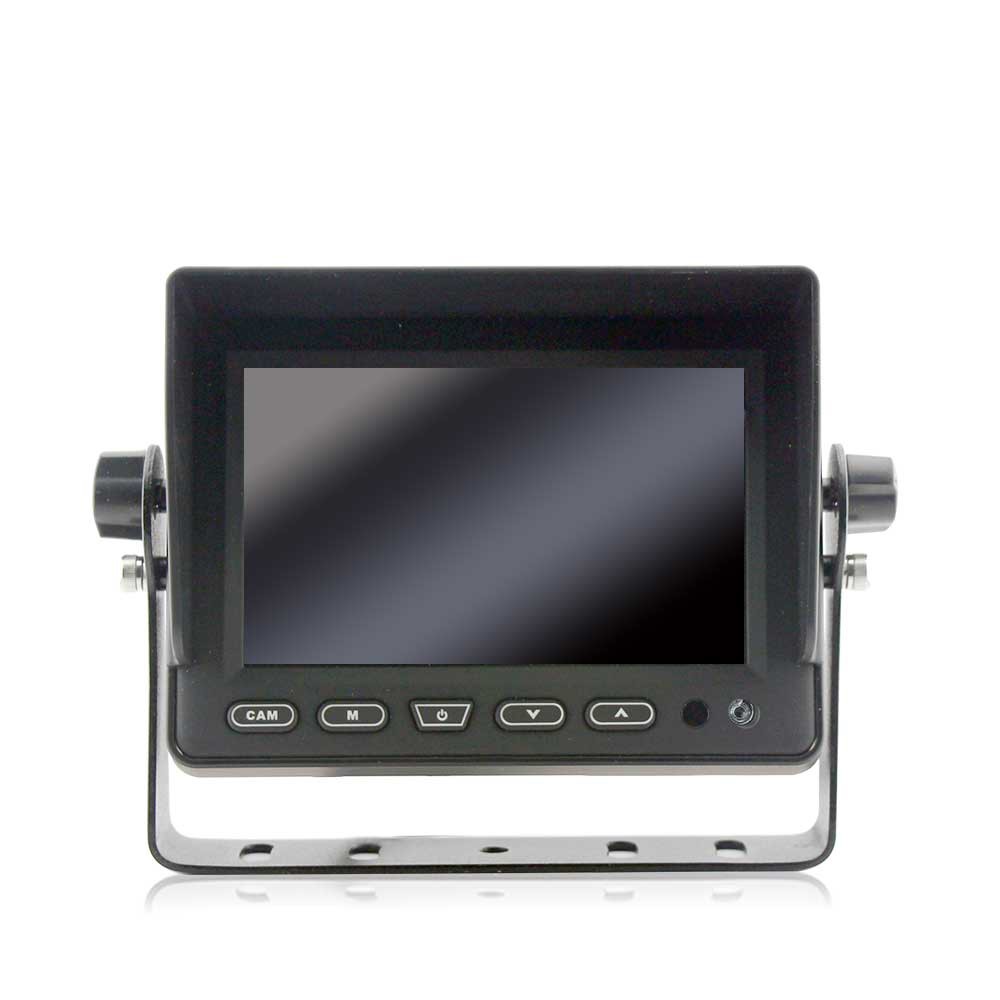

AOTOP 5 inch rear view car monitor features an IPS LCD digital display, supports 3CH AV signal input, allowing connect to
3 vehicle cameras. It can helps drivers see their vehicle surroundings clearly, reducing the risk of scratches and accidents.
Support multi-language, it is an ideal choice for users in different regions around the world to improve vehicle safety. If
you are looking for a high quality vehicle monitoring solution for your fleet, contact us at sales@aotop.com!
| Screen Type & Size | 5 Inch LCD Digital Screen |
| Aspect Ratio | 16:9 |
| Resolution | 800*R.G.B*480 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Video Input | Support 3CH AHD 1080P/960P/720P/CVBS Mixed Video Signal Input |
| Audio Input | 1CH Camera Audio Input (Available Speaker) |
| OSD Menu | Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting,Parking Guide Line On/Off, Reset |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Trigger | 3CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |
| OEM&ODM Customization | Bracket/LOGO Plate & Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
