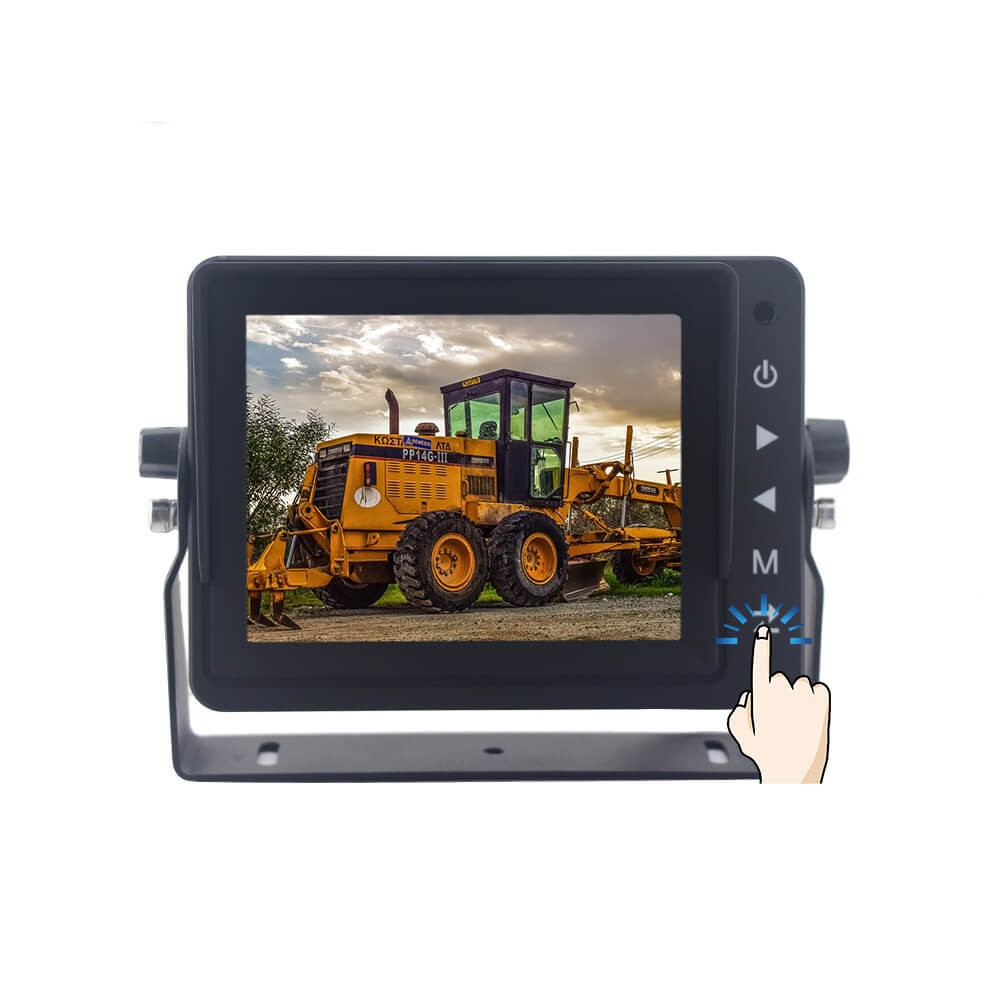

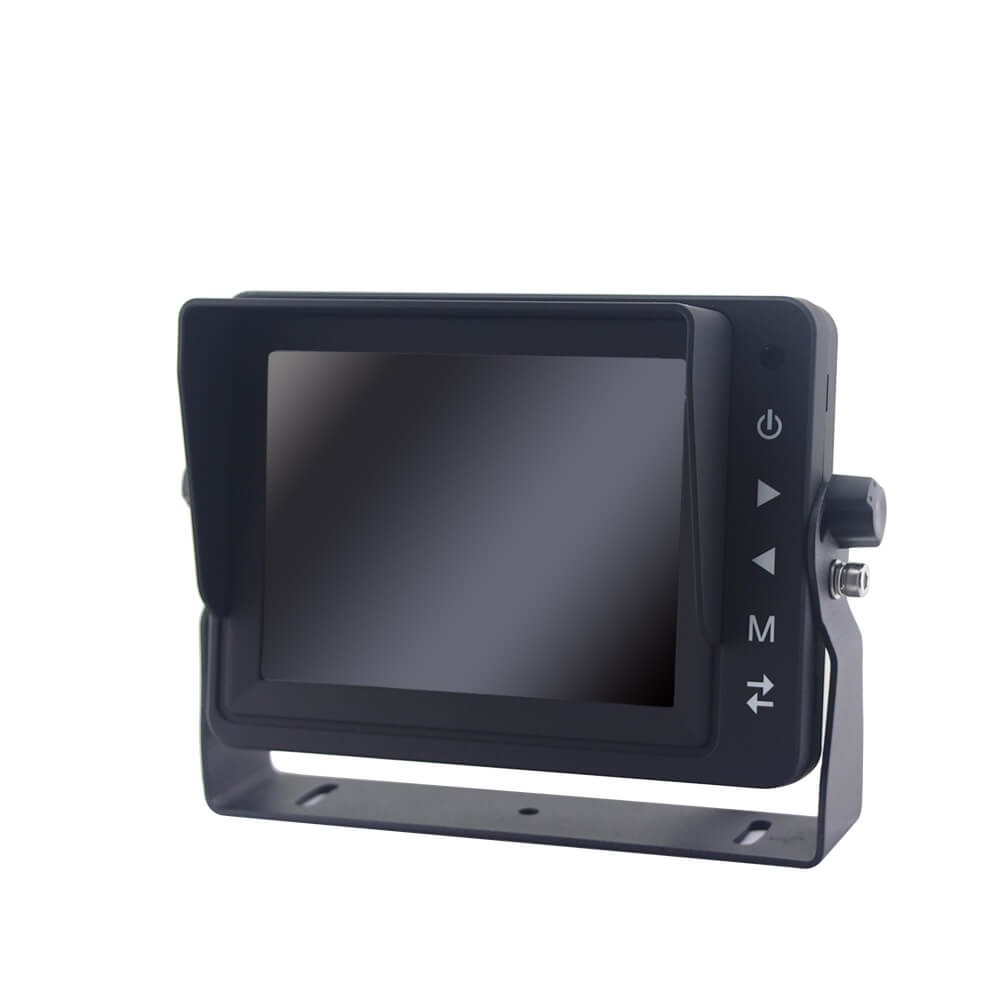

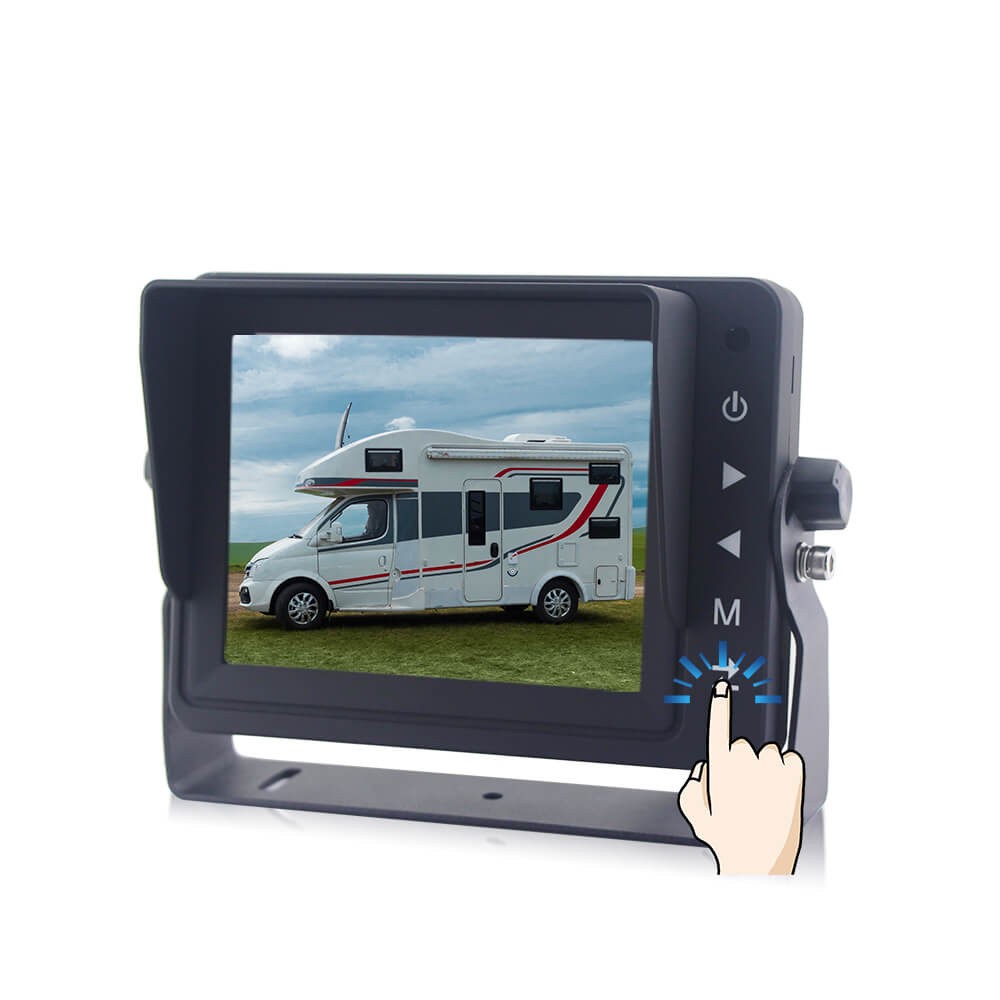

● With Sunshade Cover & U-Bracket & Touch Button
● 640*480 Resolution (TFT Digital Screen)
● 3CH x AHD Cameras Video Signal Input
● 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely.
● 1CH Audio Signal Input (High-Quality Speaker)

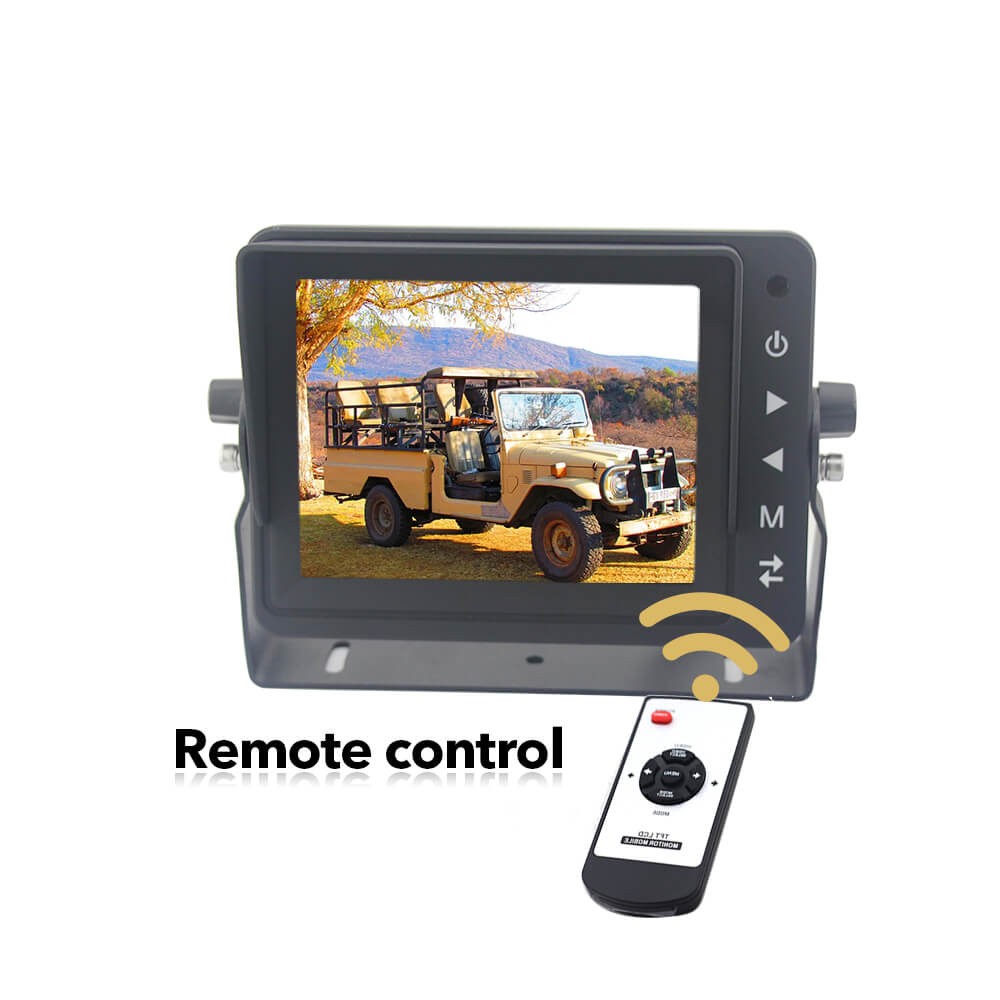

● Full-Function Remote Control
● Multi-Language Settings
● Horizontal Mirror Image Switching; Image Flip;
● DC 12-24V Wide Voltage
● AUTO Adaption PAL / NTSC TV System
PRODUCT FEATURES
Aotop 5.6 Inch digital LCD rear view monitor support 3CH 1080p AV signal input, can connect 3 vehicle rear view camera,
priority trigger line AUTO video signal switching, providing driver 3 areas HD visual monitoring around the vehicle. Touch
button with full-function remote control for simple operation, able to meet customers' requirements for HD vehicle monitoring
and simple operation! For more information, please contact sales@aotop.com!
If you have any specific custom requirements regarding the product's performance or appearance, you can contact them
without hesitation. Aotop takes pride in its professional OEM (Original Equipment Manufacturer) and ODM (Original Design
Manufacturer) services, which are customized precisely to meet your individual needs.
| Screen Type & Size | 5.6 Inch HD TFT LCD Digital Screen |
| Aspect Ratio | 4:3 |
| Resolution | 640*480 |
| Brightness | 300cd/㎡ |
| Video Input | Support 3CH AHD Standard Definition Video Signal Input |
| Audio Input | 1CH Camera Audio Input (Available High Quality Speaker) |
| OSD Menu | Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset" |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Trigger | 3CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |
| OEM&ODM Customization | Bracket/LOGO Plate & Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
