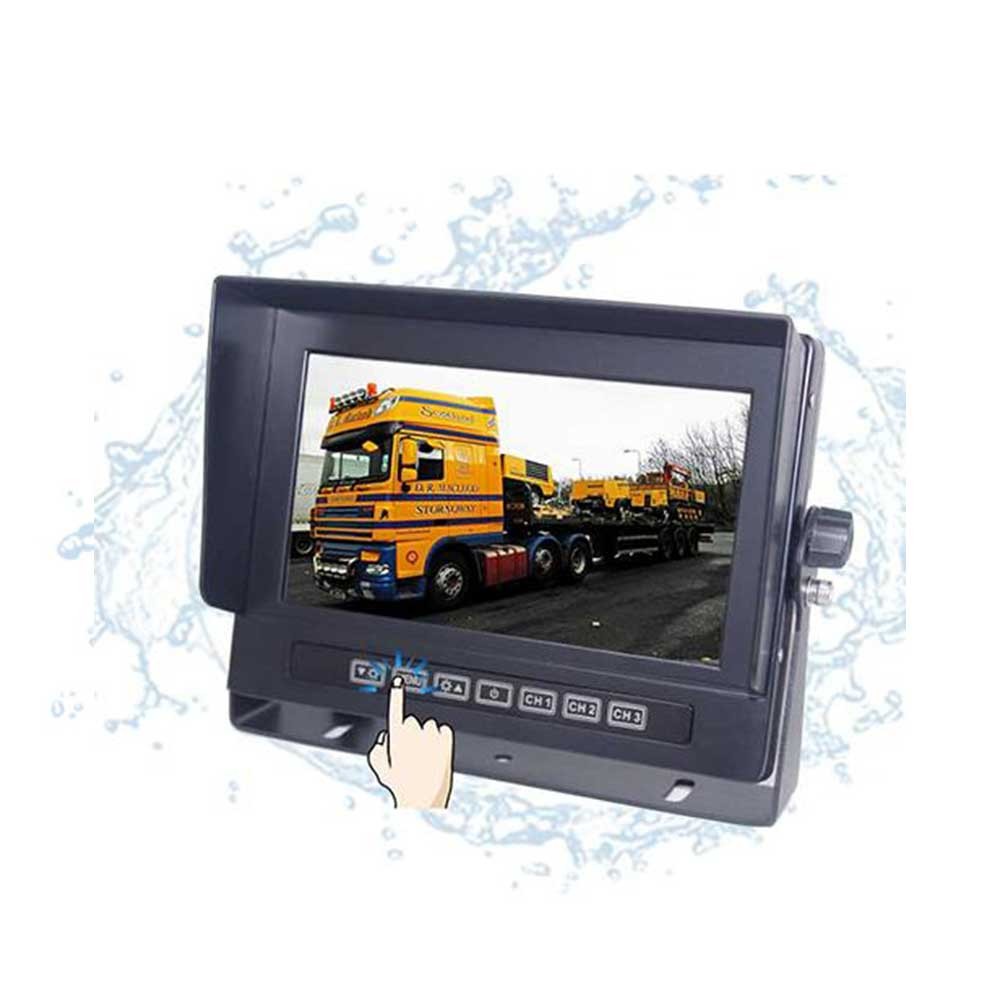

● With Sunshade Cover & U-Bracket & Touch Button
● IP68 Waterproof & Dustproof, Aluminium Alloy Material Shell
● 1024*RGB*600 IPS LCD Screen, 16:9 Ratio
● 3CH x Cameras Video Signal Input
● Multiple Video Formats Available To Cameras: 720P / 1080P / AHD / Compatibility CVBS
● 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;

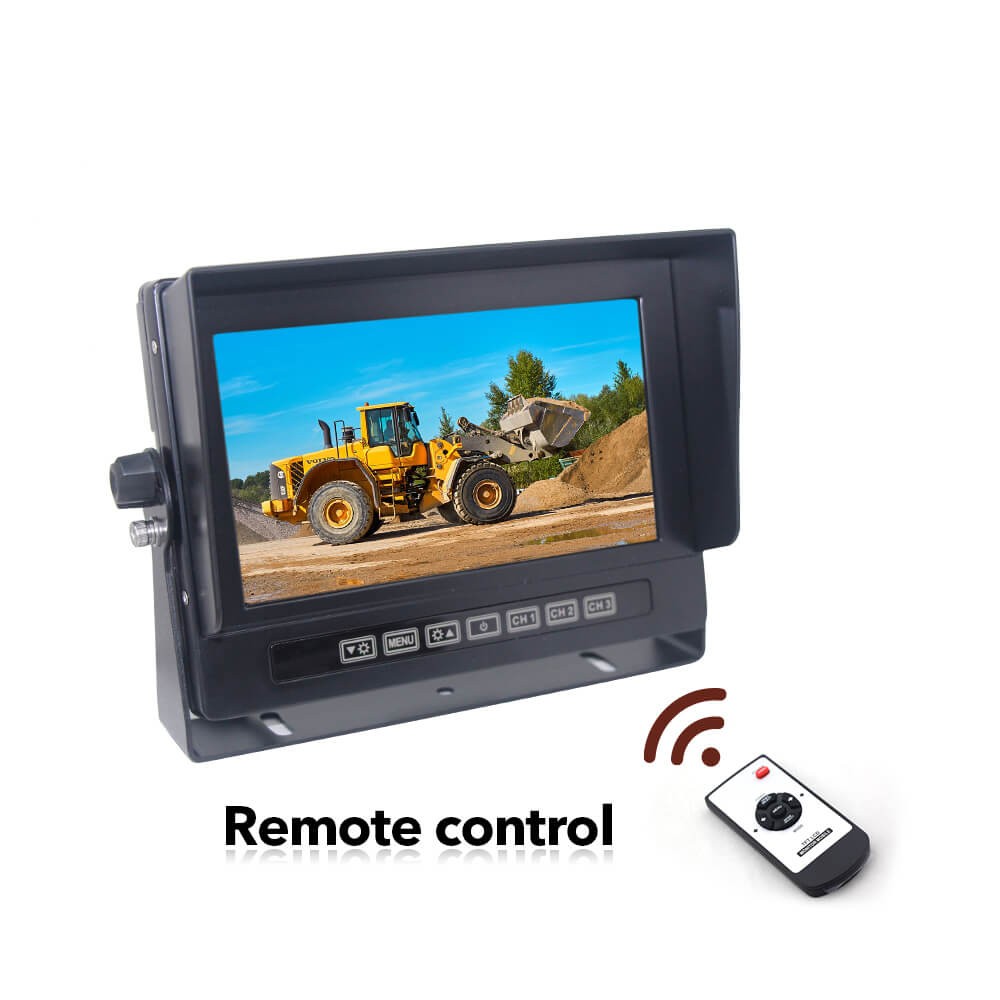

● Full-Function Remote Control
● Multi-Language Settings
● Horizontal Mirror Image Switching; Image Flip.
● DC 12-24V Wide Voltage
● AUTO Adaptation PAL / NTSC System
PRODUCT FEATURES
AOTOP 7 inch IP68 waterproof car monitor is good for large outdoor work vehicles. It supports 3CH AHD video
inputs can be connect 3 vehicle cameras, ensuring a clear view of the vehicle surroundings in all weather conditions,
reducing blind spots and the risk of accidents. It supports multi-language settings, suitable for global users. If
you are looking for the best waterproof car monitor manufacturers & suppliers in China, please contact us at
sales@aotop.com!
| Waterproof Rating | IP68 |
| Screen Type & Size | 7 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up-85°, Down-85°, Left/Right-85° |
| Video Input | Support 3CH AHD 1080P/960P/720P/CVBS Mixed Video Signal Inpu |
| OSD Menu | Image Setting, Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Trigger | 3CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |
| OEM&ODM Customization | Bracket/Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
