● 1024*RGB*600 resolution, IPS LCD digital screen
● 4CH x AHD cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / PAL / NTSC

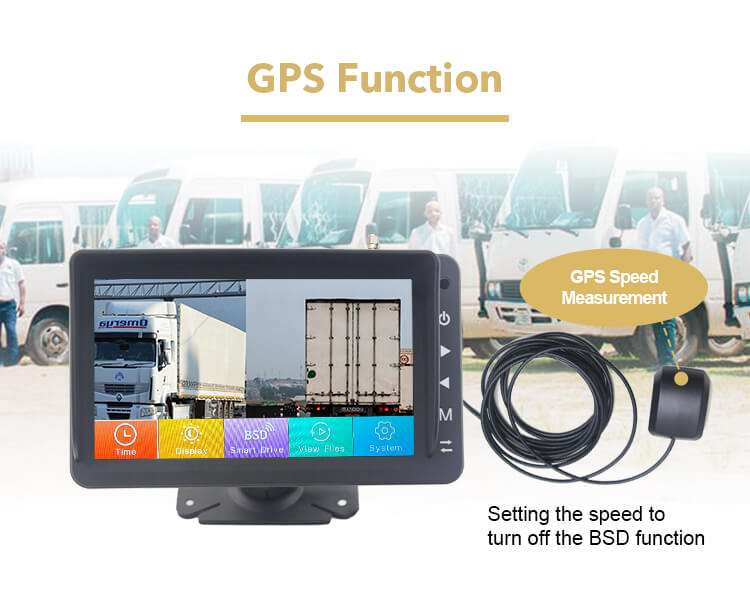

● Built-in GPS antenna device, supported driving speed measurement

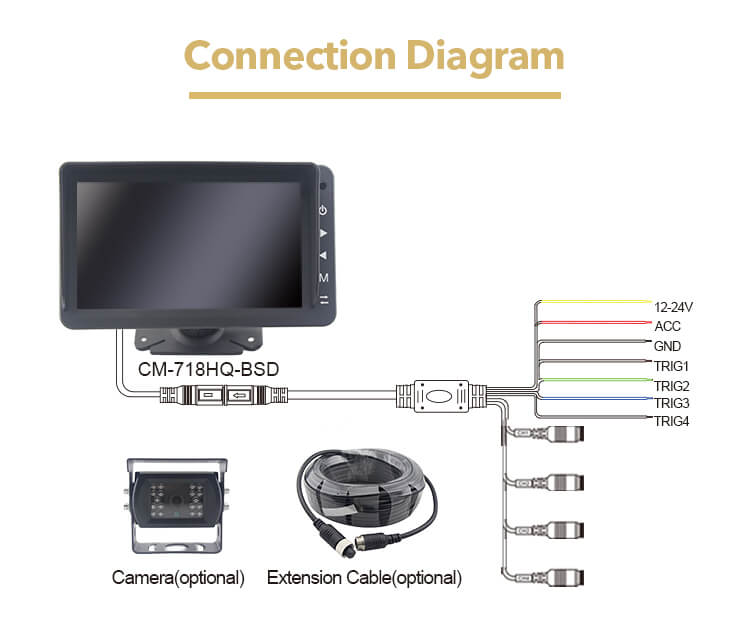

● 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

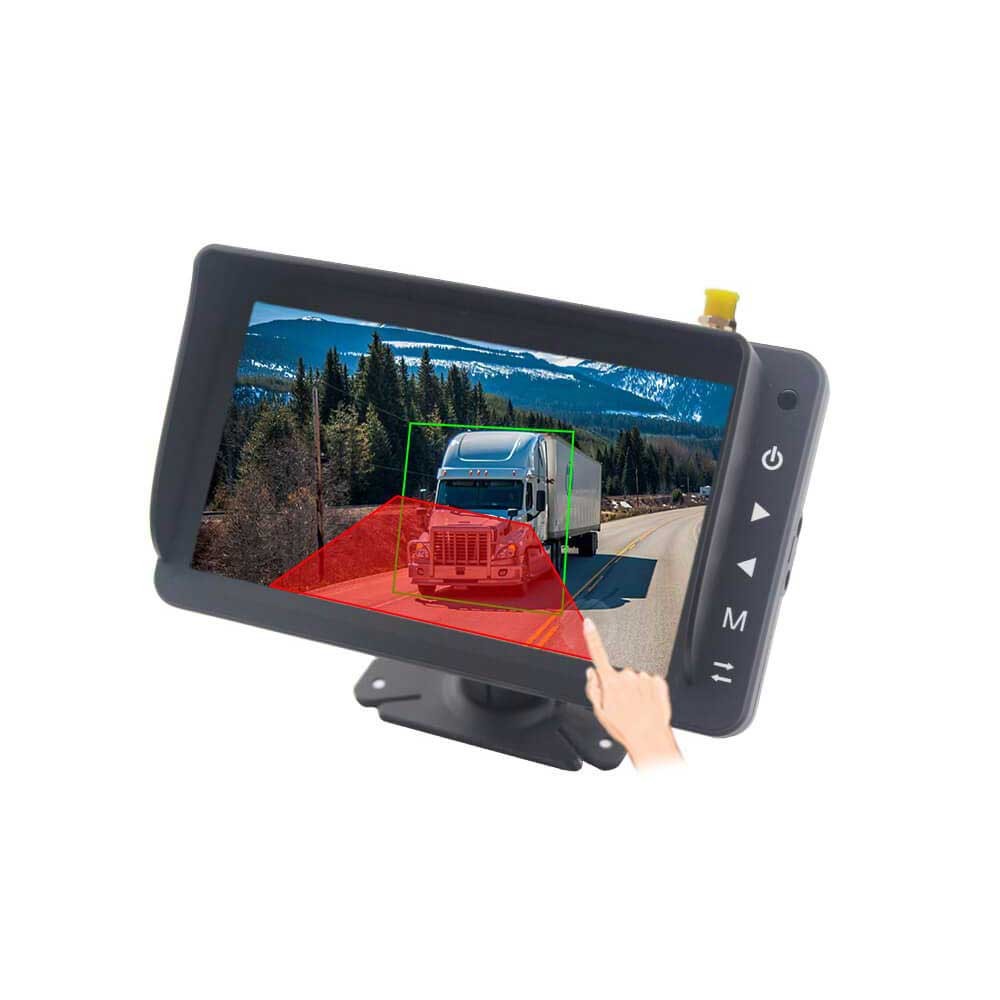

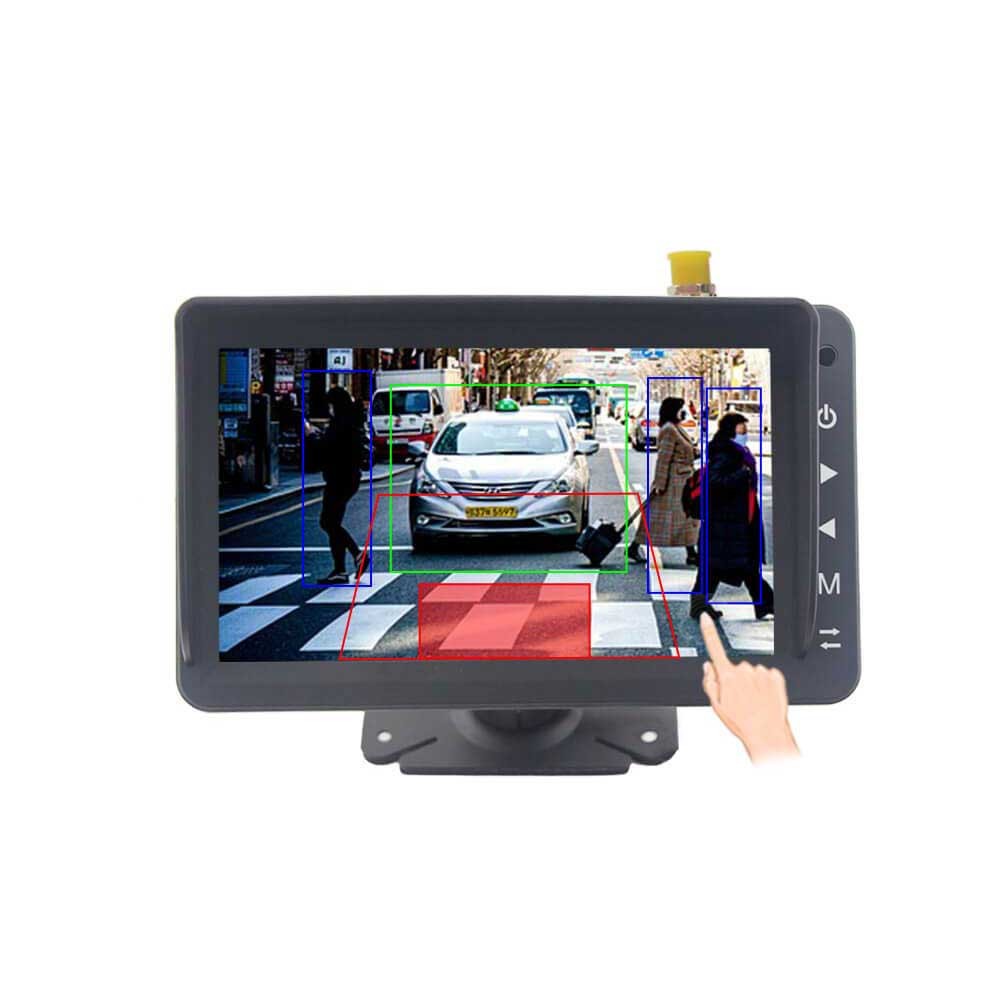

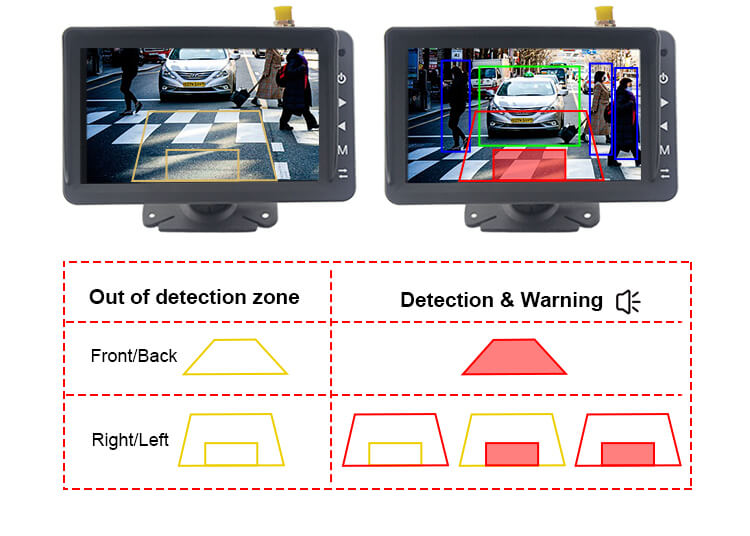

● Built-in intelligent algorithm chip supported 4CH image blind spot detection; Pedestrian vehicle obstacle detection;
● Available speaker BSD hazardous area approach audible warning
● Full display & dual/triples/quad split view mode
● Max. 256GB memory card (4CH DVR recorder)
● Multi-language settings
● Horizontal mirror image switching
● DC 12-24V wide voltage
PRODUCT FEATURES

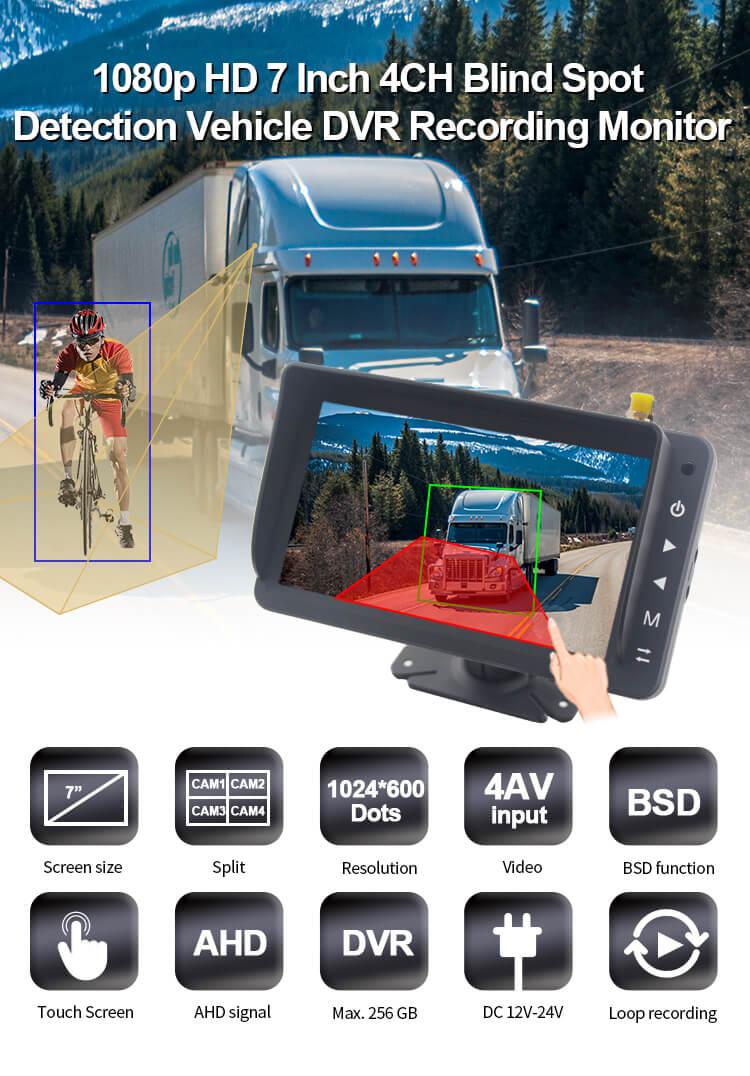

7 inch AI BSD rear view monitor full touchable with built-in 4CH AI algorithm detects pedestrians and vehicles around

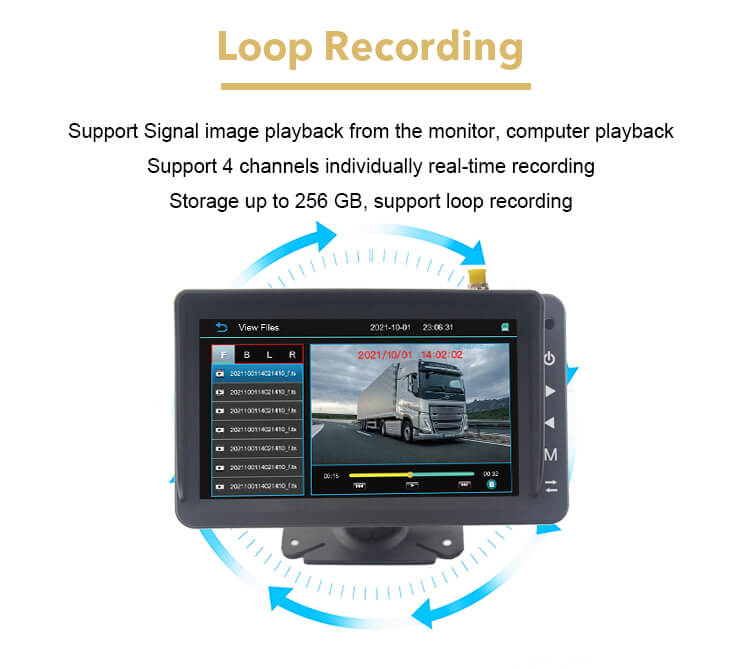

blind spot the vehicle, anti-collision warning alerting drivers to potential risks, improving driving safety! Built-in 256GB
SD card allows cyclic recording without external DVR. For more AI BSD monitor details, please contact us sales@aotop.com.
If you have any specific custom requirements regarding the product's performance or appearance, you can contact us
without hesitation. Aotop takes pride professional OEM (Original Equipment Manufacturer) and ODM (Original Design
Manufacturer) services, which are customized precisely to meet your individual needs.
| Screen Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 BOE |
| Backlight | LED, Brightness 500 Cd/M2 |
| Contrast | 500:1 |
| Viewing Angle | Up—85°, Down—85°,Left—85°, Right—85° |

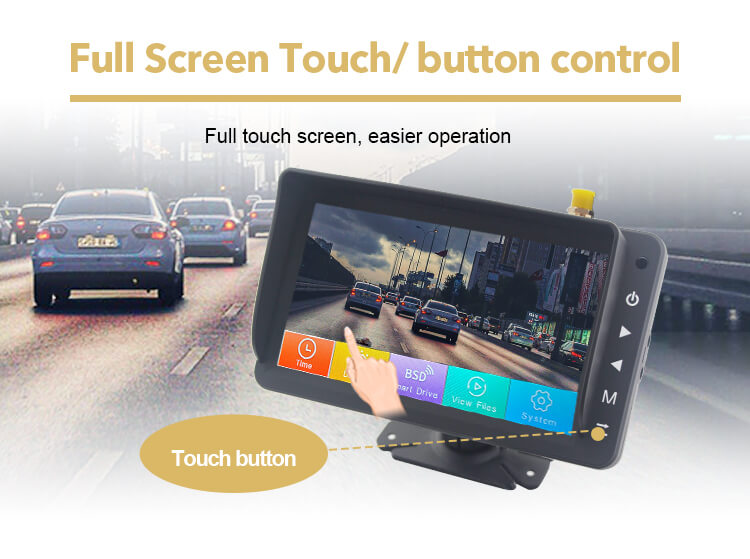

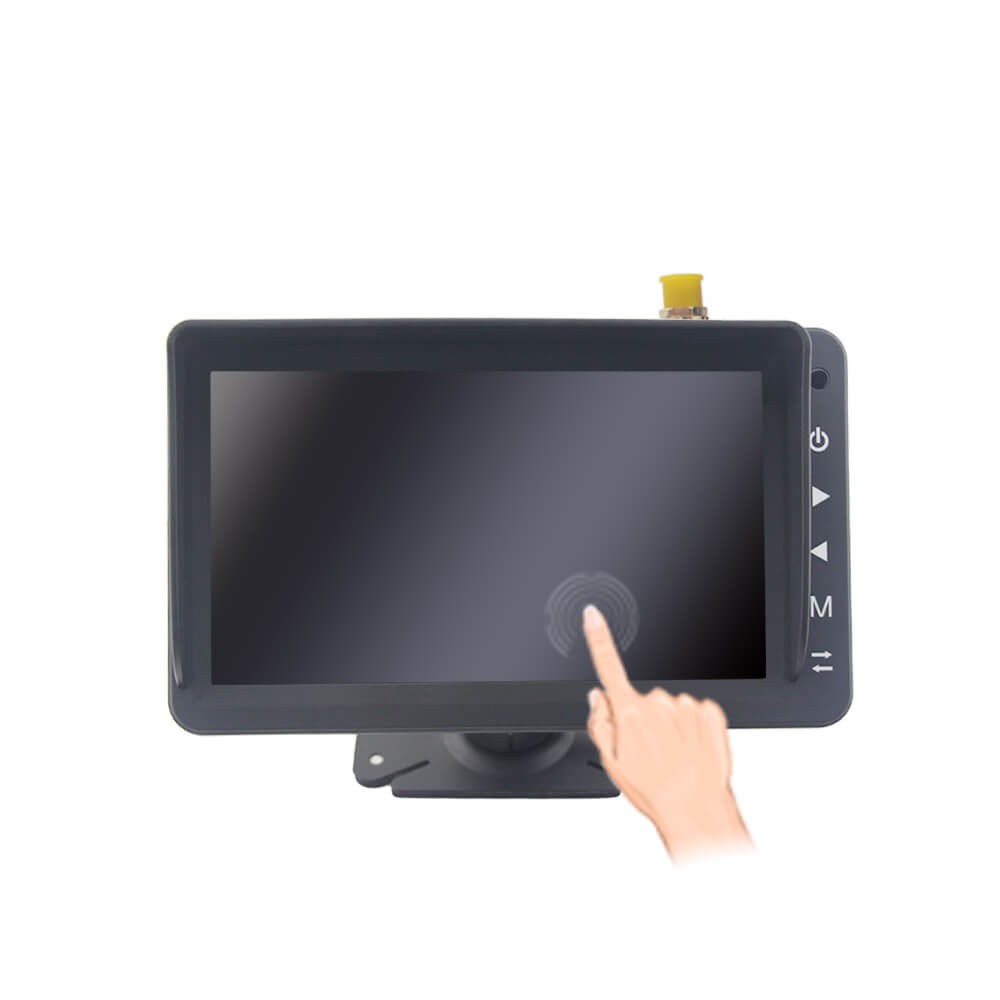

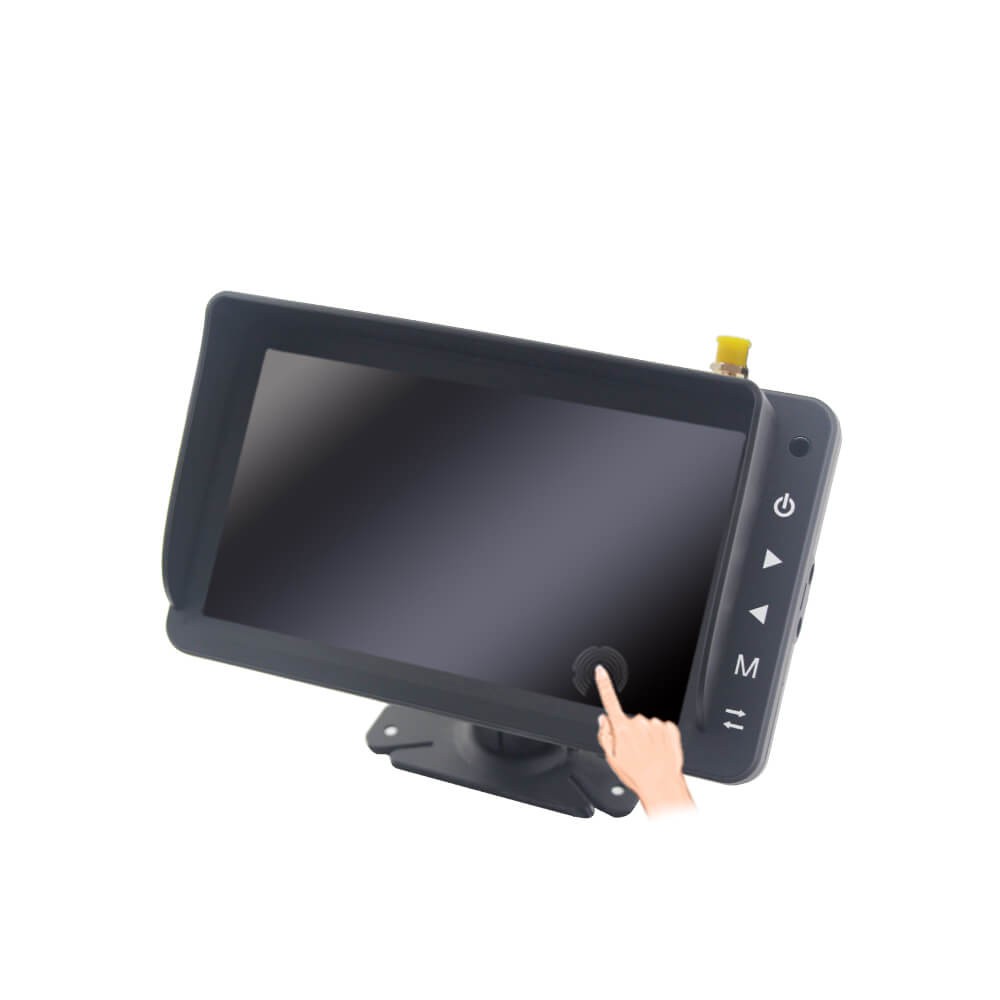

| Operation Method | Full Screen Touch |

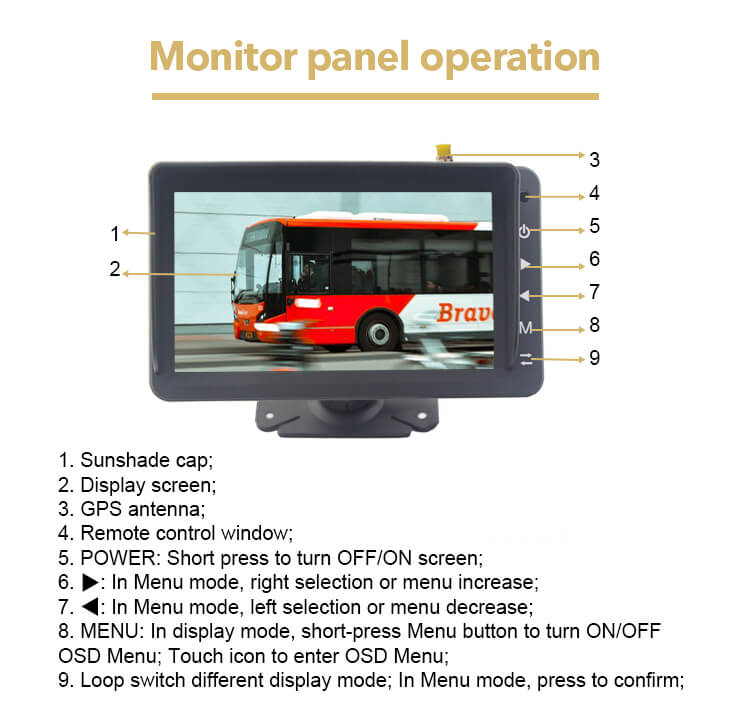

| OSD Control | Time Setting, Display Setting, Smart Drive, View Files, System Setting |
| Signal Input | P/N, 720P/1080P , 720N/1080N (The Type Of Video Signal Of 4 Channels Should Be The Same) |
| Recording | Support |

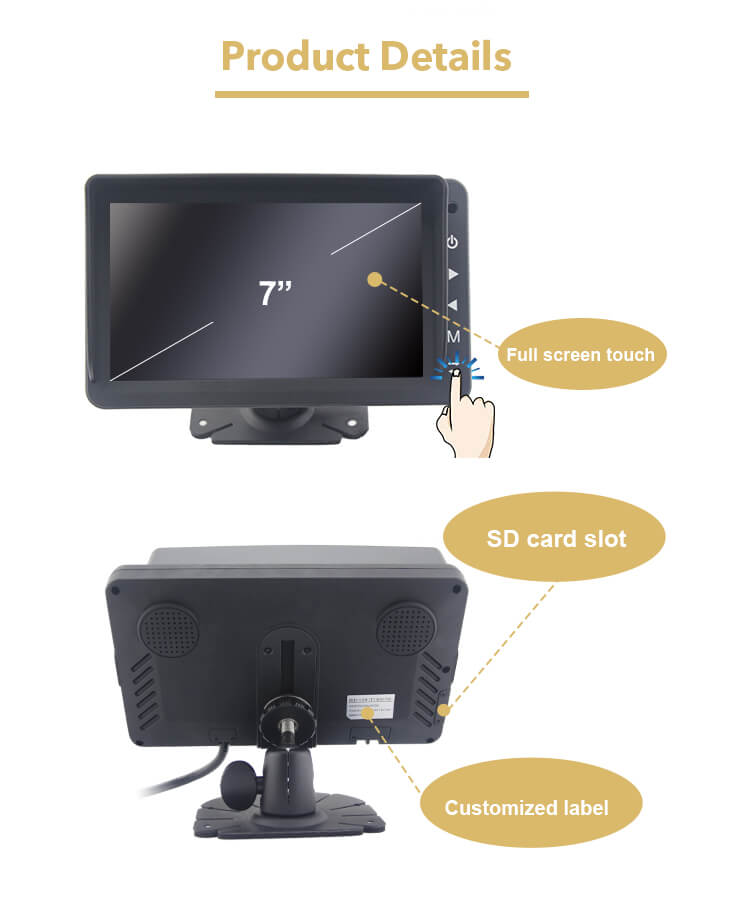

| SD Card Storage | Support 8-256G , High-Speed Card |
| Video Compression Format | H.264 Compression Mode |
| Video Playback | Single Channel Playback |
| File Format | TS |
| System Language | Chinese, English, Japanese, Korean |
| Display Image Switch | Double-Tap Touch Screen |
| Trigger | 4CH, With Guideline Function |

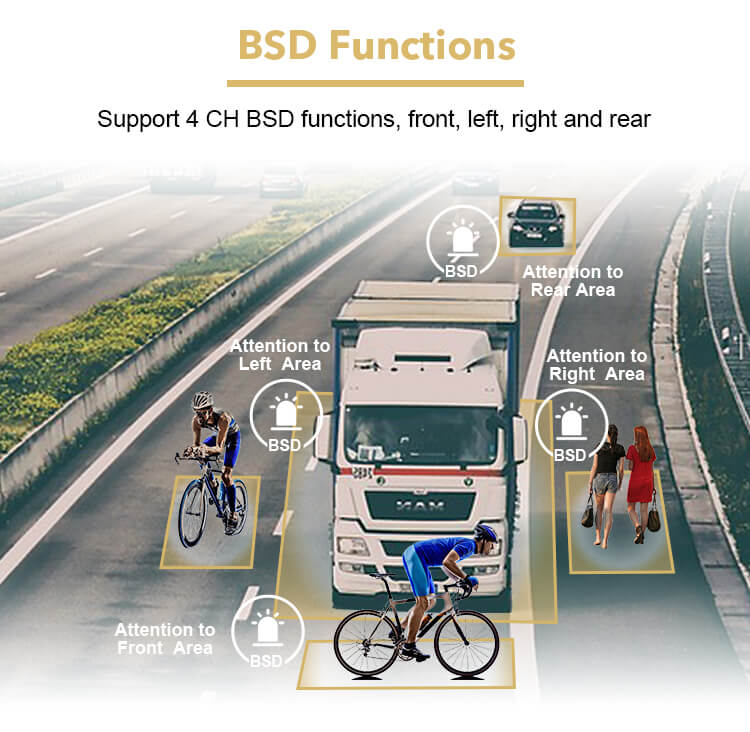

| Blind Spot Detection | Support 4 Channel Front、Left、Right、Back |
| Shockproof Level | 4G |
| Recording Audio | 4CH Recording (Not Including Audio From Camera) |
| Working Temperature | -20~+70 ºC |
| Working Humidity | 85%RH |
| Storage Temperature | -30~+80 ºC |
| Power Supply | 12-24V |
| Power Consumption | Normal Working Condition＜11.4W |
| Booting Time | 4S |
| Current Consumption | DC12V≈550MA , Without Cameras |
| Speaker | BSD Warning From The Monitor (Audio From The Camera Is Not Supported) |
