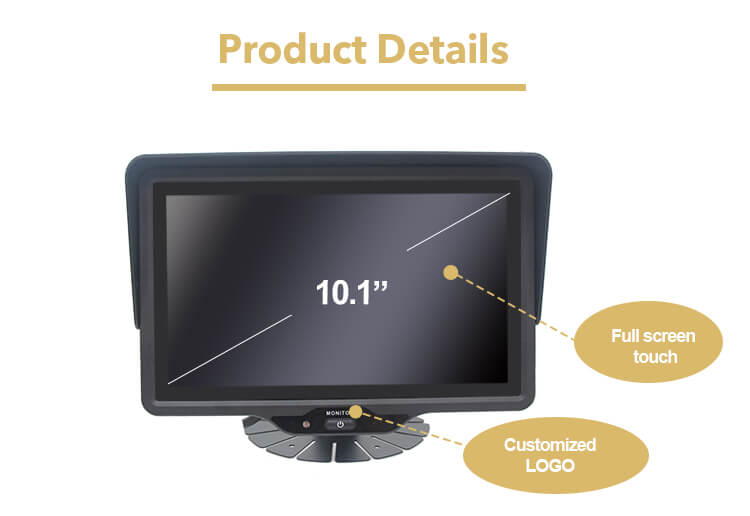

● 1024*RGB*600 resolution (full touch screen)

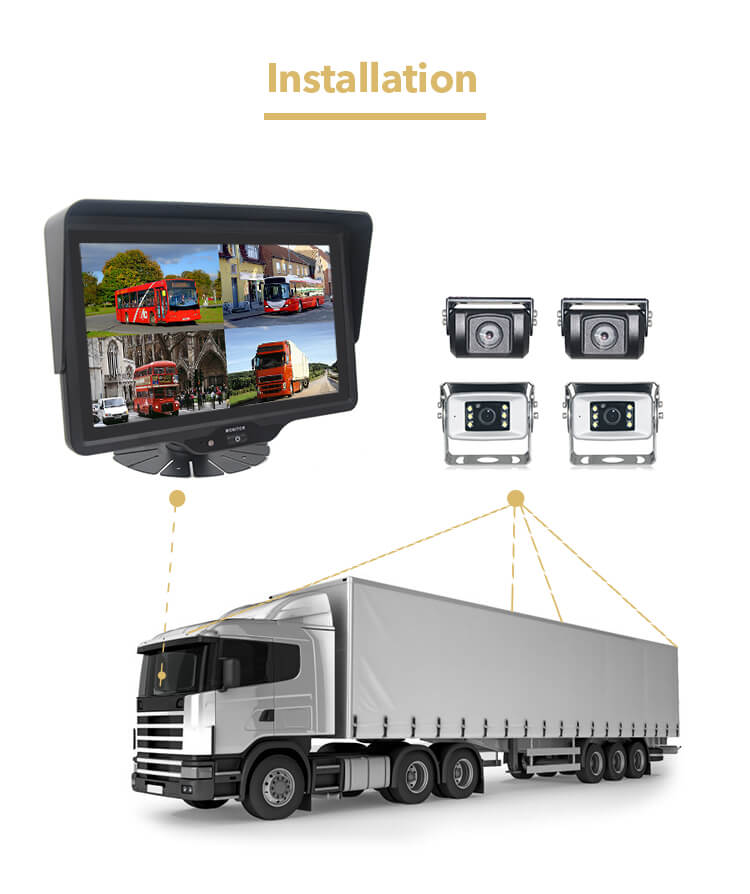

● 4CH x cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / PAL / NTSC
● 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

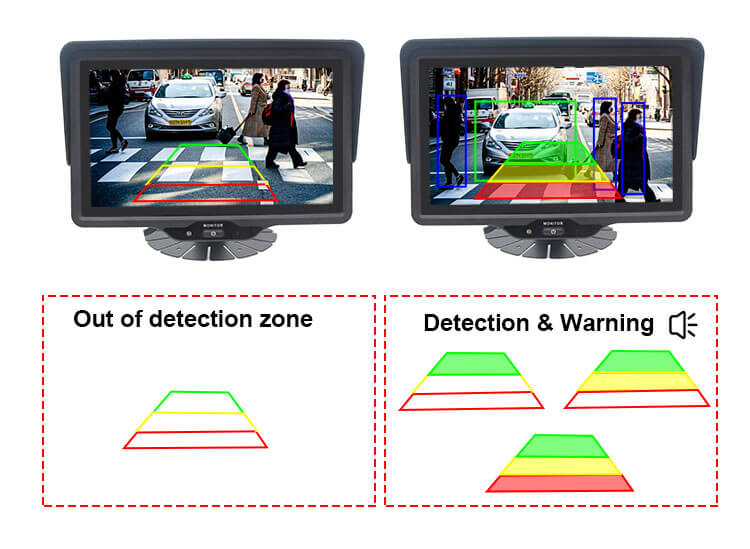

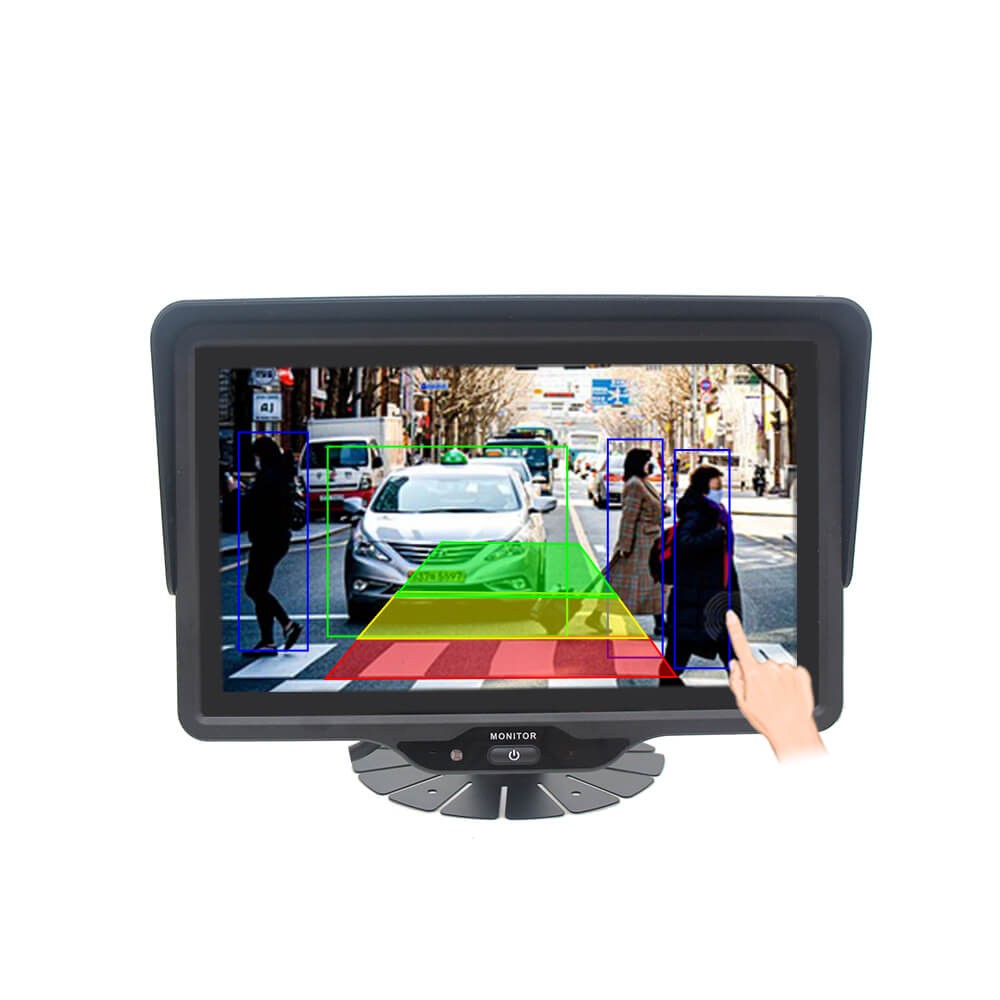

● Built-in intelligent algorithm chip aupported 4CH image blind spot detection; pedestrian vehicle obstacle detection;
● Available speaker BSD hazardous area approach audible warning
● Full display & 2/3/4 split view mode

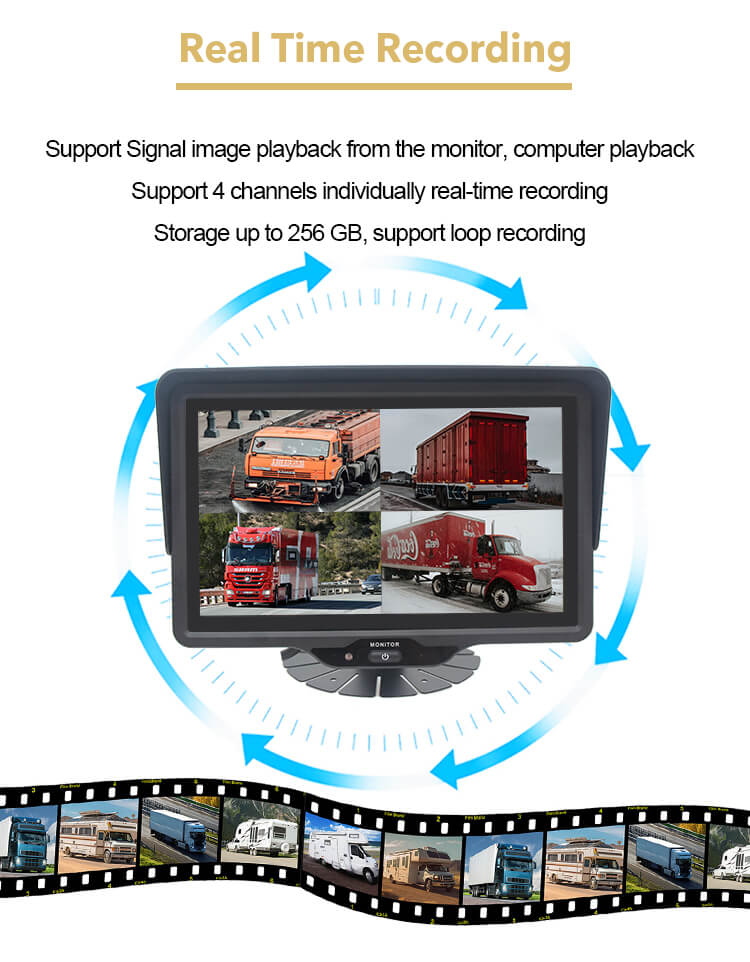

● Max. 256GB memory card (4CH DVR recorder)
● Multi-language settings
● Horizontal mirror image switching
● DC 12-24V wide voltage
PRODUCT FEATURES

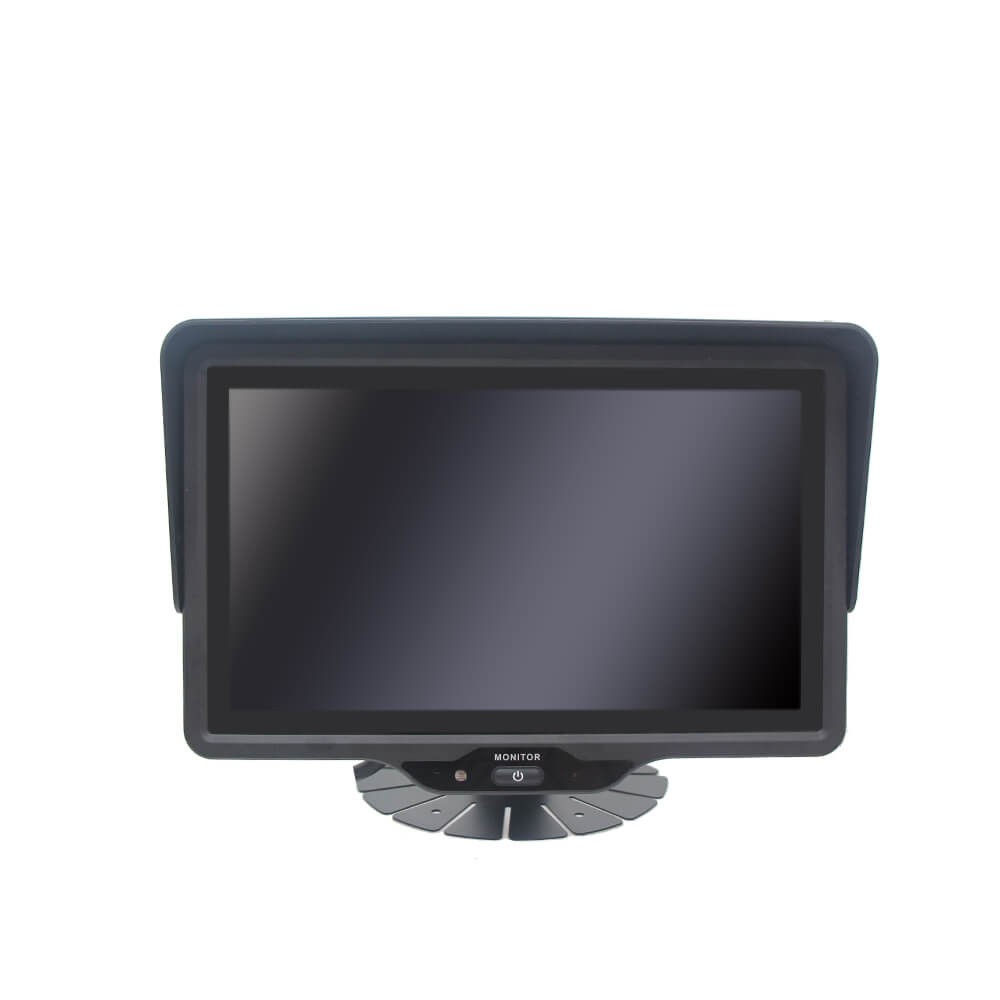

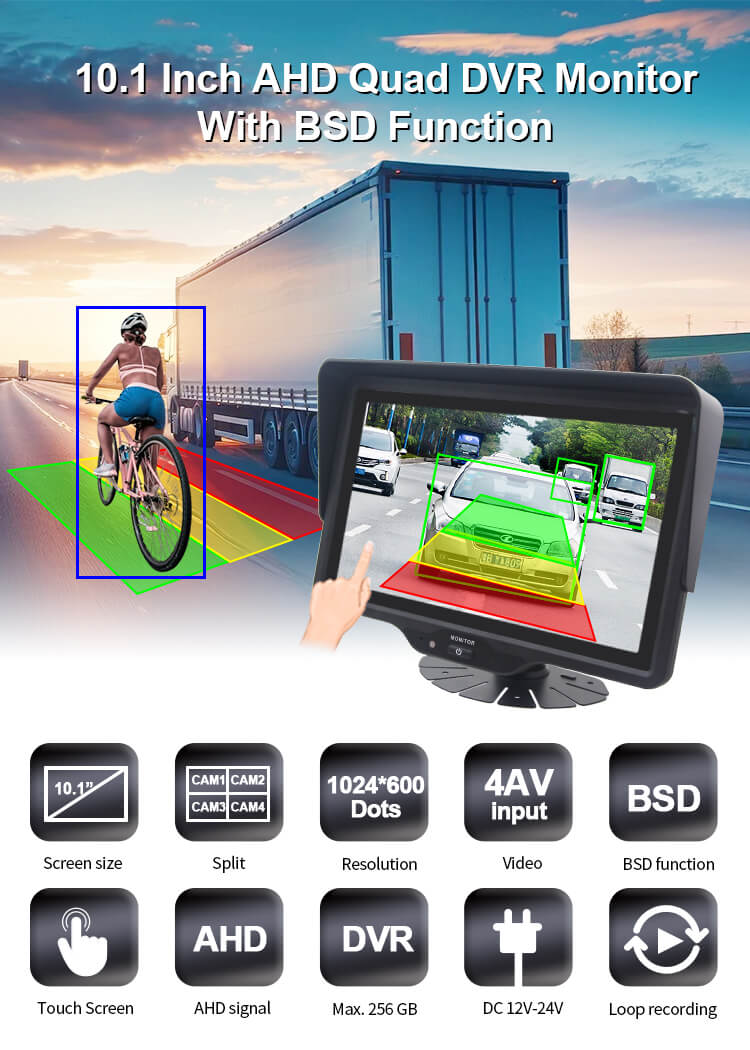

10.1 inch BSD quad view vehicle monitor for pedestrian & vehicle detection and warning, built-in 4CH AI algorithm,
detecting pedestrian cyclist & vehicles all around the vehicle to remind drivers of potential risks and avoid collision,
improving driving safety! This helps improve fleet management efficiency. For more AI BSD monitor details, please
contact us sales@aotop.com.
If you have any specific custom requirements regarding the product's performance or appearance, you can contact
us without hesitation. Aotop takes pride professional OEM (Original Equipment Manufacturer) and ODM (Original
Design Manufacturer) services, which are customized precisely to meet your individual needs.
| Screen Ratio | 16:9 |
| Resolution | 1024*R.G. B*600 BOE |
| Backlight | LED, Brightness 500 Cd/M2 |
| Contrast | 800:1 |
| Viewing Angle | Up—85°, Down—85°,Left—85°, Right—85° |

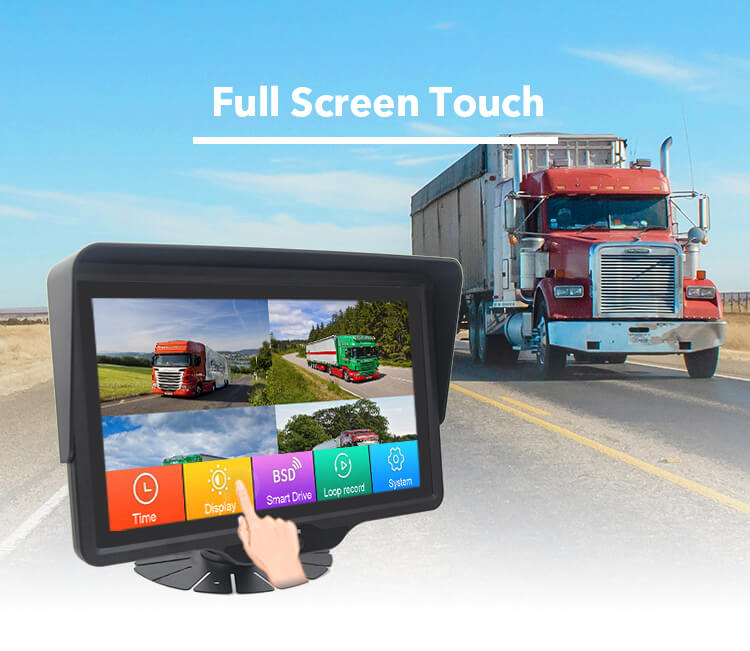

| Operation Method | Full Screen Touch |
| OSD Control | Time Setting, Display Setting, Smart Drive, View Files, System Setting |
| Signal Input | P/N, 720P/1080P |
| Recording | Support |

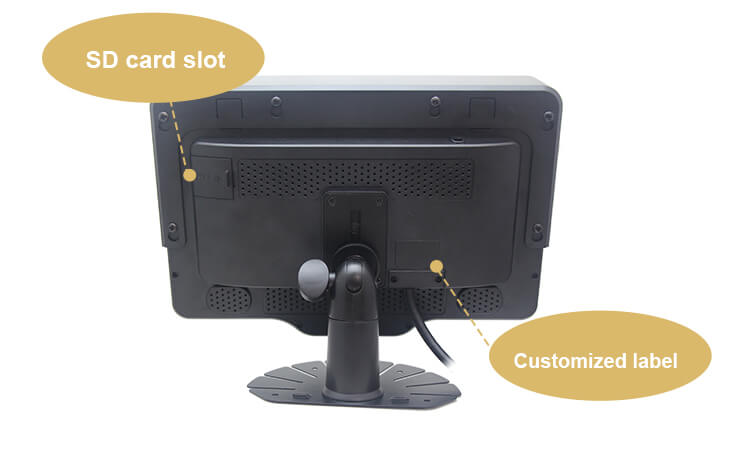

| SD Card Storage | Support 8-256G , High-Speed Card |
| Video Compression Format | H.264 Compression Mode |
| Video Playback | Single Channel Playback |
| File Format | TS |
| File Size | About 16.5M/Min |
| System Language | Chinese, English, Japanese, Korean |
| Display Image Switch | Double-Tap Touch Screen |

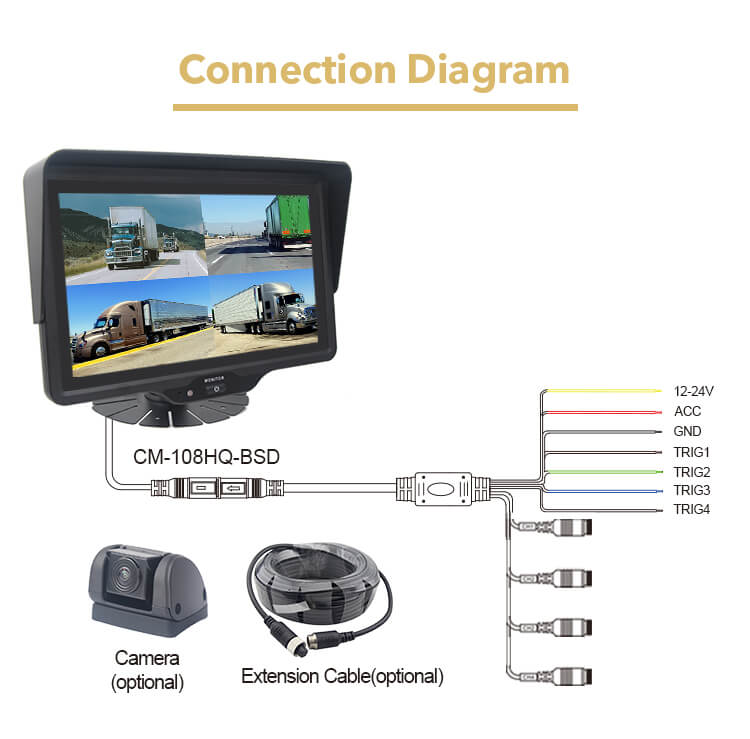

| Trigger | 4CH, With Guideline Function |

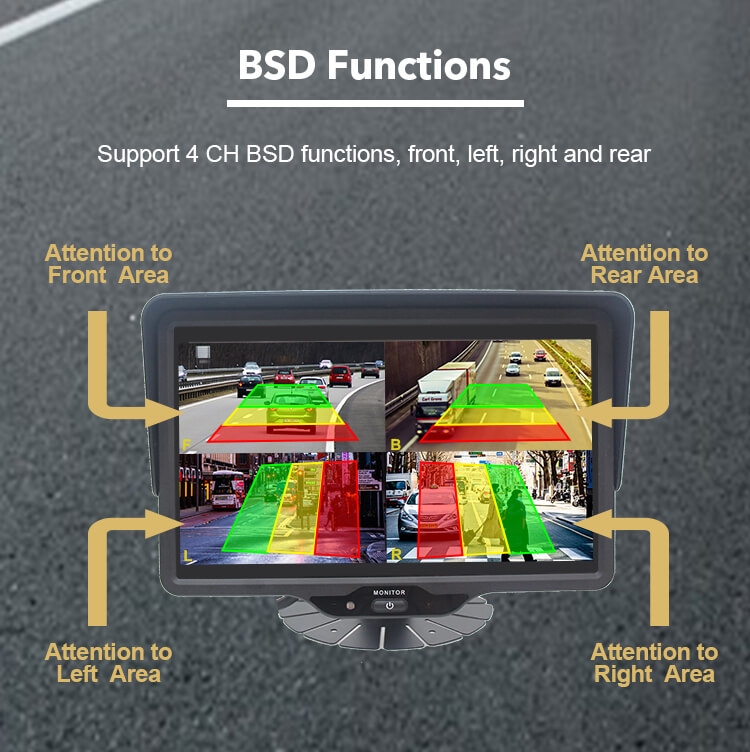

| Blind Spot Detection | Support 4 Channel Front、Left、Right、Back |
| Shockproof Level | 4G |
| Recording Audio | 4 Channels Recording (Not Including Audio From Camera) |
| Working Temperature | -20~+70 ºC |
| Working Humidity | 85%RH |
| Storage Temperature | -30~+80 ºC |
| Power Supply | 12-24V |
| Power Consumption | Normal Working Condition＜11.4W |
| Booting Time | 4S |
| Current Consumption | DC12V≈550MA , Without Cameras |
| Speaker | BSD Warning From The Monitor (Audio From The Camera Is Not Supported) |
