● 1024*RGB*600 resolution, IPS LCD digital screen
● 4CH x AHD cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / PAL / NTSC

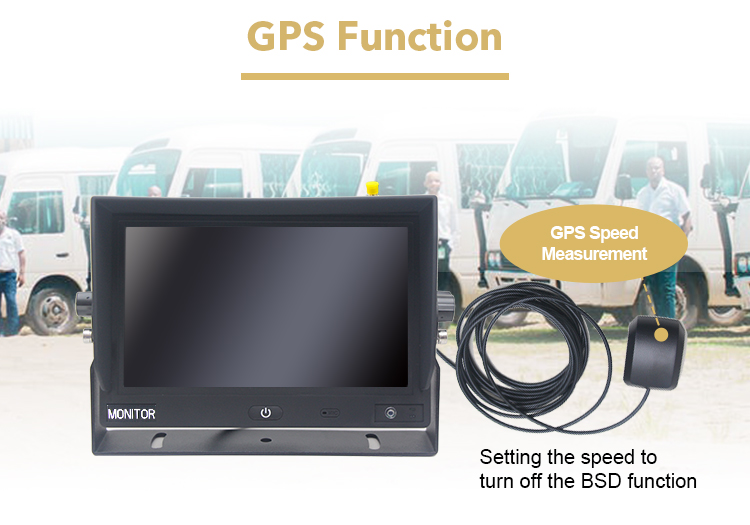

● Built-in GPS antenna device, supported driving speed measurement

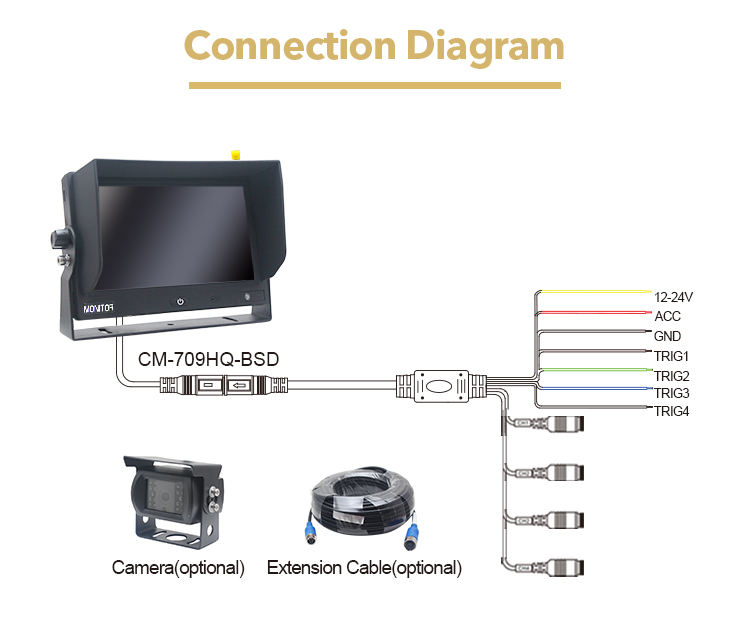

● 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

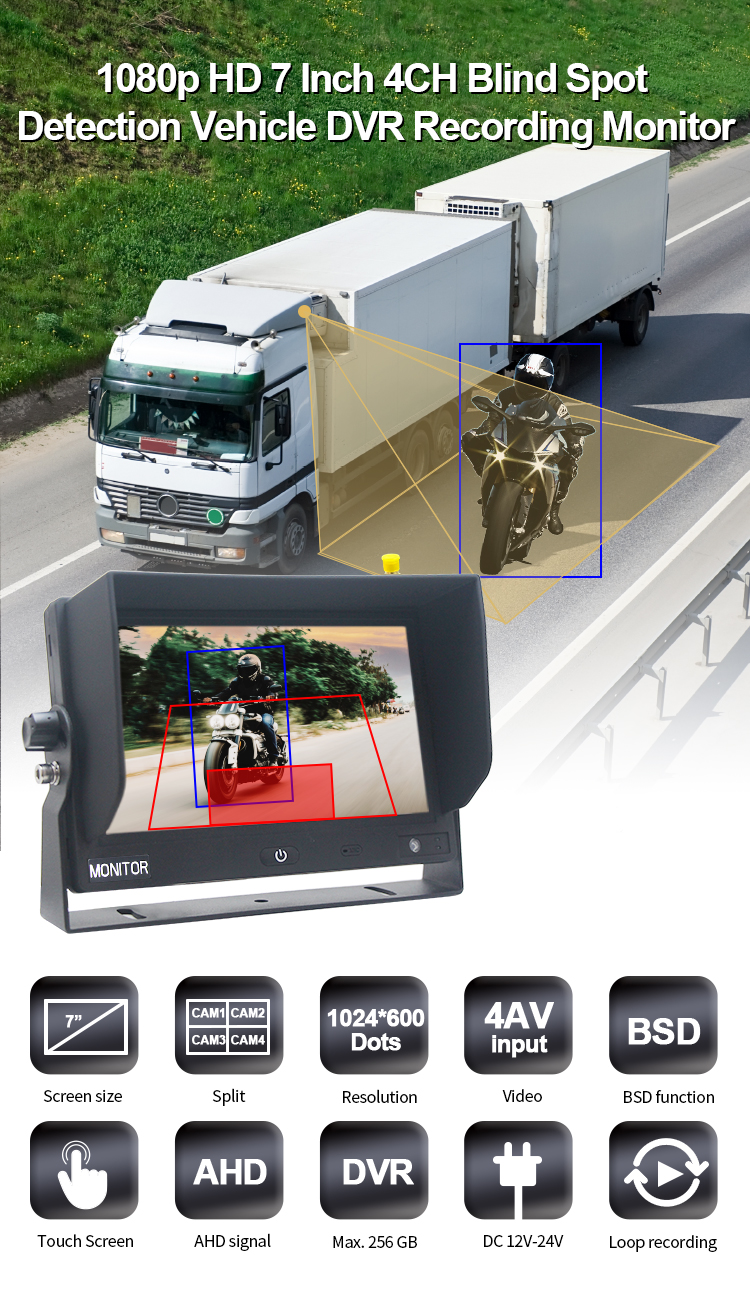

● Built-in intelligent algorithm chip supported 4CH image blind spot detection; Pedestrian vehicle obstacle detection;
● Available speaker BSD hazardous area approach audible warning
● Full display & dual/triples/quad split view mode

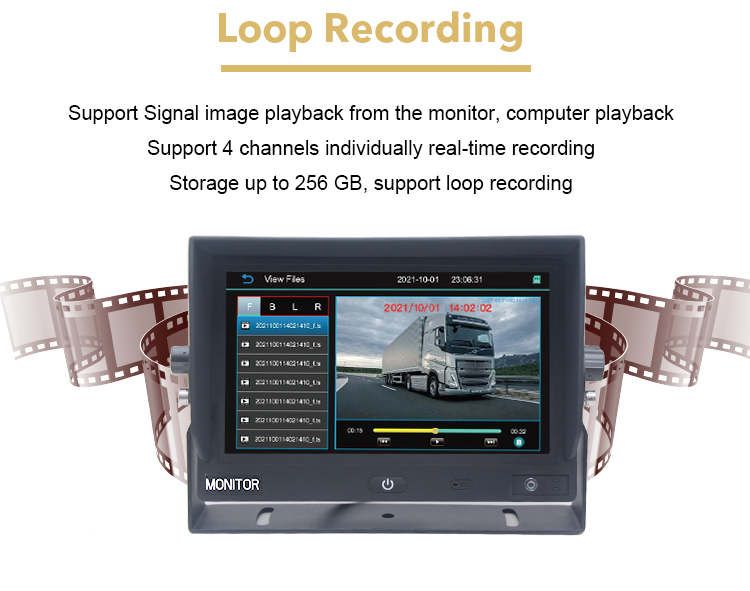

● Max. 256GB memory card (4CH DVR recorder)
● Multi-language settings
● Horizontal mirror image switching
● DC 12-24V wide voltage
PRODUCT FEATURES

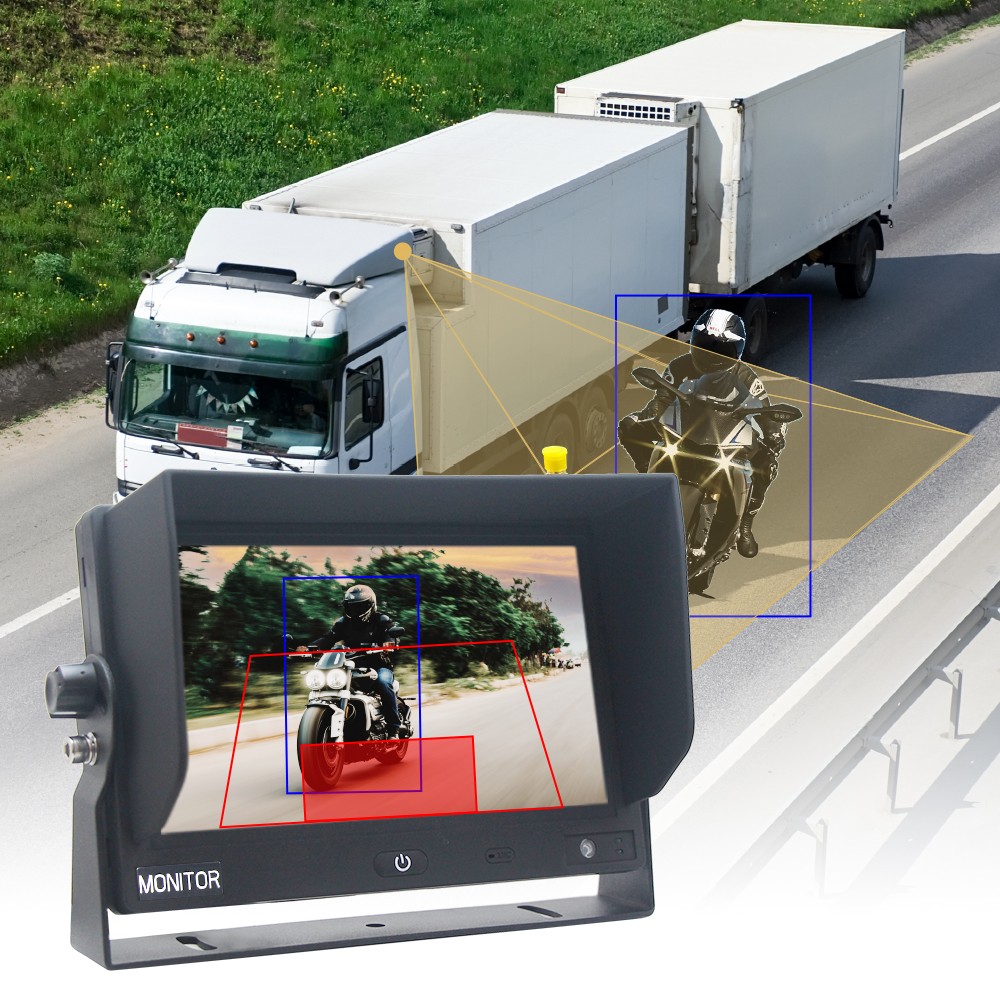

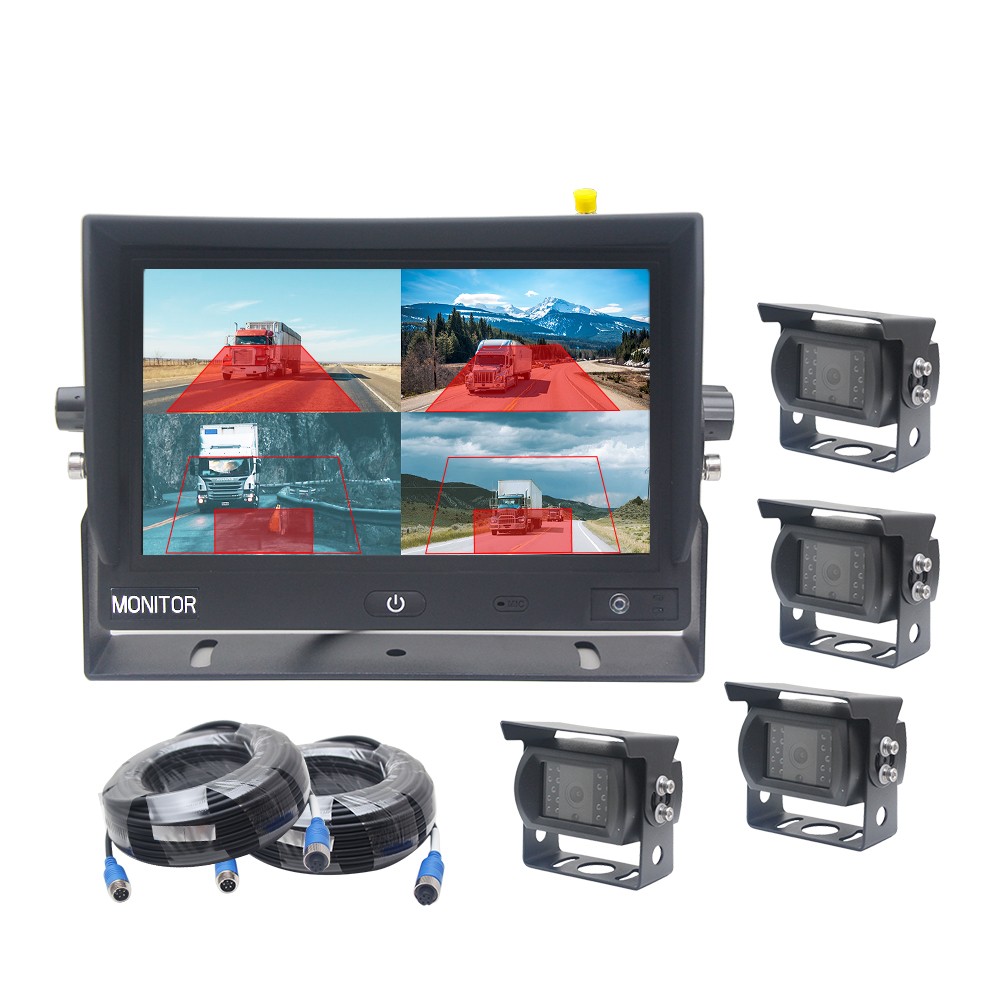

Aotop 7 inch IPS LCD quad view blind spot detection vehicle AI monitor built-in 4CH AI human vehicle detection
algorithm, detecting pedestrian & vehicles all around the vehicle offer visual sound warning to remind drivers of
potential risks and avoid collision, improving driving safety! Full screen touch and built-in SD card without external
DVR, 4CH HD video individually recorded with its storage 256GB. If you are looking AI BSD monitor for your fleet
please contact sales@aotop.com!
If you have any specific custom requirements regarding the product's performance or appearance, you can contact
us without hesitation. Aotop takes pride professional OEM (Original Equipment Manufacturer) and ODM (Original
Design Manufacturer) services, which are customized precisely to meet your individual needs.
| Screen Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 BOE |
| Backlight | LED, Brightness 500 Cd/M2 |
| Contrast | 500:1 |
| Viewing Angle | Up—85°, Down—85°,Left—85°, Right—85° |

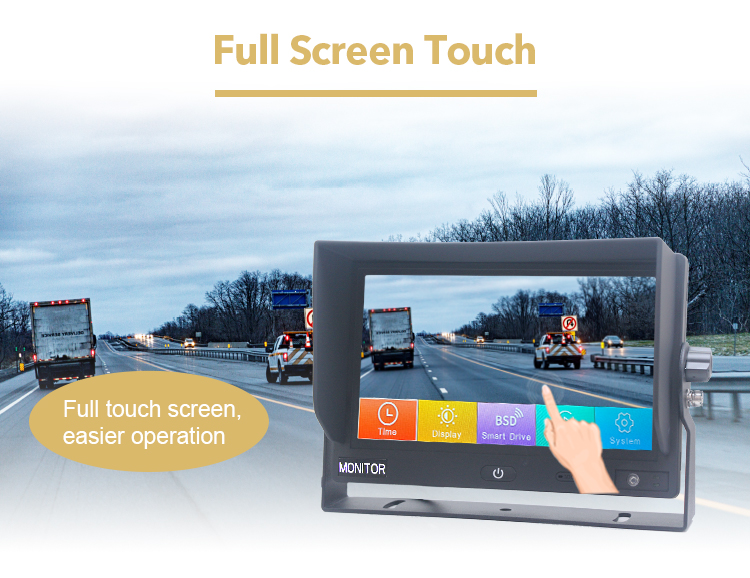

| Operation Method | Full Screen Touch |

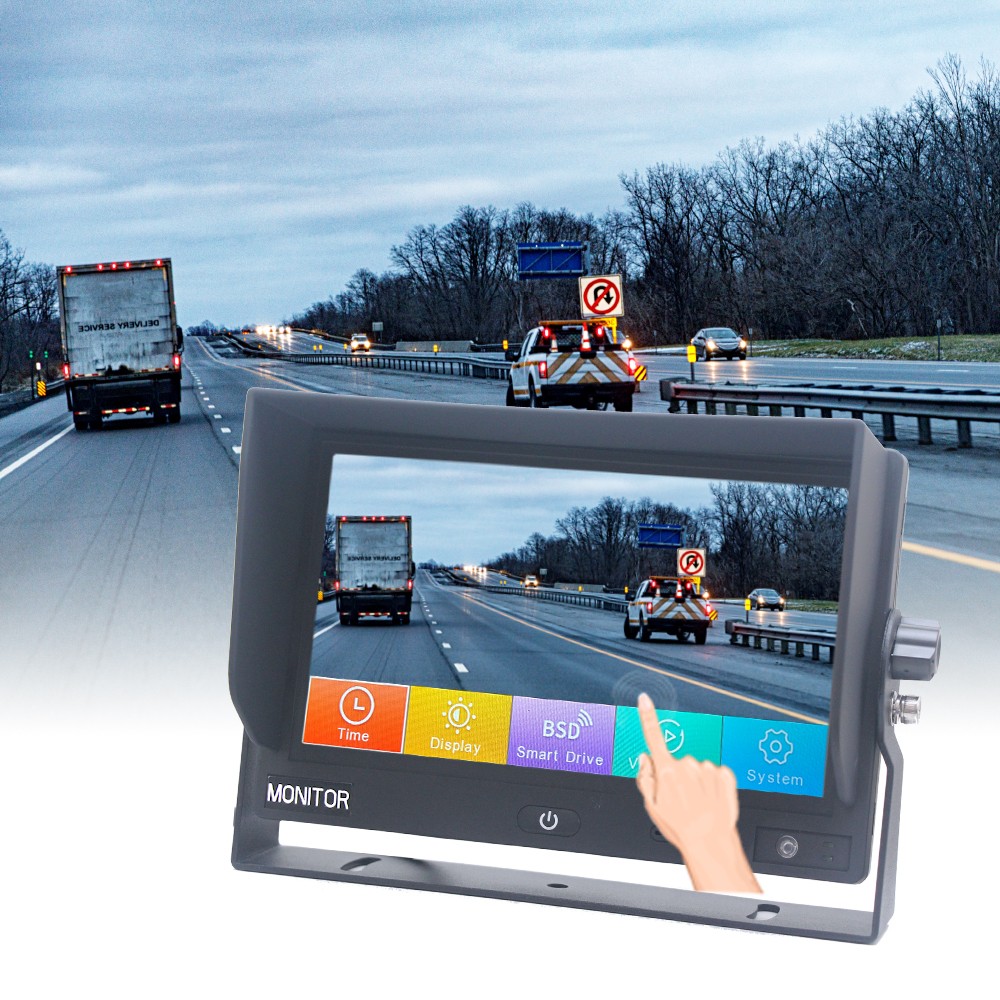

| OSD Control | Time Setting, Display Setting, Smart Drive, View Files, System Setting |
| Signal Input | P/N, 720P/1080P , 720N/1080N (The Type Of Video Signal Of 4 Channels Should Be The Same) |
| Recording | Support |
| SD Card Storage | Support 8-256G , High-Speed Card |
| Video Compression Format | H.264 Compression Mode |
| Video Playback | Single Channel Playback |
| File Format | TS |
| System Language | Chinese, English, Japanese, Korean |
| Display Image Switch | Double-Tap Touch Screen |
| Trigger | 4CH, With Guideline Function |

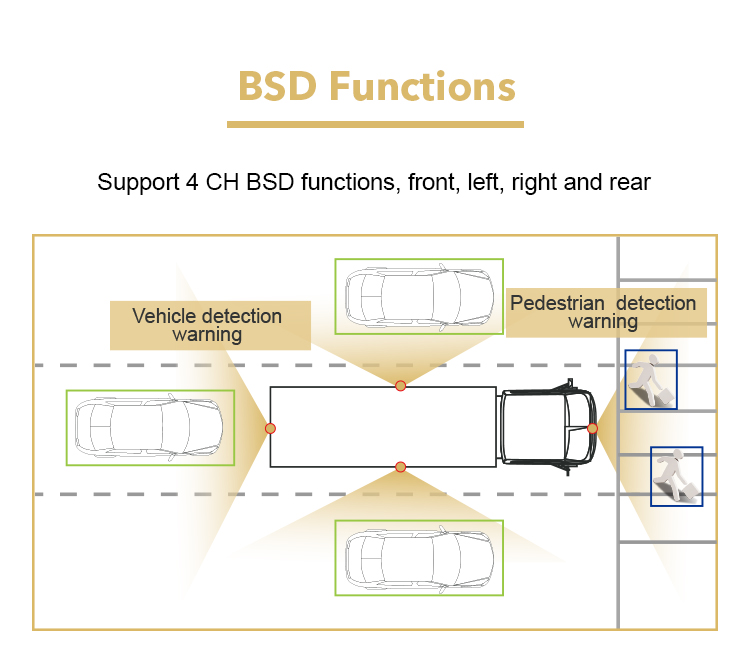

| Blind Spot Detection | Support 4 Channel Front、Left、Right、Back |
| Shockproof Level | 4G |
| Recording Audio | 4CH Recording (Not Including Audio From Camera) |
| Working Temperature | -20~+70 ºC |
| Working Humidity | 85%RH |
| Storage Temperature | -30~+80 ºC |
| Power Supply | 12-24V |
| Power Consumption | Normal Working Condition＜11.4W |
| Booting Time | 4S |
| Current Consumption | DC12V≈550MA , Without Cameras |
| Speaker | BSD Warning From The Monitor (Audio From The Camera Is Not Supported) |
