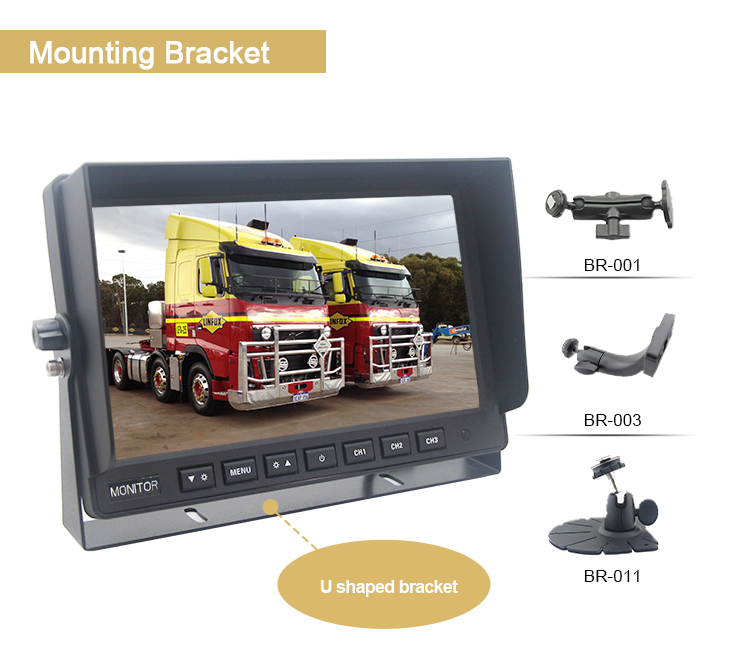

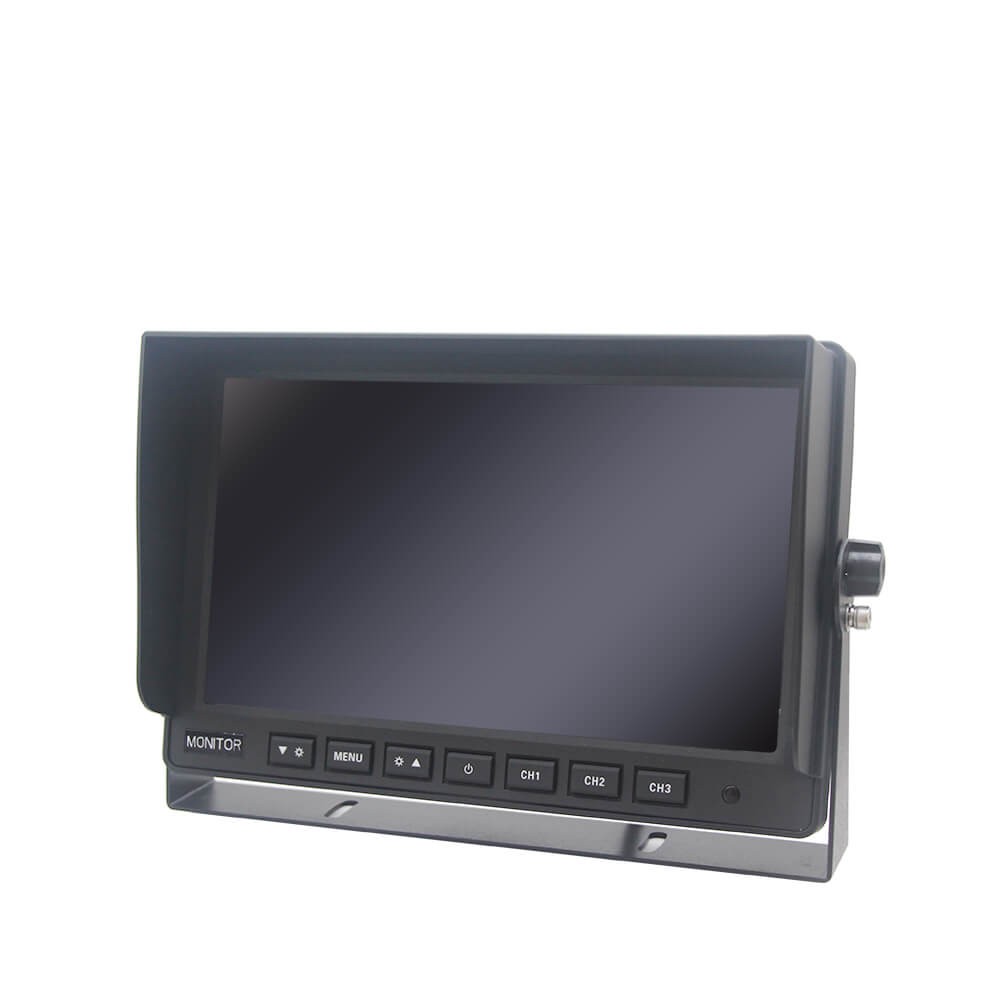

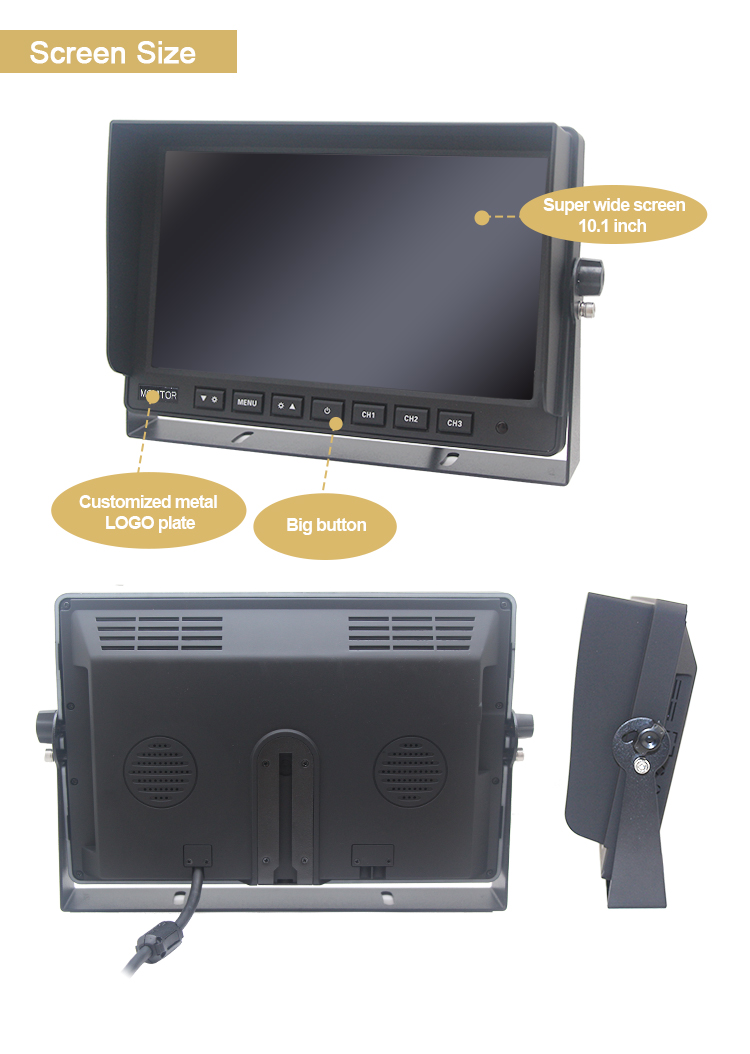

● Sunshade Cover & U-Bracket
● 1024*RGB*600 Resolution (IPS LCD Screen)
● 3CH x Cameras Video Signal Input
● Multiple Video Formats Available To Cameras: 720P / 1080P / AHD / Compatibility CVBS

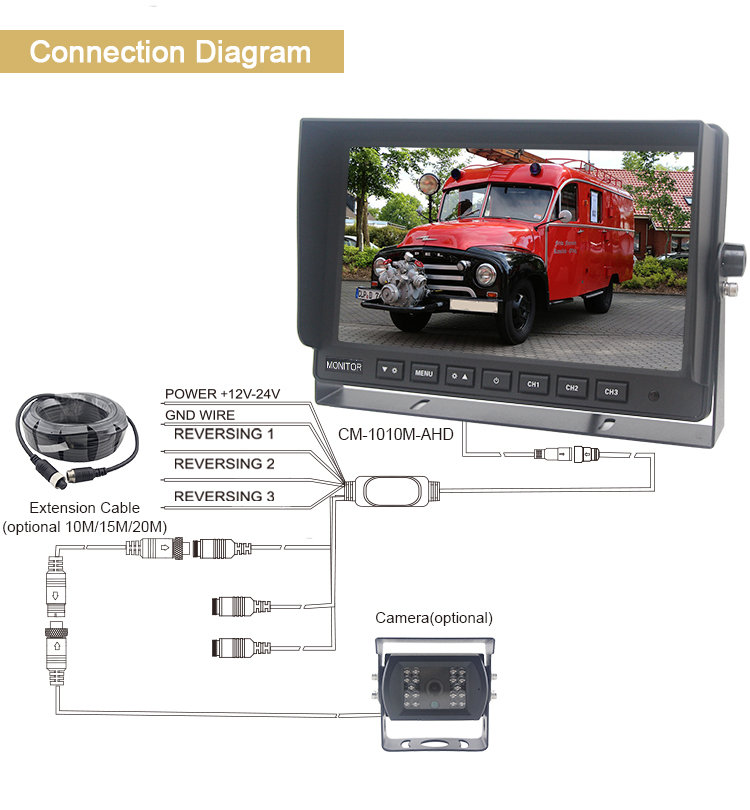

● 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
● 1CH Audio Signal Input (High-Quality Speaker)

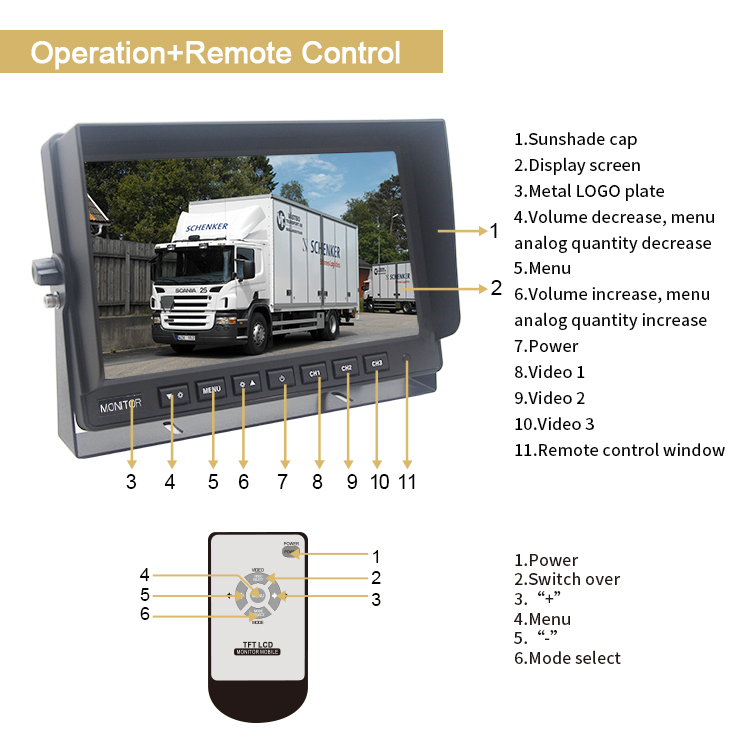

● Full-Function Remote Control
● Multi-Language Settings
● Horizontal Mirror Image Switching; Image Flip.
● DC 12-24V Wide Voltage
● AUTO Adaptation PAL / NTSC System
PRODUCT FEATURES

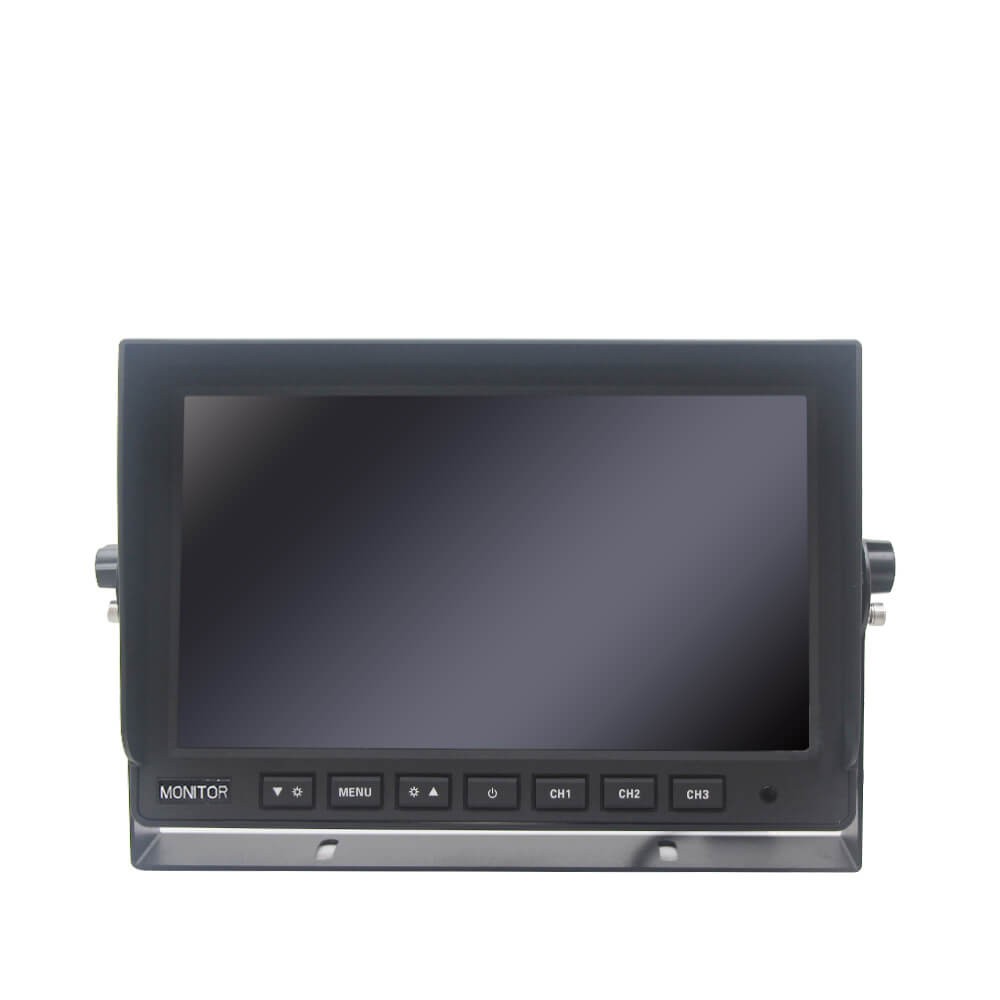

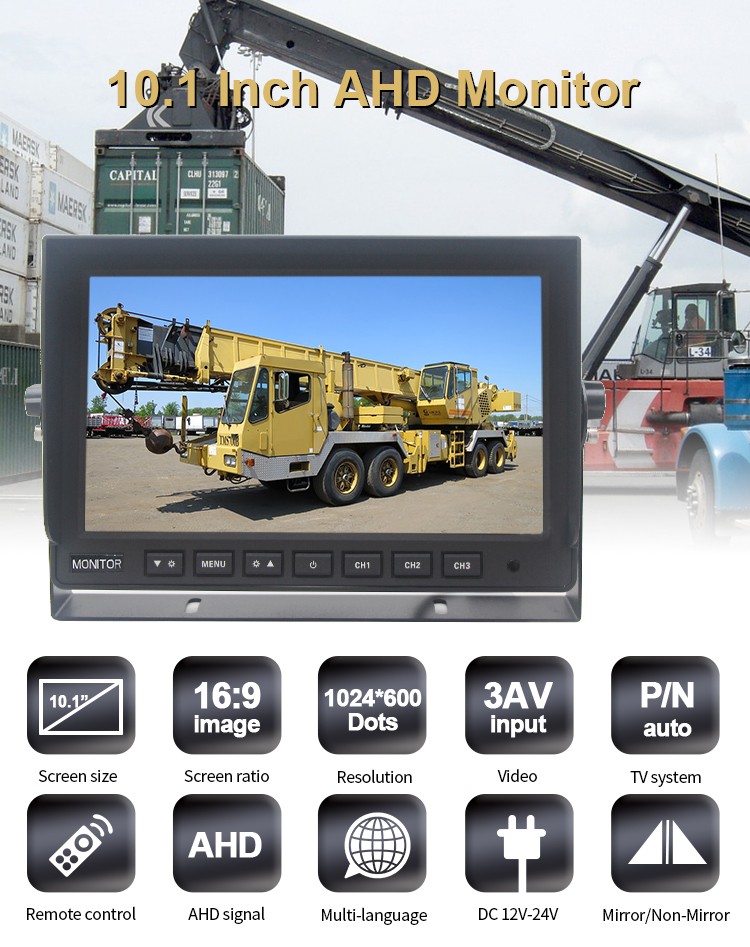

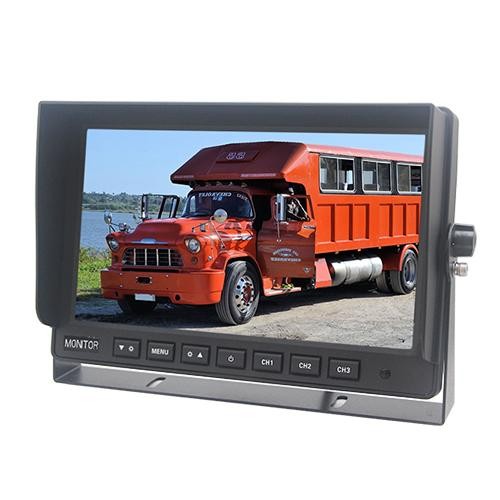

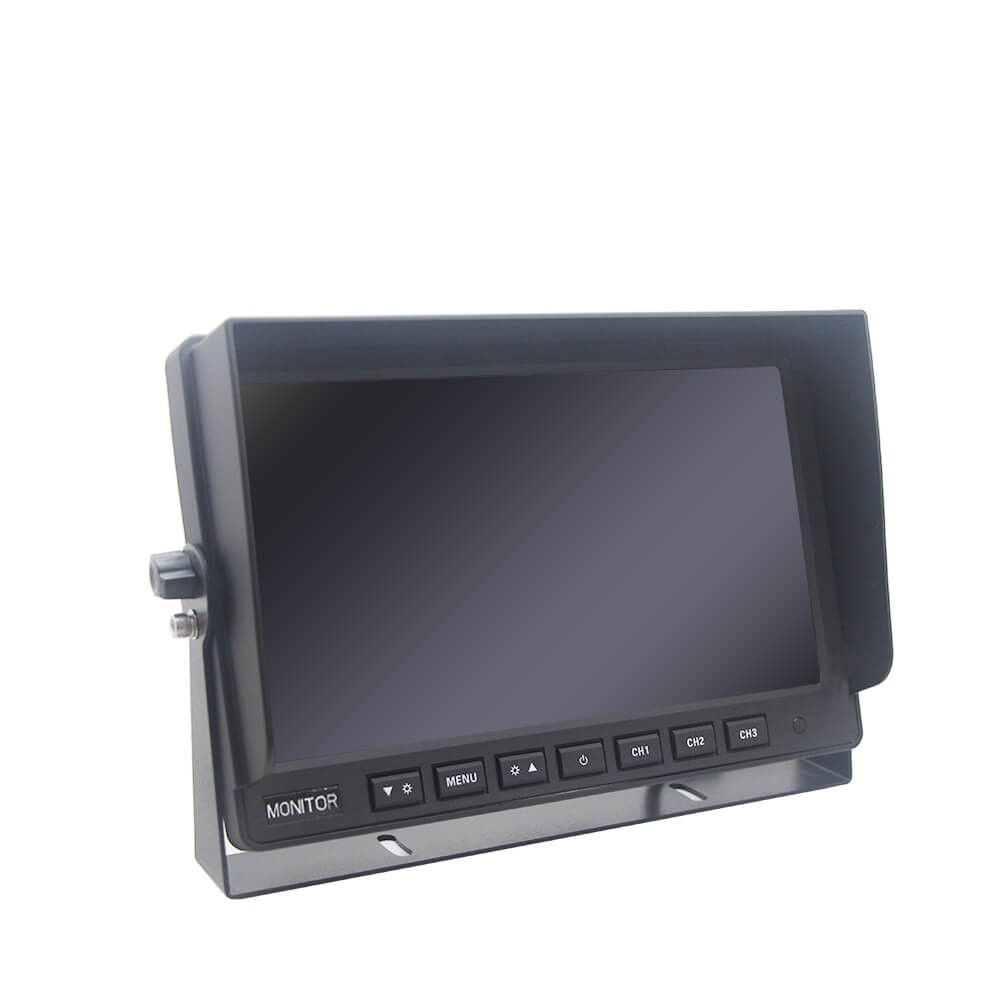

AOTOP 10.1 inch color IPS AHD rear view monitor is good for various large / commercial vehicles. Connection 3CH 1080p cameras,
can cover 3 areas around the vehicle. This ensures drivers can view clear HD images of the surroundings at all times, improving
driving safety, can visualisation the blind spots to reduce the risk of collisions. Supports mirror switching, multi-language settings,
PAL NTSC TV system making it suitable for users worldwide. If you are looking the best vehicle monitor for your fleet, please contact
sales@aotop.com!

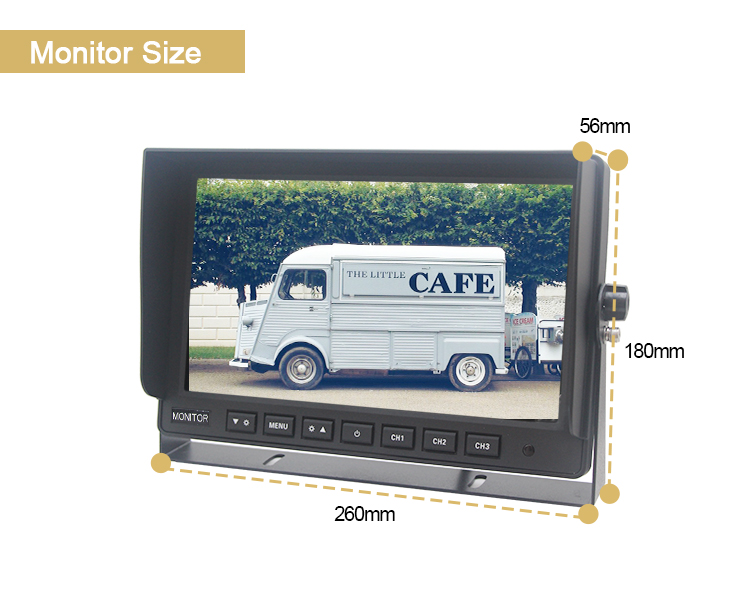

| Screen Ratio | 16:9 |
| Back Light Luminance | LED, Luminance 400cd/㎡ |
| Resolution | 1024*RGB*600 |
| Contrast | 500:1 |
| Compatible System | PAL & NTSC (Automatically) |
| OSD Control | Image Setting, General Setting, System Setting, Volum |
| View Angle | UP-85°, DOWN-85°, LEFT-85°, RIGHT-85° |
| Power Supply | DC 12-24V |
| Boot Time | 2s |
| Current Consumption | DC12V/500mA |
| Power Consumption | ＜4W |
| Storage Temperature | -30℃〜+80℃ |
| Working Temperature | -20℃〜+70℃ |
| Working Humidity | 85%RH |
| Image Display | 3CH Single Image Display |
| Signal Input | 3CH AHD 1080P / 720P / CVBS Input, 2CH Audio Input. Compatible With CVBS / AHD Signals Compatible With PAL NTSC Systems |
| Trigger | 3CH Trigger Control, Could Set Reversing Delay |

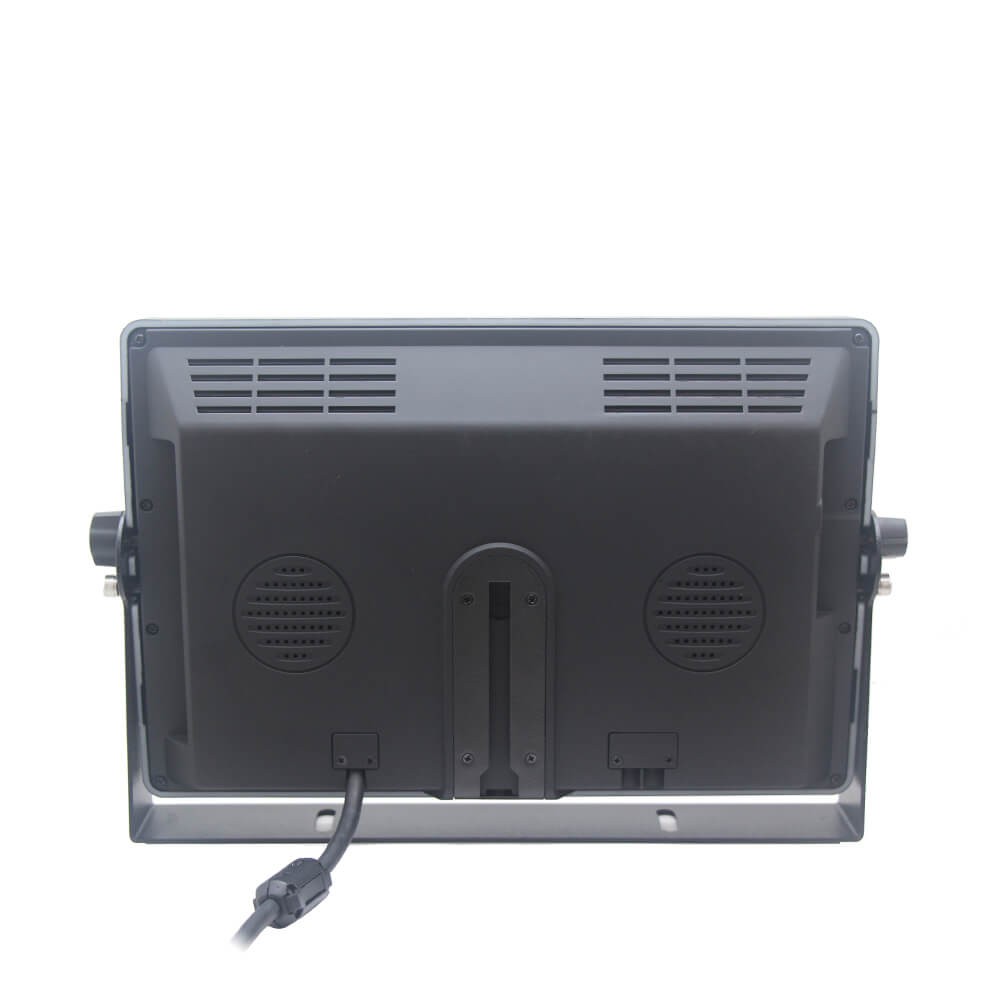

| Speaker | Built-In |
| Language | English, Japanese, Korean, Russian |
| Parking Guideline | Off As Default |
| Mirror/Non-Mirror Image Display | Mirror As Default |
| Shockproof Level | 4G |

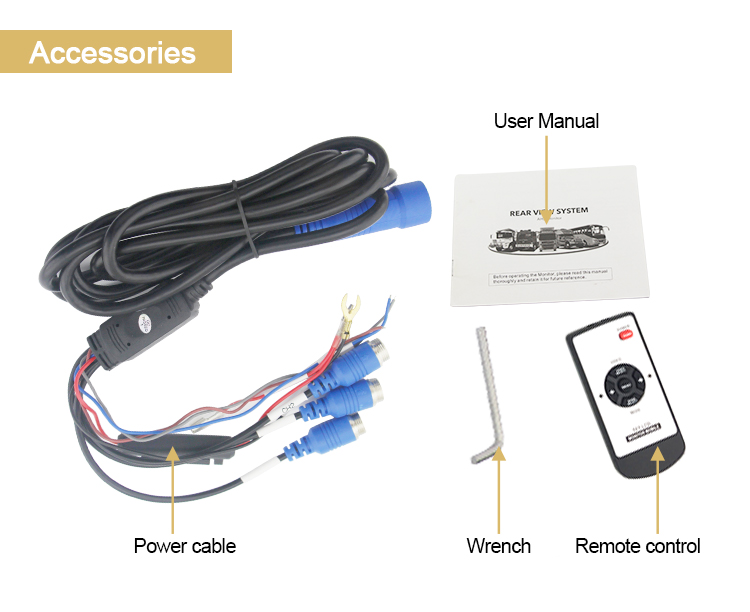

| Accessories | Remote Control, Power Supply Cable , User Manual, Sunshade, Wrench |
