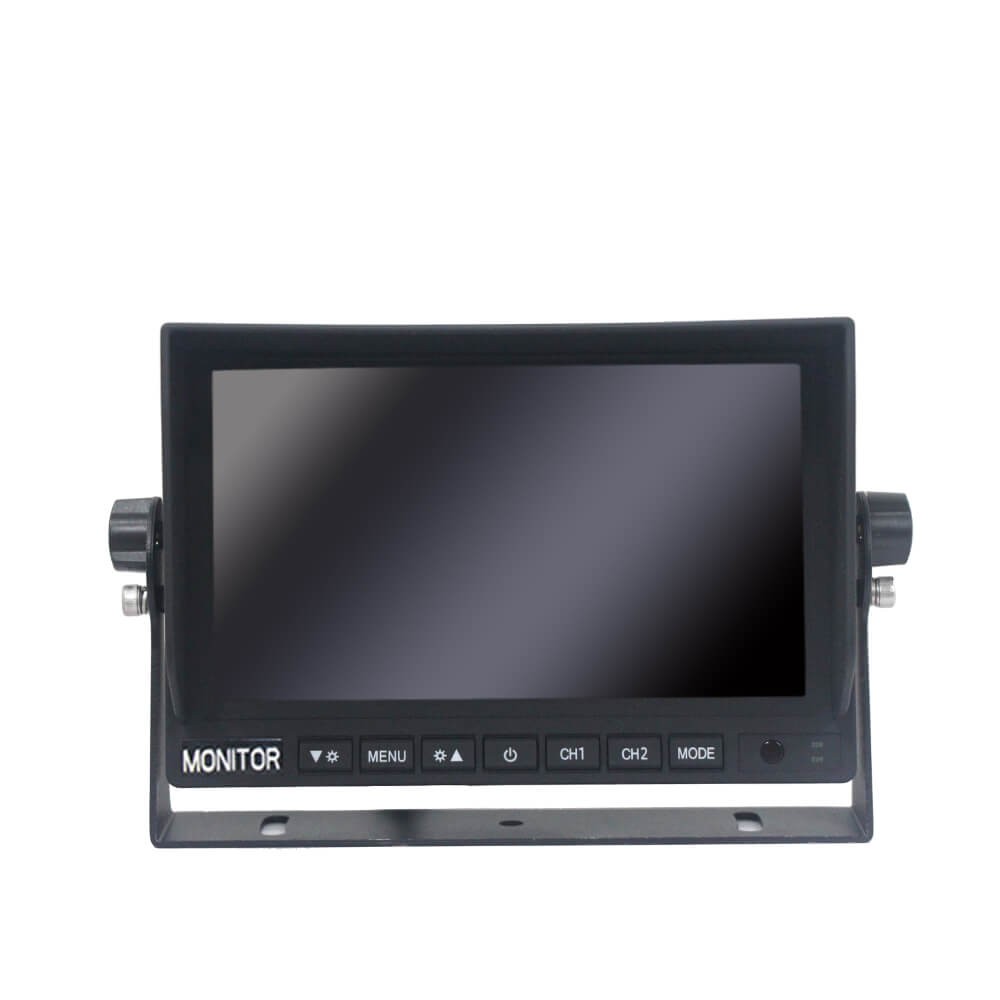

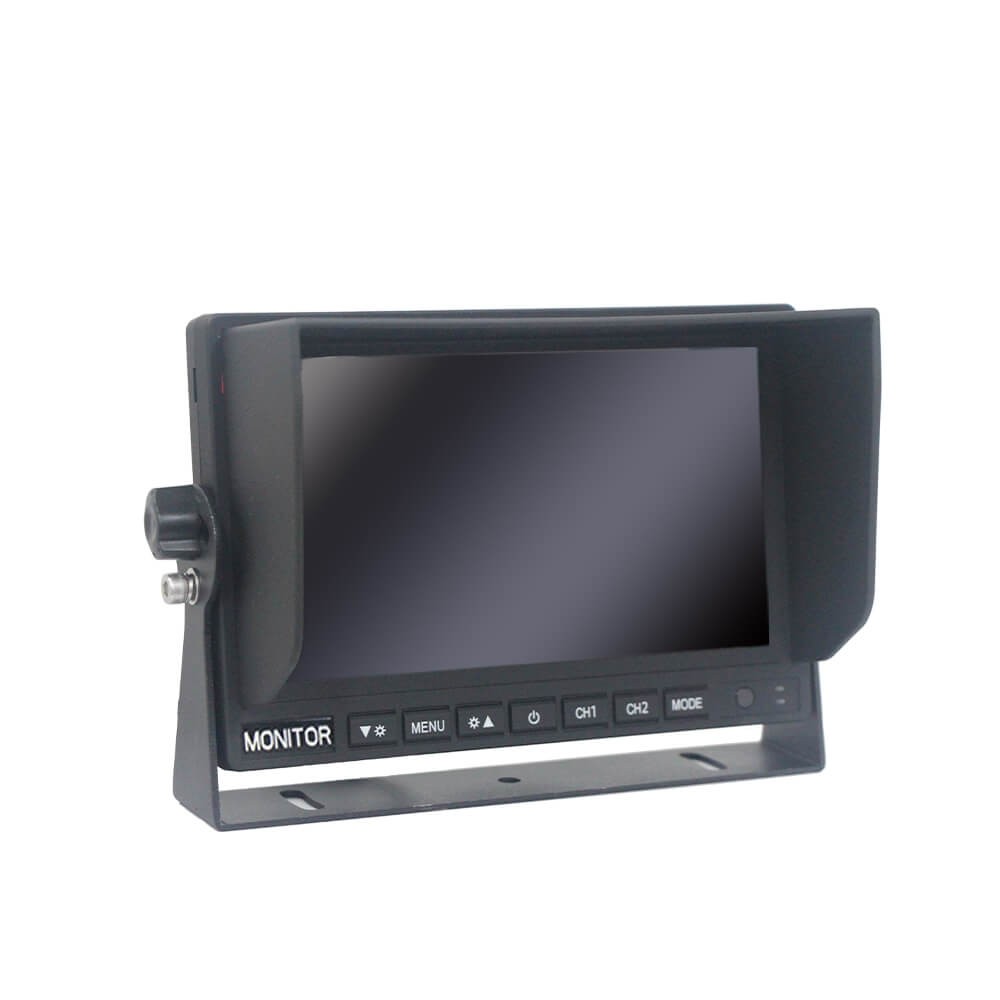

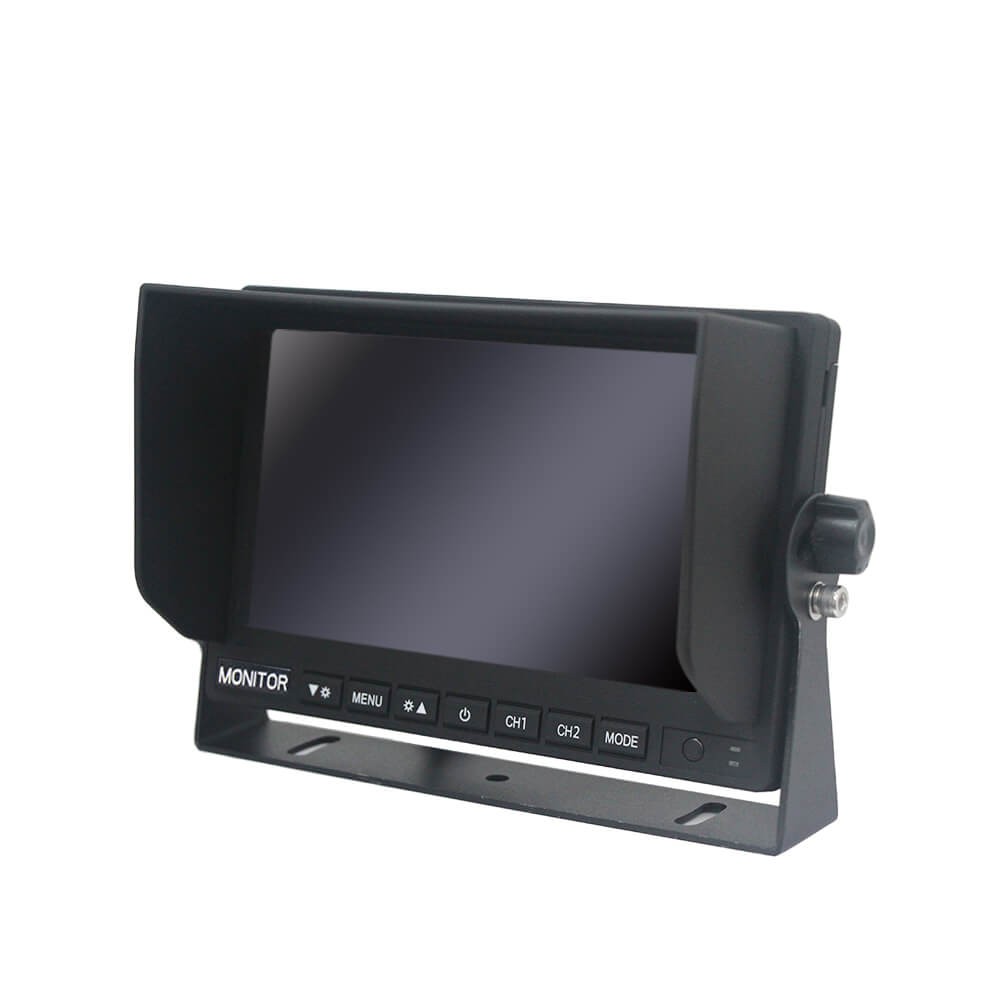

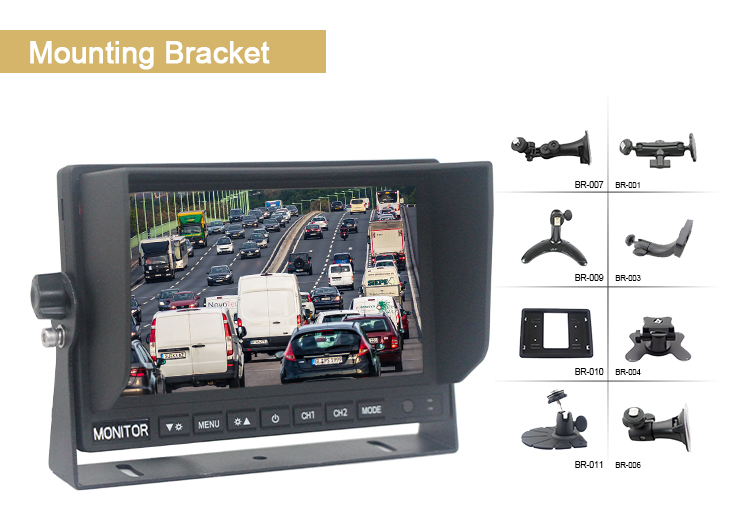

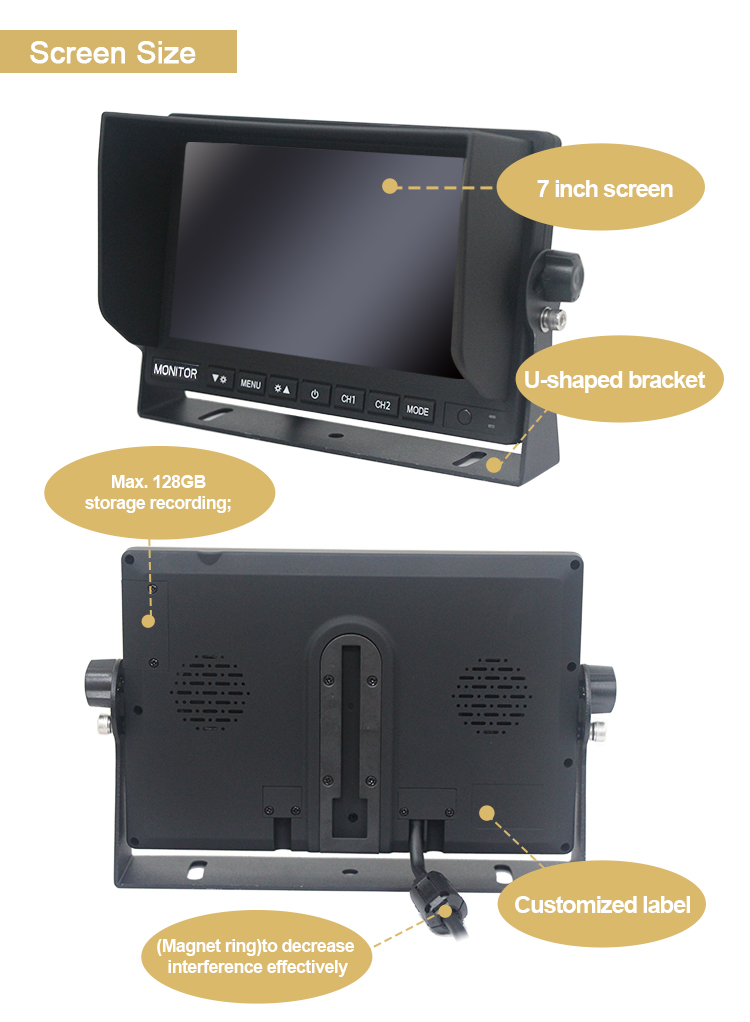

● Sunshade bracket & U-bracket
● 1024*RGB*600 HD IPS LCD screen

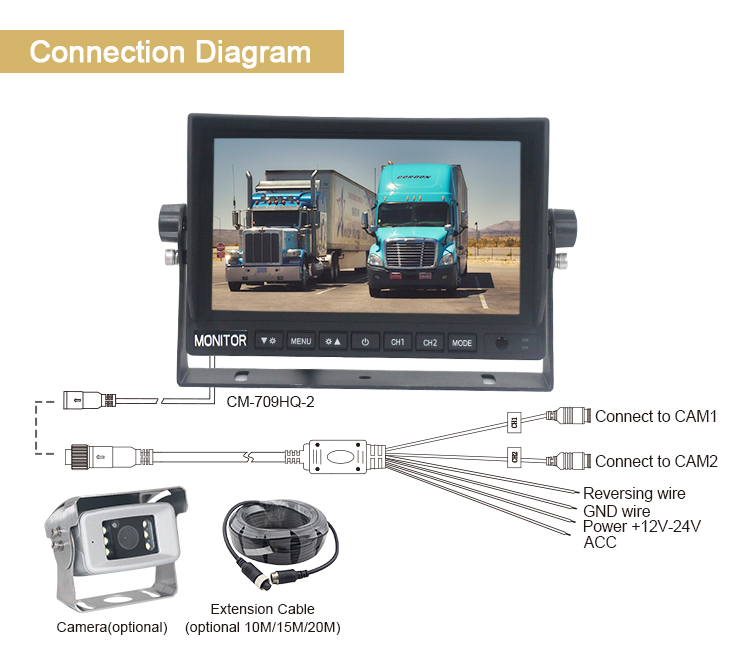

● 2CH x cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS
● 1CH audio signal input (high quality speaker)

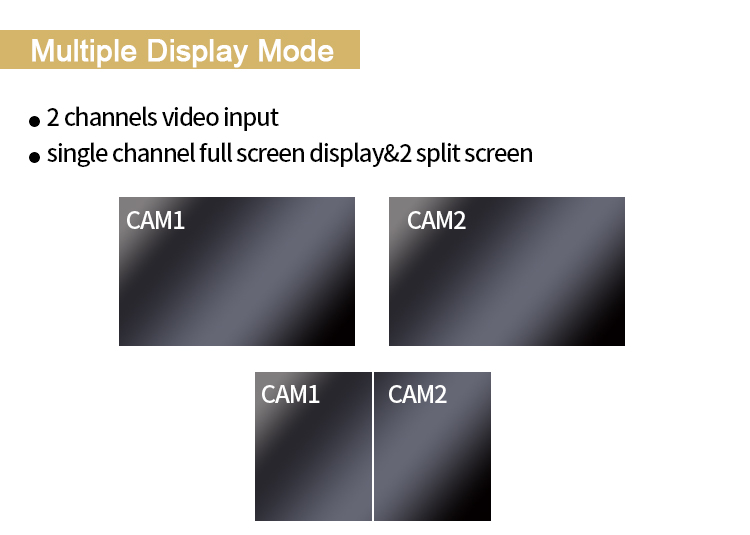

● Full display & dual split view mode
● Available Max. 128GB memory card (2CH DVR HD recorder)

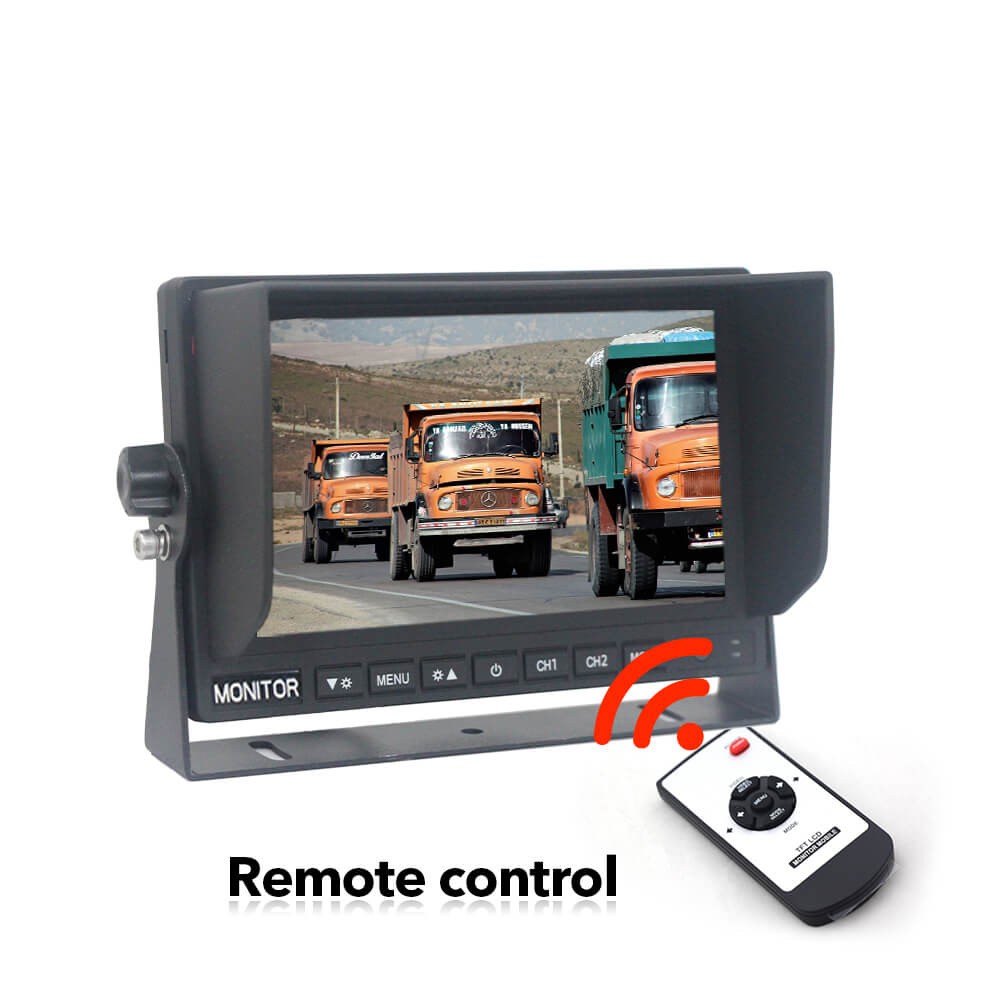

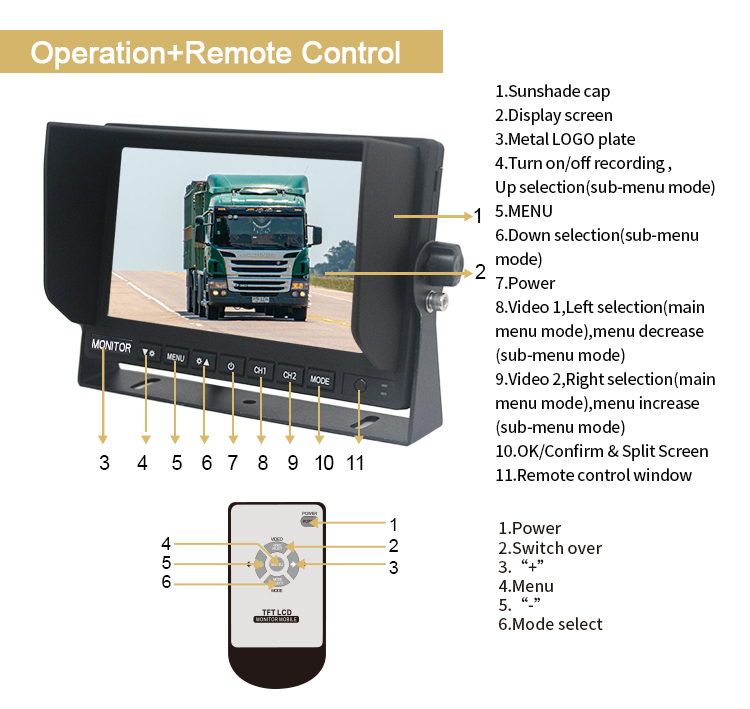

● Full-function remote control
● Multi-language settings
● Horizontal mirror image switching
● DC 12-24V wide voltage
● AUTO adaption PAL / NTSC system
PRODUCT FEATURES

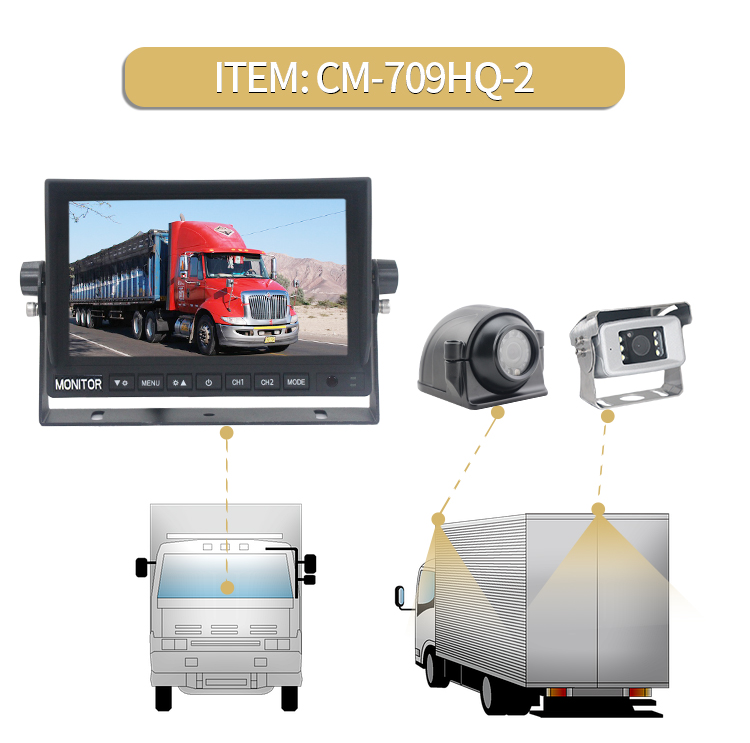

AOTOP 7 inch high definition 2CH split view vehicle monitor, supports 2CH AHD video signal input, connection
2 vehicle cameras to monitoring vehicle surrounding. No need to external DVR device built-in 128GB memory
card support 2CH video signal car recording. Support horizontal mirror switching and multi-language settings,
PAL / NTSC TV system is the ideal solution for the safety of customers' vehicles around the world! If you are
looking for a reliable car monitor manufacturers & suppliers in China, please contact us at sales@aotop.com!

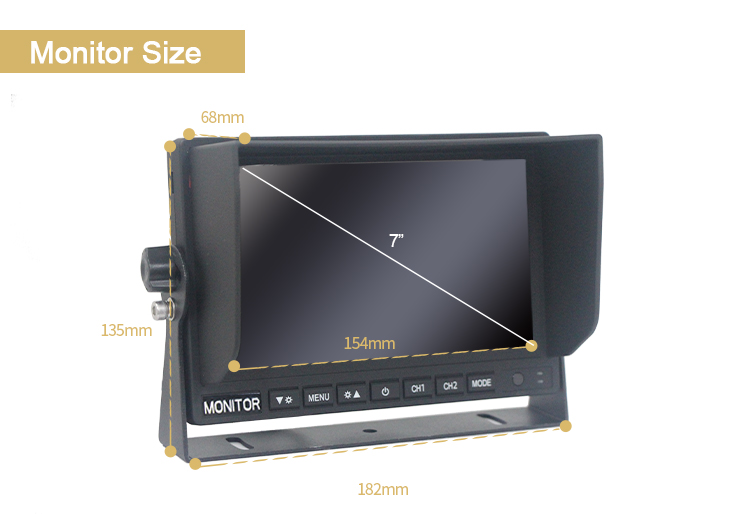

| Screen Size | 7 Inch HD color IPS screen |
| Screen ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Backlight | LED, 500 cd/m2 |
| Contrast | 500:1 |
| Viewing angle | Up—85°, Down—85°, Left—85°, Right—85° |
| Video input | Support 2CH 1080P/720P/960P/CVBS Mixed video signal input |
| OSD menu | Image setting, Image turnover, Blue/Black screen (No signal), Language setting, Parking guide line on/off, Reset |
| Parking guide line | Each channel is controlled separately, Off as default |
| Mirror / Normal image | Each channel is controlled separately, mirror as default |
| Reversing delay | Each channel is controlled separately, 3S as default |
| Compressed format | H.264 |
| Language | English / Chinese |
| Image display | Single/double image display |
| Trigger | 1CH |
| System | PAL/NTSC (Automatically) |
| Power supply | DC 12-24V |
| Currents | 12V/1.1A |
| Operating power | 13.2W |
| Boot time | About 2 sec. |
| Operating temperature | -20~+70 ºC |
| Operating humidity | 95%RH |
| Storage temperature | -30~+80 ºC |
| Vibration rating | 4G |
