● 7 inch IPS LCD screen, 1024*RGB*600 resolution.

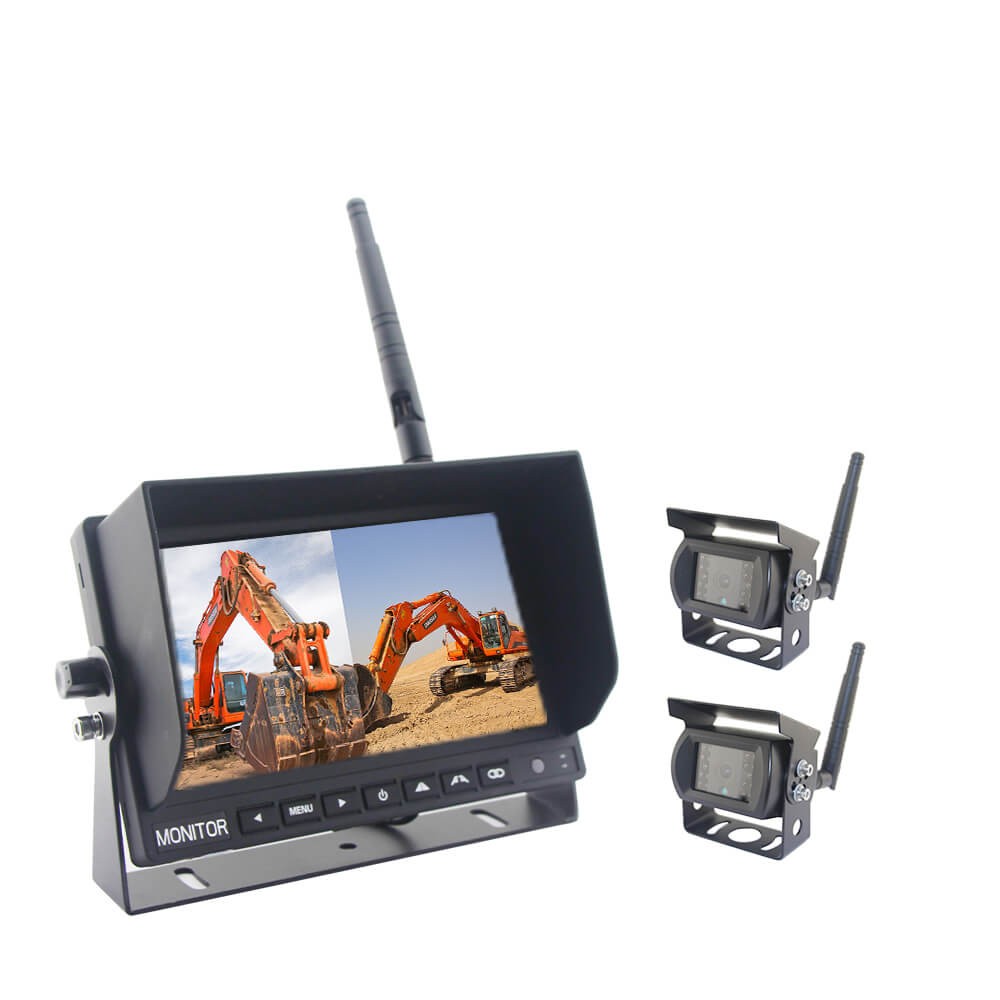

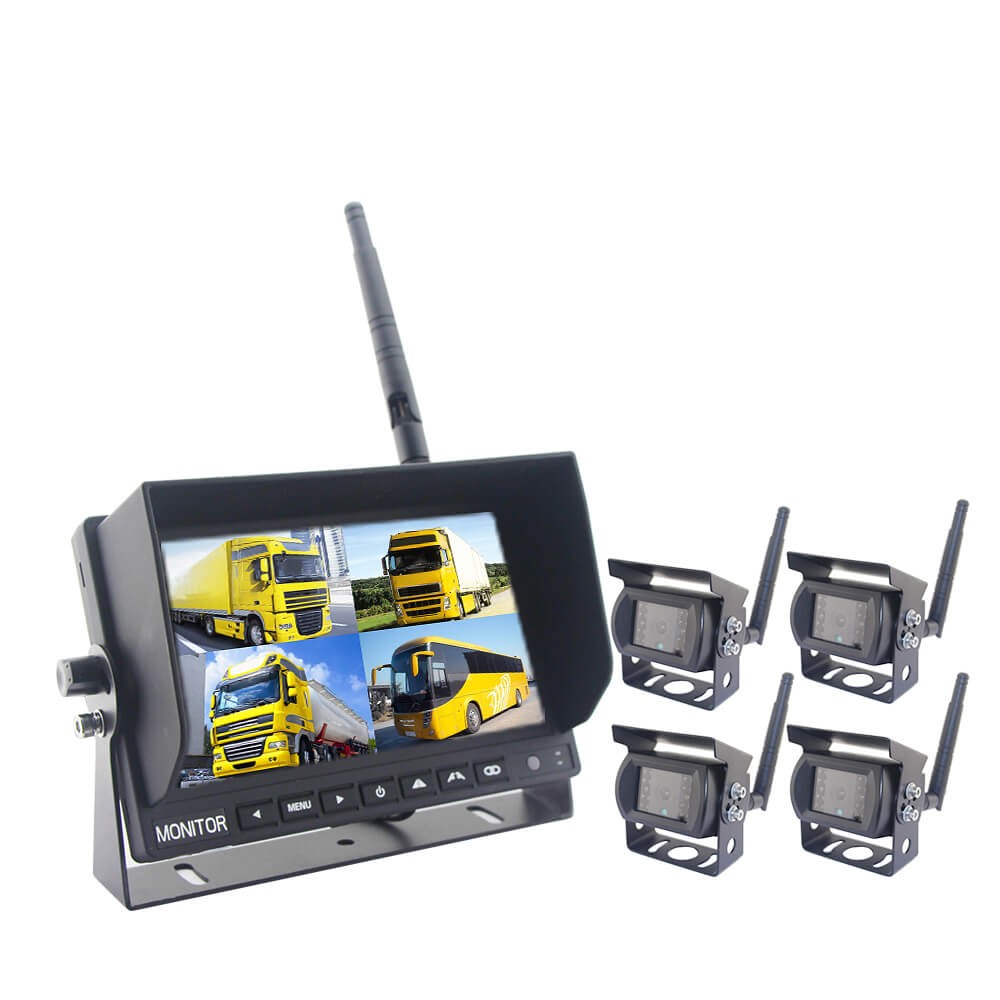

● Support 4CH video signals input, a variety of monitors modes quad view, double view, triple view and single view to meet various monitoring needs and reduce blind spots.
● 2.4G wireless signal transmission 656ft wireless transmission distance, without wiring easy to install. Save money & time！

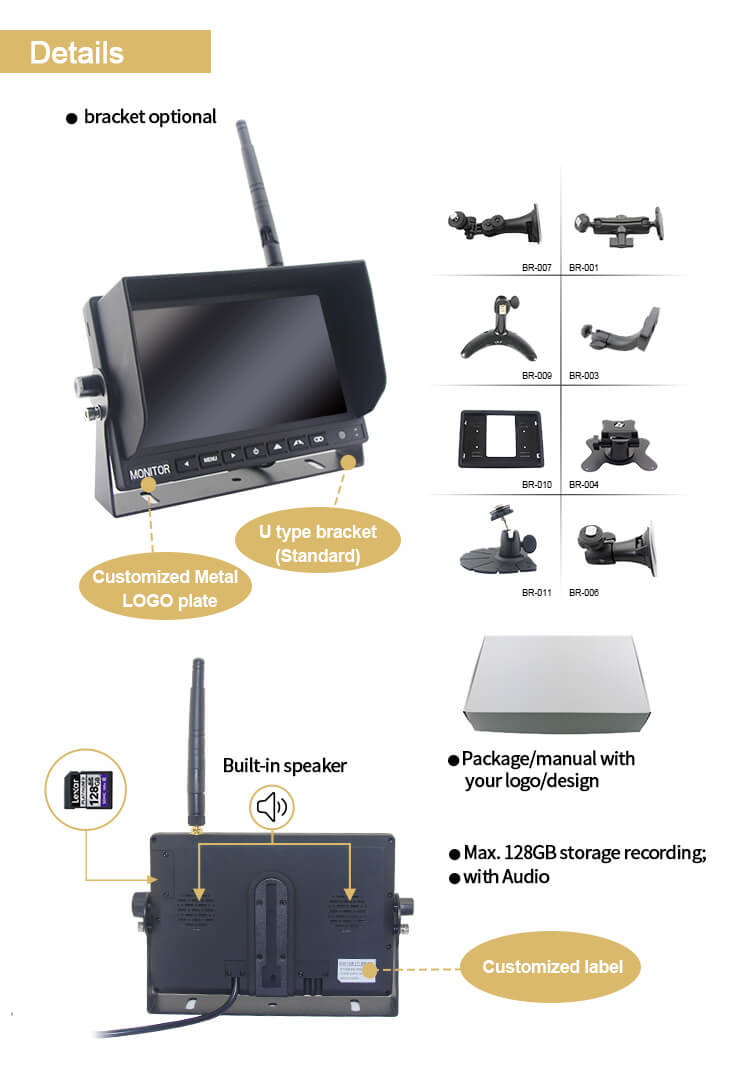

● DVR function built-in 128GB memory card support 4CH real-time recording and video playback.
● Rear view parking lines can be configured.
● Support 1080P/720P camera inputs
● Camera features IP69K waterproof, HD night vision, 120 wide angle etc.
● Supports manual and AUTO pairing, easy to operate. After the first pairing is completed, just connect the car power supply to work.
● DC12-24V wide voltage, applicable to a variety large & commercial vehicles.
PRODUCT FEATURES

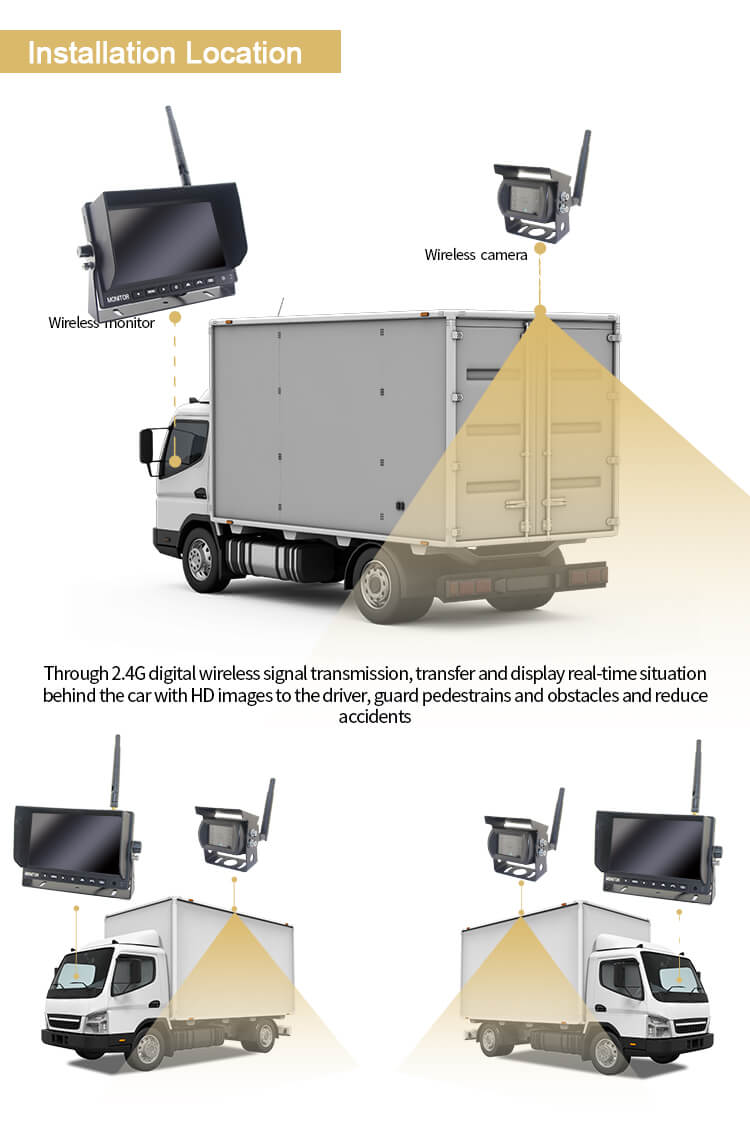

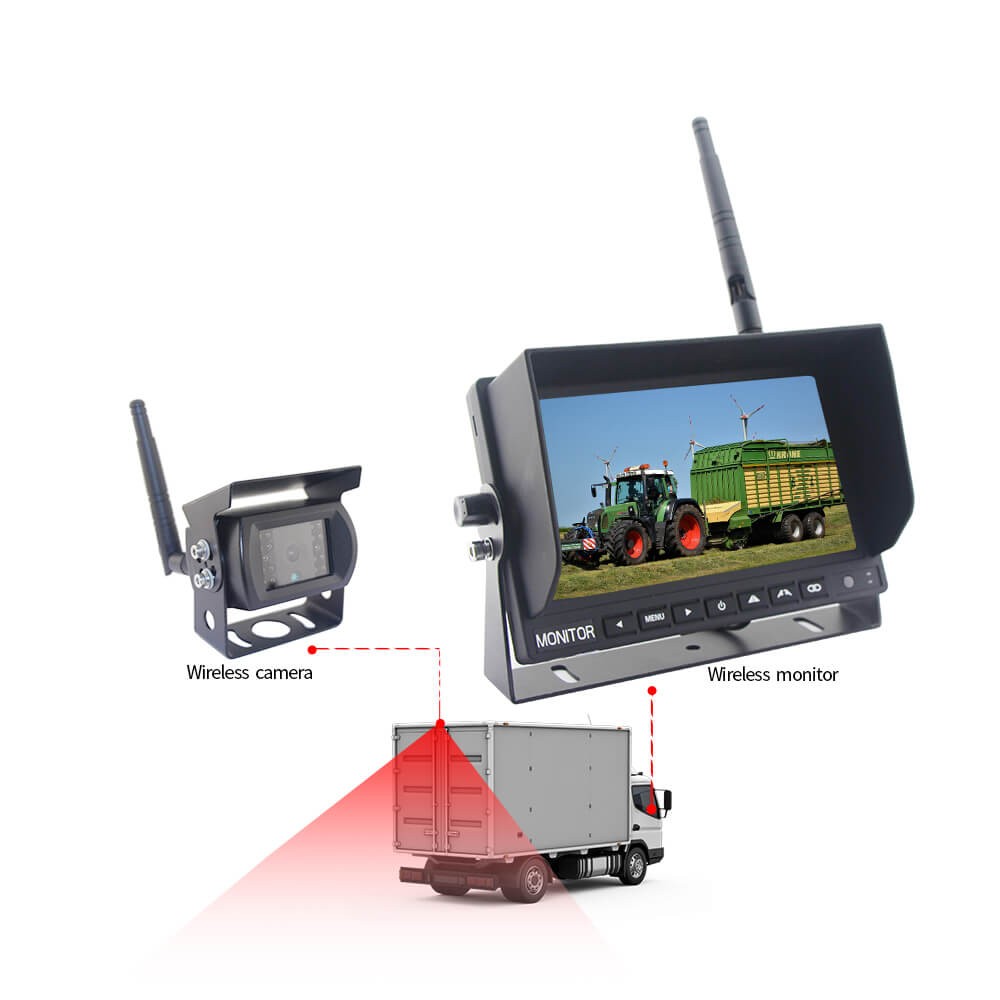

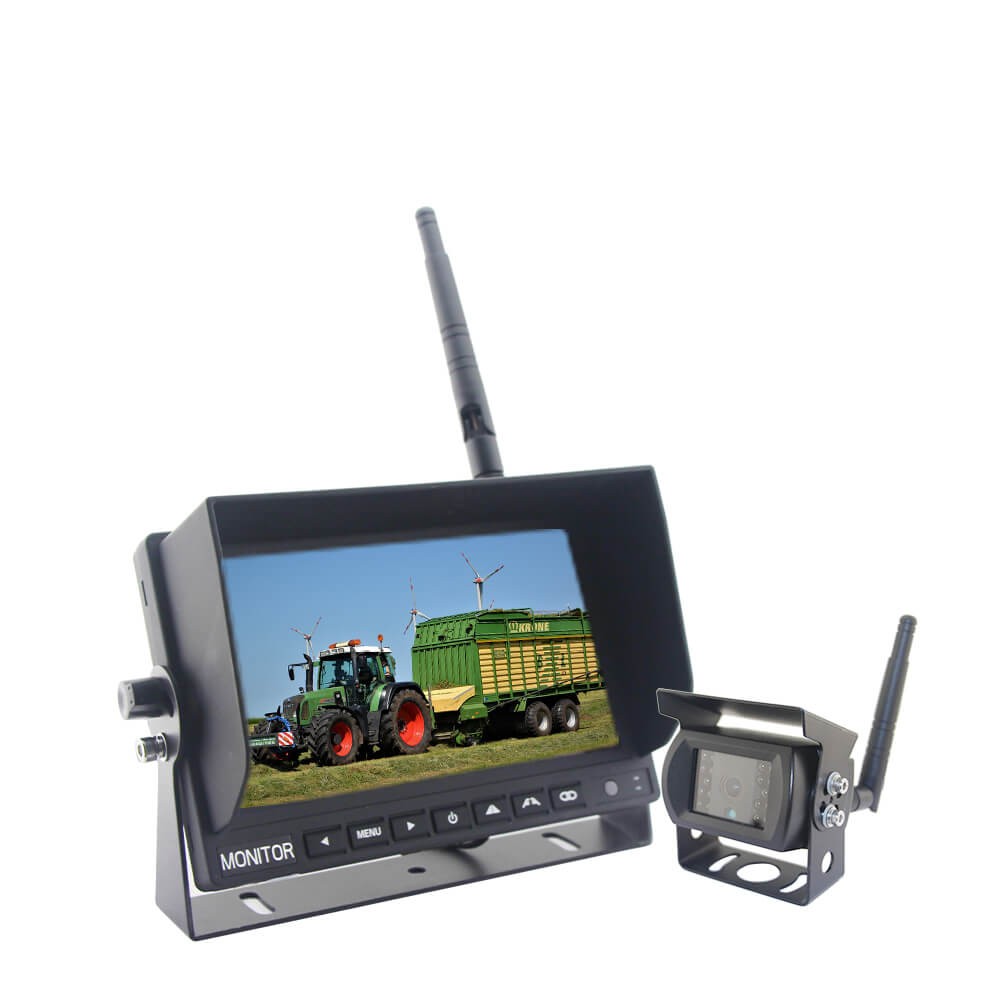

AOTOP 1080P HD digital wireless vehicle camera monitoring system features wireless connection, can saves

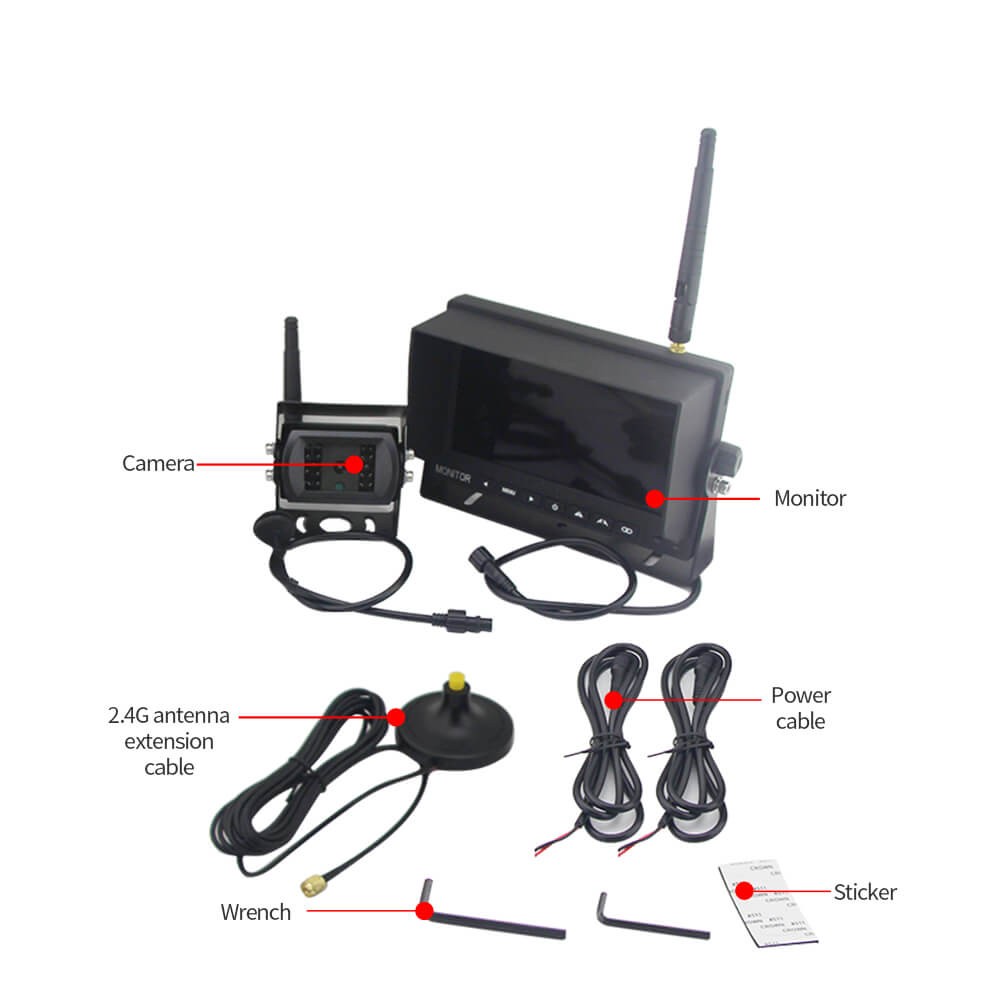

the installation time needed for wired system. The system includes AHD quad view monitor and IP69K
waterproof backup camera, can high definition display blind spots around the vehicle, enhance driving safety.
The wireless signal transmission distance can reach up to 656 feet (200 metres). The system is suitable for
semi-trailers, agricultural trucks, forklifts, bulldozers and other commercial vehicles, helping drivers to have
a full control of the surrounding situation.
| Wireless Monitor | |
| Model | CM-709MDW-HD |
| Screen ratio | 16:9 IPS panel |
| Resolution | 1024*R.G.B*600 |
| Backlight | LED, 500 cd/m2 |
| Viewing angle | Hor. L(85) R(85) Ver. UP(85) DOWN(85) |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| Power supply | DC 12-24V |
| loudspeaker | with |
| Delay time | 120mS |
| Electric current | Standby: ≤10mA, Working: ≤110mA |
| Power consumption | ＜3W |
| AV input | 1-4 channel HD wireless video signal input |
| Operating frequency range | 2400 ~ 2483.5MHz |
| System | PAL/NTSC automatically |
| Decompression mode | H.264 |
| Receive sensitivity | -89dBm@4MHZ |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission distance | 200m in open area |
| Shockproof level | 4G |
| Power cable | DC Cable |
| Wireless Camera | |
| Model | AC-301MDW-HD |
| Image sensor | CMOS 1/2.7” |
| Pixel | 1080P 1920*1080 pixels |
| Operating frequency range | 2400-2483.5MHZ |
| Transmission distance | 200M in open area |
| System | PAL/NTSC automatically |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission bandwidth | 8MHz BER<1E-3 |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| audio | with |
| SNR | 46.5dB |
| Waterproof | IP69K |
| Viewing angle | Diagonal viewing angle 120° |
| Transmitting sensitivity | -89 dBm |
| Shell material | Black aluminium alloy |
